Samsung ME16K3000AS/AA_0002

Model: ME16K3000AS/AA_0002

Save Part Not Listed?
product name

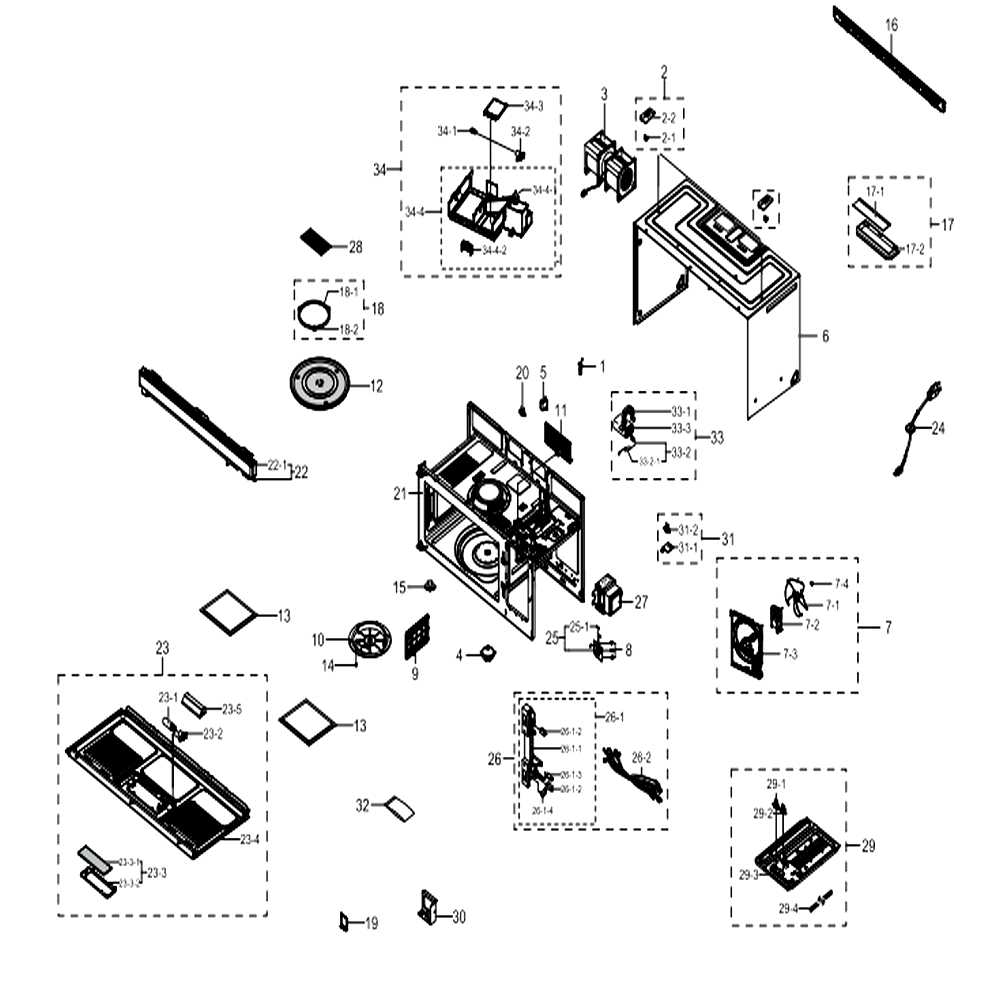

Main

...
...
1
Cable Clamp; Dawh-2nc,id18.5,nylon6/6,ntr SAM-6502-001056
...
2-2
Bracket Supporter; Me17h703sh,gi-Sgcc,t1, SAM-DE61-01565A
...
2-1
Assy-Holder Nut SAM-DE92-90508A
...
2
Assy Bracket Supporter; Me17h703sh,otr6, SAM-DE94-03258A
...
3
Motor Ac Ventilation; Smv-360ual_1,2,120v SAM-DE31-00028Y
...
4
Motor Ac Drive; Ssm-16hr,8,21v,60hz,3rpm, SAM-DE31-10172C
...
5
Capacitor-Motor SAM-DE59-50002A
...
6
Panel Outer; Jvm-1730dp2bb,egi-Secc,t0.4, SAM-DE64-02083T
...
7-1
Blade-Fan; Modular4,pp SAM-DE31-00064A
...
7-2
Motor Ac Fan; Smf-U2070b,2,120v,60hz,25w, SAM-DE31-00045B
...
7-3
Cover Motor; Md3,egi-Secc,t0.6 SAM-DE63-00872A
...
7-4
Spring-Blade; Mswr-Swrm,d1,0/d9.8,x7xcoil SAM-DE81-01614A
...
7
Assy Cover Motor; Me16h702seb,egi-Secc,t0 SAM-DE94-04042C
...
8
Support-Pcb SAM-DE61-30129A
...
9
Cover Mgt; Smh9151,pp,v-0,white,modular-3 SAM-DE63-00532B
...
10
Cover Stirrer; Hvm-1750dpbb,pp,fh44n,modu SAM-DE63-00534B
...
11
Cover Front SAM-DE63-00549A
...
12
Tray-Cooking SAM-DE63-00536A
...
13
Filter Air; Modular4,al,w172.9,l161.2,4 L SAM-DE63-00666A
...
14
Button-Locking SAM-DE66-20095B
...
15
Coupler SAM-DE67-00236A
...
16
Plate-Mounting SAM-DE70-00561A
...
17
Assy-Hood Damper; Jvm-1870,-,jvm250bl Otr SAM-DE92-90242D
...
17-1
Cover Damper; Jvm-1870,mica Sheet,0.22,68 SAM-DE71-60051B
...
17-2
Damper-Main SAM-DE72-40022A
...
18-1
Guide Roller; Otr6,pps,t3,w6,22g,jb1140,g SAM-DE72-60180A
...
18-2
Roller; 3rd,teflon,d15.5,-,-,-,- SAM-DE66-30012H
...
18
Assembly Guide Roller SAM-DE92-90495C
...
19
Bracket Barrier; Smh1622,egi-Secc,t0.4 SAM-DE61-01504A
...
20
Thermostat; 125/250v,15/7.5a,110,0,ge-Sur SAM-DE47-00034D
...
21
Assy Cavity Coating; Mmv1163,1.5 Cu.ft,-, SAM-DE94-01918A
...
22-1
Grille; Ml1-Md3,pc,hb,ge Black,lexan 141r SAM-DE64-02450A
...
22
Assy Grille; Me16k3000as/aa,pc,stss,me300 SAM-DE94-02408C
...
23-3-1
Glass-Cook Top Lamp SAM-DE67-40063A
...
23
Assy Base Bottom; Smh1611_Smh1713,secc,t0 SAM-DE94-02410A
...
23-5
Bracket Lamp; Smh1713,egi-Secc,t0.5,w65.2 SAM-DE61-01498A
...
23-4
Base Bottom; Md3,egi-Secc,t0.4,w756.8,l34 SAM-DE61-01354E
...
23-3
Assy Cover-Cook Top Lamp; Otr 6/7,-,-,emo SAM-DE99-00359B
...
23-3-2
Cover-Cooktop Lamp SAM-DE63-00100B
...
23-2
Socket-Lamp SAM-DE47-00006A
...
23-1
Lamp-Incandescent SAM-4713-001013
...
24
Assembly Power Cord SAM-DE96-00218C
...
25-1
Fuse-Cartridge; 250v,20a,slow-Blow,cerami SAM-3601-001198
...
25
Assy Noise Filter; Sn-Uf11b,250v/15a,250v SAM-DE96-00399B
...
26
Assy Holder-Wire; Me16h702seb/aa,de96-007 SAM-DE94-03519R
...
26-2
Assy Wire Harness-A; Smh1611s/xaa, Md3,12 SAM-DE96-00740D
...
26-1
Assembly Body Latch SAM-DE96-00414A
...
26-1-3
Switch-Micro SAM-3405-001033
...
26-1-4
Lever-Switch Lower SAM-DE66-90106B
...
26-1-1
Latch-Body SAM-DE66-00168A
...
26-1-2
Switch-Micro SAM-3405-001034
...
27
Assembly Mgt SAM-OM75P-21-ESGN
...
28
Filter Charcoal; Md3,activated Carbon,t9, SAM-DE63-30016H
...
29-1
Thermostat SAM-DE47-20034A
...
29-2
Thermostat; 125/250v,15/7.5a,120,0,ge-Sur SAM-DE47-20059B
...
29-3
Assy Base Plate Sub; Modular 3,secc,t0.5, SAM-DE94-01927A
...
29-4
Cushion Sponge; Otr,pur Foam,t10,w10,l100 SAM-DE63-90004B
...
29
Assembly Base Plate SAM-DE94-01926C
...
30
Bracket-Barrier; Ml1-Md3,egi-Secc,t0.4 SAM-DE61-01356A
...
31-2
Thermostat; 125/250v,15/7.5a,150,60,ge-Su SAM-DE47-20007B
...
31
Assy Thermostat; Me16k3000as/aa,160/60,br SAM-DE96-00912D
...
31-1
Bracket-Tco; Smh9151b/xaa,egi-Secc SAM-DE61-01371A
...
32
Assy Hard Ware; Smh1611b/xaa,ss Md-3 SAM-DE92-90505N
...
33-1
Bracket-Hvc SAM-DE61-00115A
...
33-2-1
Diode-H.v SAM-DE59-00002A
...
33-2
Assy-Hvd SAM-DE91-70063D
...
33-3
C-Oil SAM-2501-001011
...
33
Assy-Hvc; Smh9151b/xaa,0.9uf Hvc. No Scre SAM-DE97-00753A
...
34
Assy Duct Up; Me16h702seb,egi-Secc,t0.4,m SAM-DE94-04044A
...
34-4
Assy Duct Up; Md3,egi-Secc,t0.4,sub,metal SAM-DE94-04043A
...
34-4-2
Holder Lamp; Modular4,egi-Secc,t0.4 SAM-DE61-01300A
...
34-3
Cover Lamp; Modular4,egi-Secc,t0.4 SAM-DE63-00659A
...
34-2
Socket-Lamp SAM-DE47-00006A
...
34-1
Lamp-Incandescent SAM-4713-001013
...
34-4-1
Holder-Cord; Md3,pp,natural SAM-DE61-01670A

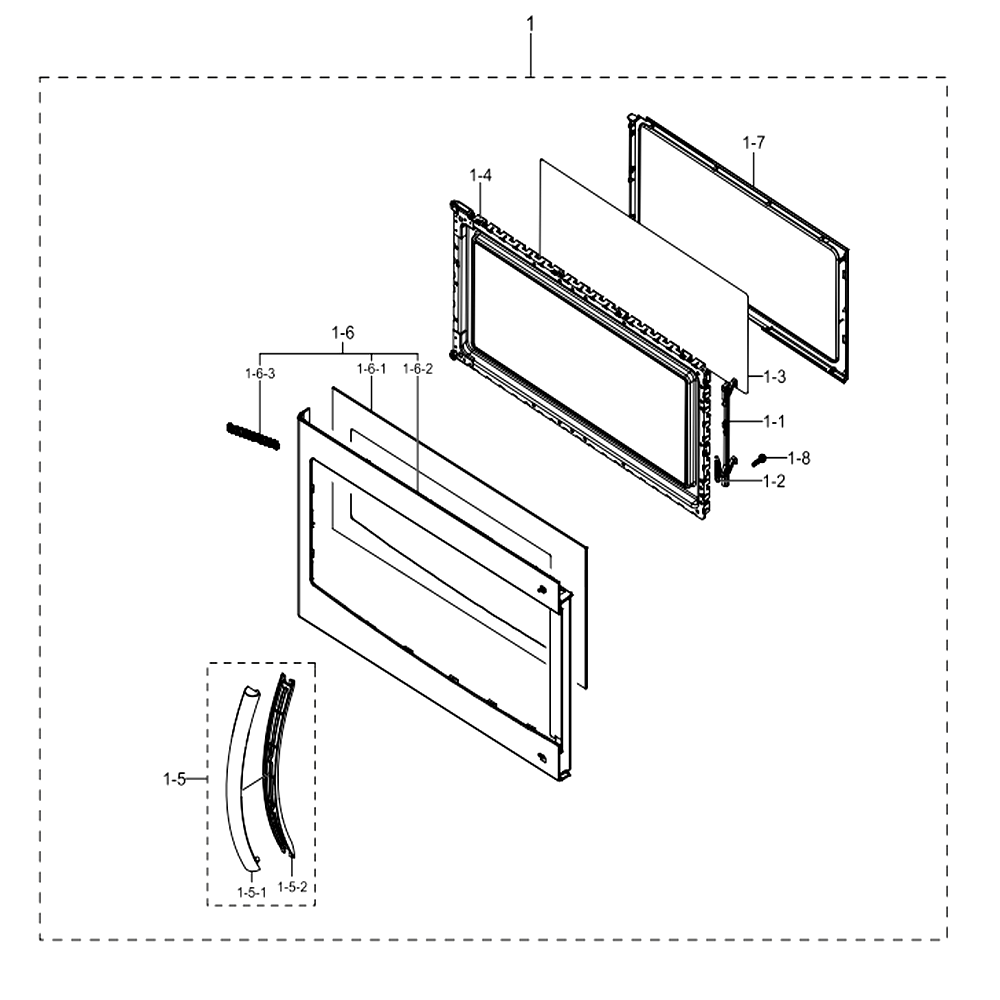

Assy Door

...
...
1-6-2
Door A; Ml1-Md3,pc,-,hb,141r,ge Black,lex SAM-DE64-02448A
...
1
Assy Door; Me16k3000as/aa,pc,stss,me3000k SAM-DE94-02416Z
...
1-8
Screw-Tapping; Th,+,1,m4,l20,zpc(blk),swr SAM-6002-001159
...
1-7
Door-C SAM-DE64-02056A
...
1-6
Assy Door A; Me16k3000as/aa,pc,stss,me300 SAM-DE94-02415G
...
1-6-3
Badge Logo Inlet; Ni,t0.08,w9.19,l65,blac SAM-DG64-00360C
...
1-6-1
Screen-Door(b); Smh1611,glass,t3.2,w558.4 SAM-DE64-02521A
...
1-5
Assy Handle; Smh1161,ml1-Md3 SAM-DE94-02409C
...
1-5-2
Handle-Door; Smh1611,pc,h41.9,l305.8,141r SAM-DE64-02451C
...
1-5-1
Cover-Handle; Smh1611_Smh1713,pc,141r,ml1 SAM-DE63-00689C
...
1-4
Assembly Door E SAM-DE94-01469G
...
1-3
Film-Door SAM-DE01-00091A
...
1-2
Spring-Key SAM-DE61-00048A
...
1-1
Door-Key SAM-DE64-01308A

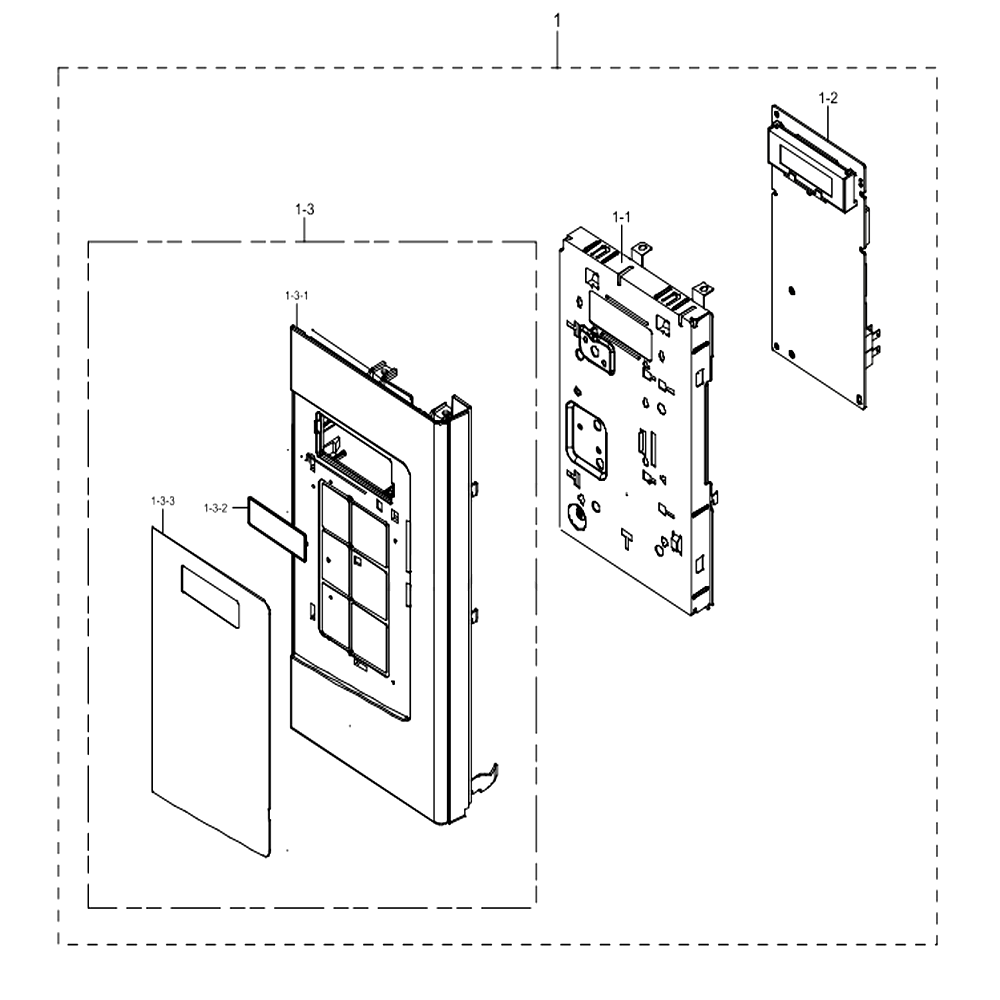

Assy Control Box

...
...
1-1
Bracket-Control Panel; Ml1-Md3,egi-Secc,t SAM-DE61-01355A
...
1-2
Assy Pcb Main; Me16h702,ras-Sm6l-07,120v/ SAM-DE92-02434C
...
1-3-1
Control Panel; Ml1-Md3,pc,hb,ge Black SAM-DE64-02449A
...
1-3-2
Window-Display SAM-DE64-00766A
...
1-3-3
Switch Membrane; Me16k3000ab/aa,pc,120v/6 SAM-DE34-00380C
...
1-3
Assy Control Panel; Me16k3000as/aa,stss,p SAM-DE94-02411N
...
1
Assy Control Box; Me16k3000as/aa,120n/60h SAM-DE94-02414U
