product name

Samsung ME16K3000AS/AA_0001

Model: ME16K3000AS/AA_0001

Save Part Not Listed?
product name

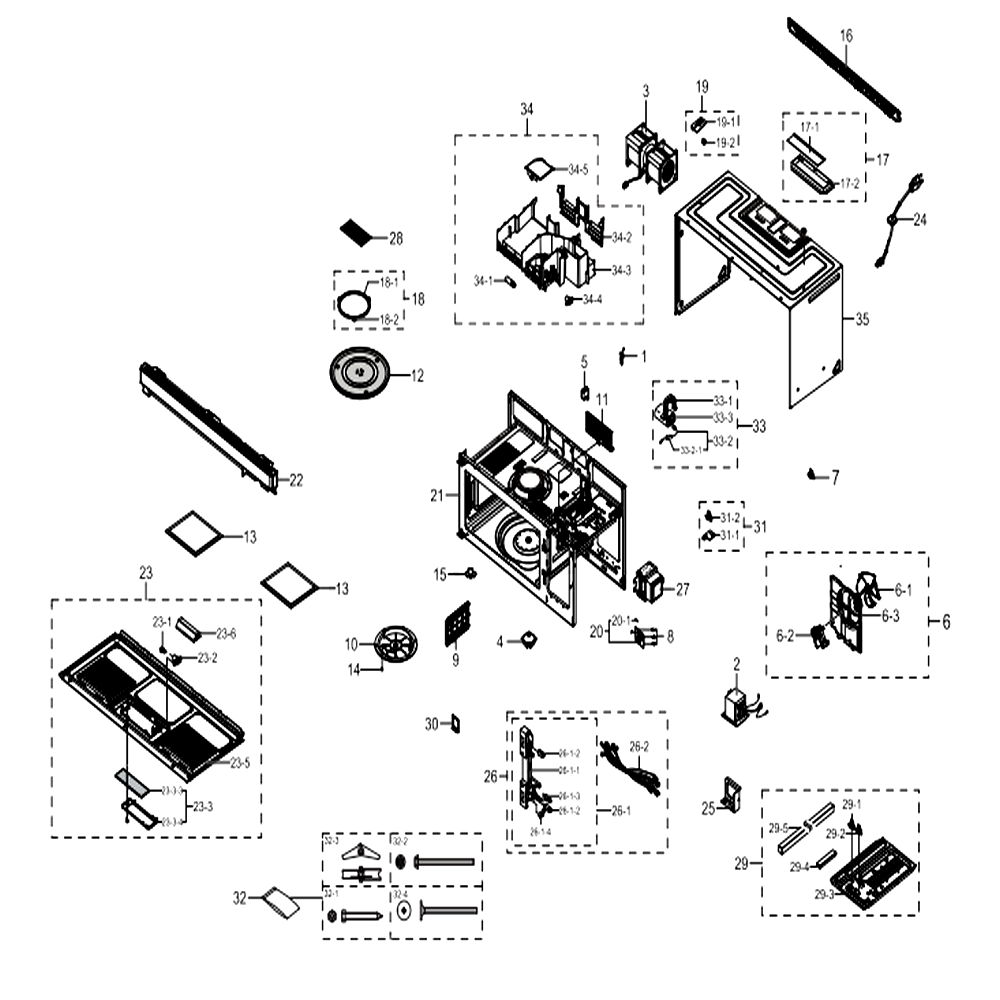

Main

...
...
1
Cable Clamp; Dawh-2nc,id18.5,nylon6/6,ntr SAM-6502-001056
...
2
Trans H.v; Shv-U1650b,120v,2365v/3.50v,60 SAM-DE26-00122B
...
3
Motor Ac Ventilation; Smv-360ual_1,2,120v SAM-DE31-00028Y
...
4
Motor Ac Drive; Ssm-16hr,8,21v,60hz,3rpm, SAM-DE31-10172C
...
5
Capacitor-Motor SAM-DE59-50002A
...
6-1
Blade-Fan; Modular4,pp SAM-DE31-00064A
...
6-2
Motor Ac Fan; Smf-U2070b,2,120v,60hz,25w, SAM-DE31-00045B
...
6-3
Cover-Motor SAM-DE63-00533B
...
6
Assy Cover Motor; Me16h702seb/aa,pp,120/6 SAM-DE94-01922K
...
7
Thermostat; 125/250v,15/7.5a,110,0,ge-Sur SAM-DE47-00034D
...
8
Support-Pcb SAM-DE61-30129A
...
9
Cover Mgt; Smh9151,pp,v-0,white,modular-3 SAM-DE63-00532B
...
10
Cover Stirrer; Hvm-1750dpbb,pp,fh44n,modu SAM-DE63-00534B
...
11
Cover Front SAM-DE63-00549A
...
12
Tray-Cooking SAM-DE63-00536A
...
13
Filter Air; Modular4,al,w172.9,l161.2,4 L SAM-DE63-00666A
...
14
Button-Locking SAM-DE66-20095B
...
15
Coupler SAM-DE67-00236A
...
16
Plate-Mounting SAM-DE70-00561A
...
17-1
Cover Damper; Jvm-1870,mica Sheet,0.22,68 SAM-DE71-60051B
...
17-2
Damper-Main SAM-DE72-40022A
...
17
Assy-Hood Damper; Jvm-1870,-,jvm250bl Otr SAM-DE92-90242D
...
18-1
Guide Roller; Otr6,pps,t3,w6,22g,jb1140,g SAM-DE72-60180A
...
18-2
Roller; 3rd,teflon,d15.5,-,-,-,- SAM-DE66-30012H
...
18
Assembly Guide Roller SAM-DE92-90495C
...
19-1
Bracket Supporter; Me17h703sh,gi-Sgcc,t1, SAM-DE61-01565A
...
19-2
Assy-Holder Nut SAM-DE92-90508A
...
19
Assy Bracket Supporter; Me17h703sh,otr6, SAM-DE94-03258A
...
20-1
Fuse-Cartridge; 250v,20a,slow-Blow,cerami SAM-3601-001198
...
20
Assy Noise Filter; Sn-Uf11b,250v/15a,250v SAM-DE96-00399B
...
21
Assy Cavity Coating; Mmv1163,1.5 Cu.ft,-, SAM-DE94-01918A
...
22
Grille; Ml1-Md3,pc,hb,ge Black,lexan 141r SAM-DE64-02450A
...
23-1
Lamp-Incandescent SAM-4713-001013
...
23-2
Socket-Lamp SAM-DE47-00006A
...
23-3-3
Glass-Cook Top Lamp SAM-DE67-40063A
...
23-3-4
Cover-Cooktop Lamp SAM-DE63-00100B
...
23-3
Assy Cover-Cook Top Lamp; Otr 6/7,-,-,emo SAM-DE99-00359B
...
23-5
Base Bottom; Md3,egi-Secc,t0.4,w756.8,l34 SAM-DE61-01354E
...
23-6
Bracket Lamp; Smh1713,egi-Secc,t0.5,w65.2 SAM-DE61-01498A
...
23
Assy Base Bottom; Smh1611_Smh1713,secc,t0 SAM-DE94-02410A
...
24
Assembly Power Cord SAM-DE96-00218C
...
25
Bracket-Barrier; Ml1-Md3,egi-Secc,t0.4 SAM-DE61-01356A
...
26-1-1
Latch-Body SAM-DE66-00168A
...
26-1-2
Switch-Micro SAM-3405-001034
...
26-1-3
Switch-Micro SAM-3405-001033
...
26-1-4
Lever-Switch Lower SAM-DE66-90106B
...
26-1
Assembly Body Latch SAM-DE96-00414A
...
26-2
Assy Wire Harness-A; Smh1611s/xaa, Md3,12 SAM-DE96-00740D
...
26
Assy Holder-Wire; Me16h702seb/aa,de96-007 SAM-DE94-03519R
...
27
Assembly Mgt SAM-OM75P-21-ESGN
...
28
Filter-Charcoal; Rvm-1625bj,activated Car SAM-DE63-30016E
...
29-1
Thermostat SAM-DE47-20034A
...
29-2
Thermostat; 125/250v,15/7.5a,120,0,ge-Sur SAM-DE47-20059B
...
29-3
Assy Base Plate Sub; Modular 3,secc,t0.5, SAM-DE94-01927A
...
29-4
Cushion; Pu Foam,t5x10x50 SAM-DE63-90064B
...
29-5
Cushion Sponge; Otr,pur Foam,t10,w10,l100 SAM-DE63-90004B
...
29
Assembly Base Plate SAM-DE94-01926C
...
30
Bracket Barrier; Smh1622,egi-Secc,t0.4 SAM-DE61-01504A
...
31-1
Bracket-Tco; Smh9151b/xaa,egi-Secc SAM-DE61-01371A
...
31-2
Thermostat; 125/250v,15/7.5a,150,60,ge-Su SAM-DE47-20007B
...
31
Assy Thermostat; Me16k3000as/aa,160/60,br SAM-DE96-00912D
...
32-1
Screw-Lag SAM-DE60-10111A
...
32-2
Bolt-Toggle SAM-DE60-20022A
...
32-3
Nut-Toggle SAM-DE60-30022A
...
32-4
Bolt-Flat SAM-DE60-20066A
...
32
Assy Hard Ware; Smh1611b/xaa,ss Md-3 SAM-DE92-90505N
...
33-1
Bracket-Hvc SAM-DE61-00115A
...
33-2-1
Diode-H.v SAM-DE59-00002A
...
33-2
Assy-Hvd SAM-DE91-70063D
...
33-3
C-Oil SAM-2501-001011
...
33
Assy-Hvc; Smh9151b/xaa,0.9uf Hvc. No Scre SAM-DE97-00753A
...
34-1
Lamp-Incandescent SAM-4713-001013
...
34-2
Bracket-Duct Upper Rear; Md3,egi-Secc,t0. SAM-DE61-01419A
...
34-3
Duct-Upper; Md3,pp,hb,mt44,natural,hb, Mo SAM-DE67-00273A
...
34-4
Socket-Lamp SAM-DE47-00006A
...
34-5
Cover-Lamp SAM-DE63-00541A
...
34
Assy Duct Upper; Smh1611b/xaa,pp-Hb,ml1-M SAM-DE94-01928U
...
35
Panel Outer; Jvm-1730dp2bb,egi-Secc,t0.4, SAM-DE64-02083T

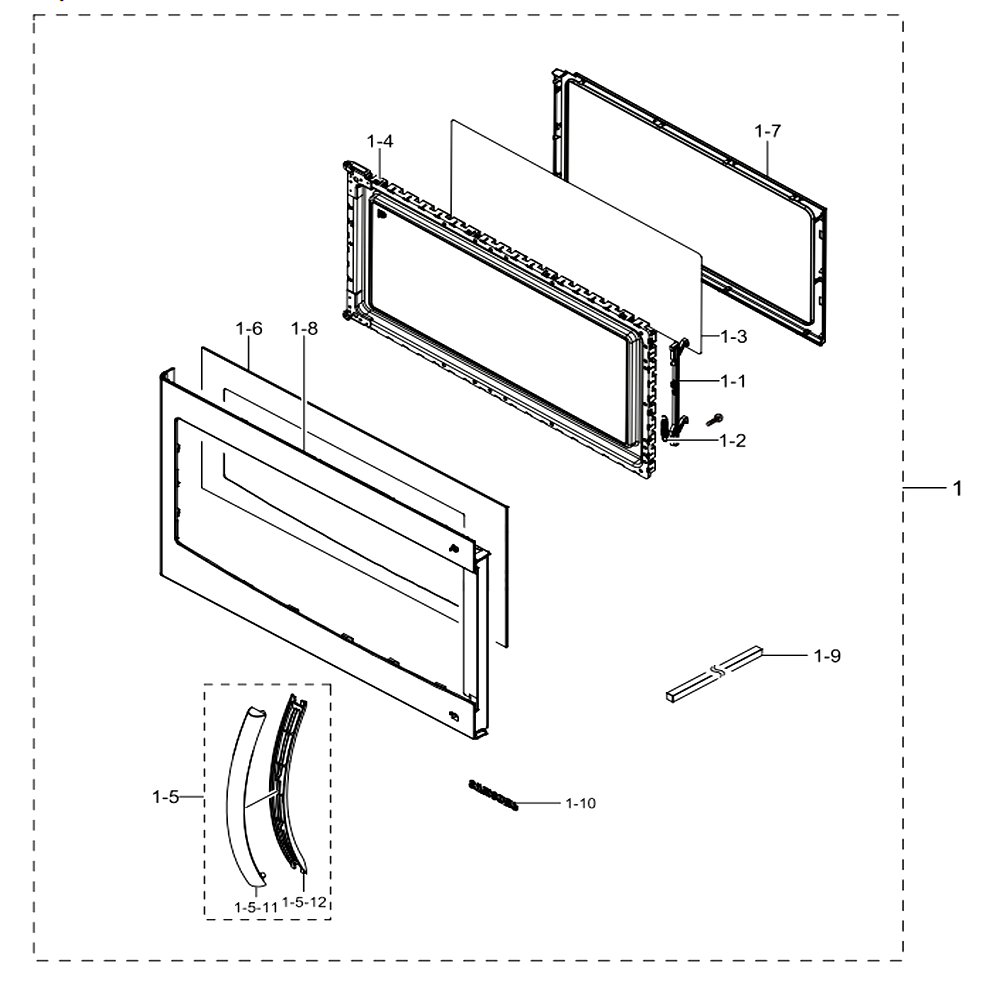

Assy Door

...
...
1-1
Door-Key SAM-DE64-01308A
...
1-2
Spring-Key SAM-DE61-00048A
...
1-3
Film-Door SAM-DE01-00091A
...
1-4
Assembly Door E SAM-DE94-01469G
...
1-5-11
Cover-Handle; Smh1611_Smh1713,pc,141r,ml1 SAM-DE63-00689C
...
1-5-12
Handle-Door; Smh1611,pc,h41.9,l305.8,141r SAM-DE64-02451C
...
1-5
Assy Handle; Smh1161,ml1-Md3 SAM-DE94-02409C
...
1-6
Screen-Door(b); Smh1611,glass,t3.2,w558.4 SAM-DE64-02521A
...
1-7
Door-C SAM-DE64-02056A
...
1-8
Door A; Ml1-Md3,pc,-,hb,141r,ge Black,lex SAM-DE64-02448A
...
1-9
Cushion Sponge; Otr,pur Foam,t10,w10,l100 SAM-DE63-90004B
...
1-10
Badge Logo Inlet; Ni,t0.08,w9.19,l65,blac SAM-DG64-00360C
...
1
Assy Door; Me16k3000as/aa,pc,stss,me3000k SAM-DE94-02416Z

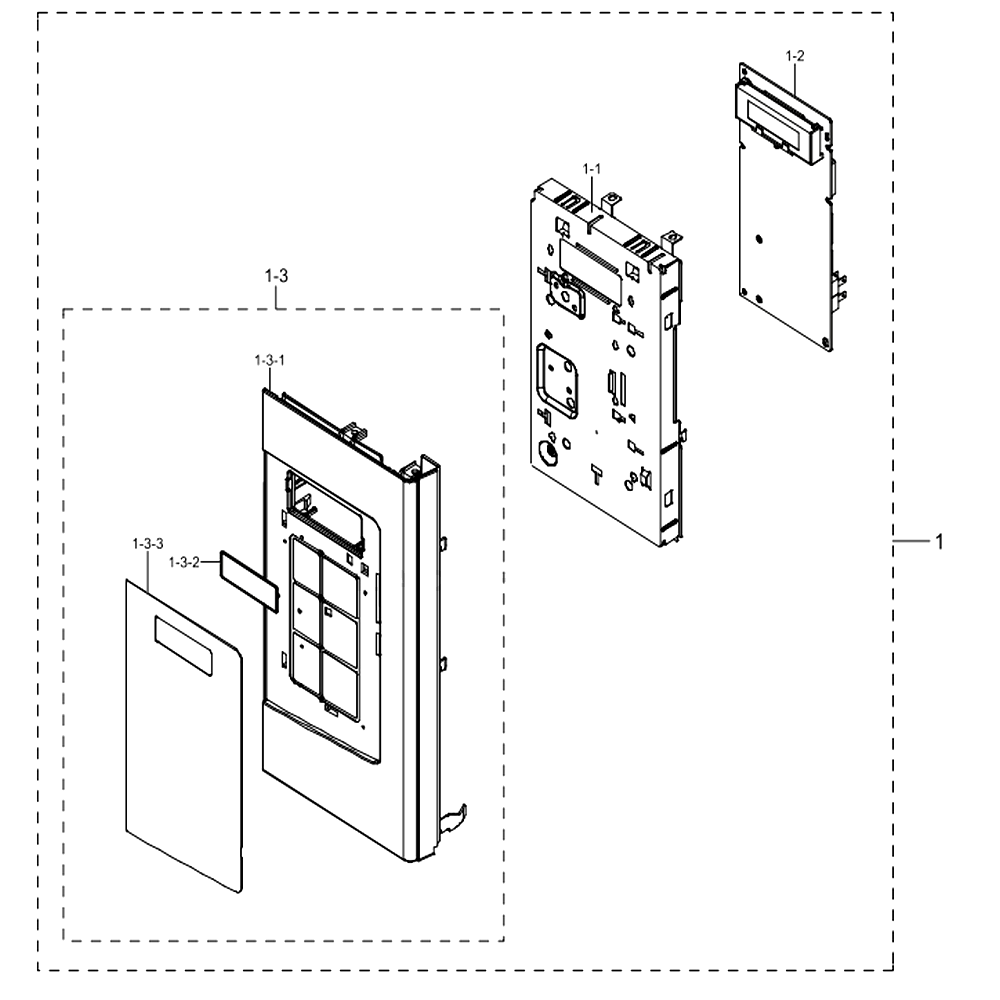

Assy Control Box

...
...
1-1
Assy Bracket C/panel; Smh1611,secc,t0.4,m SAM-DE94-02412A
...
1-2
Assy Pcb Main; Me16h702,ras-Sm6l-07,120v/ SAM-DE92-02434C
...
1-3-1
Control Panel; Ml1-Md3,pc,hb,ge Black SAM-DE64-02449A
...
1-3-2
Window-Display SAM-DE64-00766A
...
1-3-3
Switch Membrane; Me16k3000ab/aa,pc,120v/6 SAM-DE34-00380C
...
1-3
Assy Control Panel; Me16k3000as/aa,stss,p SAM-DE94-02411N
...
1
Assy Control Box; Me16k3000as/aa,120n/60h SAM-DE94-02414U
