Samsung LH48RMDPLGAZA_US03

Model: LH48RMDPLGAZA_US03

Save Part Not Listed?
product name

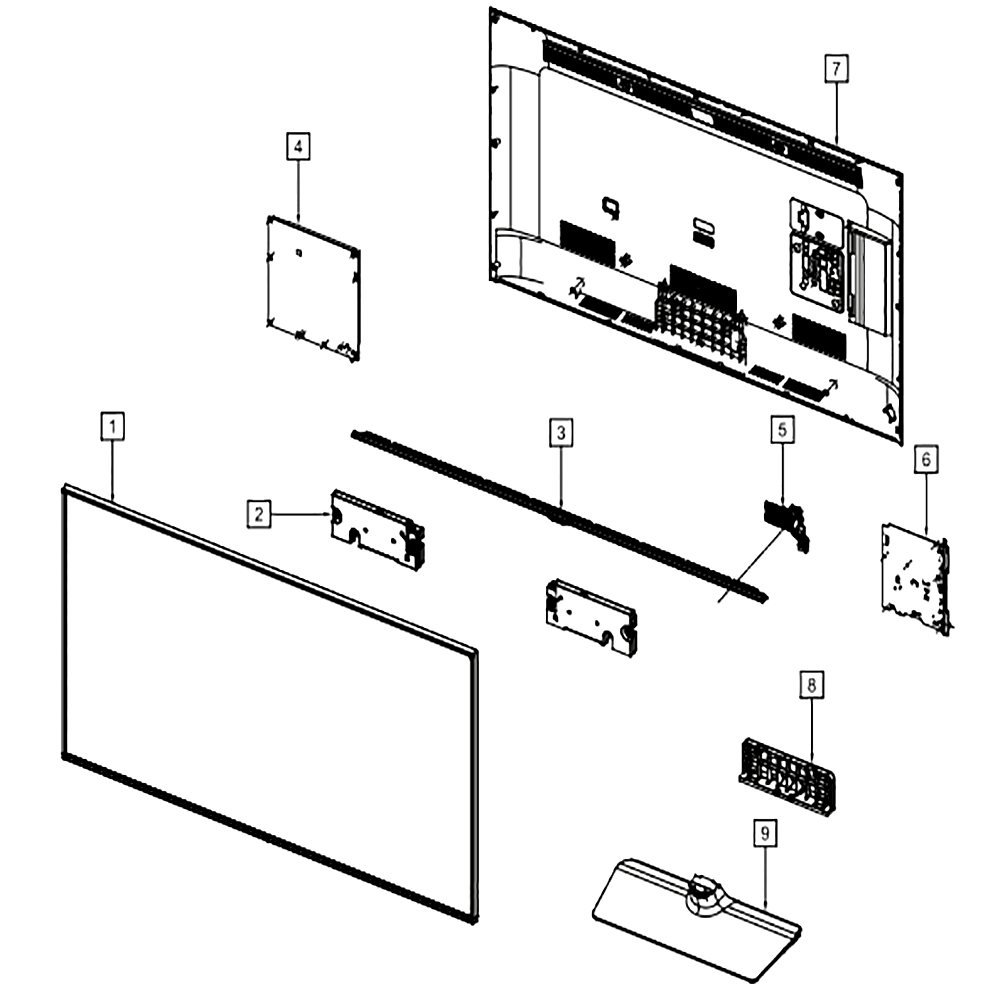

Main

...
...
1
Product Lcd-Sdc; Cy-Gh048bglv6v/h,h5500,c SAM-BN95-01317G
...
2
Assy Speaker P; 6ohm,10w,enclosure_H5k SAM-BN96-30334B
...
3
Assy Decoration Smt; Uh5500,48,light Tita SAM-BN95-01397E
...
4
Dc Vss-Pd-Board SAM-BN44-00703E
...
5
Assembly Board P-Function Assy SAM-BN96-30902C
...
6
Assy Pcb Main; Lh48rmdplga/za SAM-BN94-07623P
...
7
Assy Cover P-Rear; Rmd(lfd),48,us,hips,v0 SAM-BN96-32079T
...
8
Assembly Guide P-Stand SAM-BN96-30590A
...
9
Assy Stand P-Base; Uh5500 50,pc+abs+g/f20 SAM-BN96-30588A
