product name

Samsung HW-H600/ZA-ZZ01

Model: HW-H600/ZA-ZZ01

Save Part Not Listed?
product name

Speaker Assy

...
...
1
Top Cover SAM-AH96-02998A
...
2
Cover Midd SAM-AH63-03536A
...
3
Cvr Bottom SAM-AH96-02896A
...
4
Grille Lt SAM-AH63-03619A
...
5
Grille Rt SAM-AH63-03598A
...
6
Main Bracket SAM-AH96-03001A
...
7
Cvr Pcb-Fr SAM-AH96-03045A
...
8
Cover Pcb SAM-AH96-03127A
...
9
Sheet Seal SAM-AH63-03654A
...
10
Sheet SAM-AH63-03676A
...
11
Pcb Main SAM-AH94-03361A
...
12
Pcb Fr-Vfd SAM-AH94-03362A
...
13
Pcb Blutoo SAM-AH96-02298A
...
14
Speaker Lt SAM-AH82-00989A
...
15
Speaker Rt SAM-AH82-00990A
...
16
Swoofer-Lt SAM-AH82-00991A
...
17
Swoofer-Rt SAM-AH82-00992A
...
18
Cable M-Fr SAM-AH39-01228B
...
19
Cable Bt SAM-AH39-01238B
...
20
Screw SAM-6003-000276
...
21
Screw M2x7 SAM-AH64-05802A
...
22
Screw SAM-6003-001438
...
23
Screw SAM-6003-000275

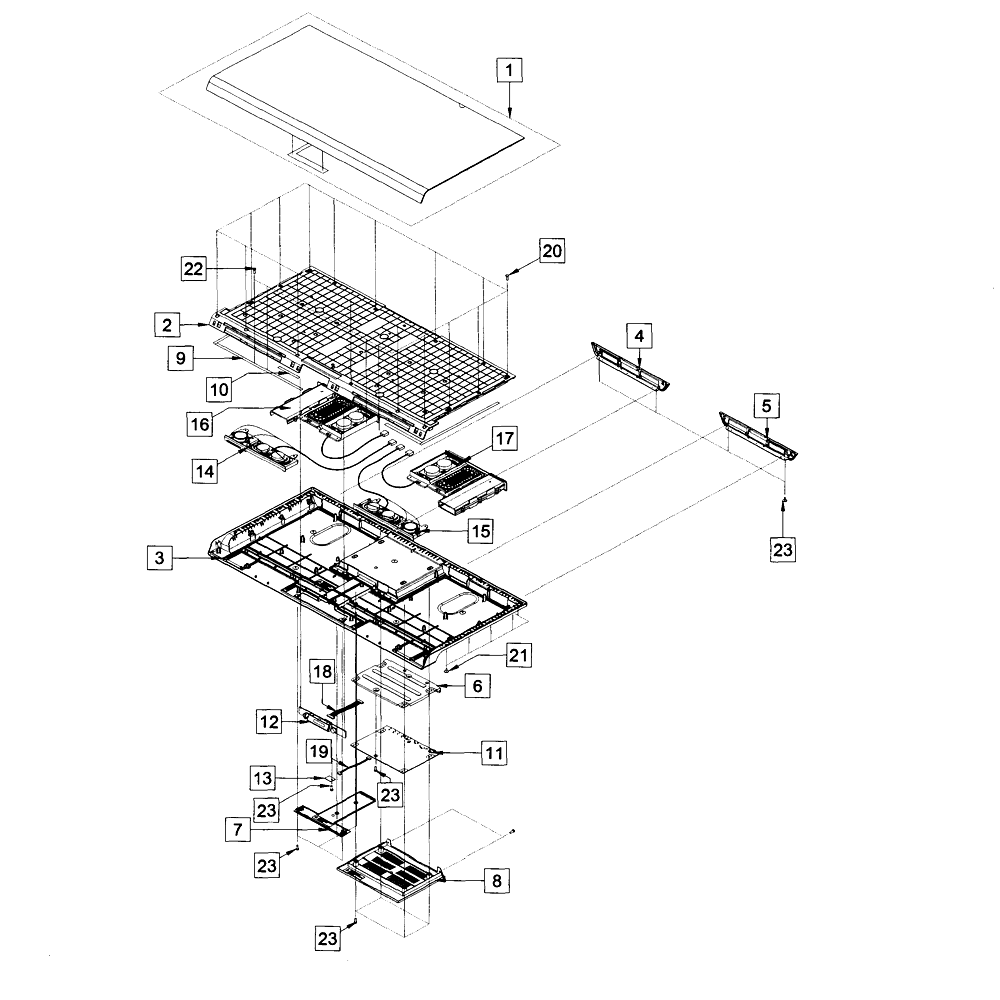

Schematic Image Zoomed
