Samsung HT-Z510T/XAA

Model: HT-Z510T/XAA

Save Part Not Listed?
product name

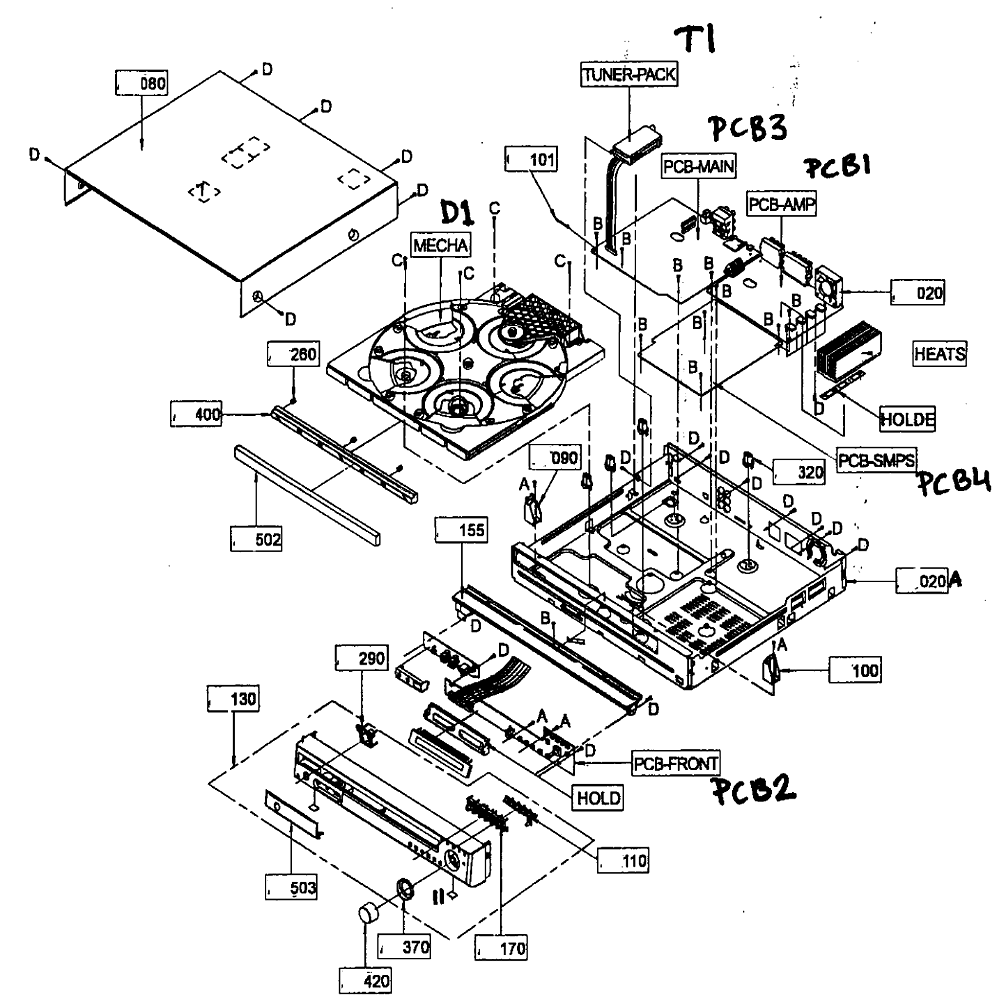

Cabinet Parts

...
...
D1
Dvd Deck SAM-AH97-02597A
...
PCB1
Amp Pcb Ay SAM-AH92-02787A
...
PCB2
Front Pcb SAM-AH92-02783A
...
PCB3
Main Pcb SAM-AH92-02786A
...
PCB4
Smps Pcb SAM-AH44-00150A
...
T1
Tuner Pack SAM-AH40-00089A
...
20
Television Cooling Fan SAM-AH31-00039B
...
80
Cabinet SAM-AH64-03823A
...
90
Tray SAM-AH63-01092A
...
100
Tray SAM-AH63-01093A
...
110
Knob SAM-AH64-04483A
...
130
Front Assembly SAM-AH97-02501C
...
155
Bracket SAM-AH61-02522A
...
170
Knob SAM-AH64-04476A
...
260
Spring SAM-AH61-02324A
...
290
Power Knob SAM-AH64-04477A
...
320
Holder SAM-AH61-02059A
...
370
Decoration SAM-AH64-04480B
...
400
Holder SAM-AH61-02323A
...
420
Knob SAM-AH64-04478A
...
502
Door Dvd SAM-AH64-04481A
...
503
Front Door SAM-AH64-04482B

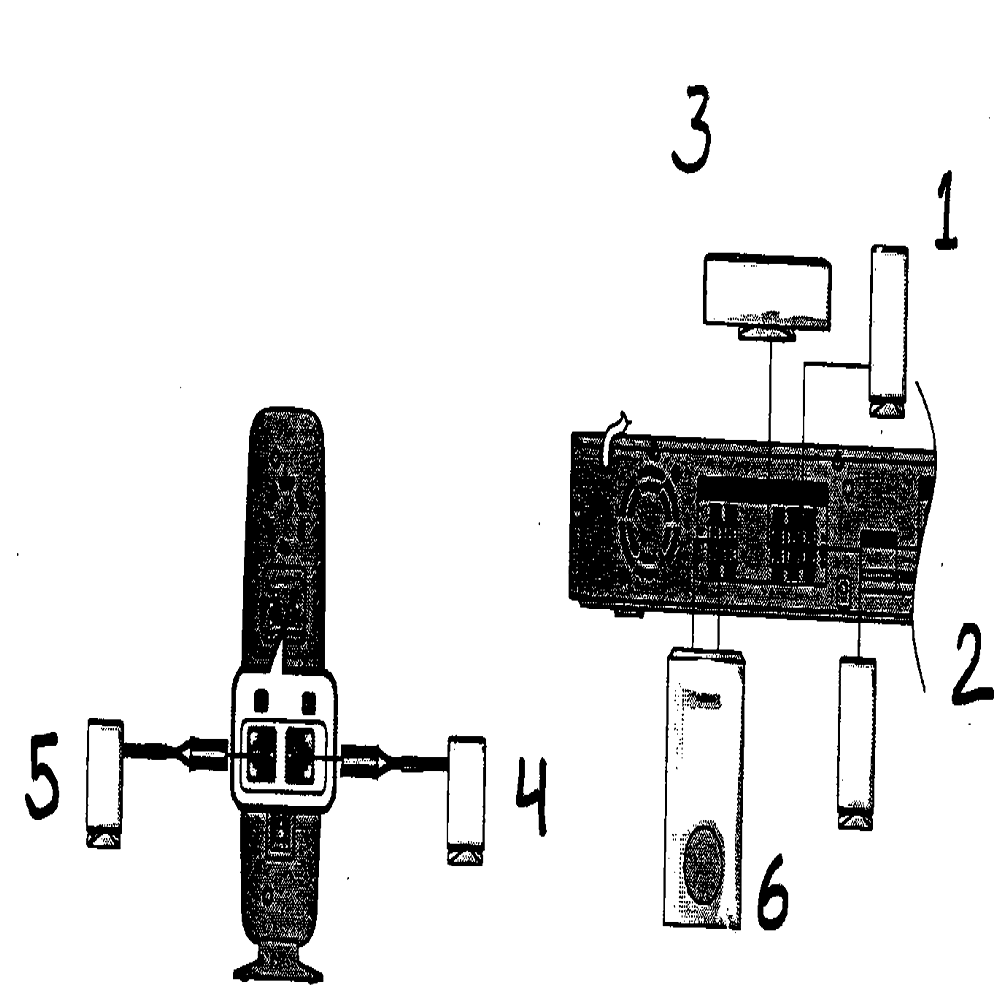

Speakers

...
...
1
Speaker SAM-AH81-03845J
...
2
Speaker SAM-AH81-03845A
...
3
Speaker SAM-AH81-03845B
...
4
Speaker SAM-AH81-03845K
...
5
Audio Speaker SAM-AH81-03845C
...
6
Subwoofer Speaker SAM-AH81-03845D
