product name

Samsung HT-Z420T/XAA

Model: HT-Z420T/XAA

Save Part Not Listed?
product name

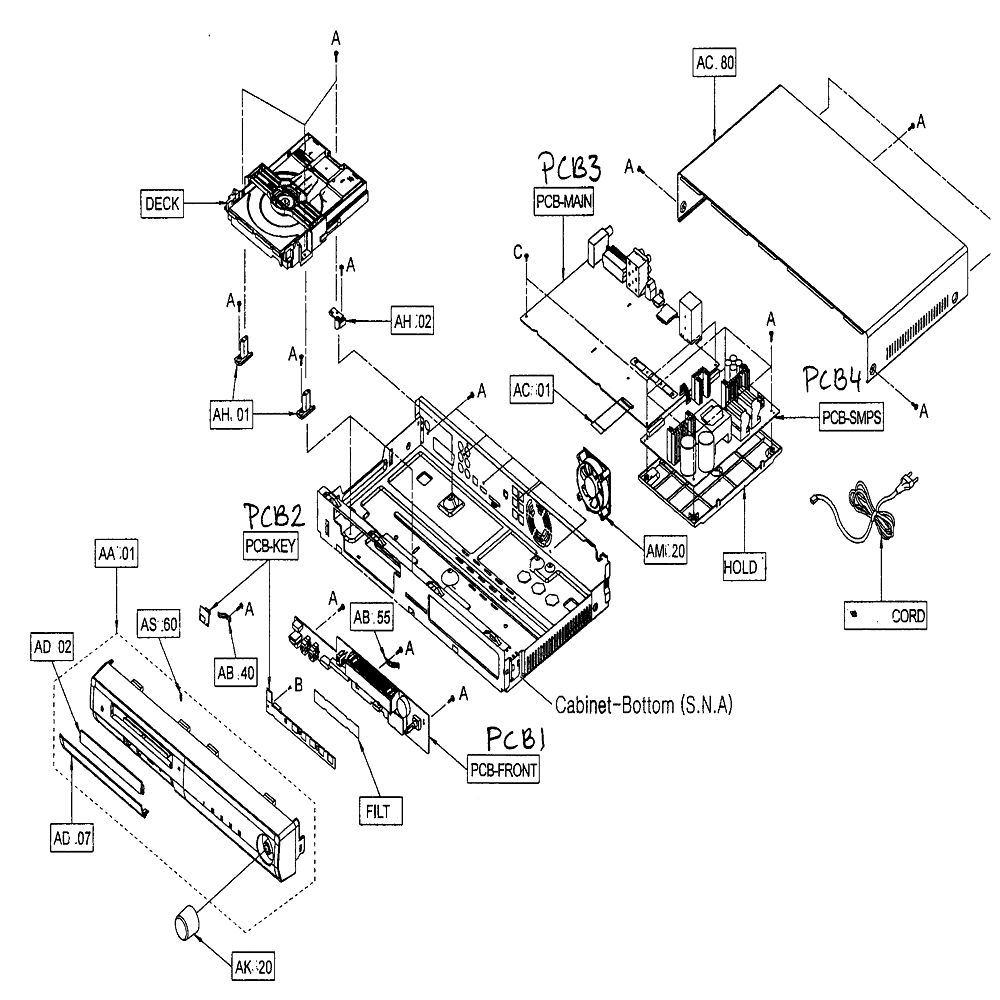

Cabinet Parts

...
...
A
Screw SAM-6003-000275
...
PCB4
Smps Pcb SAM-AH92-02991A
...
PCB3
Pcb Main SAM-AH92-03034A
...
PCB2
Pcb Key SAM-AH92-02980A
...
PCB1
Pcb Front SAM-AH92-03045A
...
HOLD
Holder Smp SAM-AH61-02750A
...
FILT
Filter-Vfd SAM-AH63-01537B
...
DECK
Deck Assembly SAM-AH96-00010C
...
CORD
Power Cord SAM-3903-000406
...
C
Screw-Tapt SAM-6003-001561
...
B
Screw SAM-6003-001479
...
AS60
Spring SAM-AH61-02527A
...
AK20
Knob SAM-AH64-04855A
...
AA01
Assembly SAM-AH97-03083X
...
AB40
Bracket SAM-AH61-02811A
...
AB55
Bracket SAM-AH61-02874A
...
AC01
Cable SAM-3809-002052
...
AC80
Cabinet SAM-AH64-04895A
...
AD02
Door SAM-AH64-04897B
...
AD07
Door SAM-AH64-04898E
...
AH01
Holder SAM-AH61-02747A
...
AH02
Holder SAM-AH61-02748A
...
AM20
Fan Motor SAM-AH31-00029E

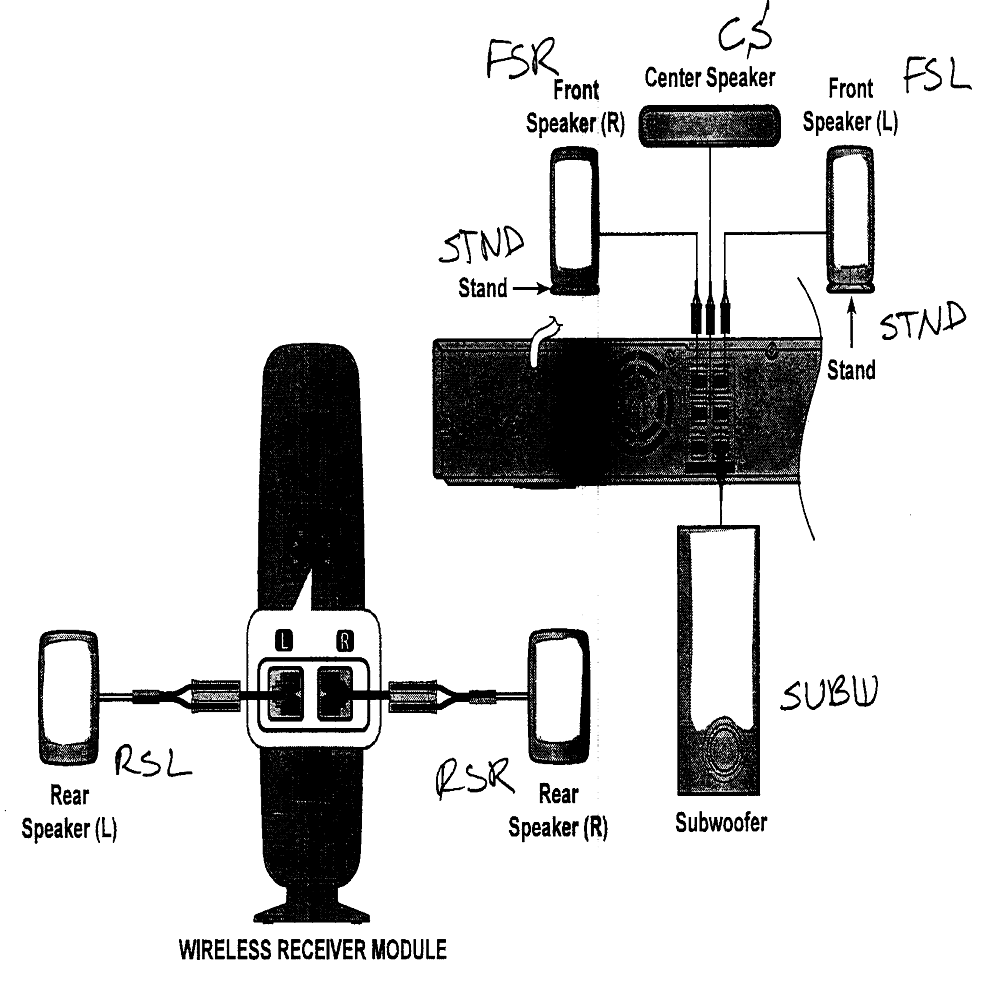

Speakers

...
...
CS
Control Speaker SAM-AH81-04973A
...
FSL
Speak SAM-AH81-04972A
...
FSR
Speaker SAM-AH81-04676A
...
RSL
Rr Spkr Lt SAM-AH81-04974A
...
RSR
Rr Spkr Rt SAM-AH81-04677A
...
STND
Spkr.stand SAM-AH81-04670A
...
SUBW
Subwoofer SAM-AH81-04685A
