Samsung HT-J4500/ZA-FK01

Model: HT-J4500/ZA-FK01

Save Part Not Listed?
product name

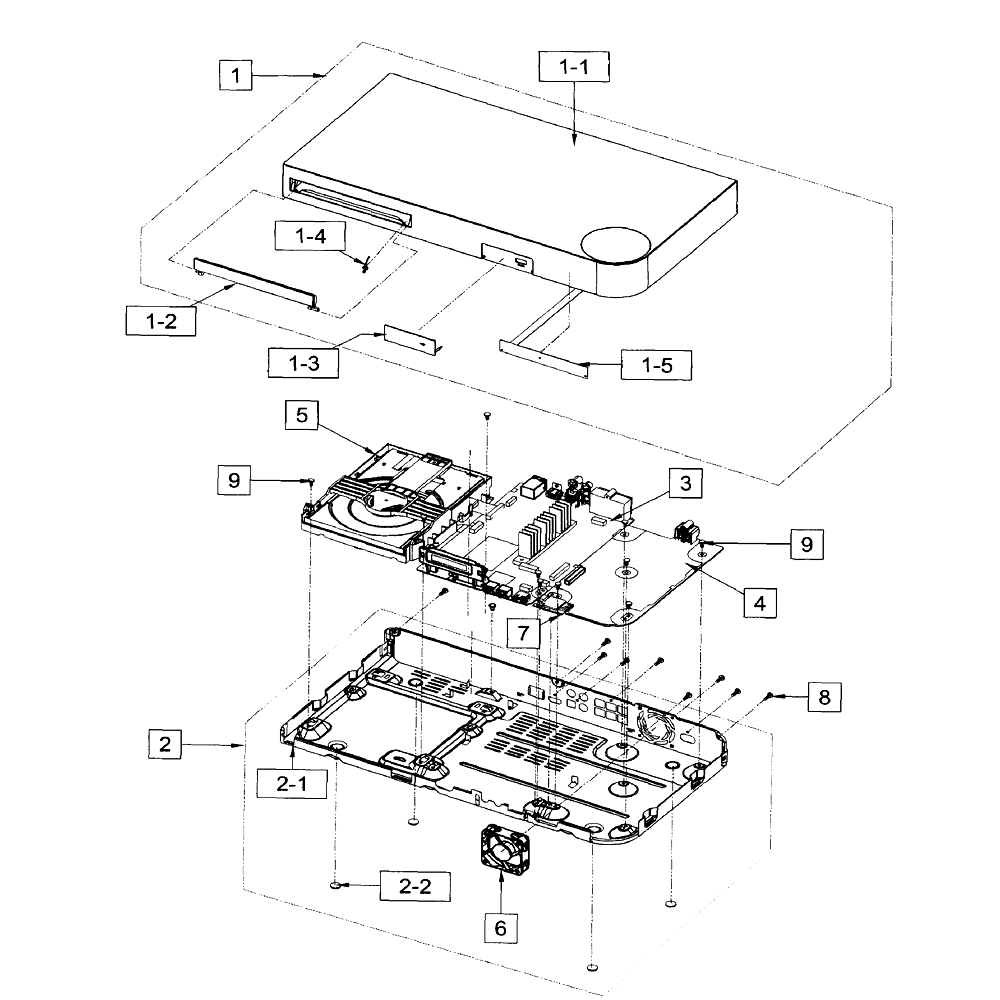

Dvd Section

...
...
1-2
Cover Door SAM-AH63-03064A
...
1-4
Spring SAM-AK61-00137A
...
1-5
Sw Membran SAM-AH34-00028A
...
1
Assembly Kit SAM-AH96-03515A
...
2-2
Foot,rubbe SAM-AK67-00175A
...
3
Pcb Main SAM-AH94-03516D
...
4
Power Pcb SAM-AH44-00316A
...
5
Dvd Deck SAM-AH96-02790A
...
6
Television Cooling Fan SAM-AH31-00067A
...
7
Pcb Blutoo SAM-AH96-02298A
...
8
Screw SAM-6003-000275
...
9
Screw-Tapt SAM-6003-001561

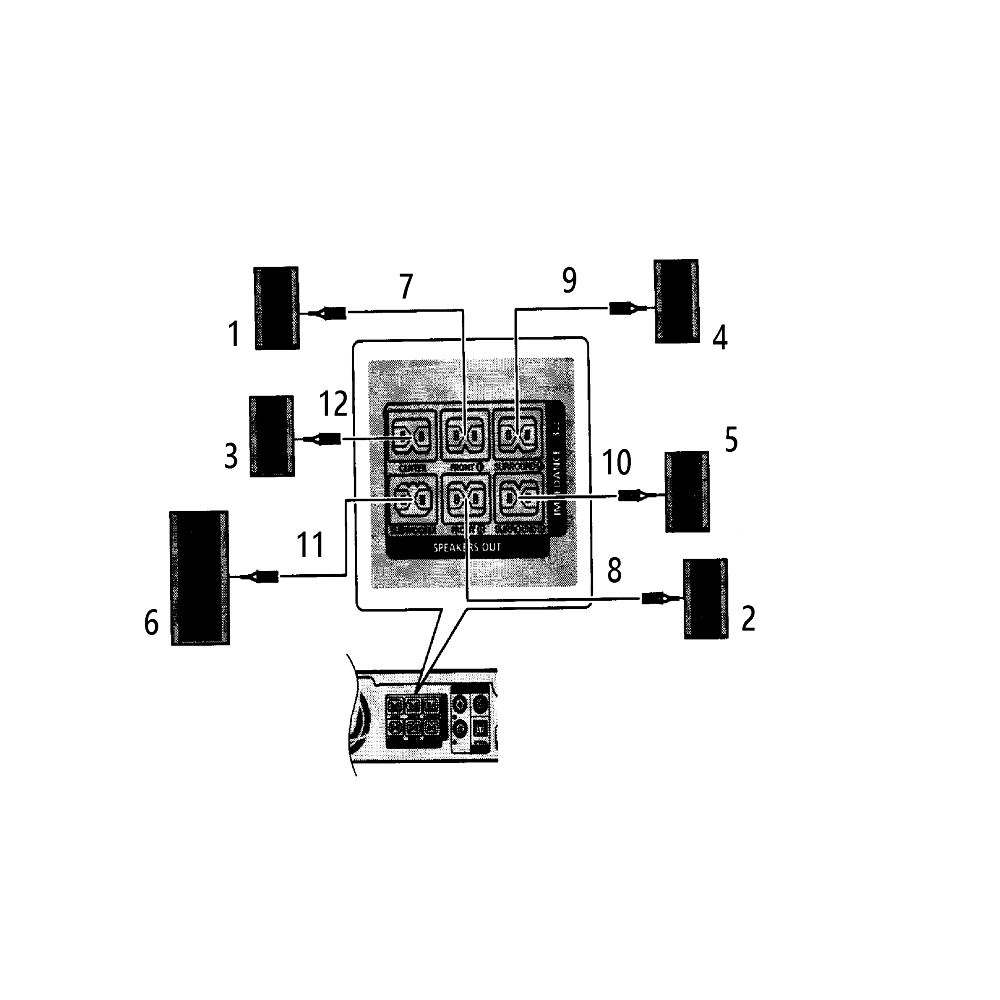

Speakers Section

...
...
1
Fr-L Spkr SAM-AH82-00587A
...
2
Fr-R Spkr SAM-AH82-00588A
...
3
Cent Spkr SAM-AH82-00591A
...
4
Sur-L Spkr SAM-AH82-00589A
...
5
Sur-R Spkr SAM-AH82-00590A
...
6
Subwoofer SAM-AH96-02321A
...
7
Ckd-Speaker SAM-AH81-07798A
...
8
Ckd-Cable SAM-AH81-07799A
...
9
Spk Wire R SAM-AH81-07800A
...
10
Spk Wire R SAM-AH81-07801A
...
11
Cable,subw SAM-AH81-08544A
...
12
Spk Wire C SAM-AH81-07804A
