Samsung HT-E6730W/ZA-NF02

Model: HT-E6730W/ZA-NF02

Save Part Not Listed?
product name

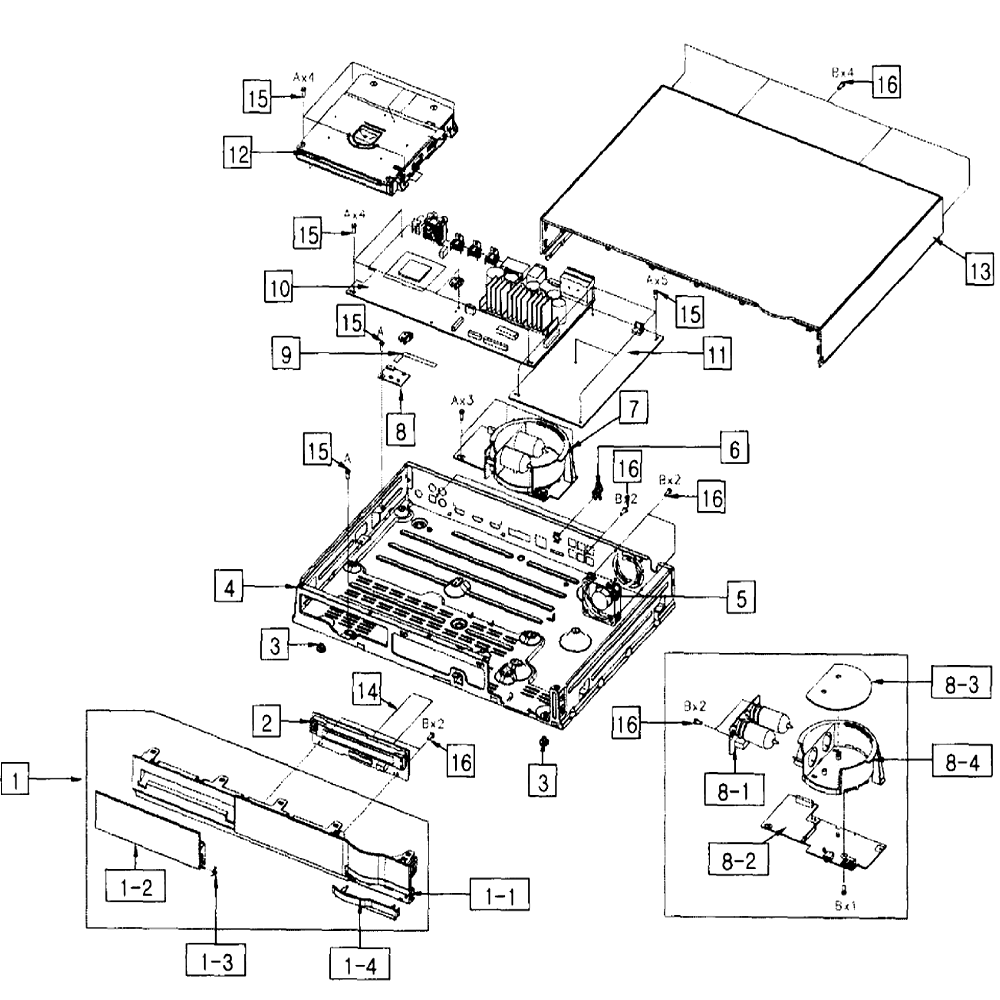

Cabinet Parts

...
...
1
P-Front Co SAM-AH96-01640B
...
2
Front Pcb SAM-AH94-02872A
...
3
Leg SAM-AK61-00608A
...
4
Cover SAM-AH63-02614A
...
5
Fan SAM-3103-001282
...
6
Clamper SAM-AK65-00001A
...
7
Kitting Co SAM-AH96-01946A
...
9
Cable,5p,1 SAM-AH96-01477G
...
10
Main Pcb SAM-AH94-02871A
...
11
Smps Pcb SAM-AH94-02862A
...
12
Dvd Player Deck Assembly SAM-AH96-01628D
...
13
P-Top Cvr SAM-AH96-01642A
...
14
P-Ffc Cabl SAM-AH96-01673A
...
15
Screw-Tap SAM-6003-001375
...
16
Screw SAM-6003-000275

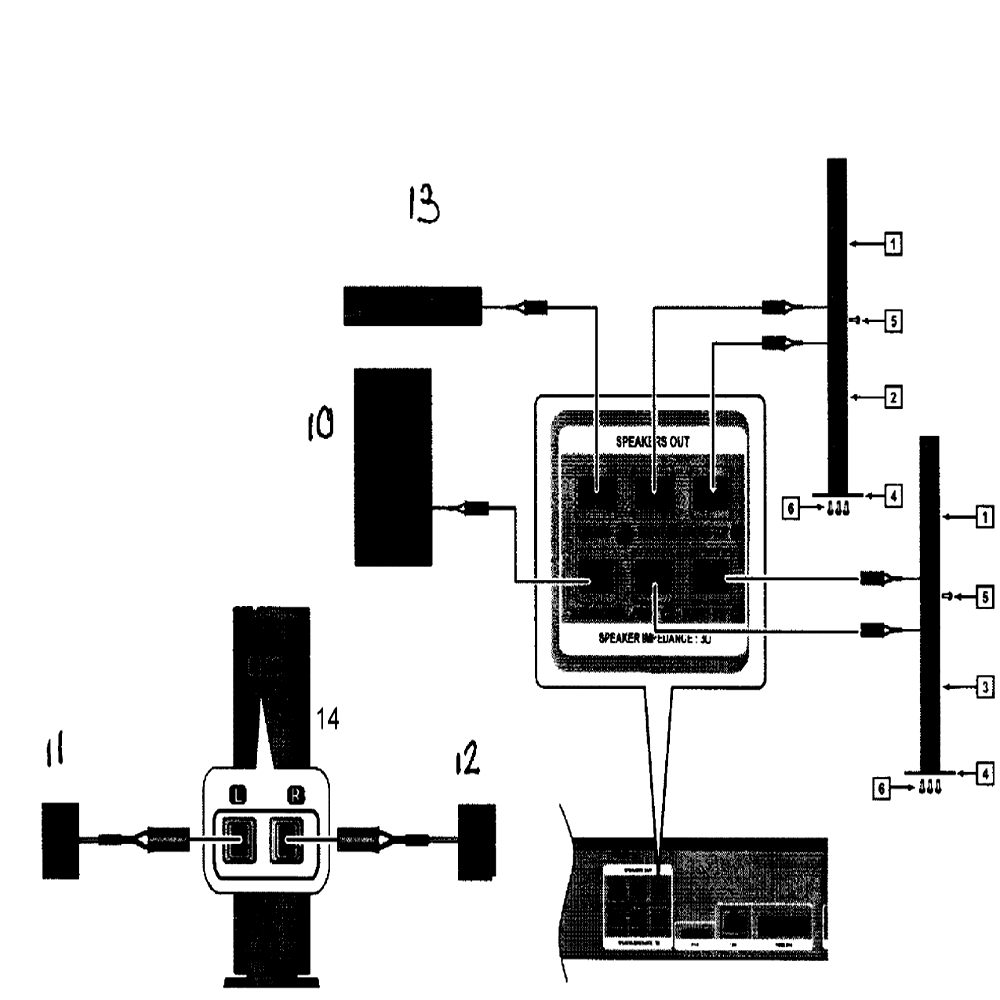

Speakers

...
...
1
Front Spea SAM-AH82-00358A
...
2
Btm Stand SAM-AH82-00503A
...
3
Stand SAM-AH82-00503B
...
4
Center Sta SAM-AH82-00362A
...
5
Spkr.screw SAM-AH81-05992A
...
10
Subwoofer SAM-AH96-01632C
...
11
Sur Spkr L SAM-AH82-00320C
...
12
Sur Spkr R SAM-AH82-00320E
...
13
Center Spe SAM-AH82-00316B
