Samsung HT-E5500W/ZA-NF02

Model: HT-E5500W/ZA-NF02

Save Part Not Listed?
product name

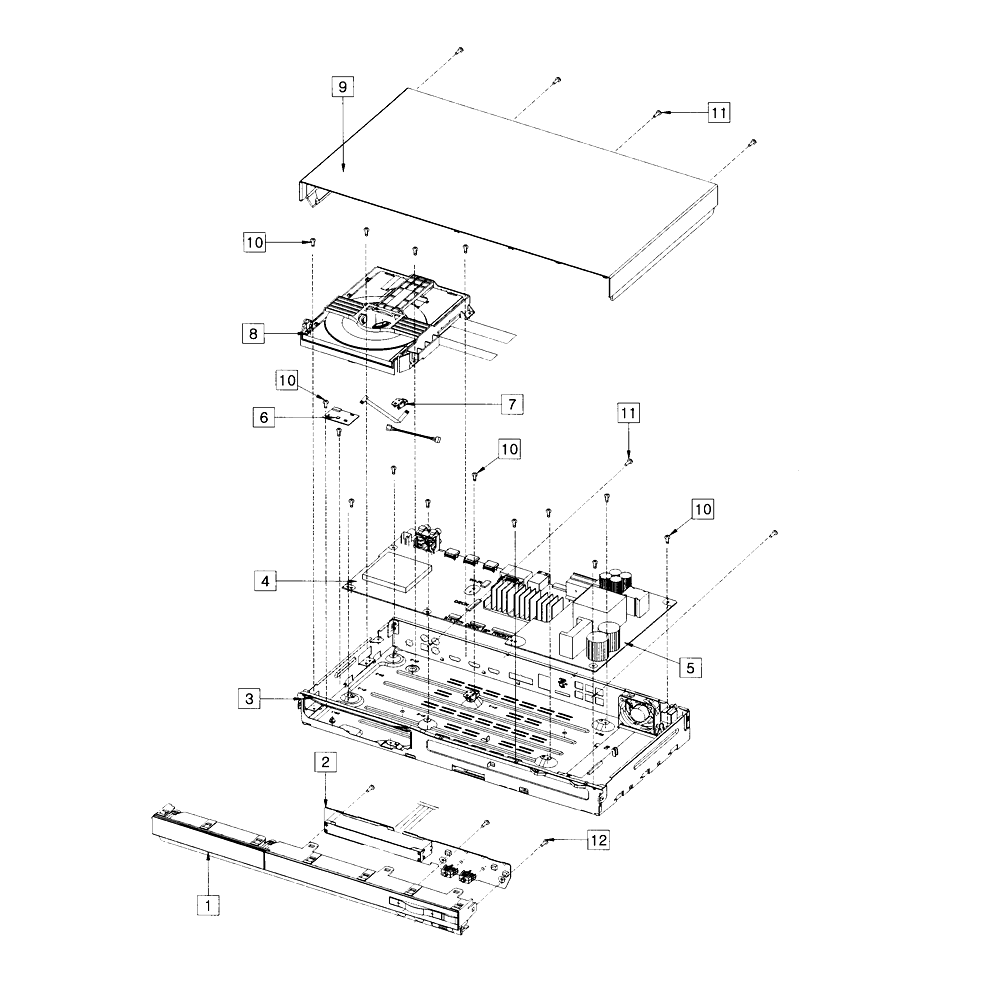

Cabinet Parts

...
...
1
Assembly SAM-AH96-01605A
...
2
Dvd Player Printed Circuit Board SAM-AH94-02843A
...
3
Cover SAM-AH96-01606A
...
4
Main Pcb SAM-AH94-02882C
...
5
Power Pcb SAM-AH94-02838A
...
6
Network Mo SAM-AK59-00138A
...
7
Bracket De SAM-AH61-03366A
...
8
Dvd Player Deck Assembly SAM-AH96-01628D
...
9
Top Cover SAM-AH96-01607A
...
10
Screw-Tapt SAM-6003-001561
...
11
Screw SAM-6003-000275
...
12
Screw SAM-6003-000276

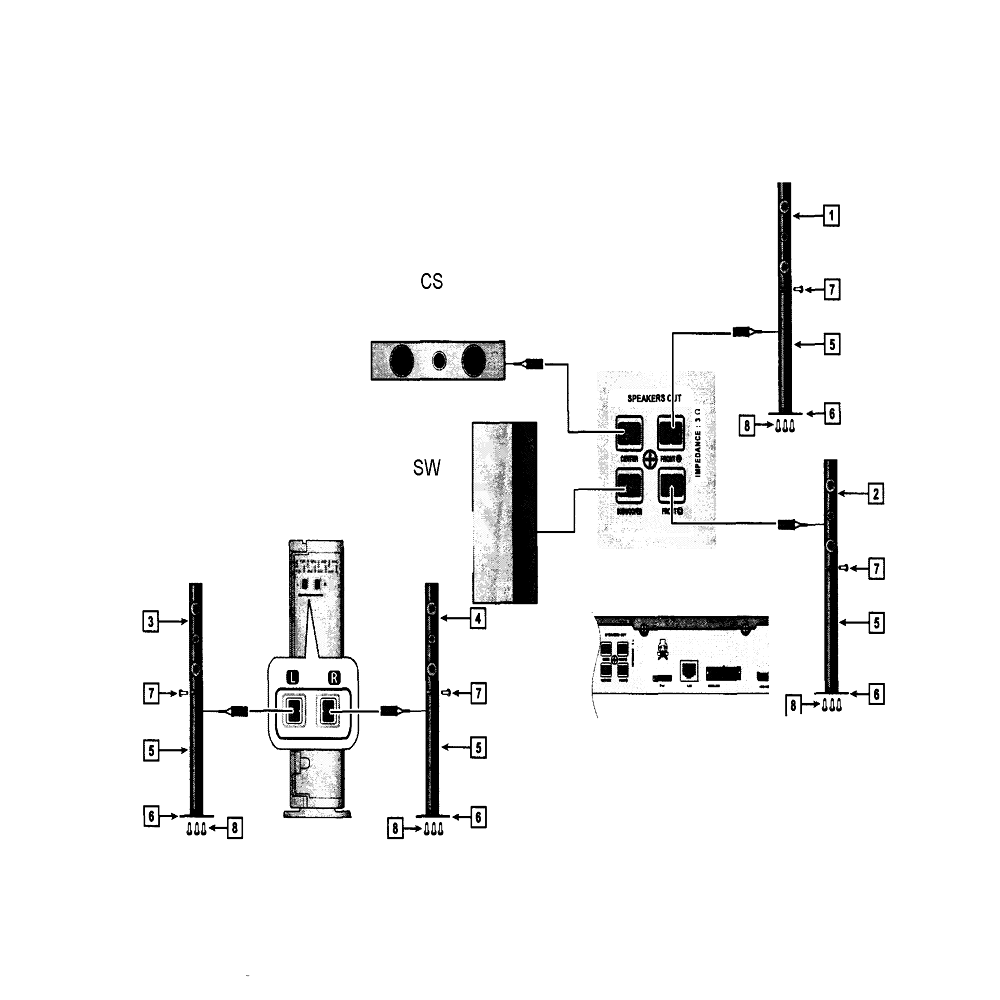

Speaker Assy

...
...
CS
Cent Spkr SAM-AH82-00316A
...
SW
Subwoofer SAM-AH96-01631A
...
1
Spkr Fr-Lt SAM-AH82-00312B
...
2
Spkr Fr-Rt SAM-AH82-00314B
...
3
Spkr Sur-L SAM-AH82-00312C
...
4
Sper Sur-R SAM-AH82-00312D
...
5
Stand Bott SAM-AH82-00504A
...
6
Base Stand SAM-AH82-00361A
...
7
Spkr.screw SAM-AH81-05992A
...
8
Bolt SAM-6011-004790
