Samsung HMX-Q10BN/XAA

Model: HMX-Q10BN/XAA

Save Part Not Listed?
product name

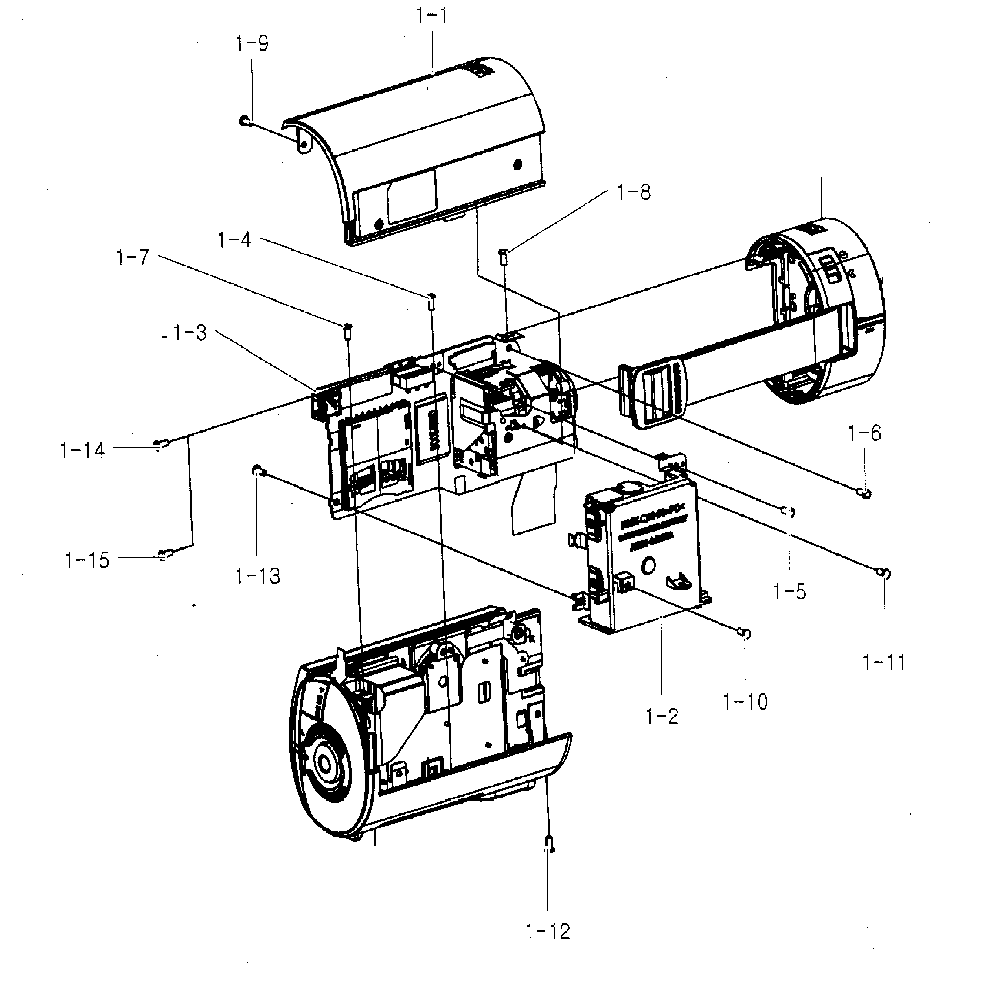

Chassis Assy

...
...
1-1
Top Assembly SAM-AD97-20136A
...
1-2
Holder Bat SAM-AD97-20128A
...
1-3
Pcb Main SAM-AD92-01427A
...
1-4
Screw-M1.7,l4,zpc(blk) SAM-6003-001453
...
1-7
Screw-M1.7,l4,zpc(blk) SAM-6001-001291

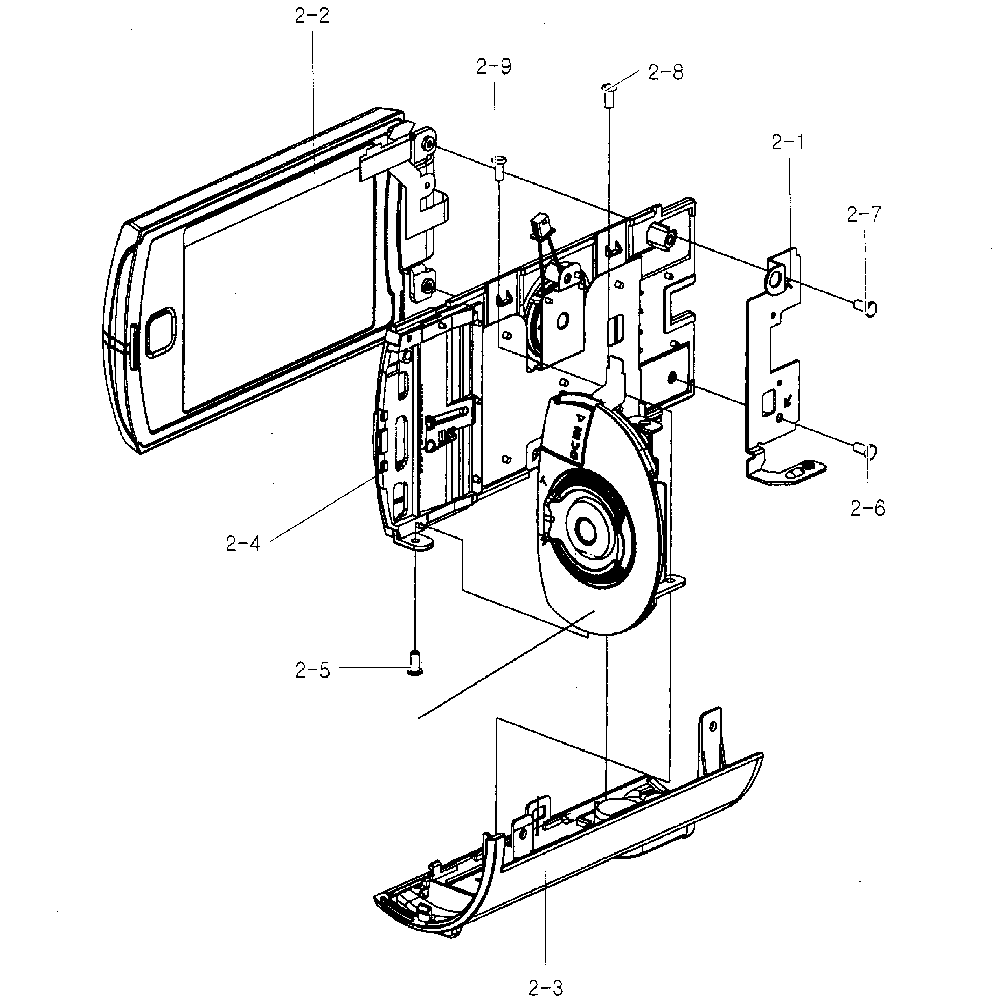

Left Assy

...
...
2-3
Bottom Assembly SAM-AD97-20134A
...
2-8
Screw-M1.7,l4,zpc(blk) SAM-6001-001291
...
2-5
Screw-M1.7,l4,zpc(blk) SAM-6003-001453
...
2-4
Case Asy,l SAM-AD97-20130A
...
2-2
Lcd Assy SAM-AD97-20131A
...
2-1
Horizontal Drive Bracket SAM-AD61-04978A

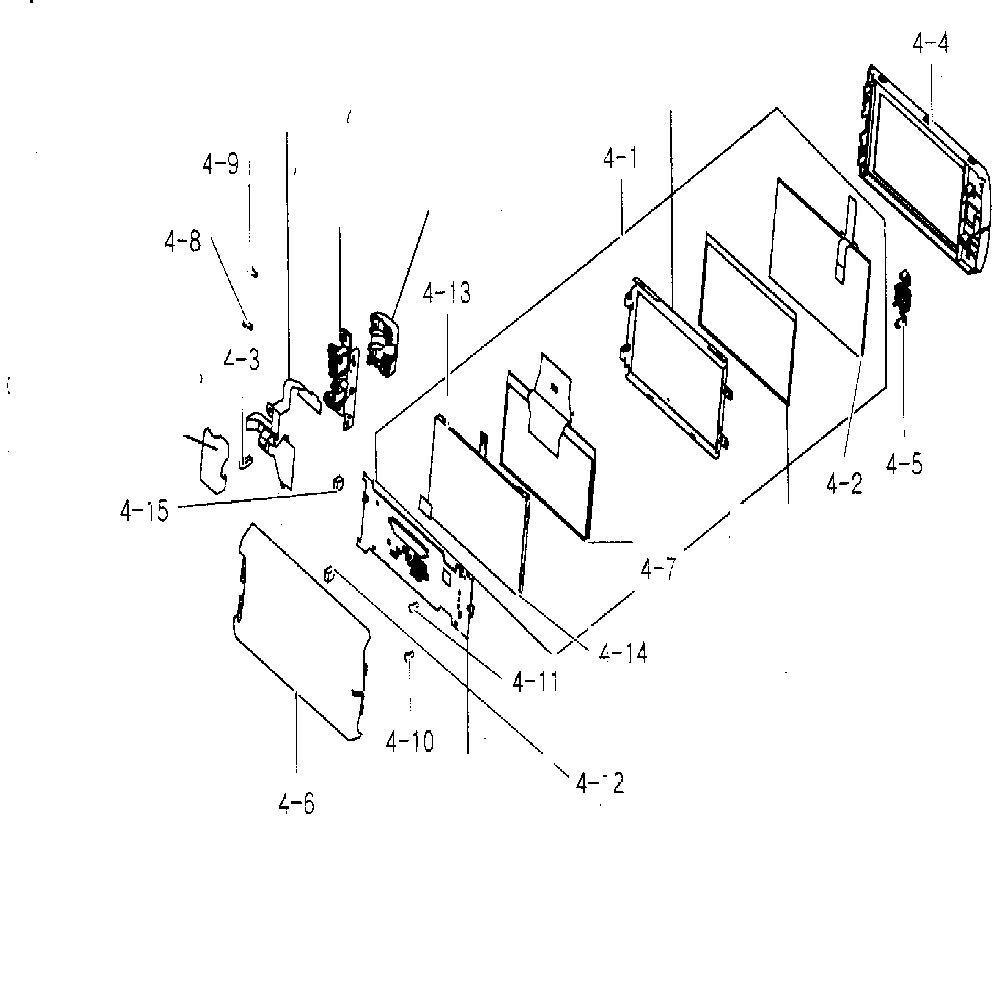

Lcd Assy

...
...
4-14
Memory Cam SAM-AD97-16499B
...
4-15
Lcd Magnet SAM-AD61-05176A
...
4-7
Lcd Panel SAM-AD07-00109A
...
4-6
Case Lcd SAM-AD97-20132A
...
4-4
Case Botto SAM-AD61-04990A
...
4-3
Lcd Magnet SAM-AD61-04473A
...
4-2
Panel,tch SAM-AD97-16783A
...
4-1
Panel Assembly SAM-AD97-20432A
...
4-5
Lcd Button SAM-AD64-03130A

Front Assy

...
...
4-1
Plate-Micr SAM-AD61-04975A
...
4-2
Lens Cover SAM-AD97-20138A
...
4-3
Front Assembly SAM-AD97-20140A
...
4-4
Fr Case SAM-AD97-20141A

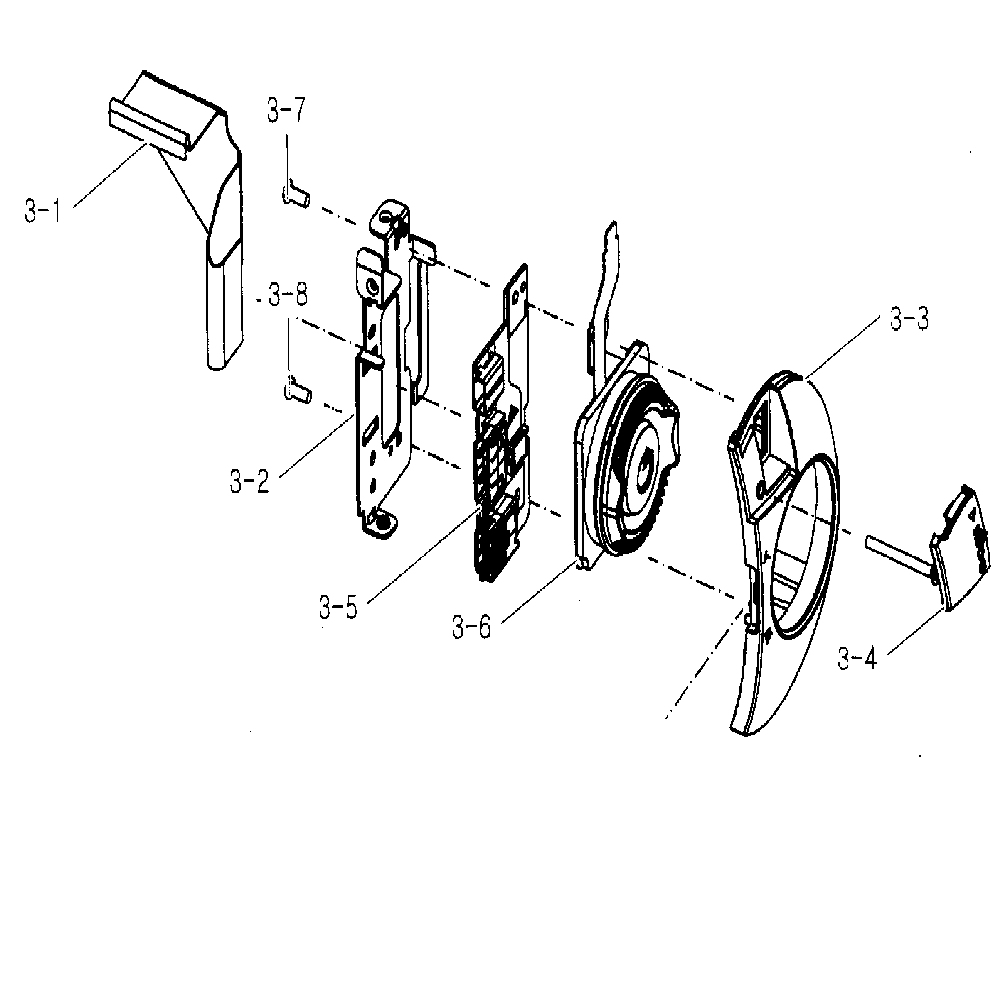

Rear Assy

...
...
3-2
Brket Rear SAM-AD61-04982A
...
3-6
Zoom Assy SAM-AD97-20126A
...
3-5
Pcb Rear SAM-AD92-01429A
...
3-4
Dc Cover SAM-AD63-05629A
...
3-3
Case Rear SAM-AD61-04992A
...
3-1
Cable 32p- SAM-AD41-01619A

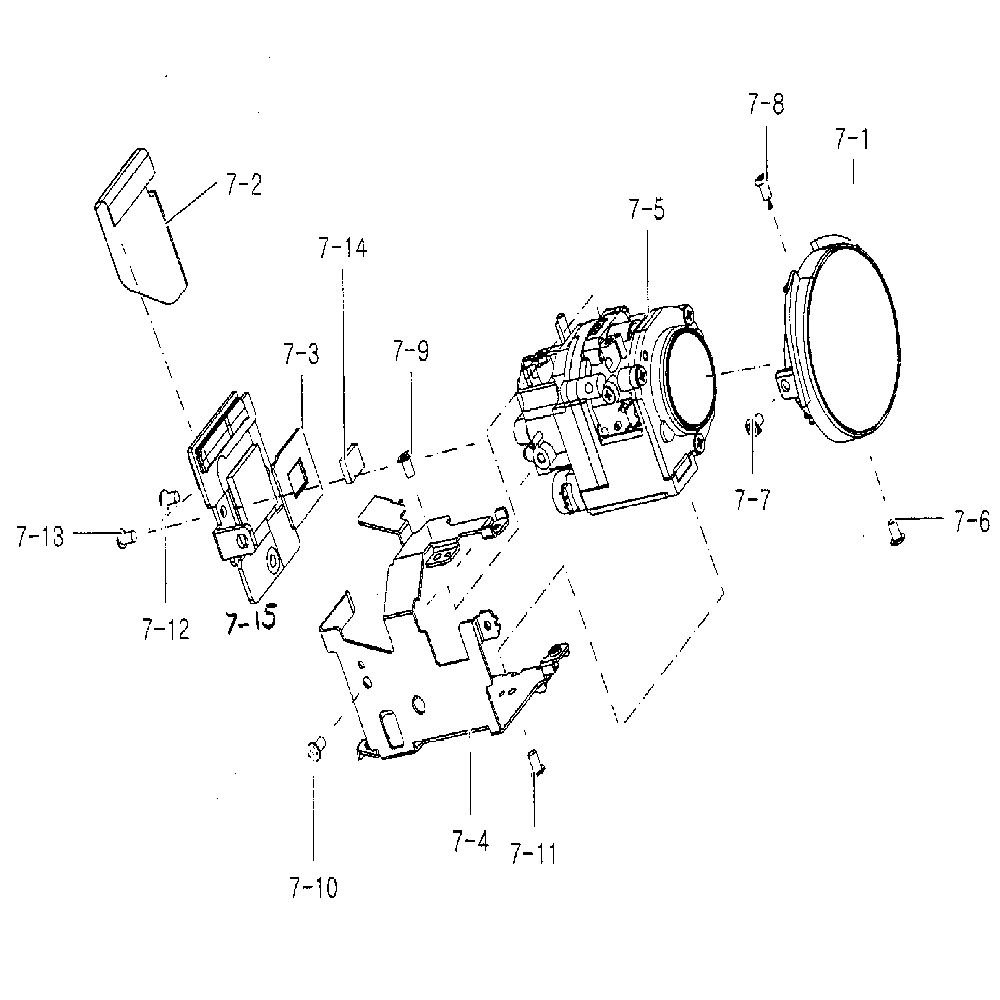

Lens Assy

...
...
7-1
Heat Plate SAM-AD61-04800A
...
7-2
Cable-Cis SAM-AD41-01528A
...
7-3
Rubber-Cmo SAM-AD73-00397A
...
7-5
Lens Assembly SAM-AD97-19820A
...
7-14
Lens Filte SAM-AD67-01805A
...
7-15
Pcb Cis SAM-AD92-01274A
