Samsung HCN4226WX

Model: HCN4226WX

Save Part Not Listed?
product name

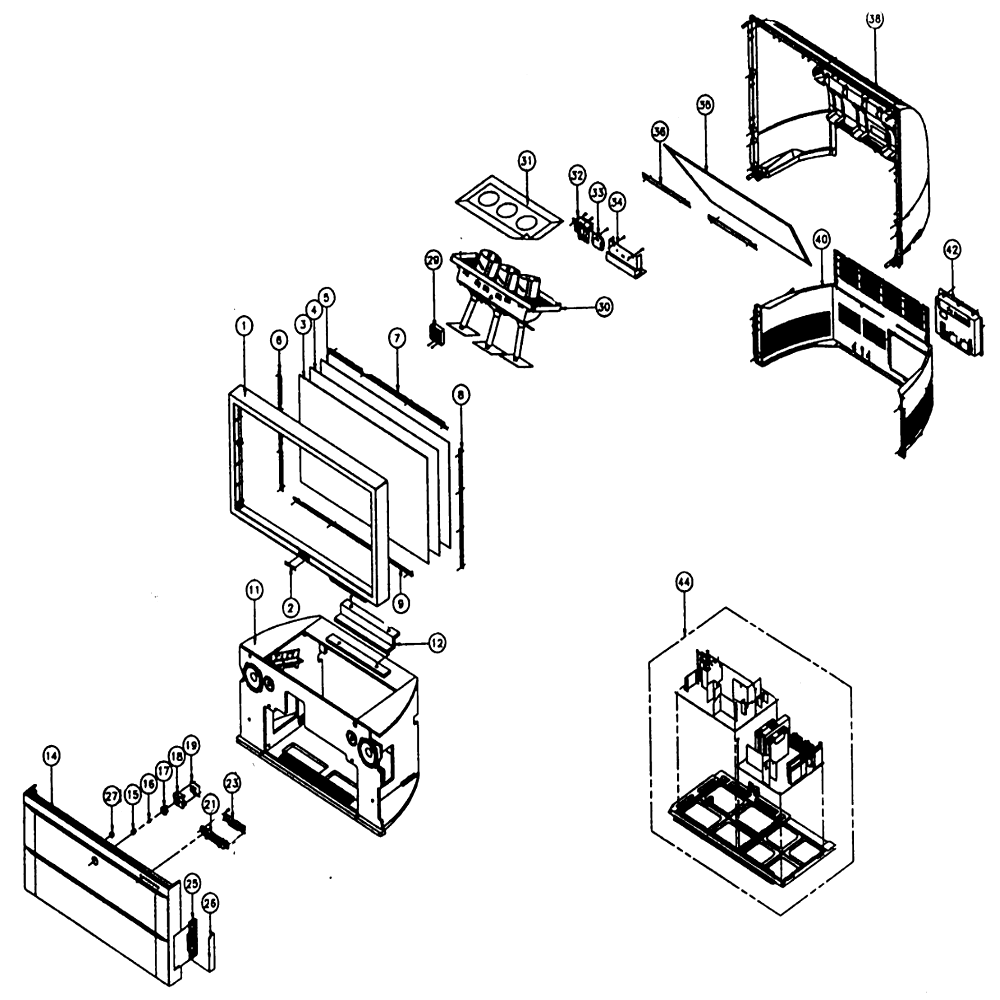

Cabinet Parts

...
...
1
Mask SAM-BP91-00006Q
...
2
Badge SAM-BP64-00199A
...
3
Sun Screen SAM-AA67-00207A
...
4
Screen SAM-AA67-00193A
...
5
Scrn Back SAM-AA67-00193B
...
6
Brkt, Screen Asy R SAM-BP61-00025D
...
7
Brkt, Screen Asy T SAM-BP61-00023E
...
8
Brkt, Screen Asy L SAM-BP61-00026D
...
9
Brkt, Screen Asy B SAM-BP61-00024E
...
11
Cabinet Assembly SAM-BP91-00005D
...
12
Inlay Support SAM-BP64-00029A
...
14
Cabinet SAM-BP64-00230A
...
16
Spring-Cs SAM-AA61-60003A
...
17
Holder SAM-BP61-00273A
...
18
Holder SAM-BP61-00272A
...
19
A/v Front Pcb Assy SAM-CALLSTAC1
...
21
Knob SAM-BP64-00233A
...
23
A/v Front Pcb Assy SAM-CALLSTAC2
...
25
Holder SAM-AA61-01128C
...
26
Door SAM-AA64-02780C
...
27
Velcro SAM-AA61-01133A
...
29
A/v Side Pcb SAM-CALLSTAC3
...
30
Asy Prt SAM-BB91-00423A
...
32
Transformer SAM-AA26-00101A
...
33
Assy Pcb,pip SAM-CALLSTAC4
...
34
A/v Side Pcb Assy SAM-CALLSTAC5
...
35
Mirror SAM-AA67-00204A
...
36
Bracket SAM-BP61-00008A
...
38
Cabt.back SAM-AA64-02728A
...
40
Cabinet SAM-AA64-02729A
...
42
Cover SAM-BB96-00038H
...
44
Assembly Pcb Main (ver Ooo1, Mc01) SAM-CALLSTAC6
