Samsung FER300SB_XAA

Model: FER300SB_XAA

Save Part Not Listed?
product name

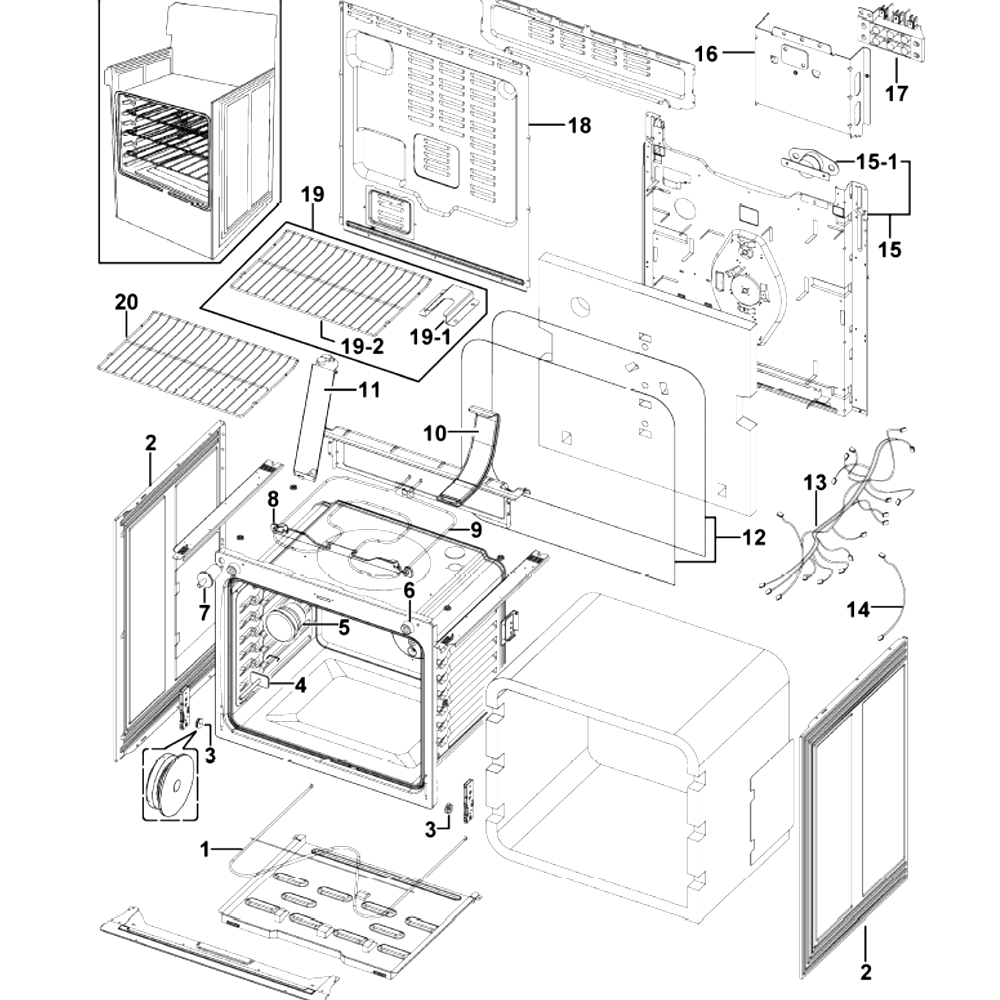

Assy Cavity

...
...
1
Heater-Bake SAM-DG47-00038A
...
2
Panel-Side Coating SAM-DG64-00142A
...
3
Spacer-Side Panel SAM-DG60-00007B
...
4
Sensor-Thermistor SAM-DG32-00002B
...
5
Assembly Lamp Bulb SAM-DG97-00083A
...
6
Rubber-Cushion SAM-DG73-00003A
...
7
Switch-Door Plunger SAM-DG34-00006A
...
8
Assembly Bracket-Broil Heater SAM-DG94-00218B
...
9
Heater-Broil SAM-DG47-00037A
...
10
Assy-Vent SAM-DG97-00058D
...
11
Latch-Door SAM-DG66-00017C
...
12
Steel Wire SAM-DG70-00004A
...
13
Assembly Wire Harness-A SAM-DG96-00150A
...
14
Wire Harness-Sub SAM-DG39-00019A
...
15-1
Thermostat SAM-DE47-20037A
...
15
Assembly Cover Back-Main SAM-DG97-00123E
...
16
Bracket-Cover Access SAM-DG61-00168B
...
17
Assy-Terminal Block SAM-DG96-00173A
...
18
Cover-Back Main Wire SAM-DG63-00062B
...
19-1
Assembly Bracket-Anti Tip SAM-DG97-00120A
...
19-2
Rack-Flat SAM-DG75-01001B
...
19
Assembly Accessory-A SAM-DG97-00118C
...
20
Rack-Flat SAM-DG75-01001B

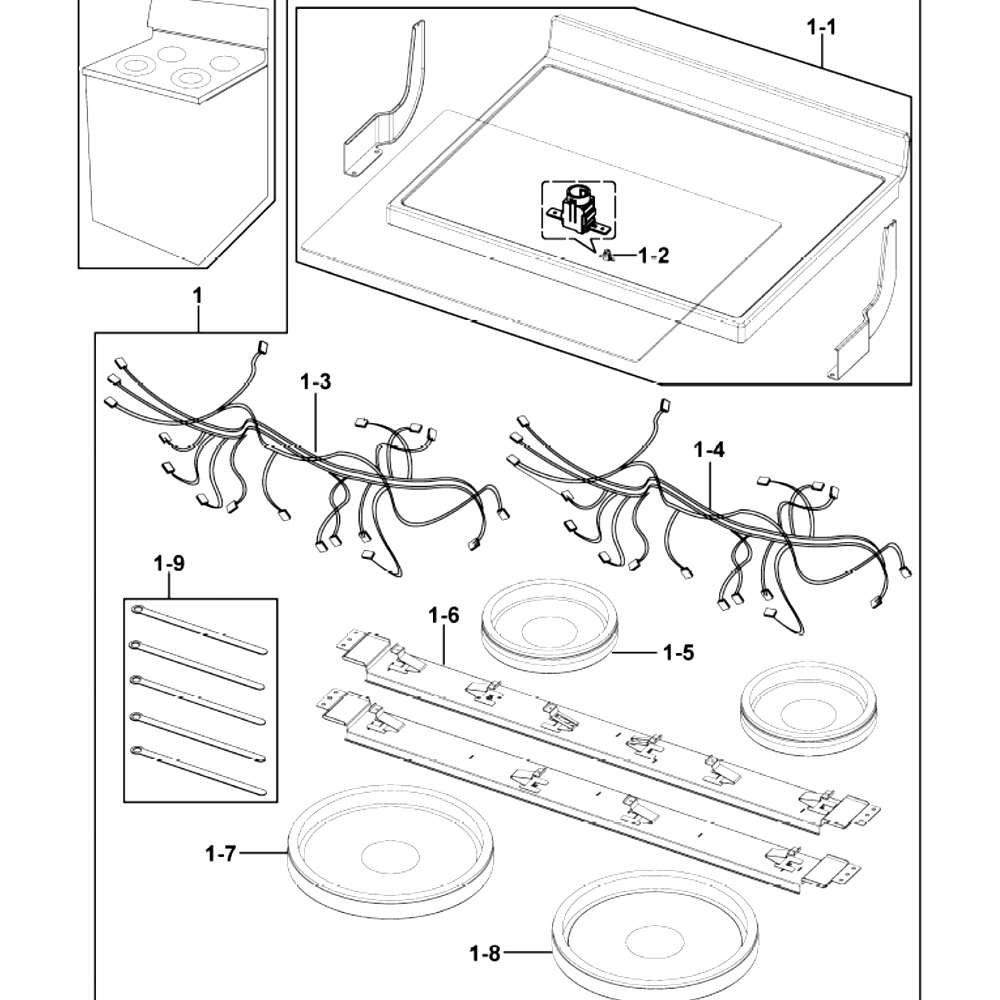

Assy Cooktop

...
...
1
Assembly Cooktop SAM-DG97-00073S
...
1-9
Cable Clamp SAM-6502-001117
...
1-8
Heater-Radiant-Dual(3000w) SAM-DG47-00043A
...
1-7
Heater-Radiant-Dual SAM-DG47-00022A
...
1-6
Support-Heater SAM-DG61-00286A
...
1-4
Assembly Wire Harness-Cooktop B SAM-DG96-00151A
...
1-3
Assembly Wire Harness-Cooktop A SAM-DG96-00152A
...
1-2
Indicator-Hot Surface SAM-DG64-00241A
...
1-1
Assy-Frame Cooktop SAM-DG97-00074K
...
1-5
Heater-Radiant-Single SAM-DG47-00023A

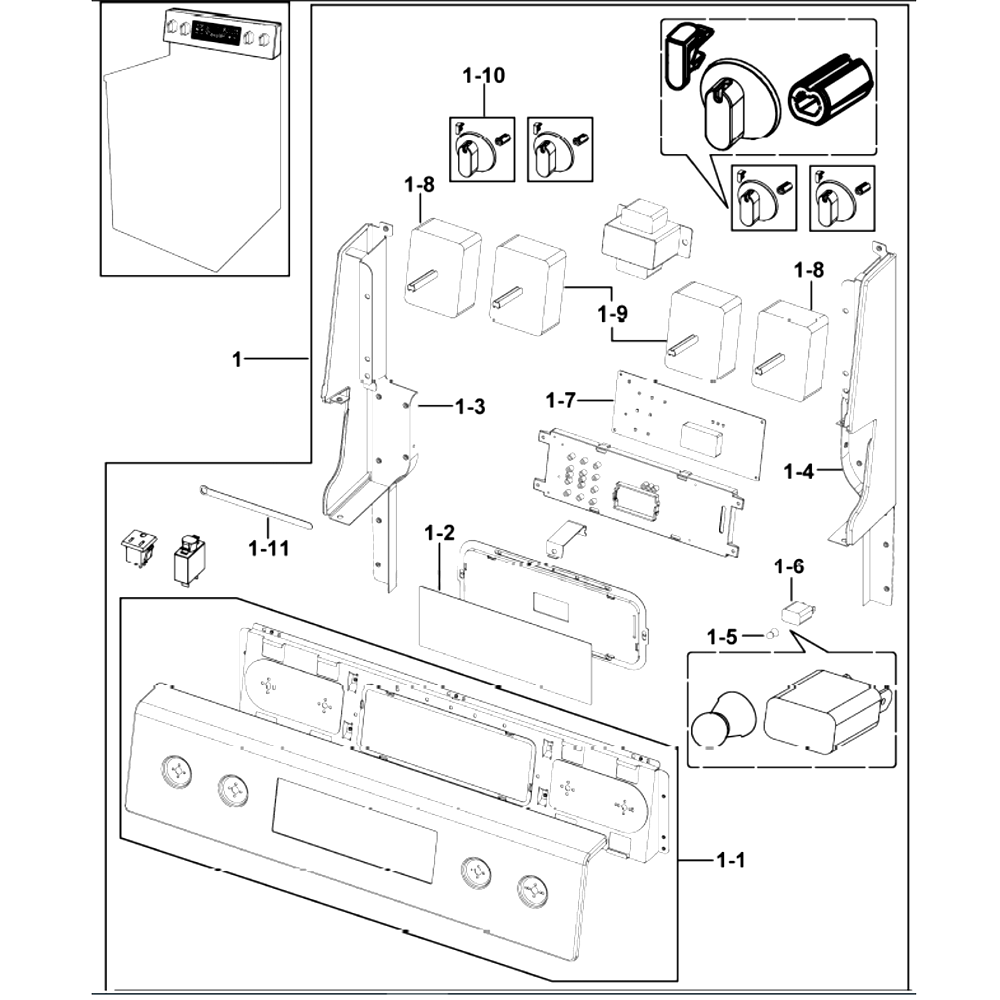

Assy Control

...
...
1
Assembly Control Box SAM-DG97-00112W
...
1-11
Cable Clamp SAM-6502-001117
...
1-10
Assembly Knob Dial SAM-DG94-00221A
...
1-9
Regulator-Energy SAM-DG44-01001A
...
1-8
Regulator-Energy SAM-DG44-01002A
...
1-7
Oas-Ag3-01,pcb SAM-OAS-AG3-01
...
1-5
Lens-Light SAM-DG67-00022A
...
1-4
Assembly Support-Back Guard Rt SAM-DG94-00124C
...
1-3
Assembly Support-Back Guard Lt SAM-DG94-00123C
...
1-2
Switch Membrane SAM-DG34-00014A
...
1-1
Assembly Control Sub SAM-DG97-00114V
...
1-6
Indicator-Light SAM-DG64-00131A

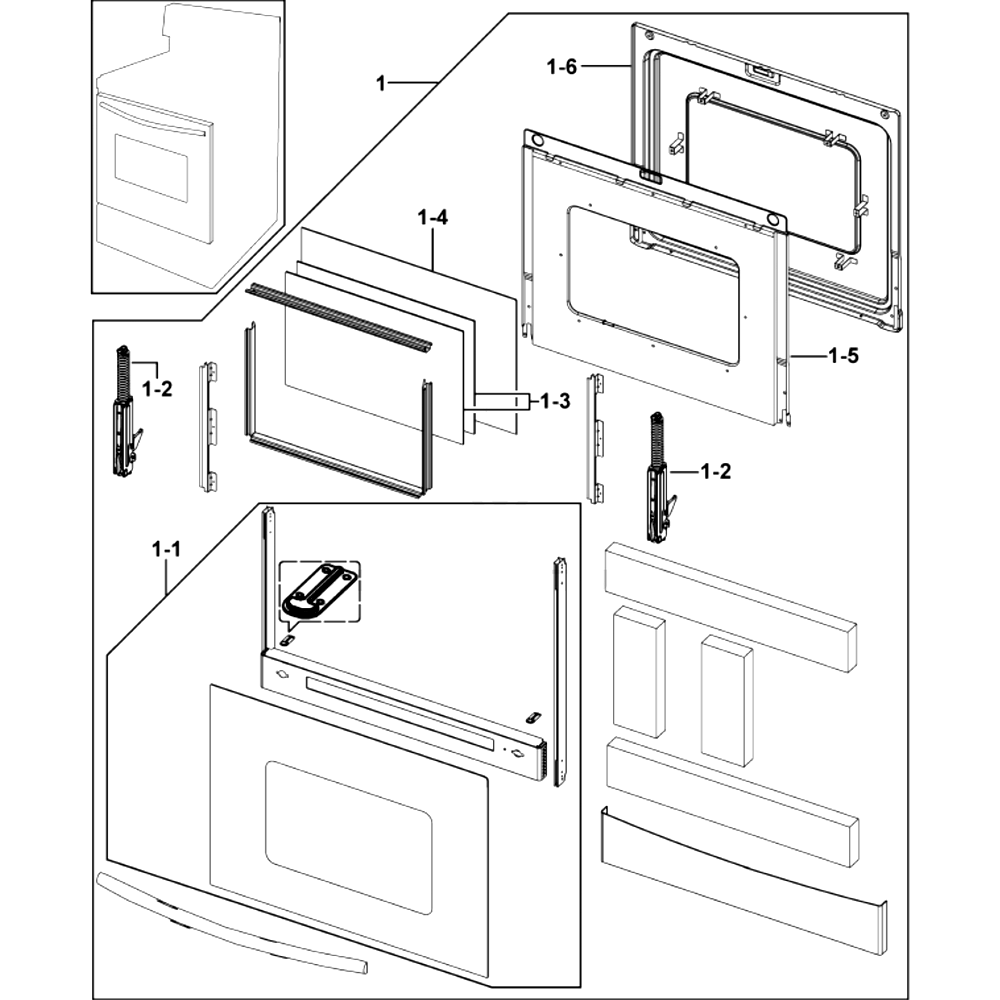

Assy Door

...
...
1-5
Assembly Baffle Door SAM-DG97-00113C
...
1
Assembly Door SAM-DG94-00223D
...
1-6
Assembly Door E SAM-DG94-00063A
...
1-4
Glass-Inner Sub SAM-DG64-00133A
...
1-3
Glass-Inner SAM-DG64-00092A
...
1-2
Assembly Hinge SAM-DG94-00358A
...
1-1
Assembly Door Sub SAM-DG94-00224A

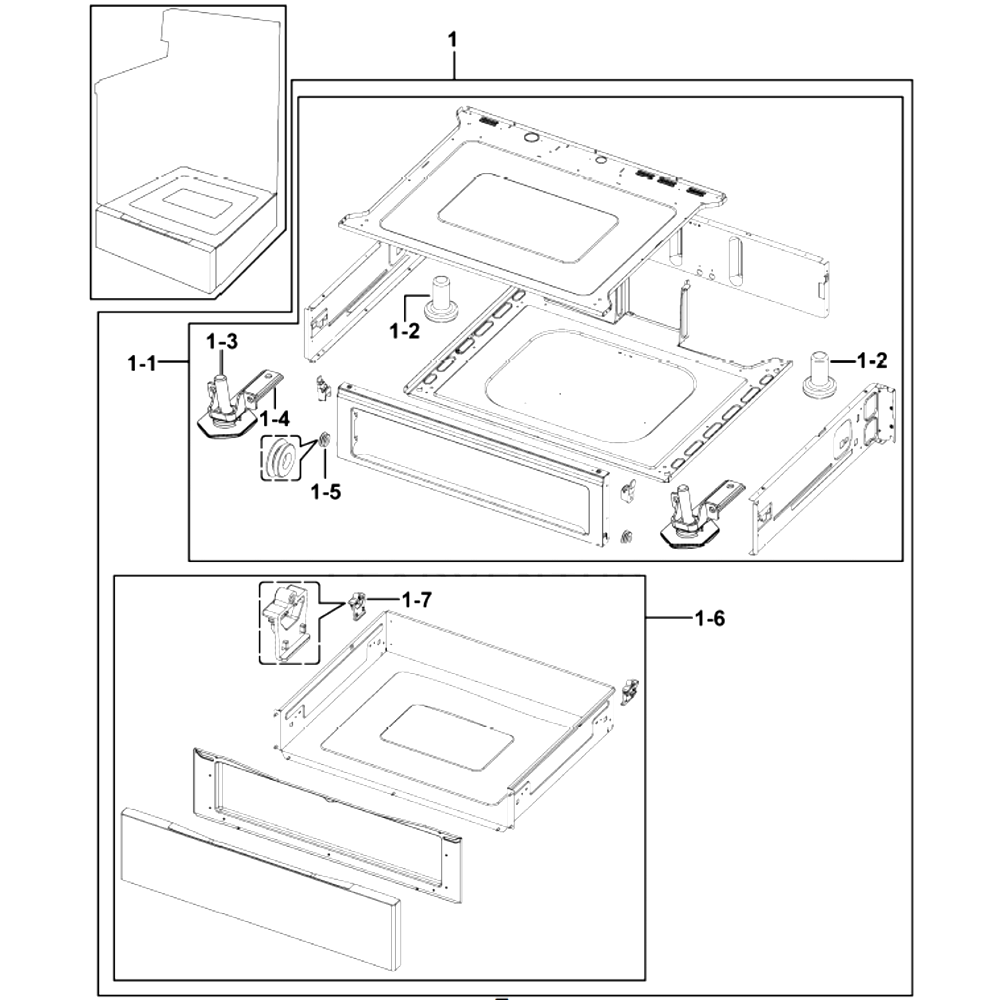

Assy Drawer

...
...
1-1
Assembly Pedestal SAM-DG97-00071F
...
1-2
Leg-Leveling SAM-DG61-00432A
...
1-3
Leg-Leveling A2 SAM-DG61-00294A
...
1-4
Bracket-Leg Leveling SAM-DG61-00430A
...
1-5
Spacer-Side Panel SAM-DG60-00007B
...
1-6
Assembly Drawer SAM-DG97-00053U
...
1-7
Slider-Inner SAM-DG61-00279A
...
1
Assembly Drawer-Main SAM-DG97-00117R
