Samsung F261BEAESR/AA-01

Model: F261BEAESR/AA-01

Save Part Not Listed?
product name

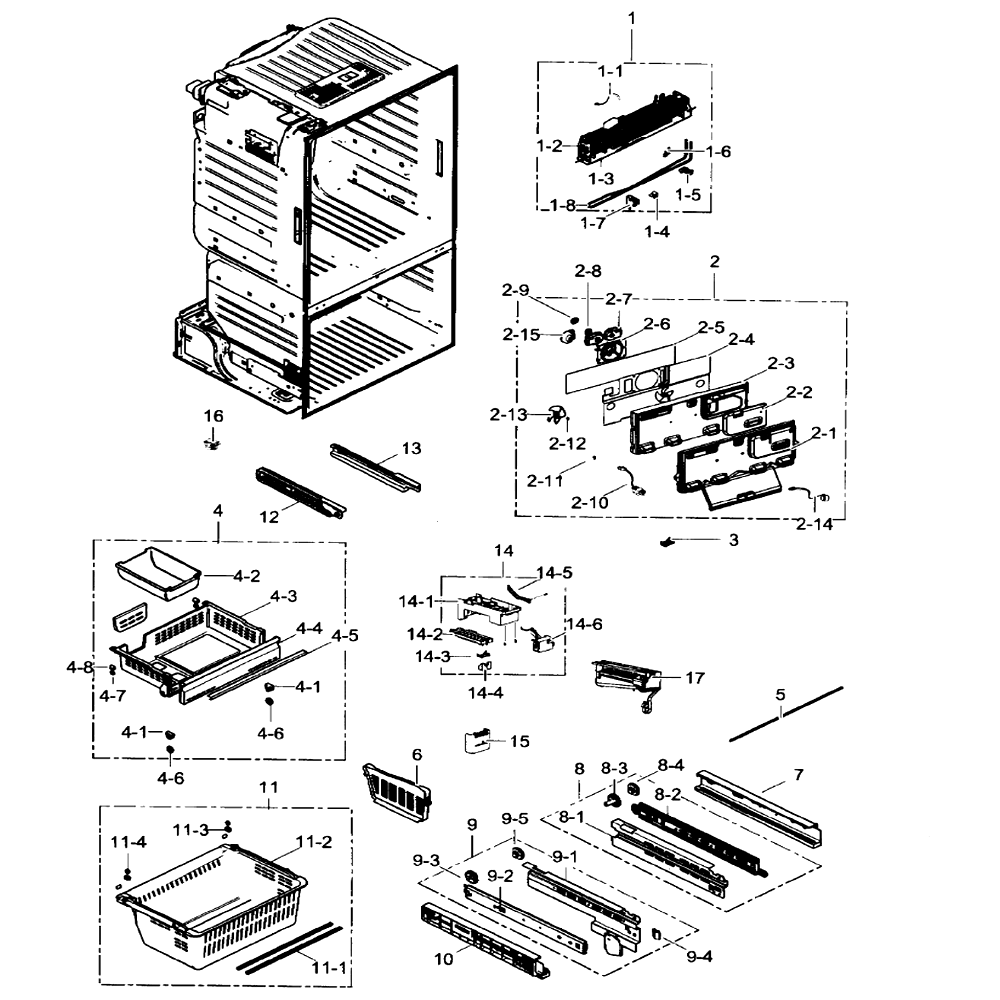

Freezer

...
...
1-1
Sensor Temp SAM-DA32-10104N
...
1-2
Pin,115v,aw-Pjt SAM-DA59-00358B
...
1-3
Plate Drai SAM-DA61-04149B
...
1-4
Fixer-Sensor Fre SAM-DA61-06182A
...
1-5
Aw2,pbt,natural,v-0 SAM-DA61-05689A
...
1-6
Heater Metal Sheath; Ac120v,aw2-14 Fre, 6 SAM-DA47-00318M
...
1-7
Fixer-Sensor Fre SAM-DA61-06182A
...
1-8
Ac120v,aw2-11 Fre, 6 SAM-DA47-00424M
...
1
Assy Evap-Fre; Aw2-14, Aw2 Cd-14,ul, 120v SAM-DA96-00632C
...
2-1
Aw1-12,pp,ntr SAM-DA63-06941A
...
2-2
Aw1-12,ps Foam SAM-DA62-03659A
...
2-3
Aw1-12,ps Foam SAM-DA62-03658A
...
2-4
Aw1-12,gl-Sazcc,t SAM-DA61-05328C
...
2-5
Seal-Cover Evap Fre; Aw1-12,foam-Pe+al,t2 SAM-DA62-03675A
...
2-6
Case Motor-Fre; Aw-Pjt,pp,gray,cntk-P-101 SAM-DA61-03183A
...
2-7
Cover Motor-Bldc SAM-DA63-01809B
...
2-8
Grommet Motor SAM-DA63-01808A
...
2-9
Grommet-Motor,rear SAM-DA63-01146A
...
2-10
Assembly Wire Harness-Motor SAM-DA96-00042D
...
2-11
Grommet-Cover Chill SAM-DA63-40167A
...
2-12
Spring Etc-Fan SAM-DA61-20128A
...
2-13
Fan-Ax100w4cc-T1 SAM-DA31-00124A
...
2-14
Thermo Bimetal-Protector SAM-DA47-00243B
...
2-15
Motor Bldc SAM-DA31-00146H
...
2
Aw1-12 SAM-DA97-12617A
...
3
Cover Sensor SAM-DA63-02183A
...
4-1
Fixer-Roller Tray Fre Upp SAM-DA61-04154A
...
4-2
Refrigerator Ice Bin SAM-DA61-05300A
...
4-3
Aw1-12,hips,cool White SAM-DA63-06935A
...
4-4
Aw1-12,hips,cool Whit SAM-DA63-06936A
...
4-5
Aw1-12,hips,s834s1,cool SAM-DA64-03862C
...
4-6
Roller-Tray Fre Upp SAM-DA66-00554A
...
4-7
Roller-Fre SAM-DA66-10104A
...
4-8
Fixer-Roller SAM-DA71-20277A
...
4
Aw1-12 SAM-DA97-12641A
...
5
Aw-Pjt,sm25c,-,-,-,-,- SAM-DA66-00437A
...
6
Refrigerator Drawer Guide SAM-DA61-03416A
...
7
Cover-Rail Low R; Aw-Pjt,abs,-,-,-,-,-,co SAM-DA63-03415A
...
8-1
Hanger-Rail Low R; Aw-Pjt,secc1,t1.6,cool SAM-DA61-03157A
...
8-2
Rail-Slide Low R; Aw-Pjt,stainless-Sts430 SAM-DA61-07475A
...
8-3
Gear-Rail R SAM-DA66-00750A
...
8-4
Fixer-Gear SAM-DA61-03154A
...
8
Refrigerator Freezer Drawer Slide Rail, Right SAM-DA97-08806B
...
9-1
Hanger-Rail Low L; Aw-Pjt,secc1,t1.6,cool SAM-DA61-03156A
...
9-2
Rail-Slide Low L; Aw-Pjt,stainless-Sts430 SAM-DA61-07476A
...
9-3
Gear-Rail L SAM-DA66-00751A
...
9-4
Switch Pressure SAM-DA34-00047B
...
9-5
Fixer-Gear SAM-DA61-03154A
...
9
Refrigerator Freezer Drawer Slide Rail, Left SAM-DA97-08805B
...
10
Fixer-Rear SAM-DA61-09790A
...
11-1
Reinf-Drawer Box SAM-DA61-03160A
...
11-2
Tray-Drawer Box; Aw1,pp,cool White(sc-027 SAM-DA63-05986A
...
11-3
Fixer-Roller SAM-DA71-20145A
...
11-4
Roller-Fre SAM-DA66-10104A
...
11
Cover-Rail Low R; Aw-Pjt,abs,-,-,-,-,-,co SAM-DA63-03415A
...
12
Cover-Rail Low L; Aw-Pjt,abs,-,-,-,-,-,co SAM-DA63-03414A
...
13
Fixer-Rear SAM-DA61-09790A
...
14-1
Support-Ice Maker Fre; Aw2 Cd,hips,s834s1 SAM-DA61-05227A
...
14-2
Ad,pp,hb,natural SAM-DA63-02284B
...
14-3
Cover Sensor SAM-DA63-02183A
...
14-4
Fixer Sensor; Ad,urethane,-,-,- SAM-DA61-01800A
...
14-5
Guide-Ice Full; Aw,abs,cool White SAM-DA61-05435A
...
14-6
Assy SAM-DA59-00294B
...
14
Refrigerator Ice Maker SAM-DA97-07603A
...
15
Refrigerator Ice Maker Cover SAM-DA63-04974A
...
16
Switch-Door SAM-DA34-10120E
...
17
Refrigerator Ice Maker SAM-DA90-07579C

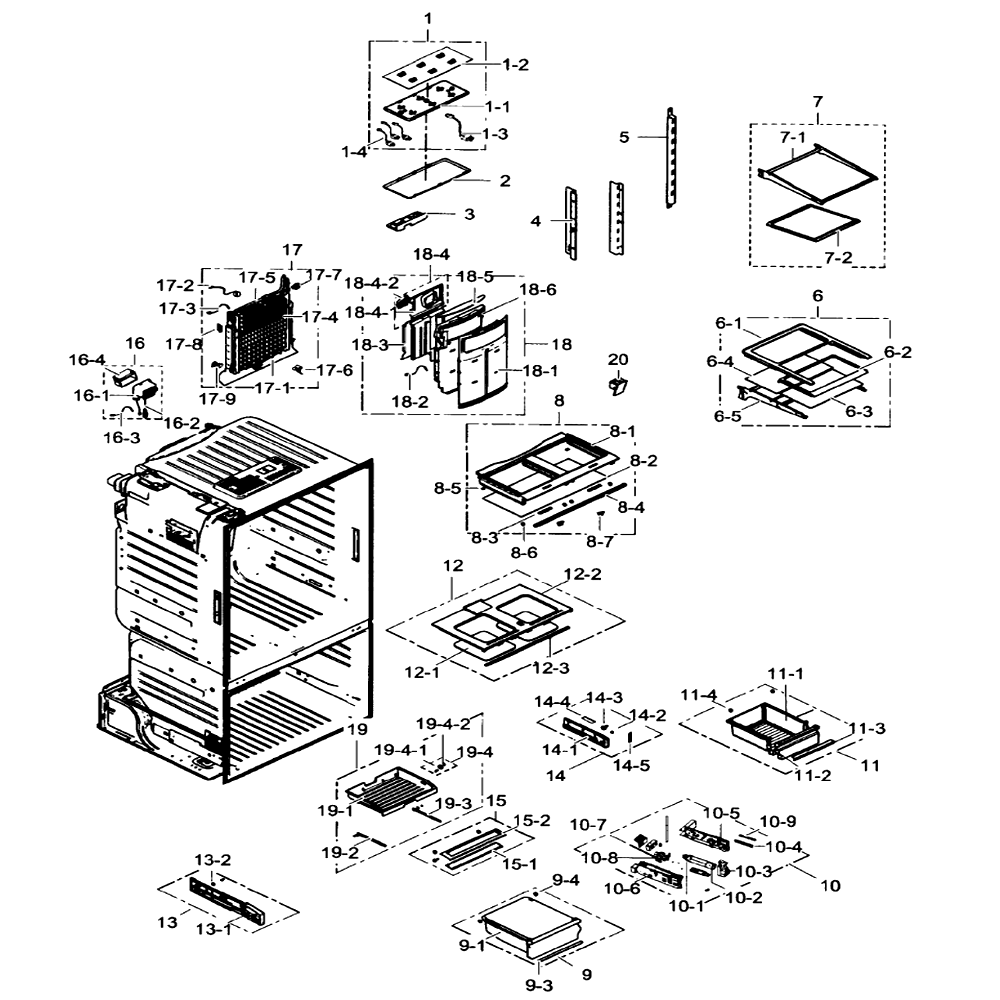

Refrigerator

...
...
1-1
Aw1-12,hips,natural,hb,s83 SAM-DA61-08237A
...
1-2
Assembly Lamp Led SAM-DA41-00676G
...
1-3
Assembly W/harness-Led Ref SAM-DA96-00961A
...
1-4
All,dc 12v,ul, Ie SAM-DA96-00961B
...
1
Aw1-12 SAM-DA97-12607A
...
2
Assy Cap-Angle; Aw1-12,pp,cool White SAM-DA97-12655A
...
3
Aw1-12,egi-Secc,t2. SAM-DA61-08275A
...
4
Aw1-12,egi-Secc,t2.0 SAM-DA61-08274A
...
5
Aw1-12 SAM-DA97-12730A
...
6-1
Aw1-12,abs,440.3, SAM-DA67-03348A
...
6-2
Aw1-12,abs,cool SAM-DA67-03347A
...
6-3
Aw1-12,gla SAM-DA01-00816A
...
6-4
Aw1-12,glas SAM-DA01-00808A
...
6-5
Aw1-12 SAM-DA97-12632A
...
6
Aw1-12,abs,440.3, SAM-DA67-03348A
...
7-1
Aw1-12 SAM-DA97-12837A
...
7-2
Aw1-12 SAM-DA97-12838A
...
7
Aw1-12 SAM-DA97-12839A
...
8-1
Aw1-12pjt,hips,cool White( SAM-DA63-06946A
...
8-2
Glass SAM-DA01-00811A
...
8-3
Lever-Humidity SAM-DA66-00718A
...
8-4
Refrigerator Crisper Drawer Cover Tri SAM-DA61-03173A
...
8-5
Fixer-Cover Veg SAM-DA61-03166A
...
8-6
Roller-Fre SAM-DA66-10104A
...
8-7
Knob-Humidity; Aw4,abs,natural,chromium P SAM-DA64-04173A
...
8
Aw1-12pjt,cool White, SAM-DA97-12727A
...
9-1
Aw1-12pjt,gpps,tp Blue,14 SAM-DA61-08269A
...
9-3
Aw1-12,hips,s834s1,cool SAM-DA64-03862C
...
9-4
Roller-Fre SAM-DA66-10104A
...
9
Aw1-12,assy SAM-DA97-12725A
...
10-1
Assembly Case-Filter SAM-DA97-08006D
...
10-2
Filter Water; Sseda SAM-DA29-00019A
...
10-3
Aw1-12,hips,hb,cool Wh SAM-DA63-06934A
...
10-4
Assembly Lamp Led SAM-DA41-00519S
...
10-5
Case-Filter Tank L; Aw2-11,hips,cool Whit SAM-DA61-07496A
...
10-6
Case-Filter Tank R; Aw2-11,hips,w433.9,l1 SAM-DA61-07497A
...
10-7
Pipe-Water Line SAM-DA62-01368B
...
10-8
Refrigerator Water Inlet Valve SAM-DA62-03150F
...
10-9
Cover-Led Filter SAM-DA63-05408B
...
10
Refrigerator Water Filter Housing SAM-DA97-12664A
...
11-1
Aw1-12pjt,gpps,tp Blue,14 SAM-DA61-08270A
...
11-2
Aw1-12pjt,gpps,tp Blue SAM-DA63-06943A
...
11-3
Aw1-12,hips,s834s1,cool SAM-DA64-03862B
...
11-4
Roller-Fre SAM-DA66-10104A
...
11
Aw1-12,assy SAM-DA97-12726A
...
12-1
Shelf-Pantry; Aw-Pjt,hips,2.5,-,-,cool Wh SAM-DA67-01781A
...
12-2
Reinf-Shelf Pantry; Aw-Pjt,egi-Secc,t1.2, SAM-DA61-03174A
...
12-3
Refrigerator Pantry Drawer Slide Rail Cover Ass... SAM-DA97-05371B
...
12
Refrigerator Shelf SAM-DA97-05370A
...
13-1
Roller-Rail; Aw2-Pjt,pom,19.0,-,-,-,n109- SAM-DA66-00548A
...
13-2
Aw(ge)-Pjt,assy SAM-DA97-05384F
...
13
Cover-Rail Pantry L; Aw-Pjt Best,hips,-,- SAM-DA63-03762A
...
14-1
Support-Roller Pantry; Aw-Pjt,pvc,blk SAM-DA61-03176A
...
14-2
Assy-Roller A; Aw2-Pjt SAM-DA97-05932A
...
14-3
Led Display,aw2-Pjt,pantry SAM-DA92-00151A
...
14-4
Aw1-12,pc,t0.3,21.08 SAM-DA64-04243A
...
14-5
Refrigerator Crisper Drawer Slide Cover SAM-DA97-05383E
...
14
Aw(ge)-Pjt,assy SAM-DA97-05384F
...
15-1
Assy Cover-Motor Damper; Aw2-Pjt,ntr,0.5w SAM-DA97-06324C
...
15-2
Cover-Slide Pantry B; Aw-Pjt Best,hips,co SAM-DA63-03765C
...
15
Cover-Slide Pantry A; Aw,gpps,-,-,-,-,-,n SAM-DA63-03764A
...
16-1
Nsby001tk1/du25-076,dc12 SAM-DA31-00071G
...
16-2
Dkst1329gw,px-41c, 502at,aw- SAM-DA32-00006R
...
16-3
Insulation-Motor Dc Damper; Aw-Pjt,ps Foa SAM-DA62-01380A
...
16-4
Aw2 Nd,pin,120v/120w SAM-DA96-00660E
...
16
Cover Motor-Front; Aw2-Pjt,pp,hb,natural, SAM-DA63-04274B
...
17-1
Thermo Bimetal-Protector SAM-DA47-00243C
...
17-2
Sensor Temp SAM-DA32-10104N
...
17-3
Aw3(r),120w,120v SAM-DA47-00244W
...
17-4
Fin Tube,aw3 SAM-DA59-00399A
...
17-5
Plate-Evap Heater SAM-DA61-03644A
...
17-6
Fixer-Senser SAM-DA61-03683A
...
17-7
Fixer-Fuse SAM-DA61-05160A
...
17-8
Fixer-Heater Ref SAM-DA61-05835B
...
17-9
Aw1-12 SAM-DA97-12609A
...
17
Aw3-Pjt,al,t0.3 SAM-DA61-06186B
...
18-1
Aw1-12,pp,cool White,bj75 SAM-DA63-06919A
...
18-2
Aw4,assy SAM-DA97-12815A
...
18-3
Aw1-12,ps Foam, SAM-DA62-03649A
...
18-5
Seal-Cover Ref Upp; Aw4,ojc-3000,white,t7 SAM-DA62-03680A
...
18-6
Aw1-12,ps Foam,ntr SAM-DA62-03648A
...
18
Sensor Temp; Dkst1329gw,queen,-50 ~ 80 SAM-DA32-00011C
...
19-1
Assy Rail-Pantry L; Aw-Pjt,-,-,-,-,- SAM-DA97-04837A
...
19-2
Assy Rail-Pantry R; Aw-Pjt,-,-,-,-,- SAM-DA97-04838A
...
19-3
Aw2-Pjt,-,-,- SAM-DA97-05931A
...
19-4
Roller-Rail; Aw2-Pjt,pom,19.0,-,-,-,n109- SAM-DA66-00548A
...
19
Case-Pantry; Aw,hips,-,-,-,cool White,- SAM-DA61-03164A
...
20
Guide-French; Aw-Pjt,pc-Abs,-,-,-,cool-Wh SAM-DA61-03202A
...
184
Motor Bldc Fan SAM-DA31-00287A
...
1841
Aw4,abs,light Gray,cntk-A SAM-DA61-08187A
...
1842
Refrigerator Pantry Drawer SAM-DA97-04847D
...
1941
Guide-Washer; Aw2-Pjt,sts304,0.5,12.0,-,- SAM-DA61-04008A
...
1942
Aw4,gpps,tp Blue,147f SAM-DA63-06921A

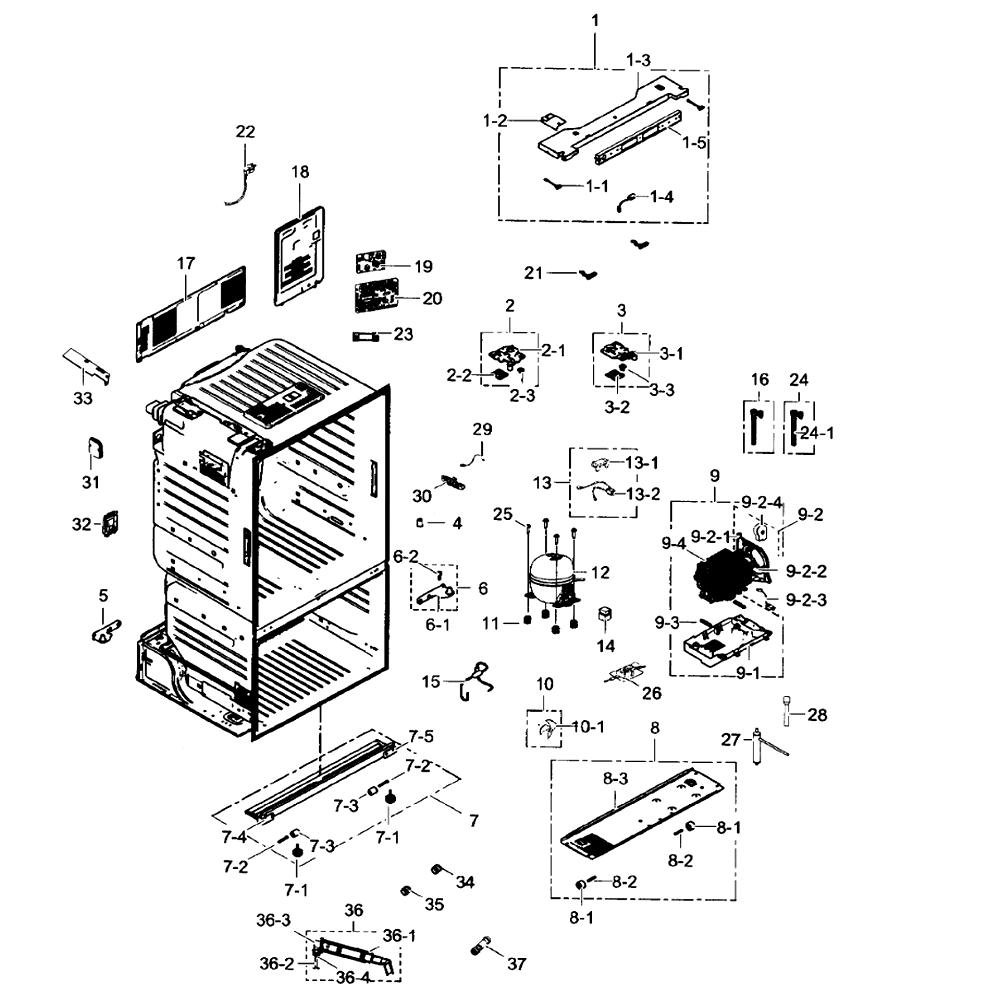

Cabinet

...
...
1-1
Switch Reed SAM-DA34-00043A
...
1-2
Plate-Cover Hinge SAM-DA61-08227A
...
1-3
Aw1-12,abs,creamy Sts,910,basi SAM-DA64-04190A
...
1-4
Assy W/harness-Reed Switch; Fdr,12vdc,all SAM-DA96-00962A
...
1-5
Case-Pba D SAM-DA61-03194A
...
1
Aw1-12,assy,creamy Sts,91 SAM-DA97-12706A
...
2-1
Hinge-Upp L SAM-DA61-08309A
...
2-2
Shim-Hinge Upp SAM-DA63-50192A
...
2-3
Cam-Auto Close L SAM-DA66-00950A
...
2
Assembly Hinge Upp-L SAM-DA97-12573A
...
3-1
Hinge-Upp R; Aw4,po-Sphc,t2.9,eletrodepos SAM-DA61-08310A
...
3-2
Shim-Hinge Upp SAM-DA63-50192A
...
3-3
Cam-Auto Close R SAM-DA66-00951A
...
3
Assy Hinge Upp-R; Aw4,t3.0,black SAM-DA97-12574A
...
4
Grommet Hinge-Mid SAM-DA63-06410A
...
5
Refrigerator Door Hinge, Left SAM-DA61-07234A
...
6-1
Refrigerator Hinge SAM-DA61-07235B
...
6-2
Bolt-Socket SAM-6011-001442
...
6
Refrigerator Door Hinge, Center SAM-DA97-11370B
...
7-1
Foot-Front SAM-DA61-00805F
...
7-2
Caster-Rivet SAM-DA61-01920A
...
7-3
Caster-Front SAM-DA61-04702A
...
7-4
Opus-1,pp,natural,bj75 SAM-DA63-06389A
...
7-5
Opus-1,pp,creamy Stain SAM-DA63-06405A
...
7
Refrigerator Cabinet Body SAM-DA97-12577A
...
8-1
Caster-Rear SAM-DA61-04703A
...
8-2
Shaft-Caster SAM-DA66-00649A
...
8-3
Aw1-12,gi-Sgcc,t1.4 SAM-DA64-04244A
...
8
Aw1-12,t1.4 SAM-DA97-12895A
...
9-1
Aw-Pjt,pp,black SAM-DA63-03450A
...
9-2
Assy Support-Circuit Motor; Next,ntr,rpm1 SAM-DA97-03145N
...
9-3
Grommet-Sub Cond SAM-DA63-40128A
...
9-4
Assy Pipe-Spiral Cond; Aw2-Pjt,spiral Pit SAM-DA97-05093D
...
9-21
Next,abs Scrap,lig SAM-DA61-02349C
...
9-22
Bracket-Circuit Motor; Abs,next,-,-,-,ntr SAM-DA61-02355B
...
9-23
Wire-Harness Motor SAM-DA96-00042A
...
9-24
Motor Bldc SAM-DA31-00146B
...
9
Assy Tray-Drain Water; Aw-Pjt,-,-,-,-,bld SAM-DA97-05043D
...
10-1
Fan-Turbo SAM-DA31-00015C
...
10
Fan-Assy SAM-DA31-00010D
...
11
Grommet Comp SAM-DA63-02617A
...
12
Compressor,bldc,9.08cc,115v,fan Cooling; Compressor,bldc,9.08cc,115v,fan Cooling SAM-MKV190CL2J/E01
...
13-1
Relay Protector O/l SAM-DA34-00004D
...
13-2
All,free Volt,ul+ SAM-DA39-00154L
...
13
Assy Comp-Sub; Wire Harness-Comp Sub,4tm4 SAM-DA97-10848M
...
14
Cover Relay SAM-DA63-01866A
...
15
Assy Pipe-Connect; Aw Pjt SAM-DA97-12170A
...
16
Refrigerator Drain Tube SAM-DA97-04049D
...
17
Assy Cover-Comp; Aw1-12,t0.25,foam Pe SAM-DA97-11403B
...
18
Aw1-12,assy SAM-DA97-08442C
...
19
Inverter,aw1-12,197*98 SAM-DA92-00215B
...
20
Refrigerator Electronic Control Board SAM-DA92-00384D
...
21
Fixer Hinge-Upp SAM-DA61-04932A
...
22
Cbf-Power Cord SAM-3903-000519
...
23
Fuse-Axial Lead; 250v,6.3,time Lag,cerami SAM-3601-001729
...
24-1
Nw2-Fdr,sf-Pvc,t0.7,l210,gray SAM-DA62-01266D
...
24
Aw1-12 SAM-DA97-04049H
...
25
Bolt-Hex SAM-DA60-20008A
...
26
Aw3-Pjt,20mh,82*60,-25 ~ +85 SAM-DA27-00019H
...
27
Refrigerator Filter Dryer SAM-DA62-02614P
...
28
Pipe-Connect Disc,b SAM-DA73-10190U
...
29
Px41c/502at,aw4,-40~110 ?,5v SAM-DA32-00029U
...
30
Cover Sensor-Fre SAM-DA63-05470B
...
31
Refrigerator Pipe Cover SAM-DA97-05029C
...
32
Assembly Cover-Tube Filter SAM-DA97-08413B
...
33
Cover-Cap Door Ref Upp L; Aw4,abs,creamy SAM-DA63-06916A
...
34
Fitting-Lokring 16; Sum23,16, 11smnpb30k SAM-DA60-00279A
...
35
Fitting-Lokring 33 SAM-DA60-00280A
...
36-1
Refrigerator Ice Maker Fill Tube Heater SAM-DA47-00192E
...
36-2
Lldpe,white,i.d4.2, O.d6 SAM-DA62-01368A
...
36-3
Refrigerator Pipe SAM-DA73-00134D
...
36-4
Fixer-Valve Water B SAM-DA71-20208A
...
36
Aw2-11,hose L0.36m, SAM-DA97-00209Z
...
37
Tube-Fitting SAM-DA62-03914A

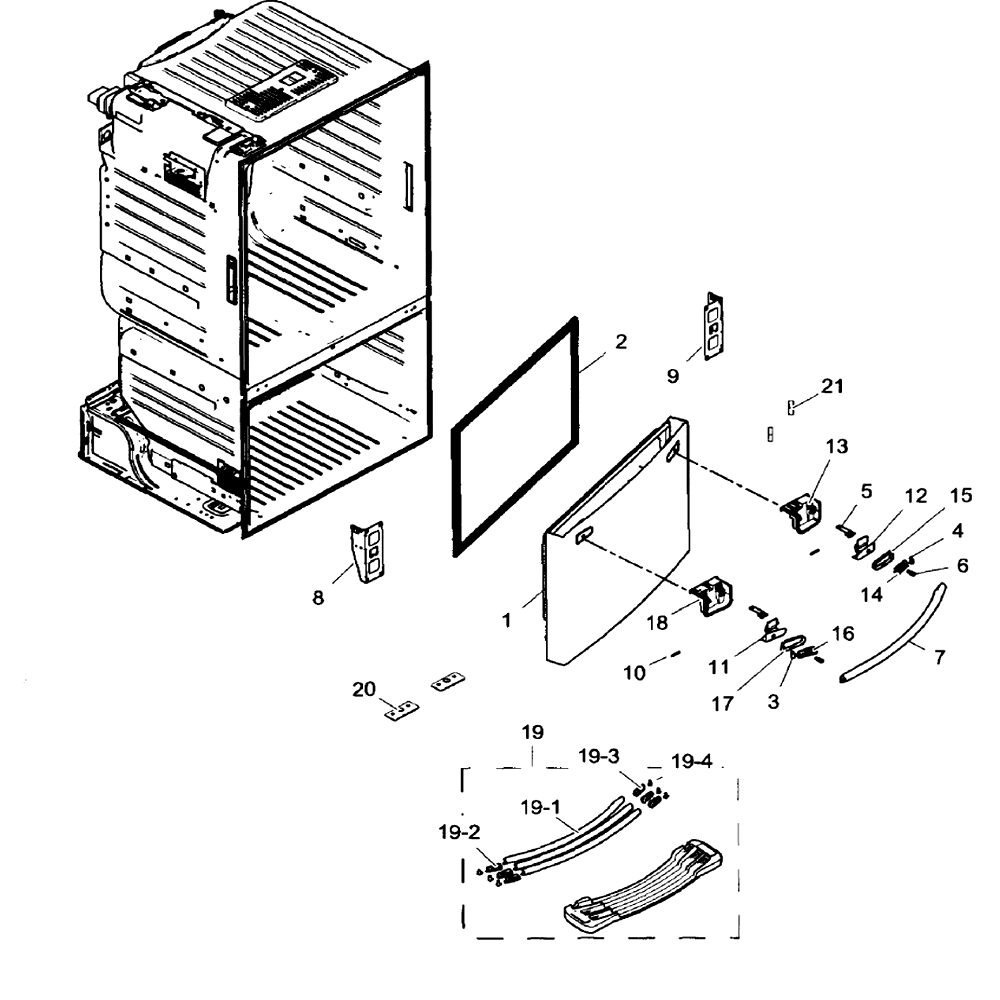

Freezer Door

...
...
1
Assy Door Foam-Fre; Aw1-12,rs,plate SAM-DA91-03833A
...
2
Assy-Gasket Door Fre; Aw-Pjt,gray,aw New- SAM-DA97-05557Y
...
3
Cap Handle-Fre L; Aw1-12,aw4,abs+pc,hb,hr SAM-DA67-03330A
...
4
Cap Handle-Fre R; Aw1-12,aw4,abs+pc,hb,hr SAM-DA67-03331A
...
5
Aw3,pom,creamy-Sts SAM-DA61-06014A
...
6
Fixer-Handle SAM-DA61-03734A
...
7
Handle Bar-Fre; Aw1-12,aw4,al,t1.3,versai SAM-DA64-03945F
...
8
Hanger-Rail Front L; Aw-Pjt,secc1,t2.0,co SAM-DA61-03153B
...
9
Hanger-Rail Front R; Aw-Pjt,secc1,t2.0,co SAM-DA61-03155B
...
10
Spring Etc-Easy Handle; 08 Aw1,2-Pjt,hswr SAM-DA61-04335B
...
11
Cap Handle-Fre L; Aw1-12,aw4,abs+pc,hb,hr SAM-DA67-03330A
...
12
Cap Handle-Fre R; Aw1-12,aw4,abs+pc,hb,hr SAM-DA67-03331A
...
13
Aw1-12,abs,132.7,creamy Sts SAM-DA61-08267A
...
14
Support-Handle Fre R SAM-DA61-08247A
...
15
Aw4,abs,t1.5,creamy Sts SAM-DA64-04159A
...
16
Support-Handle Fre SAM-DA61-08229A
...
17
Aw4,abs,t1.5,creamy Sts SAM-DA64-04158A
...
18
Aw1-12,abs,132.7,creamy Sts SAM-DA61-08268A
...
19-1
Assy Handle Bar-Fre; Aw4,al(a6063),versai SAM-DA97-12712C
...
19-2
Support-Handle Fre SAM-DA61-08229A
...
19-3
Support-Handle Fre R SAM-DA61-08247A
...
19-4
Cap-Handle Fre SAM-DA67-02787A
...
19
Aw1-12,aw4,al,patent SAM-DA99-03914C
...
20
Reinf-Cap Handle SAM-DA61-06658A
...
21
Aw3,mswr10,92,5,zpc3(y) SAM-DA66-00579B

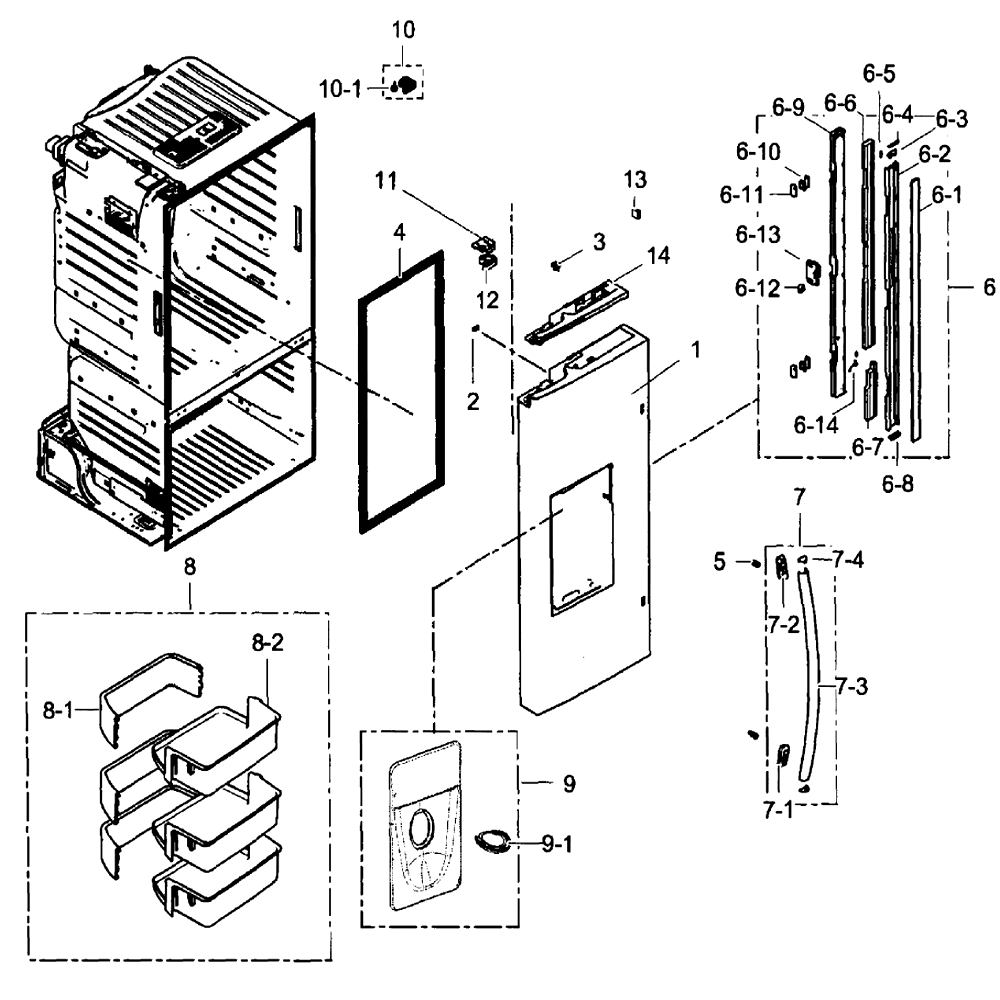

Left Door

...
...
1
Refrigerator Door Assembly, Left SAM-DA91-03851A
...
2
Magnet-A SAM-DA61-03769A
...
3
Cam-Auto Close L SAM-DA66-00950A
...
4
Assy-Gasket Door Ref; Aw-Pjt,gray,-,- SAM-DA97-05253B
...
5
Fixer-Handle SAM-DA61-03734A
...
6-1
Aw1-12,egi-Secc,t0.8,thai Silver SAM-DA61-08321A
...
6-2
Aw1-12,abs,cool White SAM-DA61-08320A
...
6-3
Cap-Guide French Upp SAM-DA67-03358A
...
6-4
Gasket-French Upp; Aw4,si,gray SAM-DA63-06959A
...
6-5
Spring Etc-Etc Cap Guide; Aw4,sts304,3.0, SAM-DA61-08315A
...
6-6
Aw1-12,ps Foam,sf-401h SAM-DA62-03668A
...
6-7
Aw1-12,ps Foam,sf- SAM-DA62-03669A
...
6-8
Gasket-French Low; Aw-Pjt,si,gray SAM-DA63-06842B
...
6-9
Aw1-12,abs,cool White SAM-DA61-08319A
...
6-10
Hinge-French SAM-DA61-08305A
...
6-11
Cap-Case French SAM-DA67-01650A
...
6-12
Cap-Case French Mid SAM-DA67-01701A
...
6-13
Cover-Heater French SAM-DA63-03454B
...
6-14
Aw4,sts304,1.4,5.2,8.0 SAM-DA61-08314A
...
6
Aw1-12,thai-Silver SAM-DA97-12683A
...
7-1
Support-Handle Ref SAM-DA61-08228A
...
7-2
Support-Handle Ref Upp SAM-DA61-08246A
...
7-3
Handle Bar-Ref L; Aw1-12 & Aw4,al,t1.3,ve SAM-DA64-03756K
...
7-4
Cap-Supt Handle Ref SAM-DA67-02788A
...
7
Assy Handle Bar-Ref L; Aw4,al(a6063),vers SAM-DA97-12715C
...
8-1
Refrigerator Guard Cover SAM-DA63-06993A
...
8-2
Refrigerator Guard SAM-DA63-06967A
...
8
Aw1-12 SAM-DA97-12657A
...
9-1
Refrigerator Water Dispenser Rubber Button Cover SAM-DA73-00230C
...
9
Refrigerator Dispenser Cover SAM-DA97-12942A
...
10-1
Roller-Auto Close SAM-DA66-00440A
...
10
Assembly Lever-Auto Close SAM-DA97-12625A
...
11
Aw-Pjt,po-Sphc,black,heat SAM-DA61-03211A
...
12
Support Door-Close; Aw-Pjt,pk,m33r3a000,c SAM-DA61-02383E
...
13
Grommet-Stopper SAM-DA63-40294A
...
14
Aw1-12,abs,creamy-Sts SAM-DA67-03339A

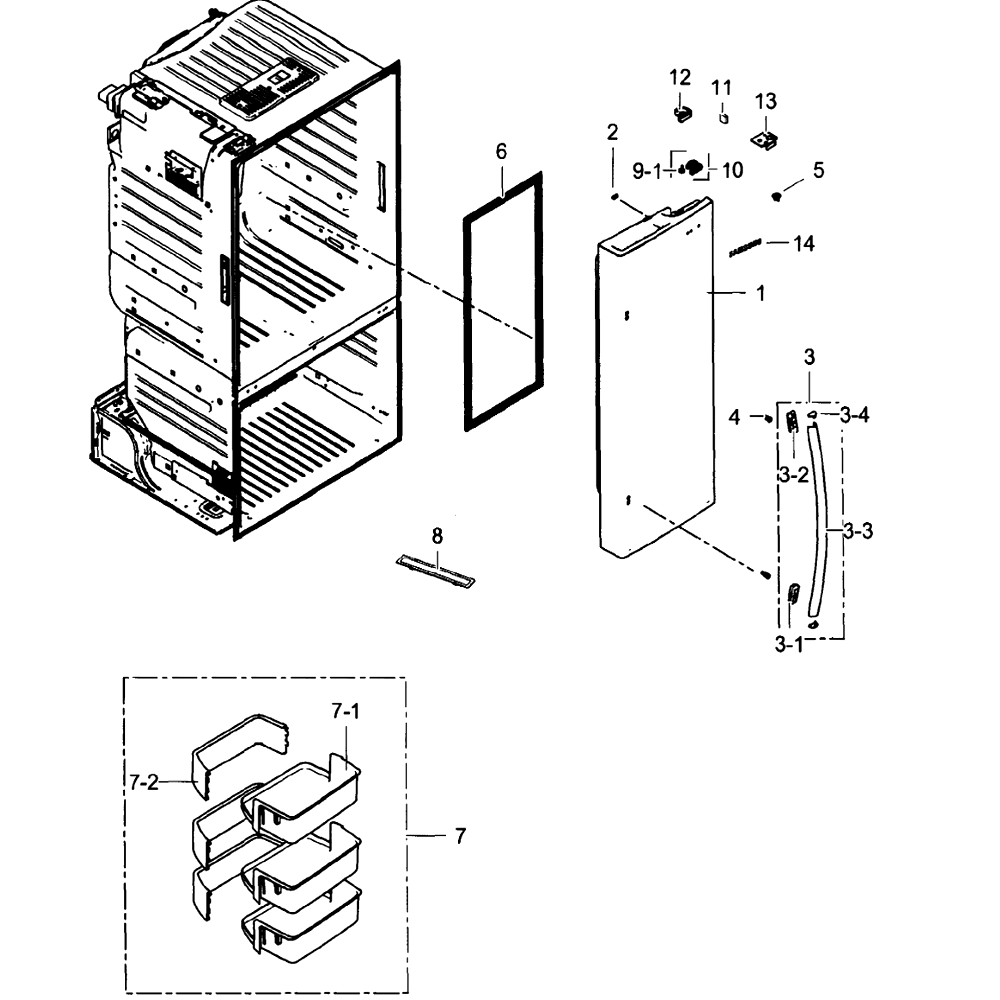

Right Door

...
...
1
Refrigerator Door Assembly, Right SAM-DA91-03828A
...
2
Magnet-A SAM-DA61-03769A
...
3-1
Support-Handle Ref SAM-DA61-08228A
...
3-2
Support-Handle Ref Upp SAM-DA61-08246A
...
3-3
Handle Bar-Ref R; Aw1-12 & Aw4,al,t1.3,ve SAM-DA64-03756G
...
3-4
Cap-Supt Handle Ref SAM-DA67-02788A
...
3
Assy Handle Bar-Ref R; Aw4,al(a6063),vers SAM-DA97-12714C
...
4
Fixer-Handle SAM-DA61-03734A
...
5
Cam-Auto Close R SAM-DA66-00951A
...
6
Assy-Gasket Door Ref; Aw-Pjt,gray,-,- SAM-DA97-05253B
...
7-1
Aw1-12,hips,cool White,s834s SAM-DA63-06963A
...
7-2
Aw4,gpps,t3.0,hb,tp Bl SAM-DA63-06974A
...
7
Aw1-12 SAM-DA97-12650A
...
8
Cover-Cap Door Led SAM-DA63-05524A
...
9-1
Roller-Auto Close SAM-DA66-00440A
...
10
Assembly Lever-Auto Close SAM-DA97-12625A
...
11
Grommet-Stopper SAM-DA63-40294A
...
12
Support Door-Close; Aw-Pjt,pk,m33r3a000,c SAM-DA61-02383E
...
13
Aw-Pjt,po-Sphc,black,heat SAM-DA61-03212A
...
14
Mascot SAM-DA64-04021B
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
