Samsung DW80M2020US/AA_0000

Model: DW80M2020US/AA_0000

Save Part Not Listed?

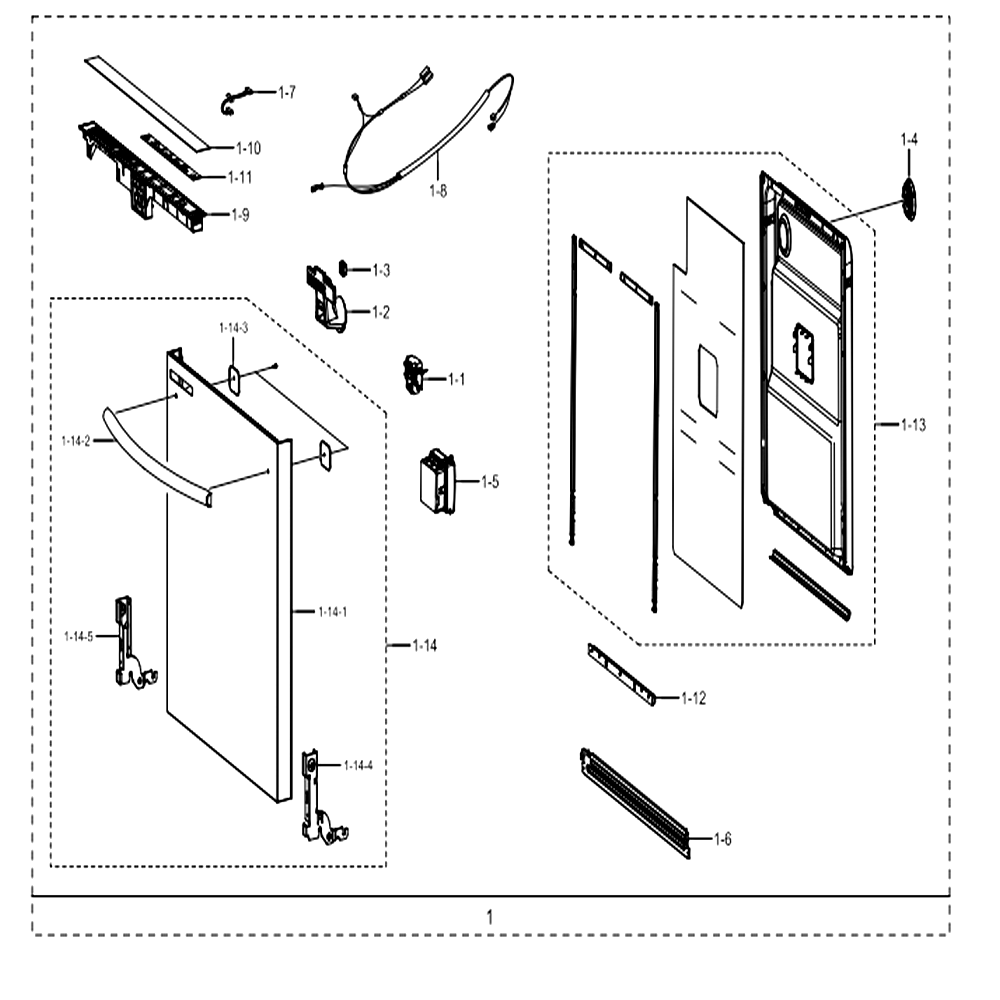

product name

Assy Door

...
...
1-1
A/s-Door Switch; Odm, Dw3000mm SAM-DD81-02197A
...
1-2
A/s-Case Vent; Odm, Dw3000mm SAM-DD81-02198A
...
1-3
A/s-Vent Fan; Odm, Dw3000mm SAM-DD81-02199A
...
1-4
A/s-Cover Vent; Odm, Dw3000mm SAM-DD81-02200A
...
1-5
A/s-Dispenser Rinse Aid; Odm, Dw3000mm SAM-DD81-02202A
...
1-6
A/s-Bracket-Door Link; Odm, Dw3000mm SAM-DD81-02203A
...
1-7
A/s-Wire Harness Sub A; Odm, Dw3000mm SAM-DD81-02208A
...
1-8
A/s-Wire Harness Sub B; Odm, Dw3000mm SAM-DD81-02209A
...
1-9
A/s-Control Panel; Odm, Dw3000mm SAM-DD81-02323A
...
1-10
A/s-Window Panel; Odm, Dw3000mm SAM-DD81-02324A
...
1-11
A/s-Sub Pcb; Odm, Dw3000mm SAM-DD81-02325A
...
1-12
A/s-Holder Door Inner; Odm, Dw3000mm SAM-DD81-02326A
...
1-13
A/s Assy-Door Inner; Odm, Dw3000mm SAM-DD82-01388A
...
1-14-1
A/s-Door Outer; Oem, Dw3000mm,silver SAM-DD81-02142A
...
1-14-2
A/s-Handle Door; Odm, Dw3000mm SAM-DD81-02193A
...
1-14-3
A/s-Holder Bolt; Odm, Dw3000mm SAM-DD81-02194A
...
1-14-4
A/s-Door Link(r); Odm, Dw3000mm SAM-DD81-02195A
...
1-14-5
A/s-Door Link(l); Odm, Dw3000mm SAM-DD81-02196A
...
1-14
A/s Assy-Door Outer; Odm, Dw3000mm SAM-DD82-01412A
...
1
A/s Assy-Door; Odm, Dw3000mm SAM-DD82-01374A

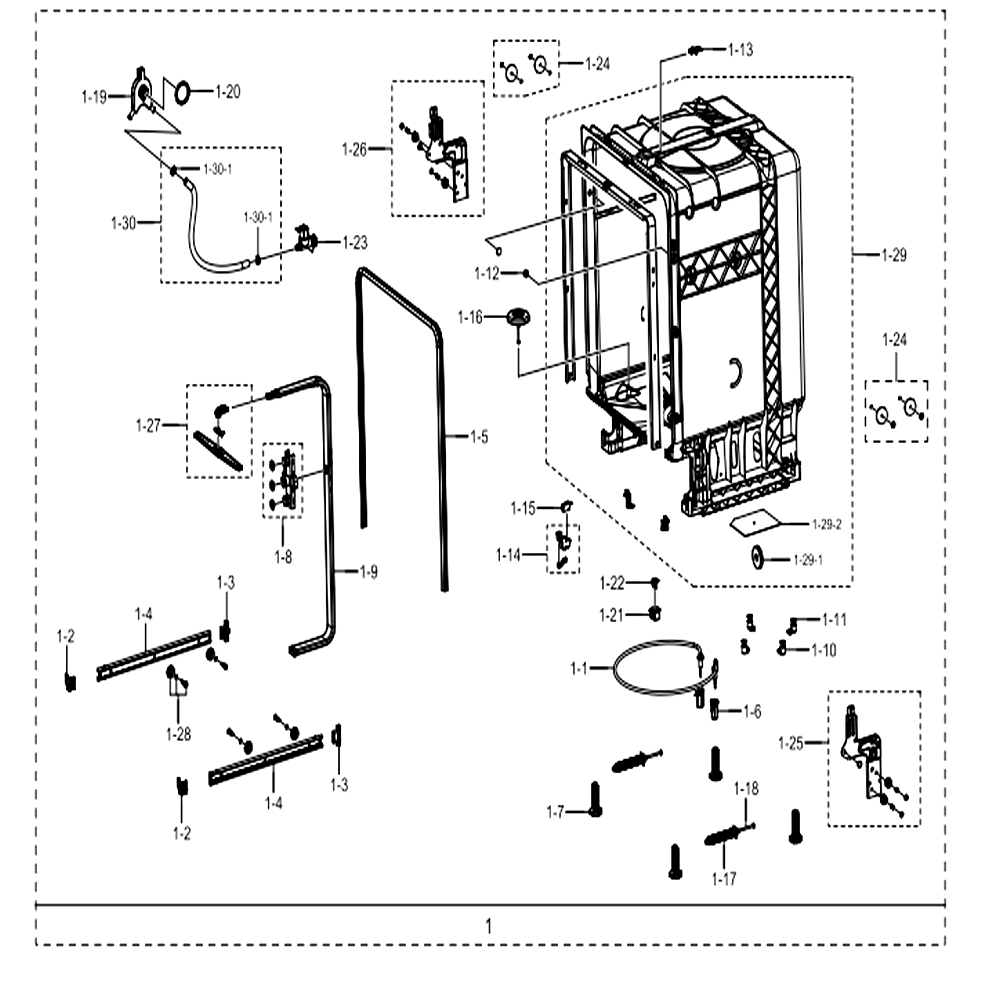

Assy Tub

...
...
1-1
A/s-Heater; Oem, Dw3000mm SAM-DD81-02148A
...
1-2
A/s-Holder-Rail Middle Front; Odm, Dw3000 SAM-DD81-02211A
...
1-3
A/s-Holder-Rail Middle Back; Odm, Dw3000m SAM-DD81-02212A
...
1-4
A/s-Bracket Roller; Odm, Dw3000mm SAM-DD81-02213A
...
1-5
A/s-Seal Tub Packing; Odm, Dw3000mm SAM-DD81-02216A
...
1-6
A/s-Holder Heater; Odm, Dw3000mm SAM-DD81-02218A
...
1-7
A/s-Foot; Odm, Dw3000mm SAM-DD81-02219A
...
1-8
A/s-Holder Duct-Middle; Odm, Dw3000mm SAM-DD81-02224A
...
1-9
A/s-Main Duct; Odm, Dw3000mm SAM-DD81-02226A
...
1-10
A/s-Holder Sump; Odm, Dw3000mm SAM-DD81-02230A
...
1-11
A/s-Washer Holder Sump; Odm, Dw3000mm SAM-DD81-02232A
...
1-12
A/s-Cap; Odm, Dw3000mm SAM-DD81-02233A
...
1-13
A/s-Lever Door; Odm, Dw3000mm SAM-DD81-02235A
...
1-14
A/s-Base Floating; Odm, Dw3000mm SAM-DD81-02238A
...
1-15
A/s-Micro Switch; Odm, Dw3000mm SAM-DD81-02239A
...
1-16
A/s-Cover Floating; Odm, Dw3000mm SAM-DD81-02243A
...
1-17
A/s-Spring Etc; Odm, Dw3000mm SAM-DD81-02245A
...
1-18
A/s-Shaft Spring; Odm, Dw3000mm SAM-DD81-02247A
...
1-19
A/s-Case Brake; Odm, Dw3000mm SAM-DD81-02253A
...
1-20
A/s-Gasket Brake; Odm, Dw3000mm SAM-DD81-02256A
...
1-21
A/s-Cover Thermostat; Odm, Dw3000mm SAM-DD81-02261A
...
1-22
A/s-Thermostat; Odm, Dw3000mm SAM-DD81-02263A
...
1-23
A/s-Water Valve; Odm, Dw3000mm SAM-DD81-02265A
...
1-24
A/s Assy-Rail Roller; Odm, Dw3000mm SAM-DD82-01415A
...
1-25
A/s Assy-Support Link R; Odm, Dw3000mm SAM-DD82-01416A
...
1-26
A/s Assy-Support Link L; Odm, Dw3000mm SAM-DD82-01417A
...
1-27
A/s Assy-Rotor Upper; Odm, Dw3000mm SAM-DD82-01421A
...
1-28
A/s Assy-Bracket Rail Roller; Odm, Dw3000 SAM-DD82-01432A
...
1-29-1
A/s-Ruber Pump; Odm, Dw3000mm SAM-DD81-02221A
...
1-29-2
A/s-Bracket Base; Odm, Dw3000mm SAM-DD81-02249A
...
1-29
A/s Assy-Gross Tub; Odm, Dw3000mm SAM-DD82-01435A
...
1-30-1
A/s-Clamper Hose Inlet; Odm, Dw3000mm SAM-DD81-02259A
...
1-30
A/s Assy-Hose Inlet A; Odm, Dw3000mm SAM-DD82-01438A
...
1
A/s Assy-Tub; Odm, Dw3000mm SAM-DD82-01375A

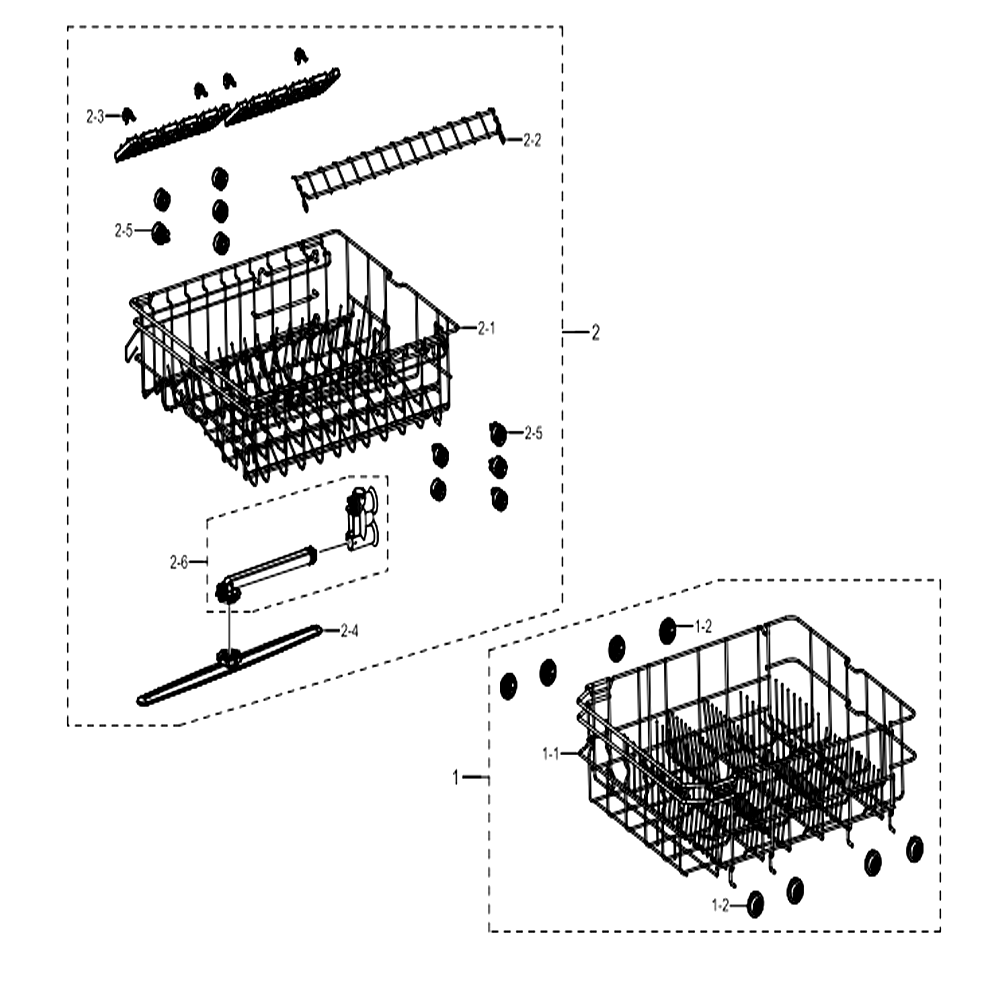

Assy Basket

...
...
1-1
A/s-Basket Lower; Odm, Dw3000mm SAM-DD81-02295A
...
1-2
A/s Assy-Roller Basket(l); Odm, Dw3000mm SAM-DD82-01424A
...
1
A/s Assy-Basket Lower; Odm, Dw3000mm SAM-DD82-01384A
...
2-1
A/s-Basket Middle; Odm, Dw3000mm SAM-DD81-02296A
...
2-2
A/s-Support Cup B; Odm, Dw3000mm SAM-DD81-02329A
...
2-3
A/s-Holder Support Cup; Odm, Dw3000mm SAM-DD81-02330A
...
2-4
A/s Assy-Nozzle Middle; Oem, Dw7000km,dw5 SAM-DD82-01390A
...
2-5
A/s Assy-Roller Basket(m); Odm, Dw3000mm SAM-DD82-01426A
...
2-6
A/s Assy-Duct Middle; Odm, Dw3000mm SAM-DD82-01428A
...
2
A/s Assy-Basket Middle; Odm, Dw3000mm SAM-DD82-01385A

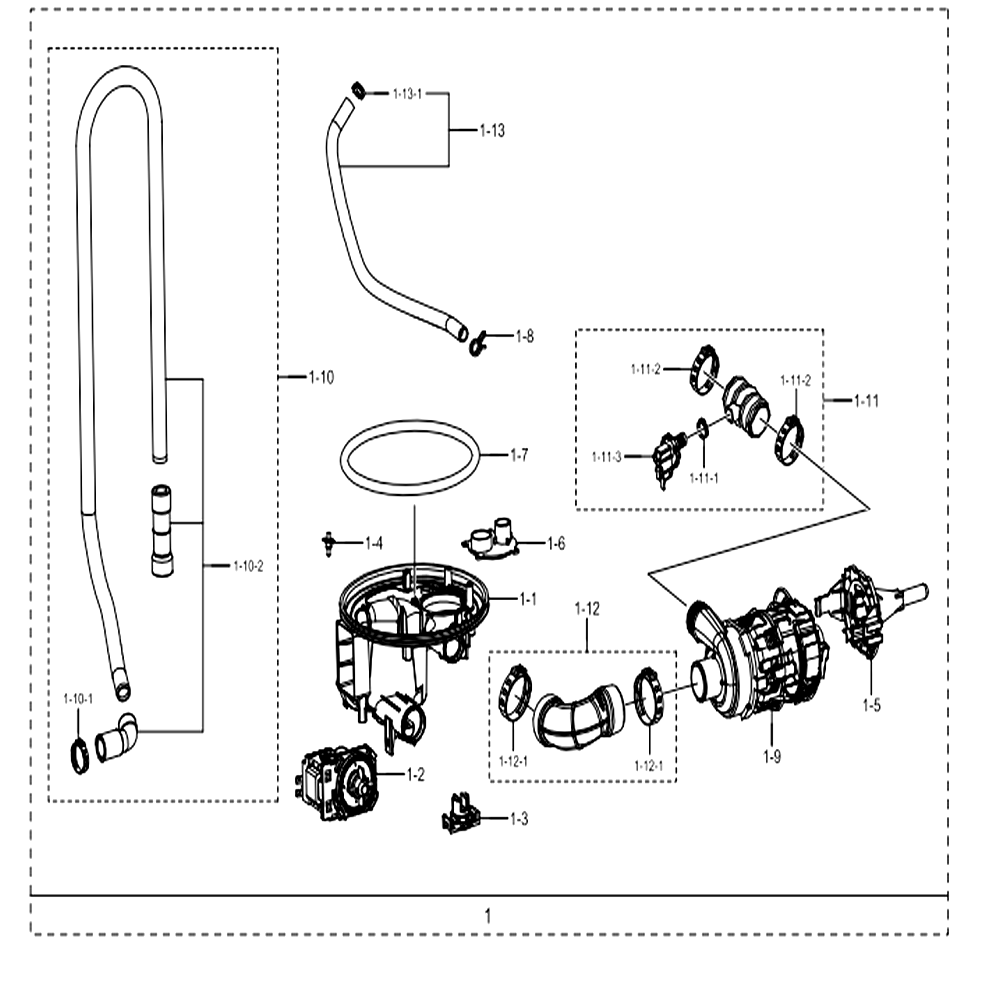

Assy Sump

...
...
1-1
A/s-Sump; Oem, Dw3000mm SAM-DD81-02149A
...
1-2
A/s-Pump-Drain; Oem, Dw3000mm SAM-DD81-02150A
...
1-3
A/s-Sensor-Turbidity; Oem, Dw3000mm SAM-DD81-02151A
...
1-4
A/s-Thermistor; Oem, Dw3000mm SAM-DD81-02152A
...
1-5
A/s-Hoder Pump Circulation; Odm, Dw3000mm SAM-DD81-02267A
...
1-6
A/s-Guide Water; Odm, Dw3000mm SAM-DD81-02271A
...
1-7
A/s-Seal Sump; Odm, Dw3000mm SAM-DD81-02273A
...
1-8
A/s-Clamper Hose In; Odm, Dw3000mm SAM-DD81-02280A
...
1-9
A/s Assy-Pump Circulation; Odm, Dw3000mm SAM-DD82-01380A
...
1-10-1
A/s-Clamper Hose Drain; Odm, Dw3000mm SAM-DD81-02276A
...
1-10-2
A/s-Hose Drain; Odm, Dw3000mm SAM-DD81-02333A
...
1-10
A/s Assy-Hose Drain; Odm, Dw3000mm SAM-DD82-01423A
...
1-11-1
A/s-Clamper Hose Inlet; Odm, Dw3000mm SAM-DD81-02259A
...
1-11-2
A/s-Clamper Hose Pump In; Odm, Dw3000mm SAM-DD81-02269A
...
1-11-3
A/s-Pressure Sensor; Odm, Dw3000mm SAM-DD81-02317A
...
1-11
A/s Assy-Hose Pump In; Odm, Dw3000mm SAM-DD82-01436A
...
1-12-1
A/s-Clamper Hose Pump Out; Odm, Dw3000mm SAM-DD81-02268A
...
1-12
A/s Assy-Hose Pump Out; Odm, Dw3000mm SAM-DD82-01437A
...
1-13-1
A/s-Clamper Hose Inlet; Odm, Dw3000mm SAM-DD81-02259A
...
1-13
A/s Assy-Hose Inlet B; Odm, Dw3000mm SAM-DD82-01439A
...
1
A/s Assy-Sump; Odm, Dw3000mm SAM-DD82-01376A

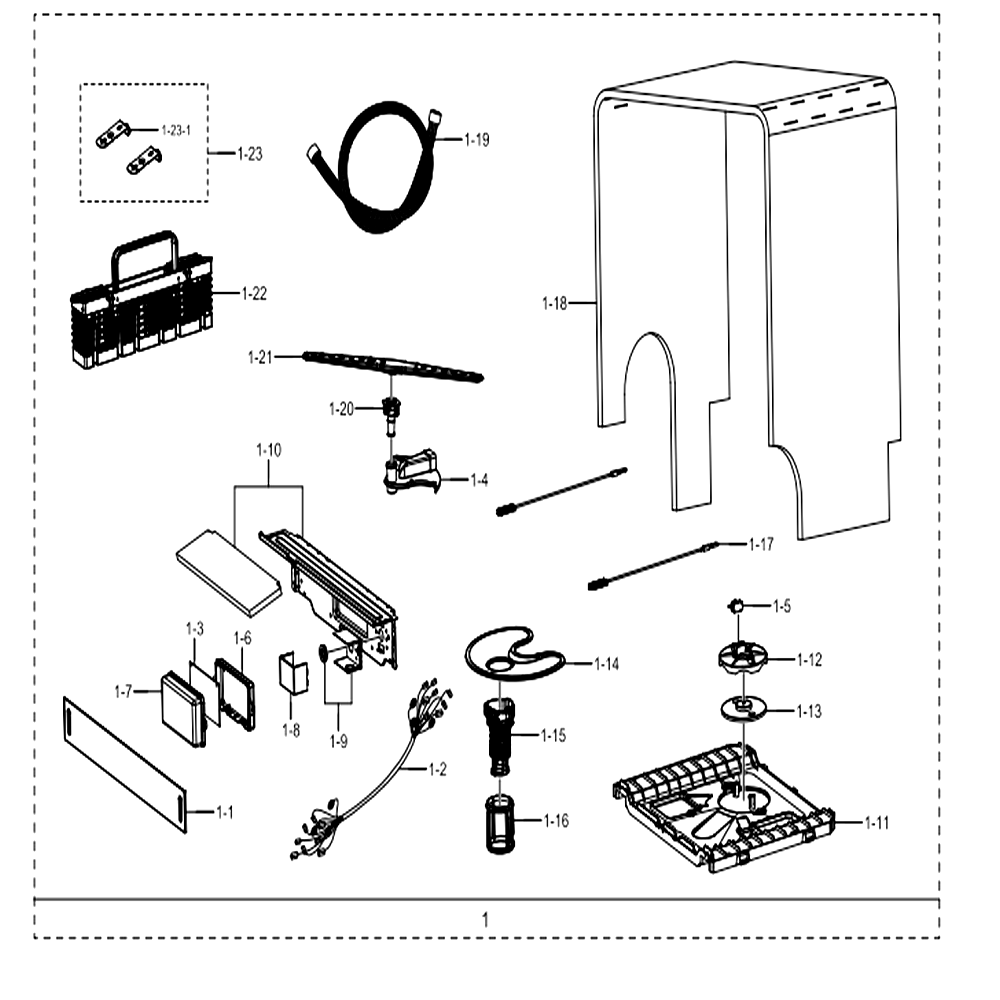

Assy Case

...
...
1-1
A/s-Cover Front Lower; Oem, Dw3000mm SAM-DD81-02144A
...
1-2
A/s-Wire Harness Main; Oem, Dw3000mm SAM-DD81-02146A
...
1-3
A/s-Pcb Main; Oem, Dw3000mm SAM-DD81-02147A
...
1-4
A/s-Cover-Sump; Oem, Dw3000mm SAM-DD81-02160A
...
1-5
A/s-Micro Switch; Odm, Dw3000mm SAM-DD81-02239A
...
1-6
A/s-Guide Cover Pcb; Odm, Dw3000mm SAM-DD81-02281A
...
1-7
A/s-Cover Pcb; Odm, Dw3000mm SAM-DD81-02282A
...
1-8
A/s-Cover Power Up; Odm, Dw3000mm SAM-DD81-02283A
...
1-9
A/s-Cover Power Lower; Odm, Dw3000mm SAM-DD81-02284A
...
1-10
A/s-Frame Front; Odm, Dw3000mm SAM-DD81-02285A
...
1-11
A/s-Cover Base; Odm, Dw3000mm SAM-DD81-02286A
...
1-12
A/s-Hoder Sensor Leakage; Odm, Dw3000mm SAM-DD81-02287A
...
1-13
A/s-Cusion Sensor Leakage; Odm, Dw3000mm SAM-DD81-02288A
...
1-14
A/s-Filter Fine; Odm, Dw3000mm SAM-DD81-02290A
...
1-15
A/s-Filter Coarse; Odm, Dw3000mm SAM-DD81-02291A
...
1-16
A/s-Filter Micro; Odm, Dw3000mm SAM-DD81-02293A
...
1-17
A/s-Holder Rope Door; Odm, Dw3000mm SAM-DD81-02301A
...
1-18
A/s-Absorber-Top; Odm, Dw3000mm SAM-DD81-02302A
...
1-19
A/s-Drain Hose Out; Odm, Dw3000mm SAM-DD81-02331A
...
1-20
A/s-Holder Nozzle Lower; Odm, Dw3000mm SAM-DD81-02332A
...
1-21
A/s Assy-Nozzle Lower; Odm, Dw3000mm SAM-DD82-01383A
...
1-22
A/s Assy-Case Spoon; Odm, Dw3000mm SAM-DD82-01387A
...
1-23-1
A/s Assy-Install Kit; Odm, Dw3000mm SAM-DD82-01433A
...
1-23
A/s Assy-Packing Parts; Dw3000mm,odm,cana SAM-DD82-01455A
...
1
A/s Assy-Case; Dw3000mm,odm,canada SAM-DD82-01454A
