Samsung DW80K7050US/AA_0002

Model: DW80K7050US/AA_0002

Save Part Not Listed?
product name

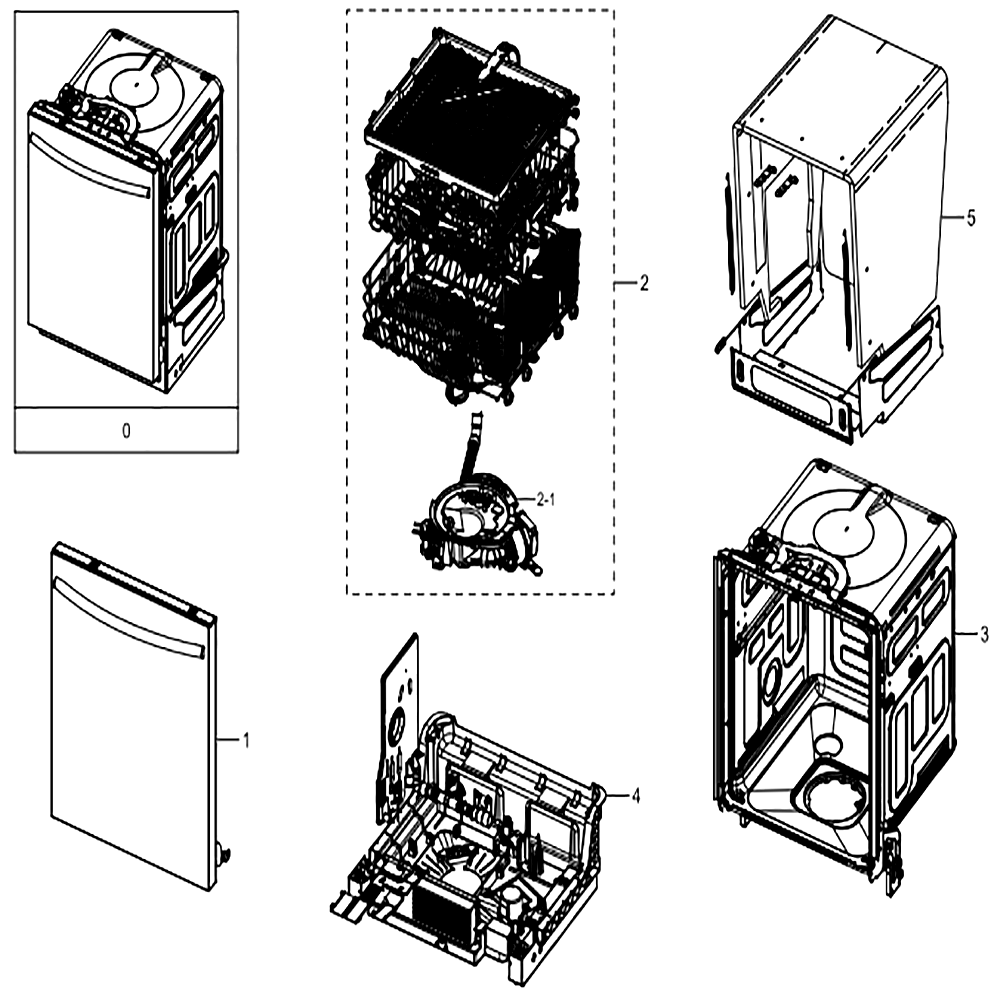

Main

...
...
1
A/s Assy-Door; Dw7000km SAM-DD82-01324A
...
2-1
A/s Assy-Sump; Dw7000km,oem SAM-DD82-01313A
...
2
A/s Assy-Wash; Dw7000km,oem SAM-DD82-01307A
...
3
A/s Assy-Tub; Dw7000km SAM-DD82-01327A
...
4
A/s Assy-Base; Dw7000km,oem SAM-DD82-01304A
...
5
A/s Assy-Case; Dw7000km SAM-DD82-01316A

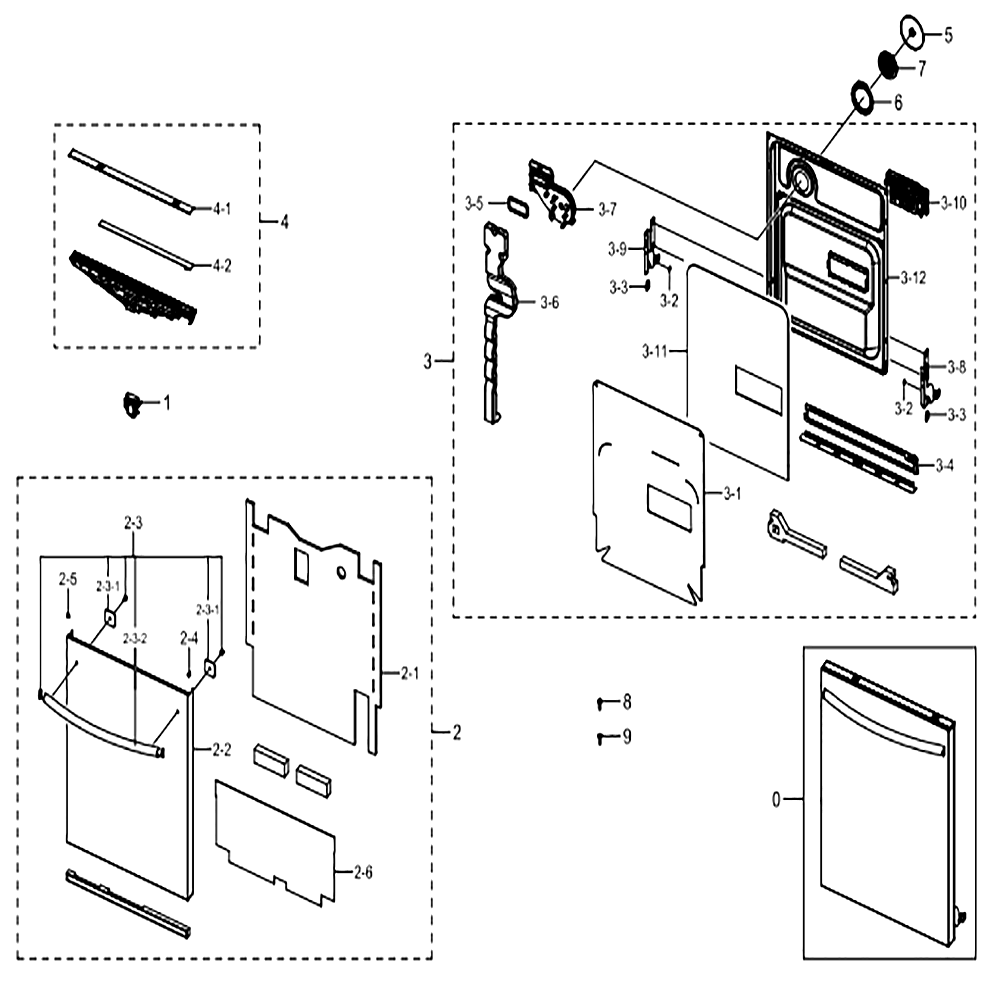

Assy Door

...
...
0
A/s Assy-Door; Dw7000km SAM-DD82-01324A
...
1
A/s-Door Switch; Dw7000km,38.0755,door Sw SAM-DD81-02132A
...
2-1
Absorber-Sound Front H SAM-DD63-00120A
...
2-2
A/s-Door Outer; 7050,sts430 SAM-DD81-02050A
...
2-3-1
Holder-Bolt SAM-DD61-00243A
...
2-3-2
Handle-Door; Dmt800/dmt400,al,hb,metal SAM-DD64-00105A
...
2-3
A/s Assy-Handle Door; R3 Pjt SAM-DD82-01061A
...
2-4
A/s-Guide-Front Right; Oem SAM-DD81-02043A
...
2-5
A/s-Guide-Front Left; Oem SAM-DD81-02044A
...
2-6
A/s-Rubber Skirt; 7000km,black SAM-DD81-02072A
...
2
A/s Assy-Door Outer; Dw7000km SAM-DD82-01325A
...
3-1
Sheet-Damping Tub Front; Dmr78,asphalt,t3 SAM-DD63-00091A
...
3-2
Spacer-Door Link SAM-DD60-00001A
...
3-3
Guide-Door Link SAM-DD61-00207A
...
3-4
Bracket-Door Link SAM-DD61-00205A
...
3-5
Seal-Vent SAM-DD62-00049A
...
3-6
Duct-Condenser SAM-DD67-00037A
...
3-7
A/s Assy-Case Vent; Dw7000km SAM-DD82-01357A
...
3-8
Door-Link(r) SAM-DD64-00046A
...
3-9
Door-Link(l) SAM-DD64-00047A
...
3-10
Dispenser-Slide; Gala-E,ac 110/240v,50/60 SAM-DD59-01002A
...
3-11
Absorber-Tub Front SAM-DD63-00121A
...
3-12
A/s-Tub-Front; Oem SAM-DD81-02055A
...
3
A/s Assy-Tub Front; Dw7000km SAM-DD82-01326A
...
4-1
A/s-Window Panel; 7050 SAM-DD81-02048A
...
4-2
A/s Assy-Pcb Touch; Dw80k7050us,midea,dw7 SAM-DD82-01338A
...
4
A/s Assy-Panel Control; Dw7000km,sts SAM-DD82-01336A
...
5
Bracket-Cover Fan SAM-DD61-00203B
...
6
Seal-Fan SAM-DD62-00044A
...
7
Cover-Fan SAM-DD63-00112A
...
8
Screw-Door(s) SAM-DD81-01151A
...
9
Screw-Door(l) SAM-DD81-01153A

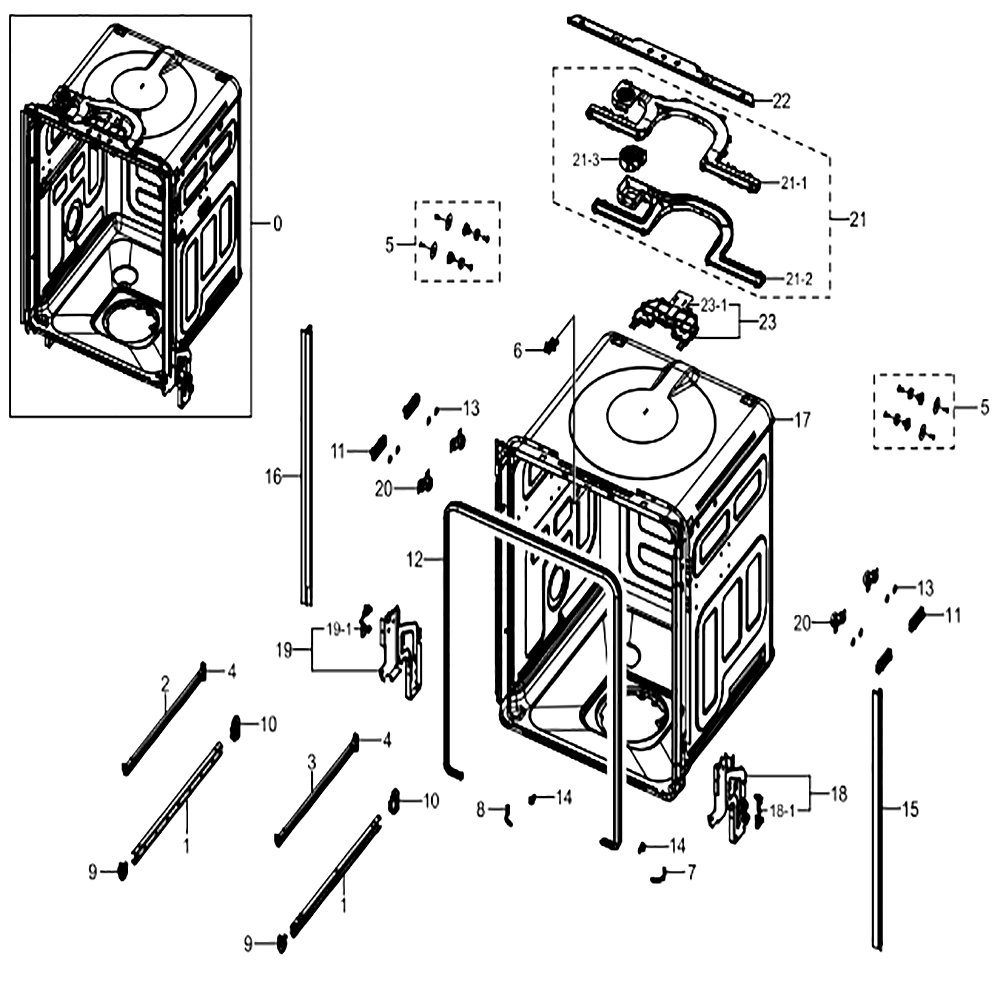

Assy Tub

...
...
0
A/s Assy-Tub; Dw7000km SAM-DD82-01327A
...
1
Rail-Basket SAM-DD61-00174A
...
2
A/s Assy-Rail Basket 3rd L; Dw60h6050 SAM-DD82-01170A
...
3
A/s Assy-Rail Basket 3rd R; Dw60h6050 SAM-DD82-01169A
...
4
A/s-Stopper Rail Rear 3rd; Dw60h6050 SAM-DD81-01674A
...
5
A/s Assy-Rail Support; Dw60h6050,5050,301 SAM-DD82-01140A
...
6
Holder-Door Lock SAM-DD61-00175A
...
7
Guide-Tub Edge(r) SAM-DD61-00177A
...
8
Guide-Tub Edge(l) SAM-DD61-00178A
...
9
Stopper-Rail SAM-DD61-00182A
...
10
Stopper-Rail SAM-DD61-00183A
...
11
Holder-Bracket Rail; Dw9000h,dw8000j,pom, SAM-DD61-00400A
...
12
Seal-Tub Front SAM-DD62-00043A
...
13
Seal-Bracker Rail; Dmt800/dmt400,epdm,bla SAM-DD62-00109A
...
14
Cap-Tub Spacer SAM-DD67-00040A
...
15
Packing-Noise Side(r) SAM-DD69-00015A
...
16
Packing-Noise Side(l) SAM-DD69-00016A
...
17
A/s Assy-Gross Tub; Dw7000km SAM-DD82-01328A
...
18-1
A/s-Bracket-Lower R; Oem SAM-DD81-02045A
...
18
A/s Assy-Support Link-R; Dw7000km SAM-DD82-01333A
...
19-1
A/s-Bracket-Lower L; Oem SAM-DD81-02049A
...
19
A/s Assy-Support Link-L; Dw7000km SAM-DD82-01332A
...
20
A/s Assy-Bracket Rail; Dw7000km,sts SAM-DD82-01335A
...
21-1
A/s-Nozzle Up; Dw7000km SAM-DD81-02022A
...
21-2
A/s-Nozzle Low; Dw7000km SAM-DD81-02021A
...
21-3
Motor Bldc Fan; Bub0612mj,4400,12v,0.17a, SAM-DD31-00024A
...
21
A/s Assy-Air Duct Nozzle; Dw7000km SAM-DD82-01344A
...
22
A/s-Guide Air Flow; Dw7000km SAM-DD81-02023A
...
23-1
Actuator Thermal; Gala-E,pom,push Type,ac SAM-DD66-00089A
...
23
Assy Cover Door Switch; Dw9000h SAM-DD97-00256A

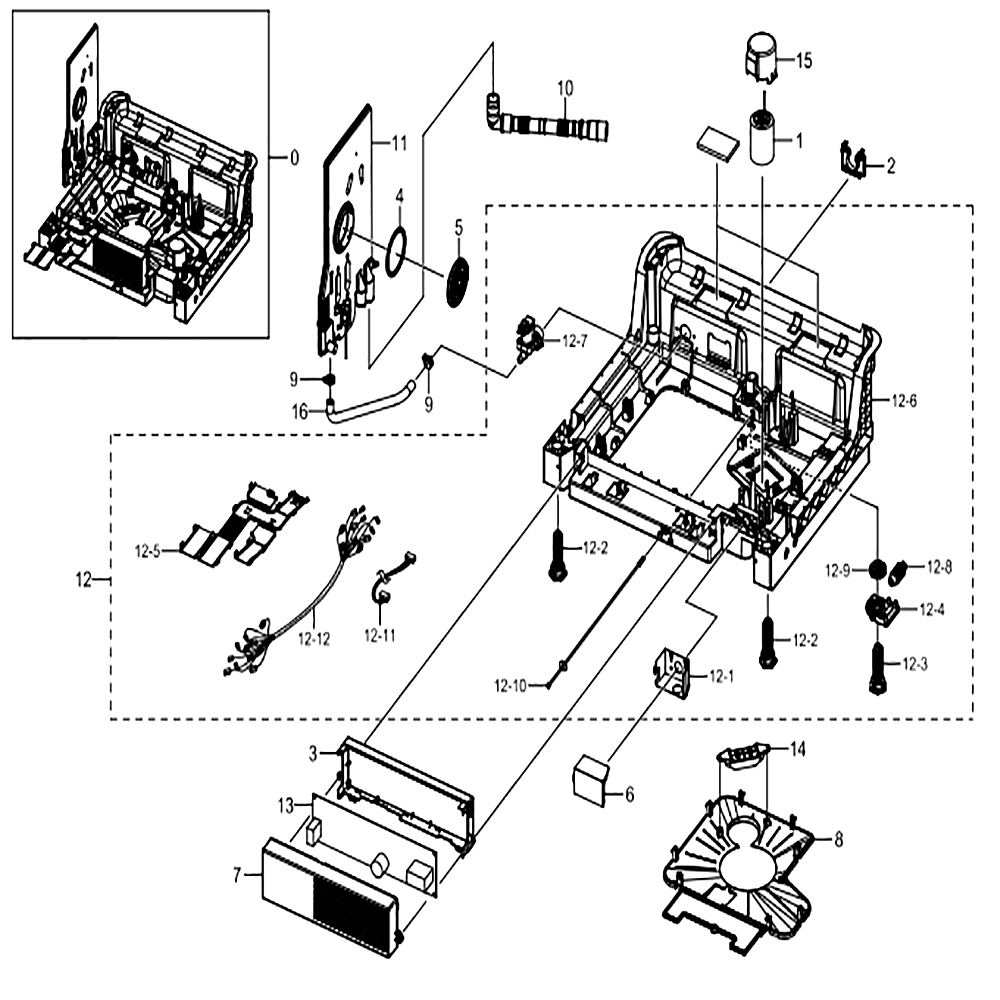

Assy Base

...
...
0
A/s Assy-Base; Dw7000km,oem SAM-DD82-01304A
...
1
Filter Emi; Lft-215w-15,50/60hz,2.4mh Min SAM-DD29-00006A
...
2
Holder Hose; Dw9000h,pp,black,copo SAM-DD61-00518B
...
3
A/s-Guide Pcb; Dw7000km,pp,oem SAM-DD81-01993A
...
4
Gasket-Brake SAM-DD63-00072A
...
5
Cover-Brake SAM-DD63-00073A
...
6
Cover-Power Cord SAM-DD63-00082A
...
7
A/s-Cover Guide Pcb; Dw7000km,pp,oem SAM-DD81-02041A
...
8
A/s-Cover Base; Dw7000km,pp-388c,recycle, SAM-DD81-02037A
...
9
Clamper Hose SAM-DD65-00001J
...
10
Assy Hose Drain; All Model,pp+eva,(light/ SAM-DD97-00403A
...
11
A/s Assy-Case Brake; Dw7000km,oem SAM-DD82-01111B
...
12-1
Case-Power Cord SAM-DD61-00229A
...
12-2
Leg-Adjust SAM-DD61-00232A
...
12-3
Leg-Adjust SAM-DD61-00232B
...
12-4
Case-Gear SAM-DD61-00281A
...
12-5
Guide-Wire SAM-DD61-00293A
...
12-6
A/s-Plate Base; Dw7000km,pp-388c,recycle, SAM-DD81-02038A
...
12-7
Valve Water; Ac110-127v,inch,#250,1,1,5 SAM-DC62-30314L
...
12-8
Gear-Worm SAM-DD66-00052A
...
12-9
Gear-Helical SAM-DD66-00053A
...
12-10
A/s-Shaft Rod Adjust Foot; Dw7000km,hswr, SAM-DD81-01992A
...
12-11
A/s-Wireharness Sub; Dw7000km,wireharness SAM-DD81-02096A
...
12-12
A/s-Wireharness Main; Dw80k7050us,wirehar SAM-DD81-02094A
...
12
A/s Assy-Base Sub; Dw7000km,oem SAM-DD82-01306A
...
13
A/s Assy-Pcb Main; Dw80k7050us,midea,dw70 SAM-DD82-01337A
...
14
Assy-Sensor Leak SAM-DD94-01062A
...
15
Cover-Filter; Wa456drhdwd,hips,t1.5,natur SAM-DC63-01432A
...
16
A/s-Hose Inlet; Dw7000km,epdm,oem SAM-DD81-02039A

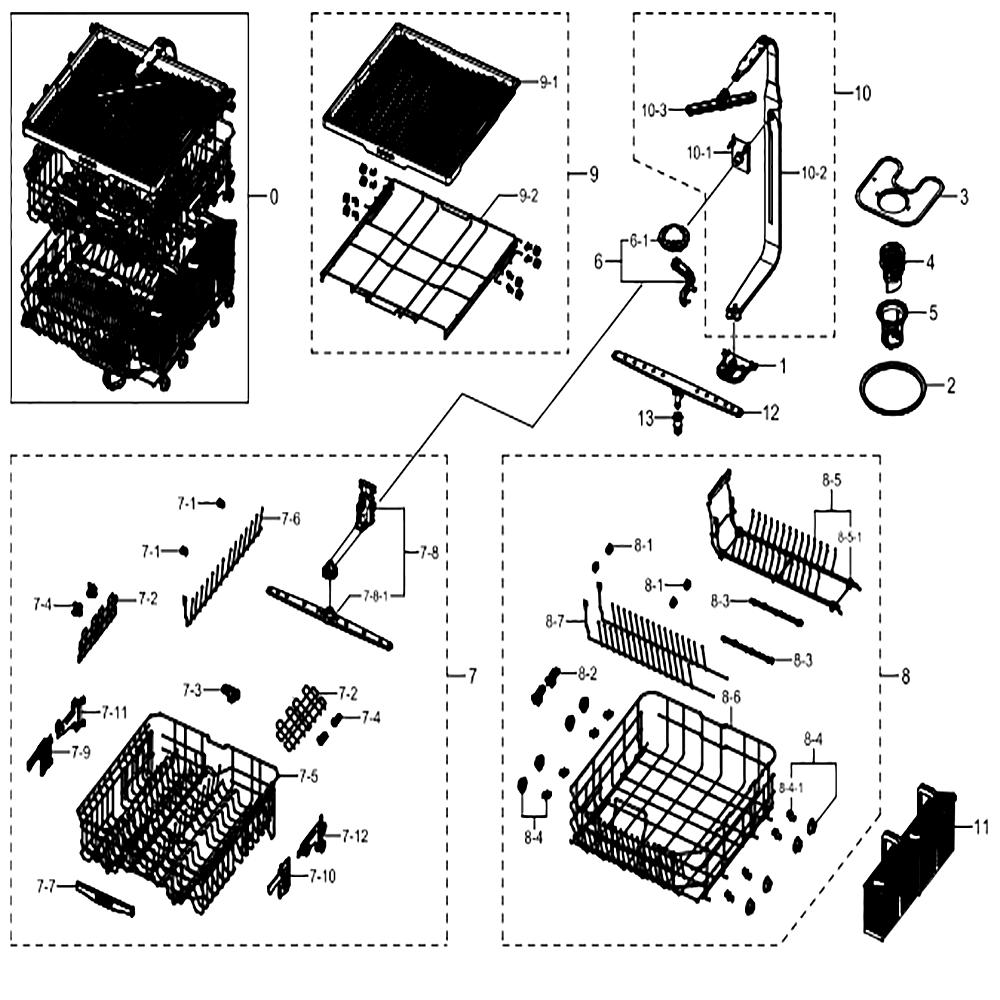

Assy Wash

...
...
0
A/s Assy-Wash; Dw7000km,oem SAM-DD82-01307A
...
1
A/s-Holder Fine Filter; Oem SAM-DD81-02002A
...
2
A/s-Seal Sump; Oem SAM-DD81-01999A
...
3
A/s-Filter Fine; Oem SAM-DD81-02003A
...
4
A/s-Filter Coarse; Oem SAM-DD81-02004A
...
5
A/s-Filter Micro; Oem SAM-DD81-02011A
...
6-1
A/s Assy-Pwz Duct Nozzle; Dw7000km,oem SAM-DD82-01311A
...
6
A/s Assy-Pwz Nozzle; Dw7000km,oem SAM-DD82-01310A
...
7-1
Holder-Tine(s) SAM-DD61-00217A
...
7-2
A/s-Support-Cup A; Dw7000km SAM-DD81-02026A
...
7-3
Holder-Tine SAM-DD61-00270A
...
7-4
Holder-Support Cup; Dmt800,pom,w26,l31,gr SAM-DD61-00274A
...
7-5
A/s-Basket Upper A; Dw7000km SAM-DD81-02036A
...
7-6
A/s-Wire Folding Bowl; Dw7000km SAM-DD81-02027A
...
7-7
Handle Basket; Dw9900h,pp,-,mt43,-,dark N SAM-DD64-00144A
...
7-8-1
A/s Assy-Nozzle Middle; Dw7000km SAM-DD82-01339A
...
7-8
A/s Assy-Nozzle Mid; Dw7000km SAM-DD82-01319A
...
7-9
A/s Assy-Adjuster Handle L; Dw7000km SAM-DD82-01340A
...
7-10
A/s Assy-Adjuster Handle R; Dw7000km SAM-DD82-01341A
...
7-11
A/s Assy-Bracket Adjuster L; F800,oem SAM-DD82-01079A
...
7-12
A/s Assy-Bracket Adjuster R; F800,oem SAM-DD82-01080A
...
7
A/s Assy-Basket Upper A; Dw7000km SAM-DD82-01318A
...
8-1
Holder-Tine(s) SAM-DD61-00217A
...
8-2
Holder-Tine SAM-DD61-00270A
...
8-3
Cover-Pwz-Area; Dmt800,pom,t2.0,w10,l200, SAM-DD63-00105A
...
8-4-1
Holder-Roller SAM-DD61-00222A
...
8-4
Roller-Basket(l) SAM-DD66-00023A
...
8-5-1
Holder-Tine(s) SAM-DD61-00217A
...
8-5
A/s Assy-Removable Tine; F600/f600,oem SAM-DD82-01076A
...
8-6
A/s-Basket Lower A; Dw7000km SAM-DD81-02030A
...
8-7
A/s-Wire Folding Salad; Dw7000km, Mswr6 ( SAM-DD81-02119A
...
8
A/s Assy-Basket Lower A; Dw7000km SAM-DD82-01320A
...
9-1
Basket 3rd; Pa6,light Warm Gray,(gy0214) SAM-DD61-00523B
...
9-2
A/s-Wire Frame 3rd; Dw7000km SAM-DD81-02031A
...
9
A/s Assy-Basket 3rd; Dw7000km SAM-DD82-01321A
...
10-1
A/s-Cover-Duct Nozzle; Oem SAM-DD81-01989A
...
10-2
A/s-Duct Main; Oem SAM-DD81-01990A
...
10-3
A/s Assy-Nozzle Top; Dw7000km,oem SAM-DD82-01309A
...
10
A/s Assy-Duct; Dw7000km,oem SAM-DD82-01308A
...
11
A/s Assy-Case Spoon; Dw80f800uws,dw80f600 SAM-DD82-01112A
...
12
A/s Assy-Nozzle Lower; Dw7000km,oem SAM-DD82-01312A
...
13
A/s-Support Rotor Lower; Oem,dw7000km SAM-DD81-02371A

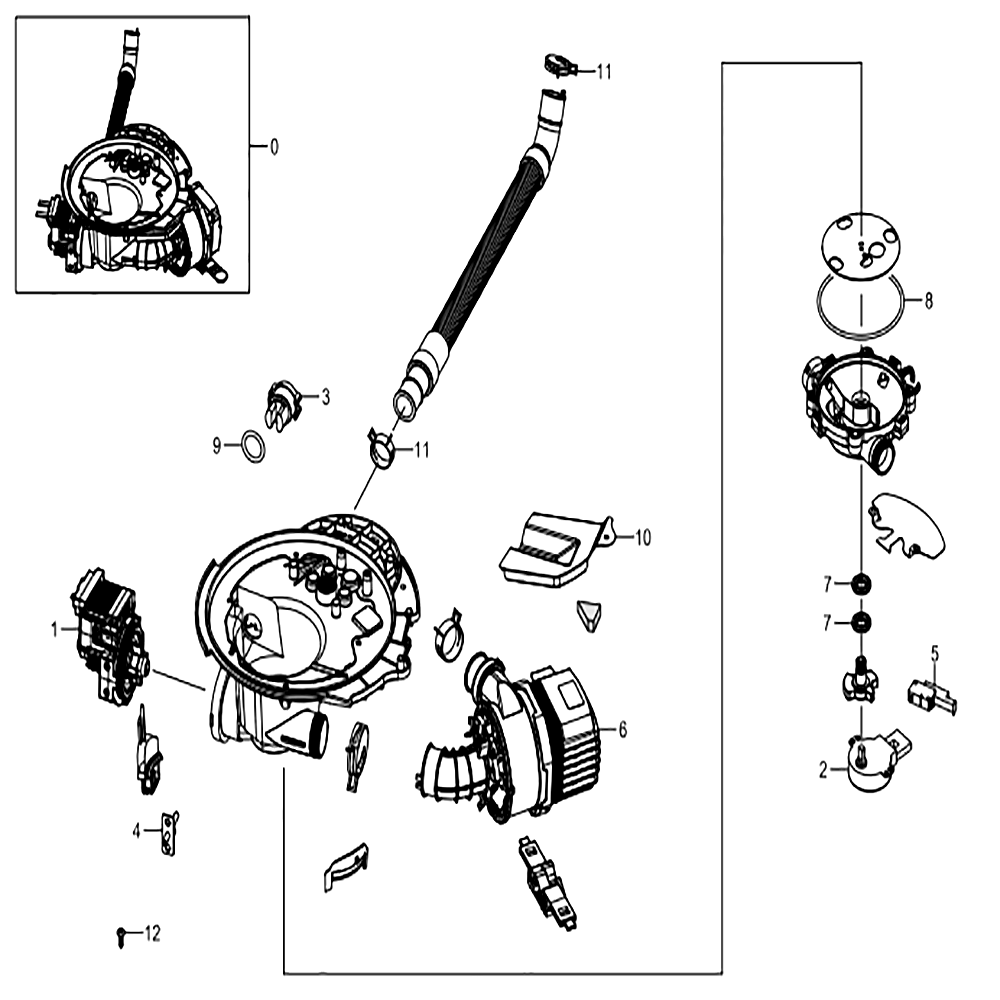

Assy Sump

...
...
0
A/s Assy-Sump; Dw7000km,oem SAM-DD82-01313A
...
1
Pump-Drain SAM-DD31-00005A
...
2
Motor Geared; Ssm-23h,3,8,120,45ma,3,45ma SAM-DD31-00013D
...
3
Sensor-Turbidity; Gala-E,5,5,vcc (+5vdc), SAM-DD32-00008A
...
4
Thermistor; Gala-E,r50= 17.59 K,-20 SAM-DD32-00009A
...
5
Switch-Micro; 125/250v,0.1a,60gf,spst-No SAM-DD34-00006A
...
6
A/s Assy-Motor Bldc; Dw7000km,oem SAM-DD82-01314A
...
7
Seal-Distributer SAM-DD62-00054A
...
8
Seal Cover Distribute; Gala-E,nbr SAM-DD62-00105A
...
9
Seal Soil Sensor; Gala-E,epdm SAM-DD62-00106A
...
10
A/s-Bracket Motor Mounting; Oem,dw7000km SAM-DD81-02372A
...
11
Clamper Hose SAM-DD65-00001G
...
12
Screw-Pwz; Dmt800,sts304,+th,4x12,r3-Pjt SAM-DD81-01188A

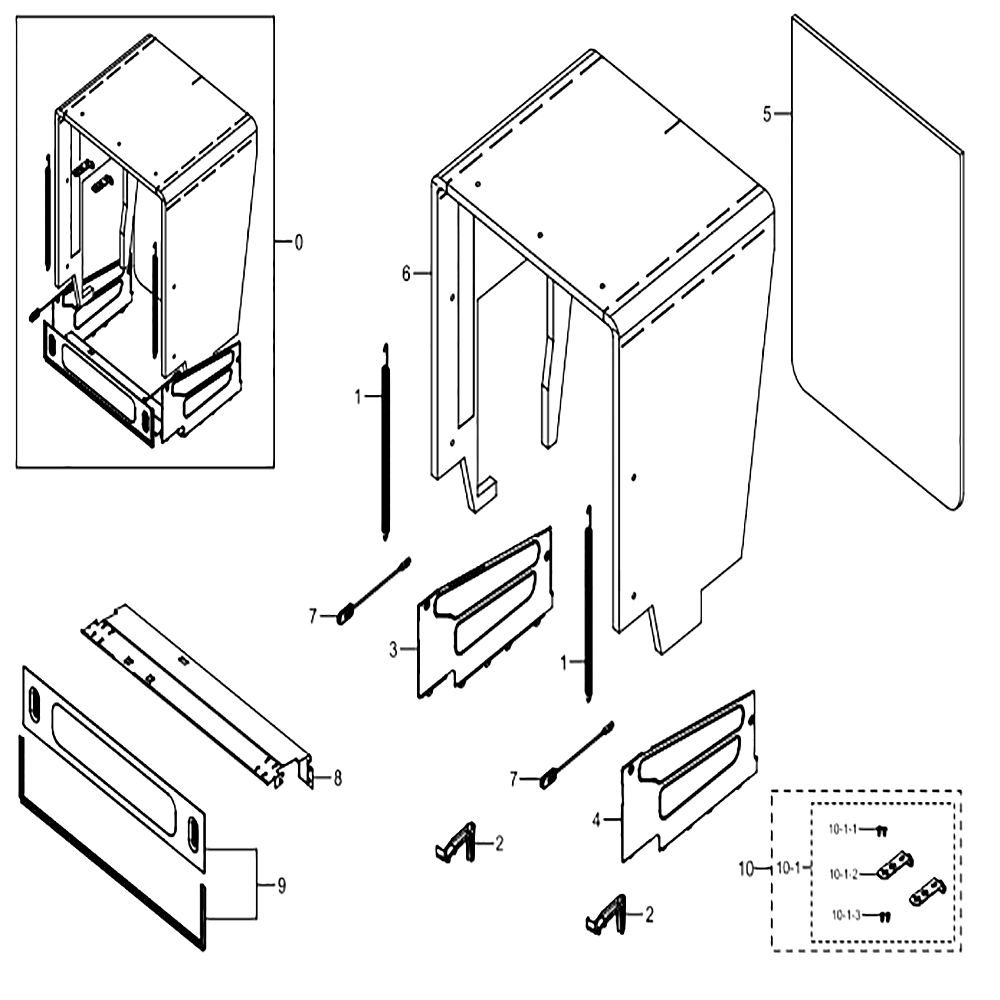

Assy Case

...
...
0
A/s Assy-Case; Dw7000km SAM-DD82-01316A
...
1
Spring Etc SAM-DD61-00245A
...
2
A/s-Guide-Flow; Oem SAM-DD81-02046A
...
3
Frame-Left; Dmt800,gi-Sgcd,t0.6,w193,l521 SAM-DD61-00254A
...
4
Frame-Right; Dmt800,gi-Sgcd,t0.6,w193,l52 SAM-DD61-00255A
...
5
Absorber-Sound(back); Dmr78,felt,t10,r-Pj SAM-DD63-00060A
...
6
A/s-Absorber Top; Oem SAM-DD81-02060A
...
7
A/s-Rope Door Spring; Oem SAM-DD81-02111A
...
8
A/s-Frame Front; Dw7000km,gi-Sgcc, T0.5,o SAM-DD81-02040A
...
9
Cover-Front Lower SAM-DD63-00081B
...
10-1-1
Screw-Tapping SAM-6002-000520
...
10-1-2
Bracket-Install SAM-DD61-00176A
...
10-1-3
Screw-Tap L12 SAM-DD81-01266A
...
10-1
Assy-Install Kit; Dmr78,gi,install Kit/r- SAM-DD94-01002A
...
10
A/s Assy-Packing Parts; Dw7000km SAM-DD82-01317A
