Samsung DW80K5050UG/AA_0001

Model: DW80K5050UG/AA_0001

Save Part Not Listed?
product name

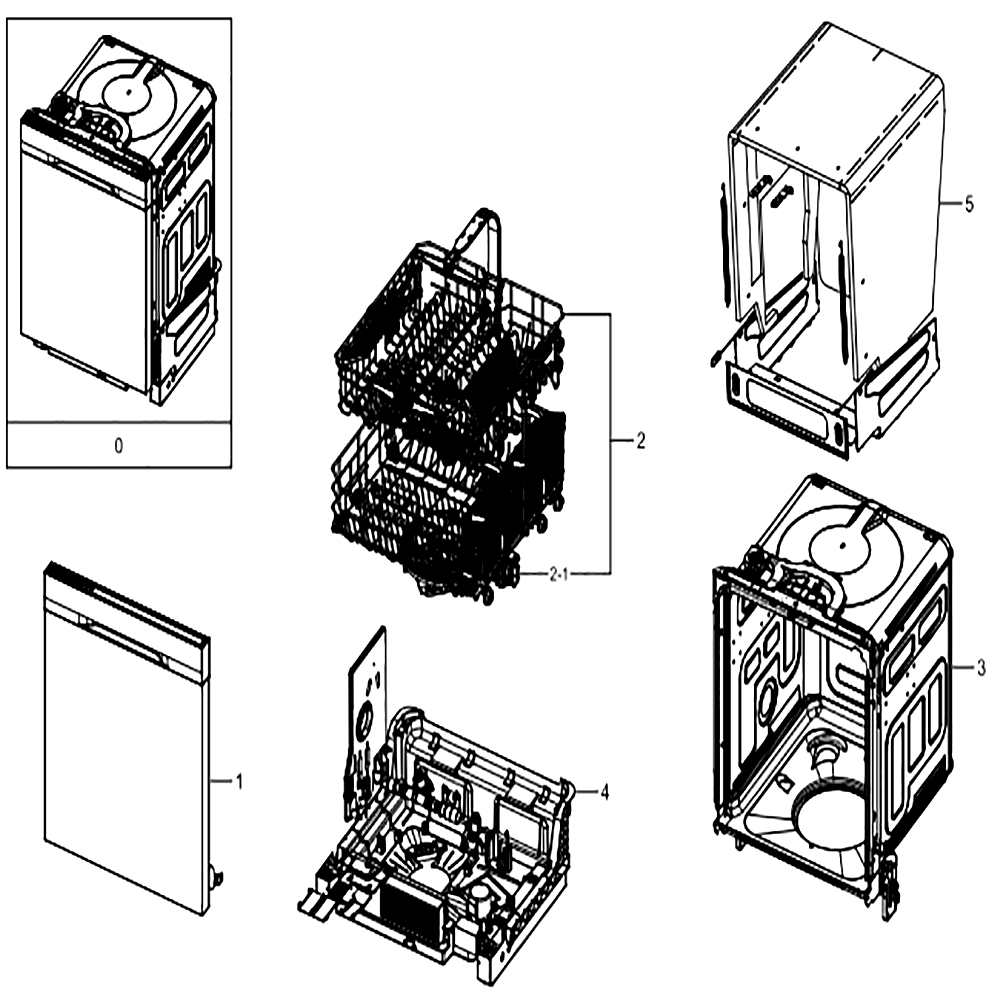

Main

...
...
1
A/s Assy-Door; Dw7000km,5050,ug SAM-DD82-01346E
...
2-1
A/s Assy-Sump; Dw7000km,dw80k5050 SAM-DD82-01353A
...
2
A/s Assy-Wash; Dw7000km,dw80k5050 SAM-DD82-01351A
...
3
A/s Assy-Tub; Dw7000km,dw80k5050 SAM-DD82-01361A
...
4
A/s Assy-Base; Dw7000km,dw80k5050 SAM-DD82-01348A
...
5
A/s Assy-Case; Dw7000km,dw80k5050 SAM-DD82-01350A

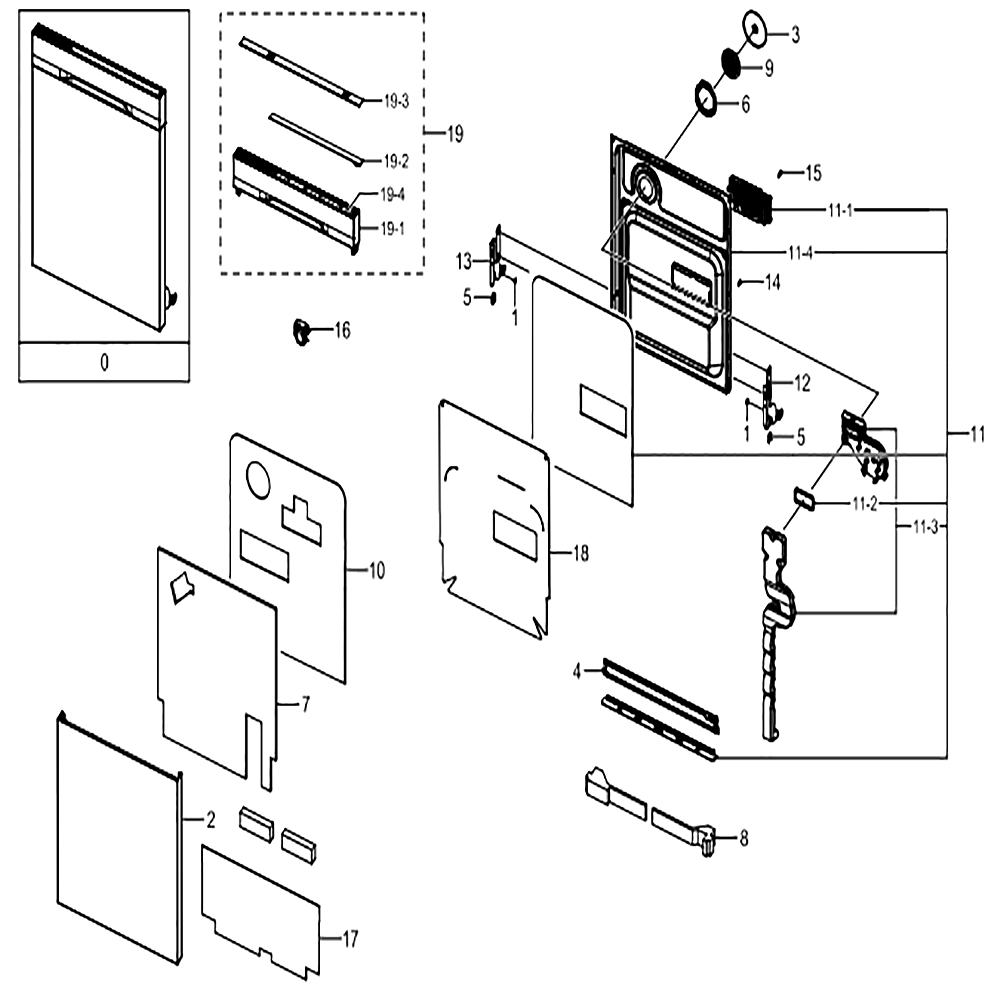

Assy Door

...
...
0
A/s Assy-Door; Dw7000km,5050,ug SAM-DD82-01346E
...
1
Spacer-Door Link SAM-DD60-00001A
...
2
A/s-Frame-Front; Oem, Dw7000km,dw80k5050u SAM-DD61-00202E
...
3
Bracket-Cover Fan SAM-DD61-00203B
...
4
Bracket-Door Link SAM-DD61-00205A
...
5
Guide-Door Link SAM-DD61-00207A
...
6
Seal-Fan SAM-DD62-00044A
...
7
Absorber-Sound(front) SAM-DD63-00092A
...
8
Cushion-Duct(r) SAM-DD63-00094A
...
9
Cover-Fan SAM-DD63-00112A
...
10
Absorber-Tub Front SAM-DD63-00121A
...
11-1
Dispenser-Slide; Gala-E,ac 110/240v,50/60 SAM-DD59-01002A
...
11-2
Seal-Tub Front(l); Dmr78,tpe,blk,r-Pjt SAM-DD62-00048A
...
11-3
A/s Assy-Case Vent; Dw7000km SAM-DD82-01357A
...
11-4
A/s-Tub-Front; Oem SAM-DD81-02055A
...
11
A/s Assy-Tub Front; Dw7000km,dw80k5050 SAM-DD82-01362A
...
12
Door-Link(r) SAM-DD64-00046A
...
13
Door-Link(l) SAM-DD64-00047A
...
14
Screw-Door(s) SAM-DD81-01151A
...
15
Screw-Door(l) SAM-DD81-01153A
...
16
A/s-Door Switch; Dw7000km,38.0755,door Sw SAM-DD81-02132A
...
17
A/s-Rubber Skirt; 7000km,black SAM-DD81-02072A
...
18
A/s-Cushion Door; 7000km,eps SAM-DD81-02074A
...
19-1
A/s-Handle Front; Dw6000j,abs,silver SAM-DD81-01809A
...
19-2
A/s Assy-Pcb Touch; Dw80k5050us,midea,dw7 SAM-DD82-01338B
...
19-3
A/s-Window Panel; 5050,black SAM-DD81-02047B
...
19-4
A/s-Control Panel; Dw7000km,5050,ug SAM-DD81-02103E
...
19
A/s Assy-Control Panel; Dw7000km,5050,ug SAM-DD82-01347E

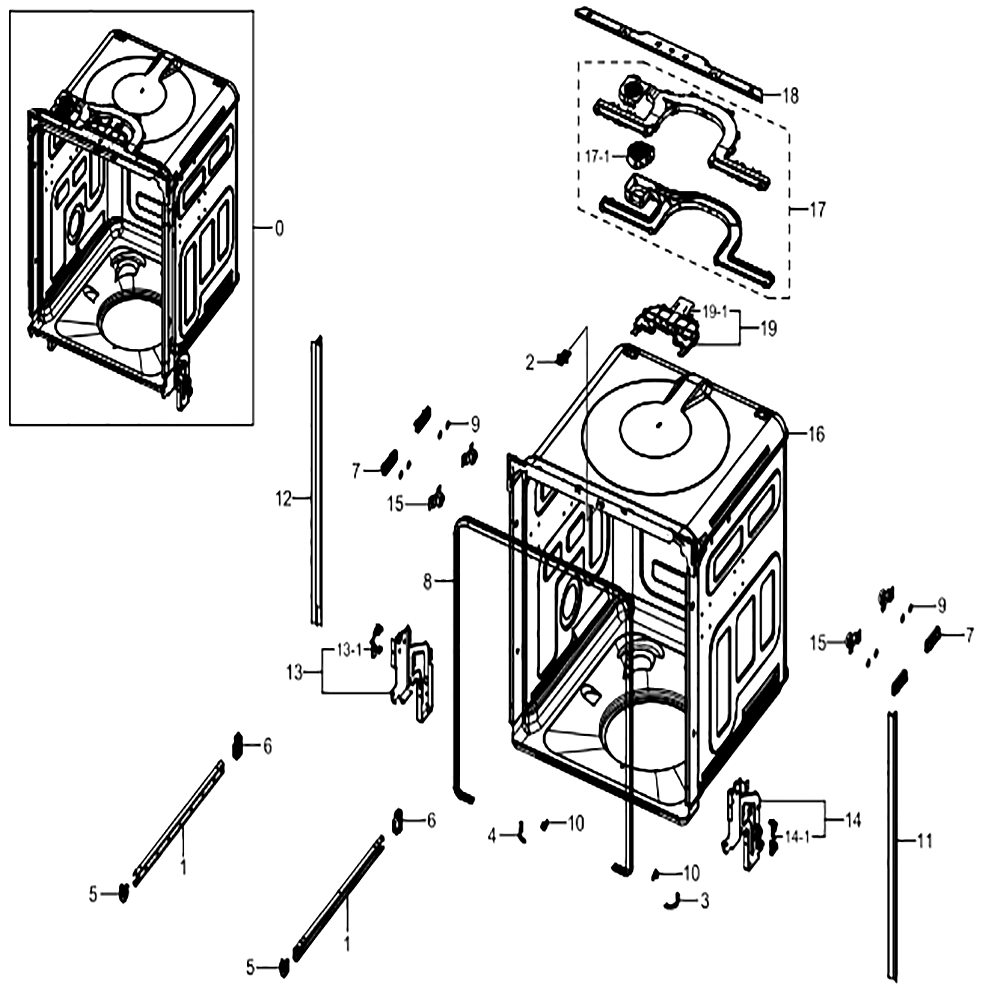

Assy Tub

...
...
0
A/s Assy-Tub; Dw7000km,dw80k5050 SAM-DD82-01361A
...
1
Rail-Basket SAM-DD61-00174A
...
2
Holder-Door Lock SAM-DD61-00175A
...
3
Guide-Tub Edge(r) SAM-DD61-00177A
...
4
Guide-Tub Edge(l) SAM-DD61-00178A
...
5
Stopper-Rail SAM-DD61-00182A
...
6
Stopper-Rail SAM-DD61-00183A
...
7
Holder-Bracket Rail; Dw9000h,dw8000j,pom, SAM-DD61-00400A
...
8
Seal-Tub Front SAM-DD62-00043A
...
9
Seal-Bracker Rail; Dmt800/dmt400,epdm,bla SAM-DD62-00109A
...
10
Cap-Tub Spacer SAM-DD67-00040A
...
11
Packing-Noise Side(r) SAM-DD69-00015A
...
12
Packing-Noise Side(l) SAM-DD69-00016A
...
13-1
A/s-Bracket-Lower L; Oem SAM-DD81-02049A
...
13
A/s Assy-Support Link-L; Dw7000km SAM-DD82-01332A
...
14-1
A/s-Bracket-Lower R; Oem SAM-DD81-02045A
...
14
A/s Assy-Support Link-R; Dw7000km SAM-DD82-01333A
...
15
A/s Assy-Bracket Rail; Dw7000km,sts SAM-DD82-01335A
...
16
A/s Assy-Gross Tub; Dw7000km,dw80k5050 SAM-DD82-01354A
...
17-1
Motor Bldc Fan; Bub0612mj,4400,12v,0.17a, SAM-DD31-00024A
...
17
A/s Assy-Air Duct Nozzle; Dw7000km SAM-DD82-01344A
...
18
A/s-Guide Air Flow; Dw7000km SAM-DD81-02023A
...
19-1
Actuator Thermal; Gala-E,pom,push Type,ac SAM-DD66-00089A
...
19
Assy Cover Door Switch; Dw9000h SAM-DD97-00256A

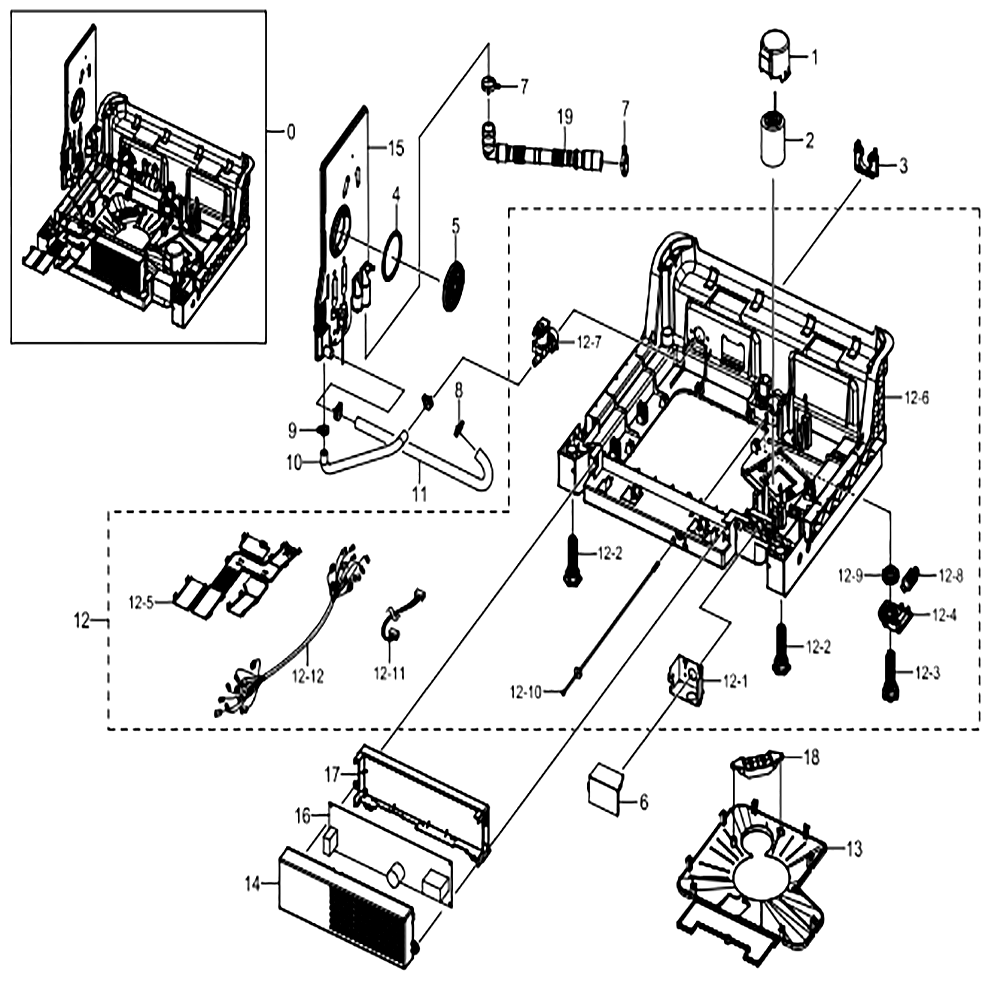

Assy Base

...
...
0
A/s Assy-Base; Dw7000km,dw80k5050 SAM-DD82-01348A
...
1
Cover-Filter; Wa456drhdwd,hips,t1.5,natur SAM-DC63-01432A
...
2
Filter Emi; Vde,1.5mh Min/1/140mm,38.2*86 SAM-DC29-00006C
...
3
A/s-Holder Hose; Dw7000km,pp-388c,black,r SAM-DD81-02558A
...
4
Gasket-Brake SAM-DD63-00072A
...
5
Cover-Brake SAM-DD63-00073A
...
6
Cover-Power Cord SAM-DD63-00082A
...
7
Clamper Hose SAM-DD65-00001G
...
8
Clamper Hose SAM-DD65-00001H
...
9
Clamper Hose SAM-DD65-00001J
...
10
A/s-Hose Drain In; F800,pp+tpe,gray,oem SAM-DD81-01502A
...
11
A/s-Hose Sensor; Dw80f800uws,dw80f600uts, SAM-DD81-01542A
...
12-1
Case-Power Cord SAM-DD61-00229A
...
12-2
Leg-Adjust SAM-DD61-00232A
...
12-3
Leg-Adjust SAM-DD61-00232B
...
12-4
Case-Gear SAM-DD61-00281A
...
12-5
Guide-Wire SAM-DD61-00293A
...
12-6
A/s-Plate Base; Dw7000km,pp-388c,recycle, SAM-DD81-02038A
...
12-7
Valve Water; Ac110-127v,inch,#250,1,1,5 SAM-DC62-30314L
...
12-8
Gear-Worm SAM-DD66-00052A
...
12-9
Gear-Helical SAM-DD66-00053A
...
12-10
A/s-Shaft Rod Adjust Foot; Dw7000km,hswr, SAM-DD81-01992A
...
12-11
A/s-Wireharness Sub; Dw7000km,wireharness SAM-DD81-02096A
...
12-12
A/s-Wireharness Main; Dw80k5050us,wirehar SAM-DD81-02095A
...
12
A/s Assy-Base Sub; Dw7000km,dw80k5050 SAM-DD82-01349A
...
13
A/s-Cover Base; Dw7000km,pp-388c,recycle, SAM-DD81-02037A
...
14
A/s-Cover Guide Pcb; Dw7000km,pp,oem SAM-DD81-02041A
...
15
A/s Assy Ch Set-Case Brake; Oem SAM-DD82-01373A
...
16
A/s Assy-Pcb Main; Dw80k5050us,midea,dw70 SAM-DD82-01337B
...
17
A/s-Guide Pcb; Dw7000km,pp,oem SAM-DD81-01993A
...
18
Assy-Sensor Leak SAM-DD94-01062A
...
19
Assy Hose Drain; All Model,pp+eva,(light/ SAM-DD97-00403A

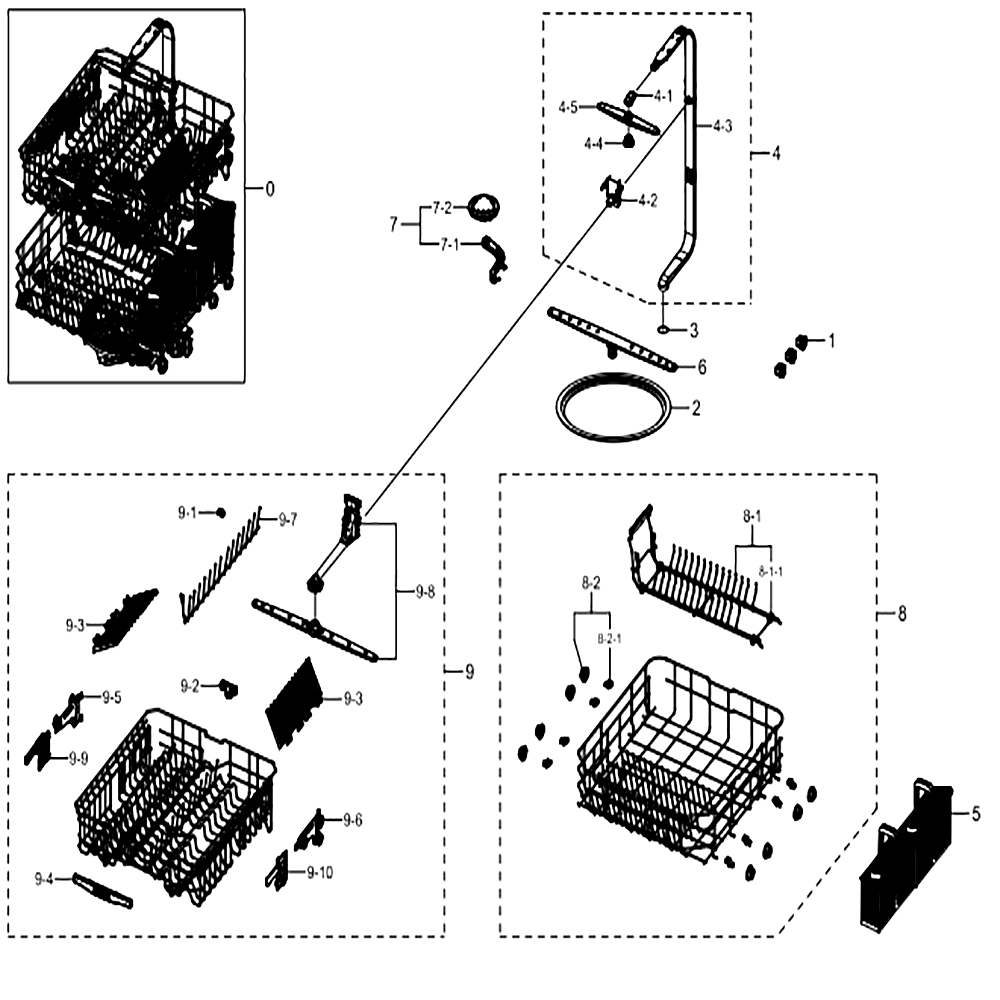

Assy Wash

...
...
0
A/s Assy-Wash; Dw7000km,dw80k5050 SAM-DD82-01351A
...
1
Holder-Sump SAM-DD61-00212A
...
2
Seal-Sump SAM-DD62-00050A
...
3
Seal-Duct Nozzle SAM-DD62-00068A
...
4-1
Holder-Nozzle(u) SAM-DD61-00256A
...
4-2
Cover-Duct Nozzle SAM-DD63-00096A
...
4-3
Duct-Nozzle SAM-DD67-00048A
...
4-4
Cap-Nozzle U SAM-DD67-00061A
...
4-5
A/s Assy-Nozzle Top; Dw80f800uws, Dw80f60 SAM-DD82-01119A
...
4
A/s Assy-Duct; Dw80f800uws,dw80f600uts,oe SAM-DD82-01100A
...
5
A/s Assy-Case Spoon; Dw80f800uws,dw80f600 SAM-DD82-01112A
...
6
A/s Assy-Nozzle Lower; Dw80f800uws, Dw80f SAM-DD82-01120A
...
7-1
A/s Assy-Pwz Duct Nozzle; Dw7000km,oem SAM-DD82-01311A
...
7-2
A/s-Cover Rotor Power; Oem,dw7000km SAM-DD81-02377A
...
7
A/s Assy-Pwz Nozzle; Dw7000km,oem SAM-DD82-01310A
...
8-1-1
Holder-Tine(s) SAM-DD61-00217A
...
8-1
A/s Assy-Removable Tine; F600/f600,oem SAM-DD82-01076A
...
8-2-1
Holder-Roller SAM-DD61-00222A
...
8-2
Roller-Basket(l) SAM-DD66-00023A
...
8
A/s Assy-Basket Lower B; Dw7000km,dw80k50 SAM-DD82-01352A
...
9-1
Holder-Tine(s) SAM-DD61-00217A
...
9-2
Holder-Tine SAM-DD61-00270A
...
9-3
Support-Cup B SAM-DD61-00282A
...
9-4
A/s-Handle Basket B; F600,pp,gray,oem SAM-DD81-01518A
...
9-5
A/s Assy-Bracket Adjuster L; F800,oem SAM-DD82-01079A
...
9-6
A/s Assy-Bracket Adjuster R; F800,oem SAM-DD82-01080A
...
9-7
A/s-Wire Folding Bowl; Dw7000km SAM-DD81-02027A
...
9-8
A/s Assy-Nozzle Mid; Dw7000km,oem SAM-DD82-01319B
...
9-9
A/s Assy-Adjuster Handle L; Dw7000km SAM-DD82-01340A
...
9-10
A/s Assy-Adjuster Handle R; Dw7000km SAM-DD82-01341A
...
9
A/s Assy-Basket Upper A; Dw7000km,dw80k50 SAM-DD82-01360A

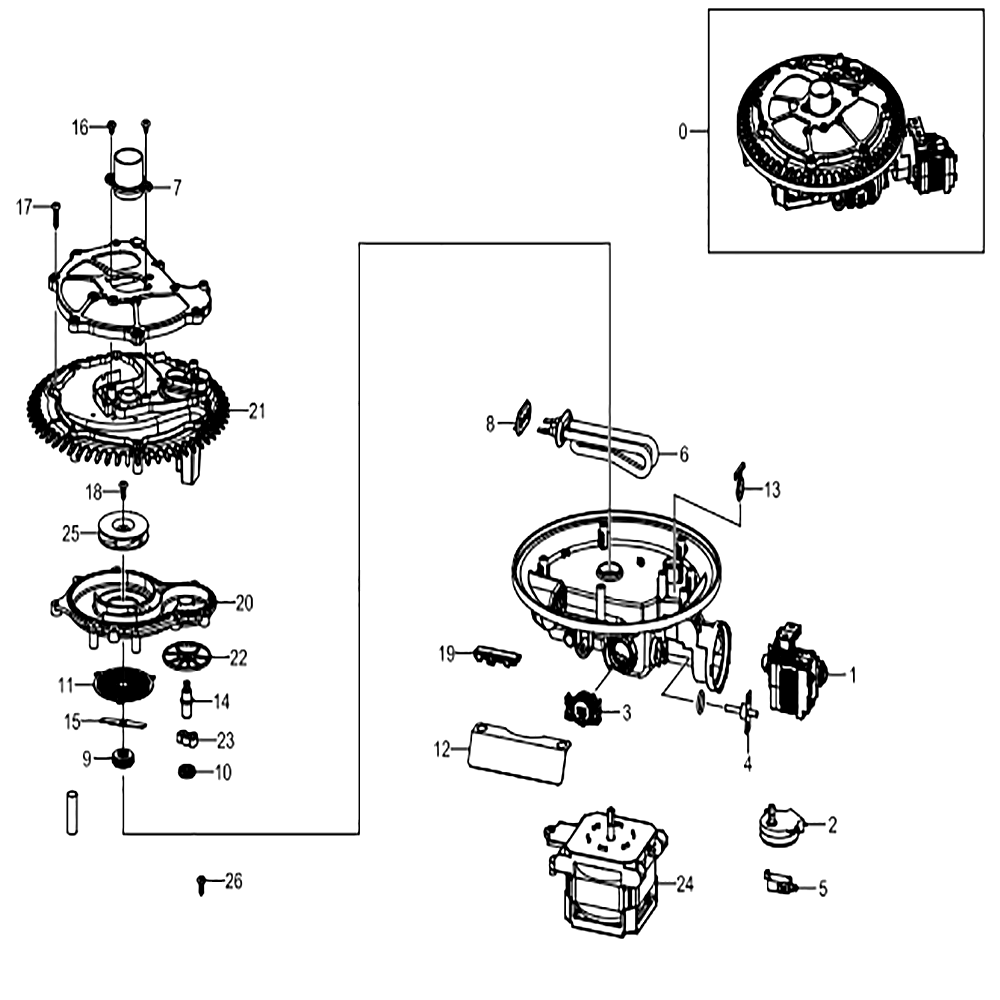

Assy Sump

...
...
0
A/s Assy-Sump; Dw7000km,dw80k5050 SAM-DD82-01353A
...
1
A/s-Pump Drain; Dmt800,b25-3a02,50w/r3-Pj SAM-DD81-01527A
...
2
Motor Synchronous; Dmt800,60hz,3.5w,120v, SAM-DD31-00010A
...
3
Sensor-Turbidity SAM-DD32-00003A
...
4
Thermistor; Gala-E,r50= 17.59 K,-20 SAM-DD32-00009A
...
5
Switch-Micro SAM-DD34-00004A
...
6
Heater; Sheath Heater,120v, 1100w, 167we0092 SAM-DD47-00008A
...
7
Holder-Nozzle(l) SAM-DD61-00273A
...
8
Bracket-Heater SAM-DD61-00277A
...
9
Seal-Oil SAM-DD62-00053A
...
10
Seal-Distributer SAM-DD62-00054A
...
11
Filter-Circulation SAM-DD63-00087A
...
12
Cover-C Motor SAM-DD63-00135A
...
13
Vane-Check Drain SAM-DD66-00045A
...
14
Shaft-Distribute; Dmt800,pom,ntr,r3-Pjt SAM-DD66-00051A
...
15
Cutter-Disposer SAM-DD70-01003A
...
16
Screw-Sump S SAM-DD81-01182A
...
17
Screw-Sump L SAM-DD81-01183A
...
18
Screw-Motor Impeller SAM-DD81-01189A
...
19
A/s-Cover Bubble; F800,pp+t20, Gray,oem SAM-DD81-01497A
...
20
A/s-Case Scroll; F800,pp+t20%,- SAM-DD81-01633A
...
21
A/s-Cover Sump; F800,pp+t20%,- SAM-DD81-01634A
...
22
A/s-Plate Distributor; F800,pom,- SAM-DD81-01636A
...
23
A/s-Cam Switch; F800,pom,- SAM-DD81-01637A
...
24
A/s-Pump Circulation; Dw80f800,ic-77225ss SAM-DD81-01640A
...
25
A/s Assy-Impeller; F800 SAM-DD82-01125A
...
26
Screw-Pwz; Dmt800,sts304,+th,4x12,r3-Pjt SAM-DD81-01188A

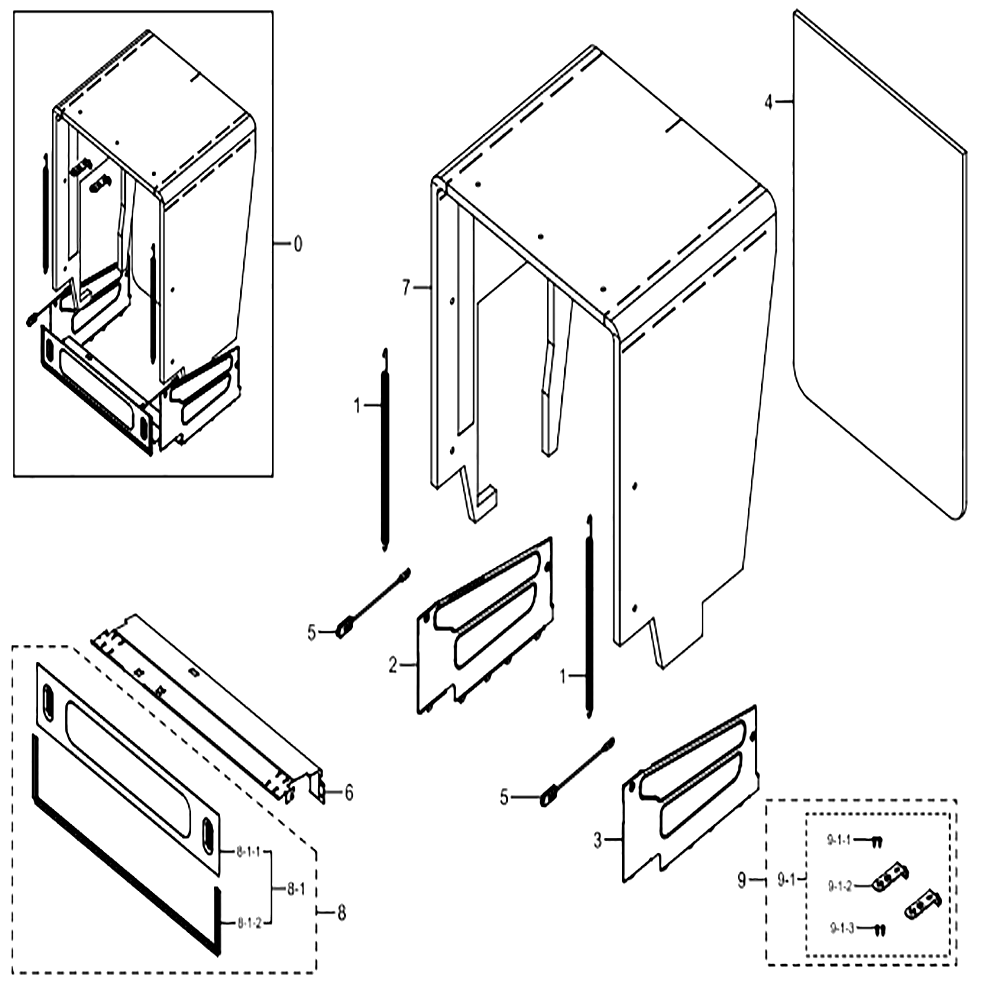

Assy Case

...
...
0
A/s Assy-Case; Dw7000km,dw80k5050 SAM-DD82-01350A
...
1
Spring Etc SAM-DD61-00245A
...
2
Frame-Left; Dmt800,gi-Sgcd,t0.6,w193,l521 SAM-DD61-00254A
...
3
Frame-Right; Dmt800,gi-Sgcd,t0.6,w193,l52 SAM-DD61-00255A
...
4
Absorber-Sound(back); Dmr78,felt,t10,r-Pj SAM-DD63-00060A
...
5
A/s-Rope Door Spring; Oem SAM-DD81-02111A
...
6
A/s-Frame Front; Dw7000km,gi-Sgcc, T0.5,o SAM-DD81-02040A
...
7
A/s-Absorber Top; Oem SAM-DD81-02060A
...
8-1-1
Cover-Front Lower SAM-DD63-00081B
...
8-1-2
A/s-Packing Noise Base; F800,tpe,black,oe SAM-DD81-01500A
...
8-1
A/s Assy-Cover Front Lower; Dw80f600utb SAM-DD82-01102B
...
8
A/s Assy-Packing Parts; Dw7000km,oem SAM-DD82-01559A
...
9-1-1
Screw-Tapping SAM-6002-000520
...
9-1-2
Bracket-Install SAM-DD61-00176A
...
9-1-3
Screw-Tap L12 SAM-DD81-01266A
...
9-1
Assy-Install Kit; Dmr78,gi,install Kit/r- SAM-DD94-01002A
...
9
A/s Assy-Packing Parts; Dw7000km,dw80k505 SAM-DD82-01359A
