Samsung DW80J3020US/AA_0001

Model: DW80J3020US/AA_0001

Save Part Not Listed?
product name

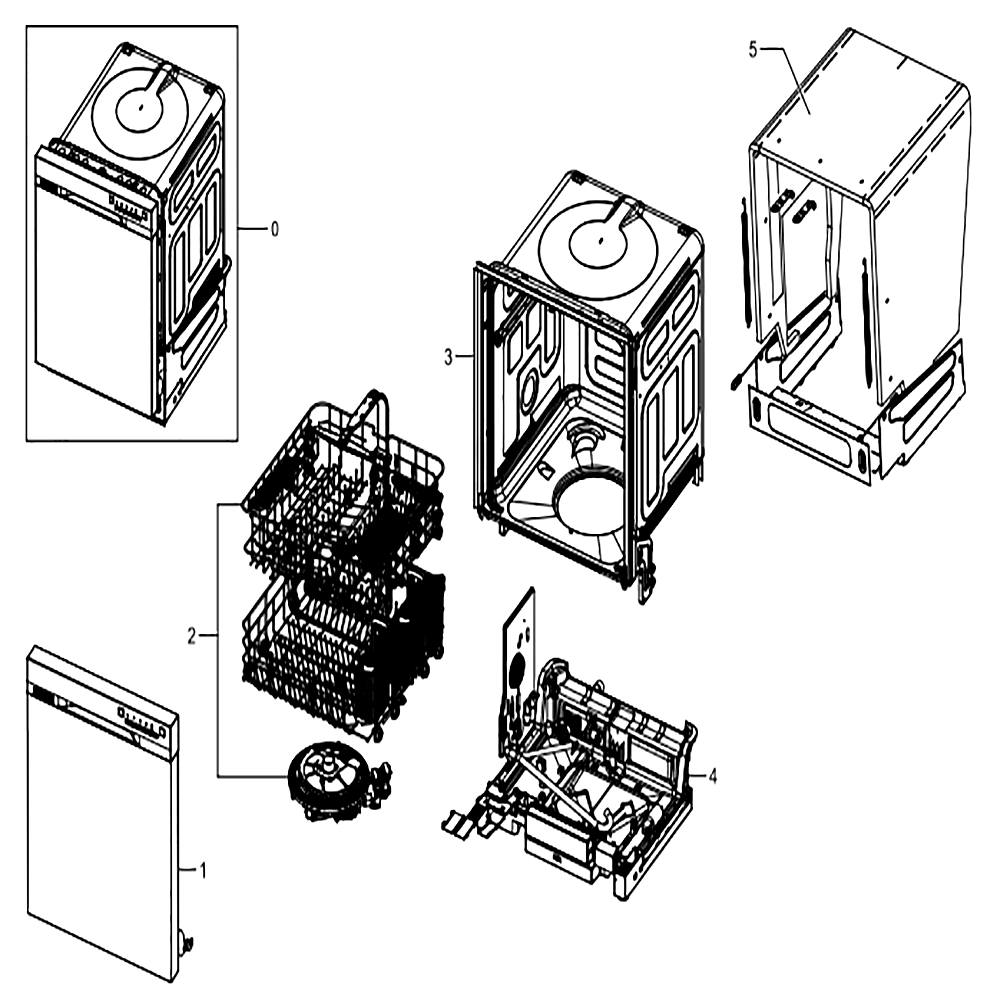

Main

...
...
1
A/s Assy-Door; Dw6000j,silver SAM-DD82-01236A
...
2
A/s Assy-Wash; Dw6000j SAM-DD82-01243A
...
3
Assy-Tub SAM-DD94-01034A
...
4
A/s Assy-Base; Dw6000j SAM-DD82-01239A
...
5
A/s Assy-Case; Dw6000j SAM-DD82-01241A

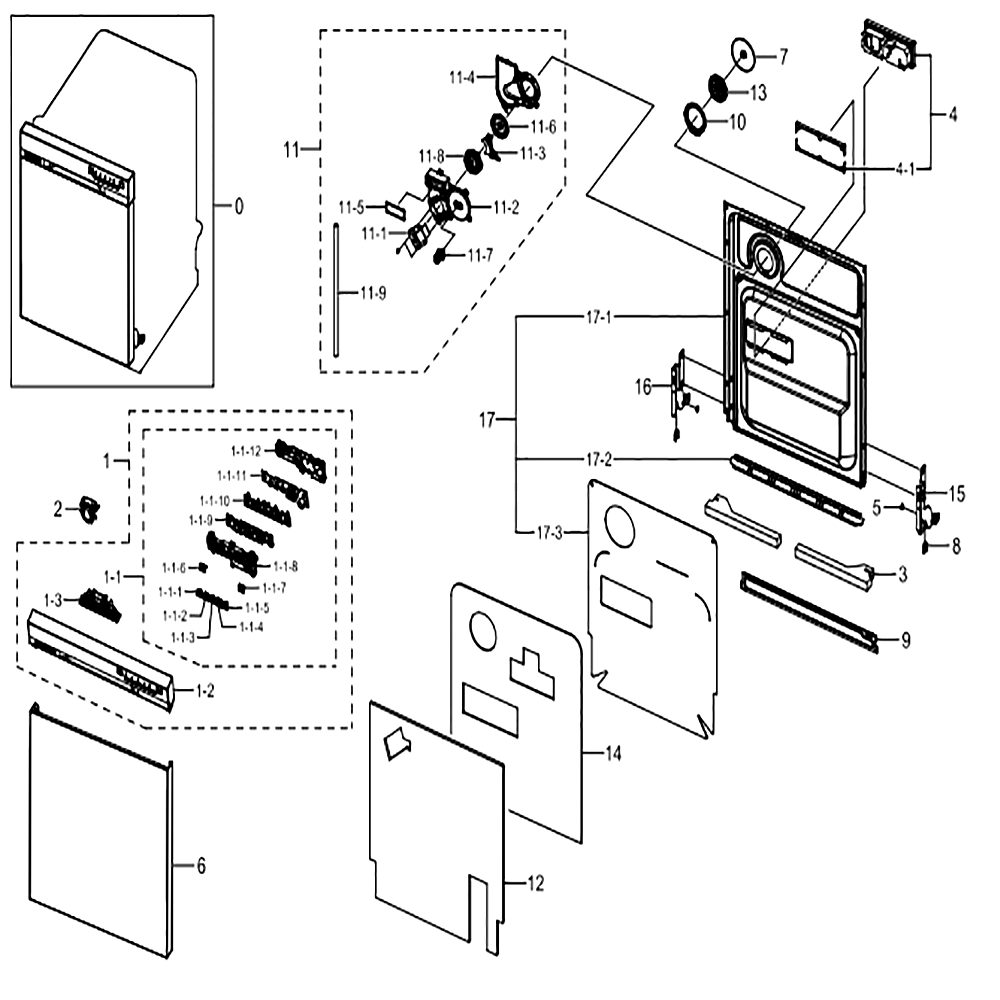

Assy Door

...
...
0
A/s Assy-Door; Dw6000j,silver SAM-DD82-01236A
...
1-1-1
A/s-Button Push(a); Dw6000j,abs,silver, A SAM-DD81-01815A
...
1-1-2
A/s-Button Push(n); Dw6000j,abs,silver, N SAM-DD81-01816A
...
1-1-3
A/s-Button Push(h); Dw6000j,abs,silver, H SAM-DD81-01817A
...
1-1-4
A/s-Button Push(q); Dw6000j,abs,silver, Q SAM-DD81-01818A
...
1-1-5
A/s-Button Push(s); Dw6000j,abs,silver, S SAM-DD81-01819A
...
1-1-6
A/s-Button Power; Dw6000j,abs,silver SAM-DD81-01813A
...
1-1-7
A/s-Button Start; Dw6000j,abs,silver SAM-DD81-01814A
...
1-1-8
A/s-Guide Led; Dw6000j,abs,black SAM-DD81-01810A
...
1-1-9
A/s-Button Silicon; Dw6000j,silicon SAM-DD81-01820A
...
1-1-10
A/s-Holder Led; Dw6000j,abs,black SAM-DD81-01812A
...
1-1-11
A/s Assy-Pcb Sub; Dw6000j,sub Pba,fr-1 SAM-DD82-01248A
...
1-1-12
A/s-Guide Pcb; Dw6000j,abs,black SAM-DD81-01811A
...
1-1
A/s Assy-Panel Box; Dw6000j,silver SAM-DD82-01238A
...
1-2
A/s-Panel Control; Dw6000j,abs,silver SAM-DD81-01808A
...
1-3
A/s-Handle Front; Dw6000j,abs,silver SAM-DD81-01809A
...
1
A/s Assy-Control Panel; Dw6000j,silver SAM-DD82-01237A
...
2
A/s-Door Switch; Dw7000km,38.0755,door Sw SAM-DD81-02132A
...
3
Cushion-Duct(r) SAM-DD63-00094A
...
4-1
Bracket-Dispensor SAM-DD61-00103A
...
4
Dispenser-Rinse -Aid SAM-DD59-01001A
...
5
Spacer-Door Link SAM-DD60-00001A
...
6
Frame-Front SAM-DD61-00202A
...
7
Bracket-Cover Fan SAM-DD61-00203B
...
8
Guide-Door Link SAM-DD61-00207A
...
9
Bracket-Door Link SAM-DD61-00205A
...
10
Seal-Fan SAM-DD62-00044A
...
11-1
Motor Ventilation SAM-DD31-00006A
...
11-2
Case-Vent U SAM-DD61-00300A
...
11-3
Case-Vent M SAM-DD61-00301A
...
11-4
Case-Vent L SAM-DD61-00302A
...
11-5
Seal-Case Vent SAM-DD62-00089A
...
11-6
Gasket-Vent SAM-DD63-00111A
...
11-7
Actuator-Thermal SAM-DD66-00057A
...
11-8
Fan-Vent SAM-DD67-00062A
...
11-9
Hose-Vent SAM-DD67-00063A
...
11
Assy-Case Vent SAM-DD94-01054A
...
12
Absorber-Sound(front) SAM-DD63-00092A
...
13
Cover-Fan SAM-DD63-00112A
...
14
Absorber-Tub Front SAM-DD63-00121A
...
15
Door-Link(r) SAM-DD64-00046A
...
16
Door-Link(l) SAM-DD64-00047A
...
17-1
Tub-Front; Dmr78,stainless-Sts304,t0.5,r- SAM-DD61-00193A
...
17-2
Seal-Tub Front(l); Dmr78,tpe,blk,r-Pjt SAM-DD62-00048A
...
17-3
Sheet-Damping Tub Front; Dmr78,asphalt,t3 SAM-DD63-00091A
...
17
Assy-Tub Front SAM-DD97-00106A

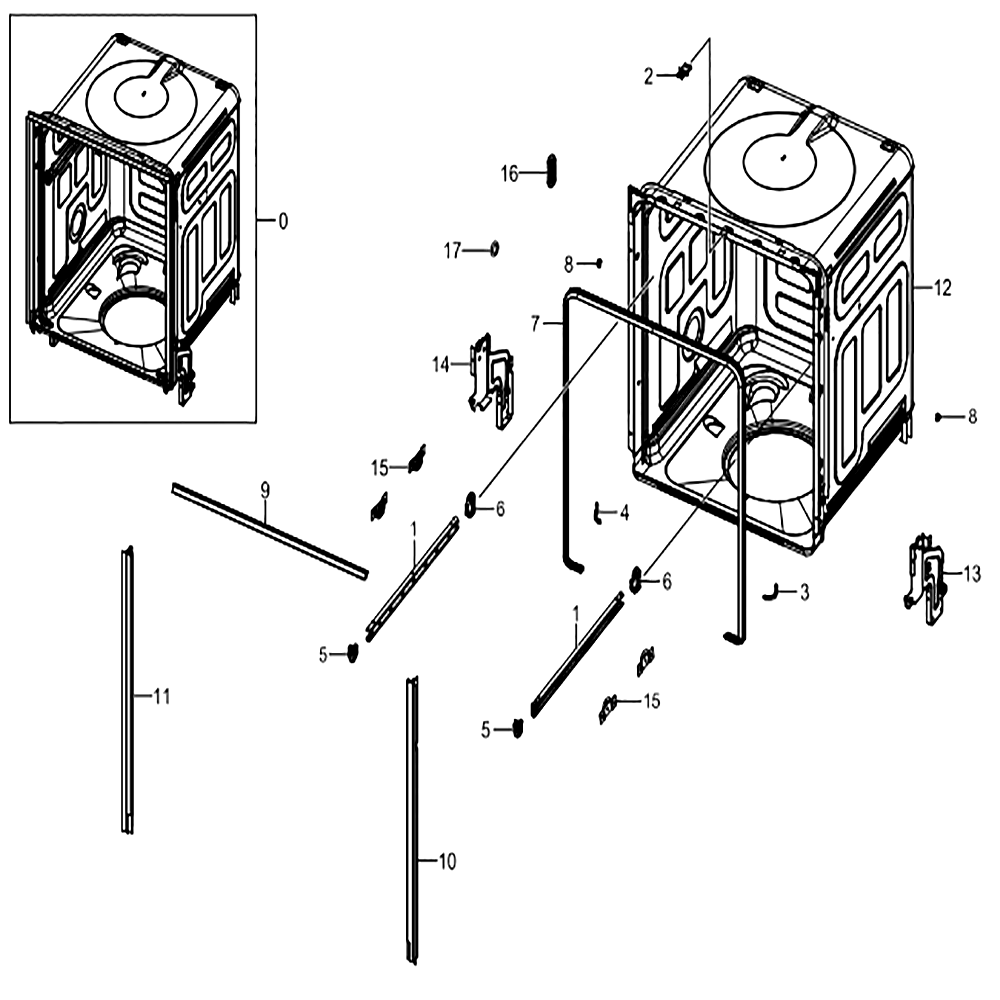

Assy Tub

...
...
0
Assy-Tub SAM-DD94-01034A
...
1
Rail-Basket SAM-DD61-00174A
...
2
Holder-Door Lock SAM-DD61-00175A
...
3
Guide-Tub Edge(r) SAM-DD61-00177A
...
4
Guide-Tub Edge(l) SAM-DD61-00178A
...
5
Stopper-Rail SAM-DD61-00182A
...
6
Stopper-Rail SAM-DD61-00183A
...
7
Seal-Tub Front SAM-DD62-00043A
...
8
Cap-Tub Spacer SAM-DD67-00040A
...
9
Packing-Noise Top SAM-DD69-00014A
...
10
Packing-Noise Side(r) SAM-DD69-00015A
...
11
Packing-Noise Side(l) SAM-DD69-00016A
...
12
Assy-Gross Tub SAM-DD94-01015A
...
13
Assy-Support Link(r) SAM-DD97-00114B
...
14
Assy-Support Link(l) SAM-DD97-00115B
...
15
Assy-Bracket Rail; Dmr78,r-Pjt SAM-DD97-00116A
...
16
Holder-Bracket Rail; Dw9000h,dw8000j,pom, SAM-DD61-00400A
...
17
Seal-Bracker Rail; Dmt800/dmt400,epdm,bla SAM-DD62-00109A

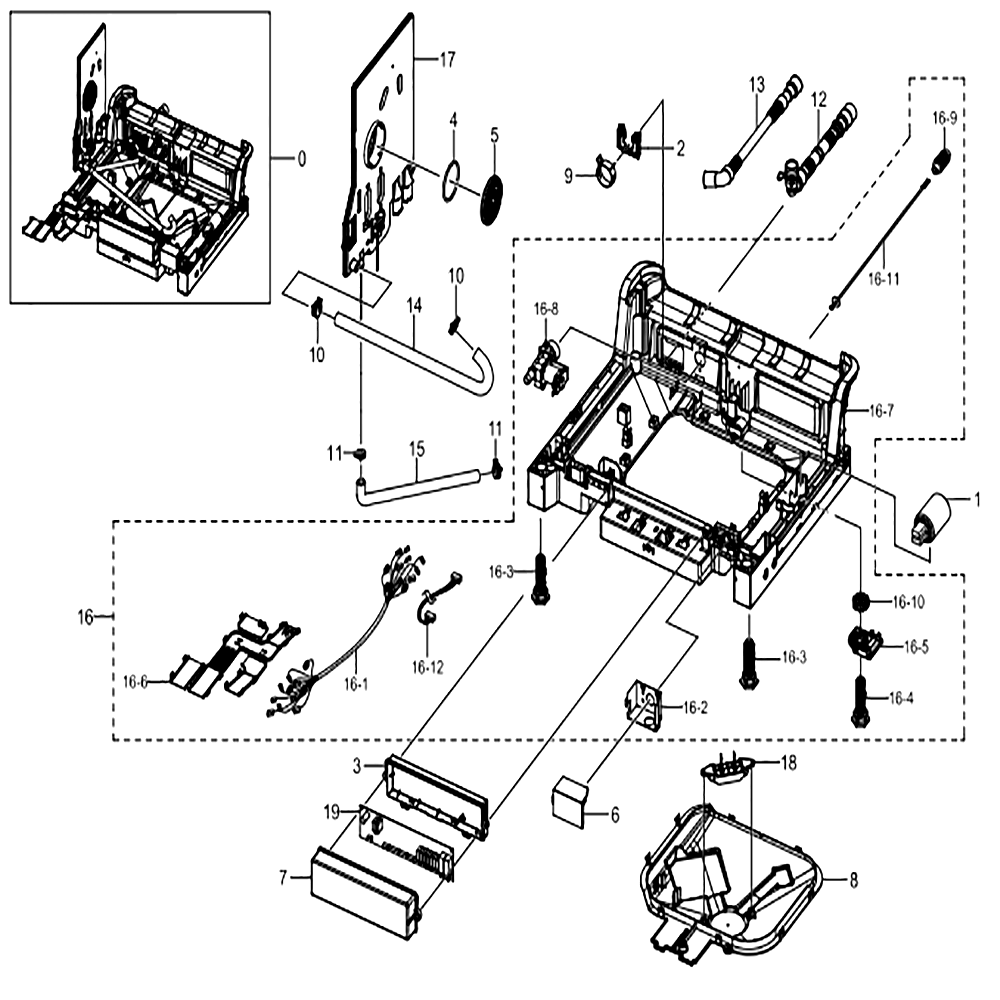

Assy Base

...
...
0
A/s Assy-Base; Dw6000j SAM-DD82-01239A
...
1
Filter-Emi SAM-DD29-00007B
...
2
Holder Hose; Dw9000h,pp,black,copo SAM-DD61-00518B
...
3
Guide-Pcb SAM-DD61-00262A
...
4
Gasket-Brake SAM-DD63-00072A
...
5
Cover-Brake SAM-DD63-00073A
...
6
Cover-Power Cord SAM-DD63-00082A
...
7
Cover-Guide Pcb SAM-DD63-00098A
...
8
Shutter SAM-DD64-00067A
...
9
Clamper Hose SAM-DD65-00001G
...
10
Clamper Hose SAM-DD65-00001H
...
11
Clamper Hose SAM-DD65-00001J
...
12
Assy Hose Drain; All Model,pp+eva,(light/ SAM-DD97-00403A
...
13
A/s-Hose Drain In; F800,pp+tpe,gray,oem SAM-DD81-01502A
...
14
A/s-Hose Sensor; Dw80f800uws,dw80f600uts, SAM-DD81-01542A
...
15
A/s-Hose Inlet; Oem, Dw7000km SAM-DD81-02039B
...
16-1
A/s-Wire Harness Main; Oem, Dw7000km SAM-DD81-01641E
...
16-2
Case-Power Cord SAM-DD61-00229A
...
16-3
Leg-Adjust SAM-DD61-00232A
...
16-4
Leg-Adjust SAM-DD61-00232B
...
16-5
Case-Gear SAM-DD61-00281A
...
16-6
Guide-Wire SAM-DD61-00293A
...
16-7
A/s-Plate-Base; Dw6000j,pp,t3.0,w514.8,l6 SAM-DD81-02444A
...
16-8
Valve Water; Ac110-127v,inch,#250,1,1,5 SAM-DC62-30314L
...
16-9
Gear-Worm SAM-DD66-00052A
...
16-10
Gear-Helical SAM-DD66-00053A
...
16-11
Adjust-Leg-Bar SAM-DD70-01002A
...
16-12
Wire Harness-Sub SAM-DD39-00009A
...
16
A/s Assy-Base Sub; Dw6000j SAM-DD82-01240A
...
17
A/s Assy Ch Set-Case Brake; Oem SAM-DD82-01373A
...
18
Assy-Sensor Leak SAM-DD94-01062A
...
19
A/s Assy-Pcb Main; Dw6000j,main Pba,fr-4, SAM-DD82-01247A

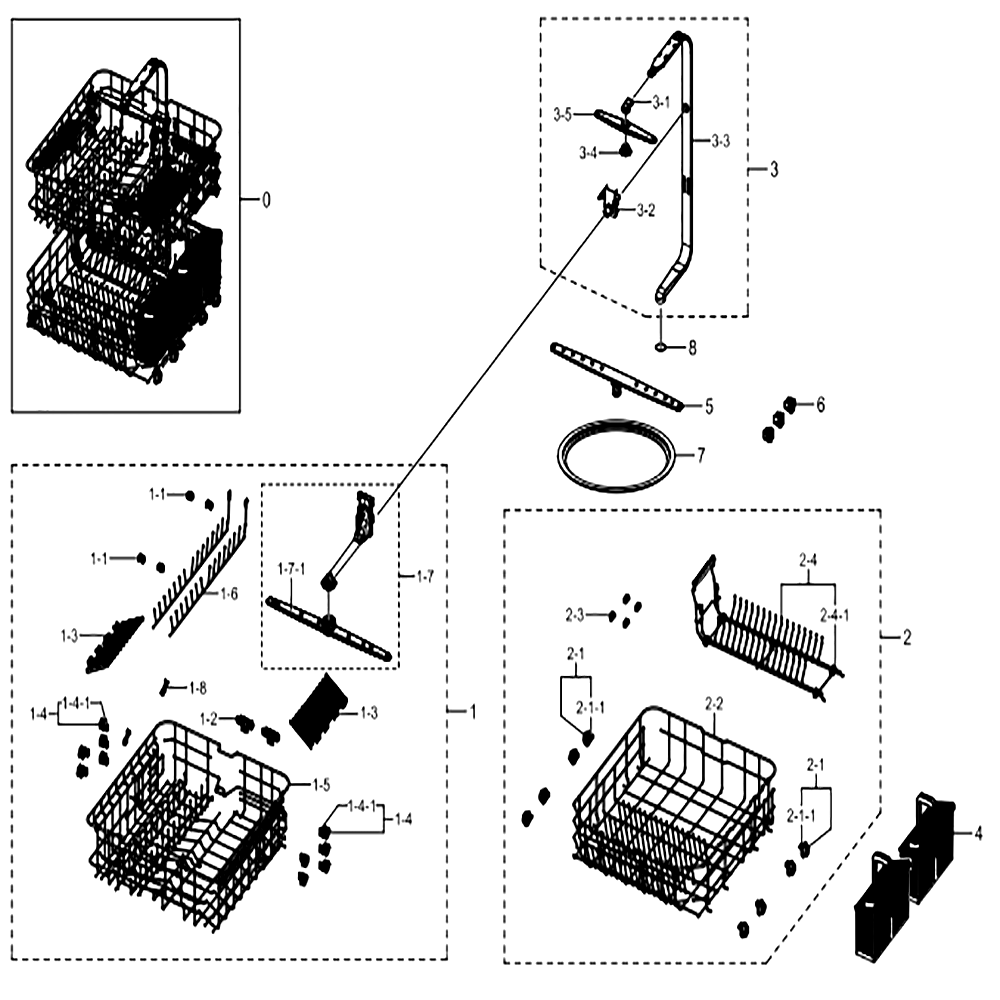

Assy Wash

...
...
0
A/s Assy-Wash; Dw6000j SAM-DD82-01243A
...
1-1
Holder-Tine(s) SAM-DD61-00217A
...
1-2
Holder-Tine SAM-DD61-00270A
...
1-3
Support-Cup B SAM-DD61-00282A
...
1-4-1
Holder-Roller SAM-DD61-00222A
...
1-4
Roller-Basket(u) SAM-DD66-00022A
...
1-5
A/s-Basket Upper B; F600,mswr6 (swrm6) + SAM-DD81-01506A
...
1-6
A/s-Wire Folding Bowl; F800/f600,mswr6 (s SAM-DD81-01507A
...
1-7-1
A/s Assy-Nozzle Middle; Dw80f800uws,dw80f SAM-DD82-01113A
...
1-7
A/s Assy-Nozzle Mid; Dw80f800uws,dw80f600 SAM-DD82-01064A
...
1-8
A/s-Clip Cup; Dw80f800uws,dw80f600uts,pp+ SAM-DD81-01533A
...
1
A/s Assy-Basket Upper B; Dw6000j SAM-DD82-01244A
...
2-1-1
Holder-Roller SAM-DD61-00222A
...
2-1
Roller-Basket(l) SAM-DD66-00023A
...
2-2
A/s-Basket Lower B; F600,mswr6 (swrm6) + SAM-DD81-01512A
...
2-3
Holder-Tine(s) SAM-DD61-00217A
...
2-4-1
Holder-Tine(s) SAM-DD61-00217A
...
2-4
A/s Assy-Removable Tine; F600/f600,oem SAM-DD82-01076A
...
2
A/s Assy-Basket Lower B; Dw6000j SAM-DD82-01245A
...
3-1
Holder-Nozzle(u) SAM-DD61-00256A
...
3-2
Cover-Duct Nozzle SAM-DD63-00096A
...
3-3
Duct-Nozzle SAM-DD67-00048A
...
3-4
Cap-Nozzle U SAM-DD67-00061A
...
3-5
A/s Assy-Nozzle Top; Dw80f800uws, Dw80f60 SAM-DD82-01119A
...
3
A/s Assy-Duct; Dw80f800uws,dw80f600uts,oe SAM-DD82-01100A
...
4
A/s Assy-Case Spoon; Dw80f800uws,dw80f600 SAM-DD82-01112A
...
5
A/s Assy-Nozzle Lower; Dw80f800uws, Dw80f SAM-DD82-01120A
...
6
Holder-Sump SAM-DD61-00212A
...
7
Seal-Sump SAM-DD62-00050A
...
8
Seal-Duct Nozzle SAM-DD62-00068A

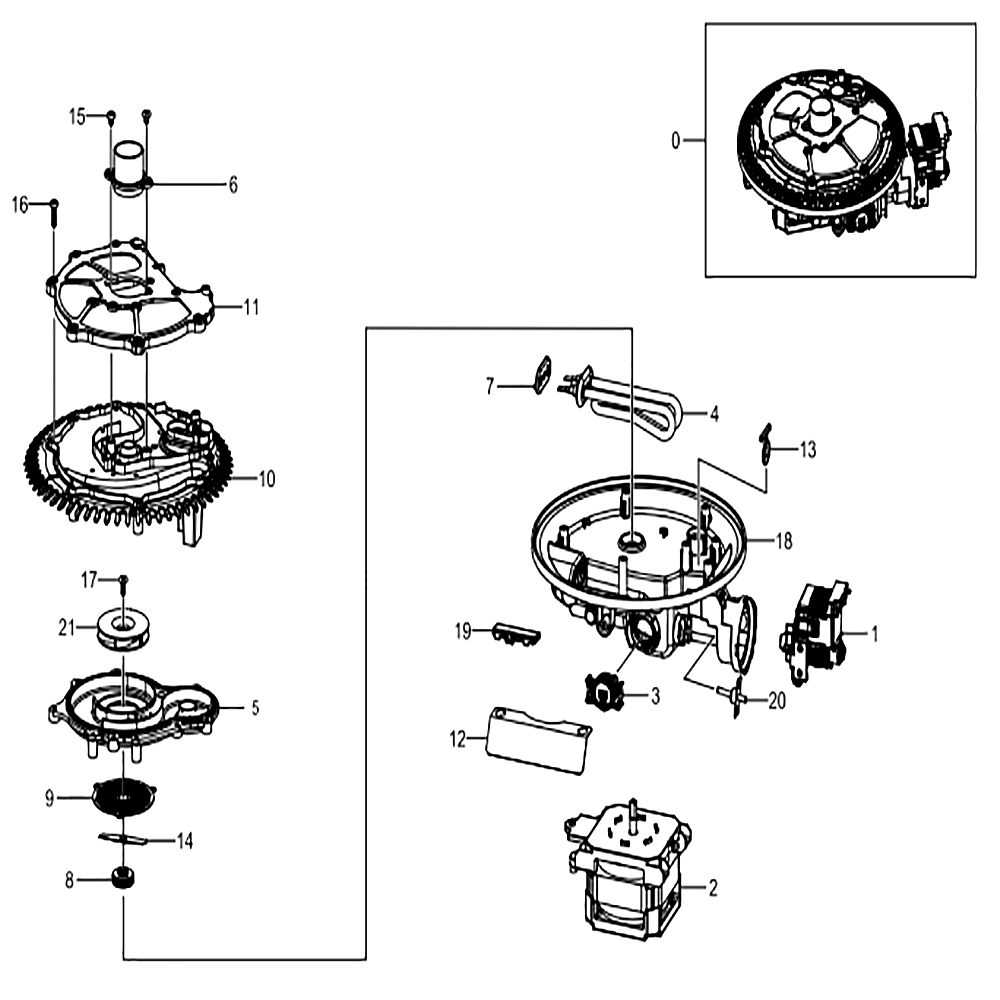

Assy Sump

...
...
0
A/s Assy-Sump; Dw6000j SAM-DD82-01246A
...
1
A/s-Pump Drain; Dmt800,b25-3a02,50w/r3-Pj SAM-DD81-01527A
...
2
Pump-Circuration SAM-DD31-00008A
...
3
Sensor-Turbidity SAM-DD32-00003A
...
4
Heater; Sheath Heater,120v, 1100w, 167we0092 SAM-DD47-00008A
...
5
Case-Scroll Better SAM-DD61-00272B
...
6
Holder-Nozzle(l) SAM-DD61-00273A
...
7
Bracket-Heater SAM-DD61-00277A
...
8
Seal-Oil SAM-DD62-00053A
...
9
Filter-Circulation SAM-DD63-00087A
...
10
Cover-Sump; Dmt800,pp,t3.0,gry,r3-Pjt SAM-DD63-00099A
...
11
Filter-Mesh-Body SAM-DD63-00104A
...
12
Cover-C Motor SAM-DD63-00135A
...
13
Vane-Check Drain SAM-DD66-00045A
...
14
Cutter-Disposer SAM-DD70-01001A
...
15
Screw-Sump S SAM-DD81-01182A
...
16
Screw-Sump L SAM-DD81-01183A
...
17
A/s-Screw Motor Impeller; Dw6000j SAM-DD81-01830A
...
18
A/s-Case Sump; Dw6000j,new Version SAM-DD81-01493D
...
19
A/s-Cover Bubble; F800,pp+t20, Gray,oem SAM-DD81-01497A
...
20
Thermistor SAM-DD32-00005A
...
21
Assy-Impeller SAM-DD94-01003A

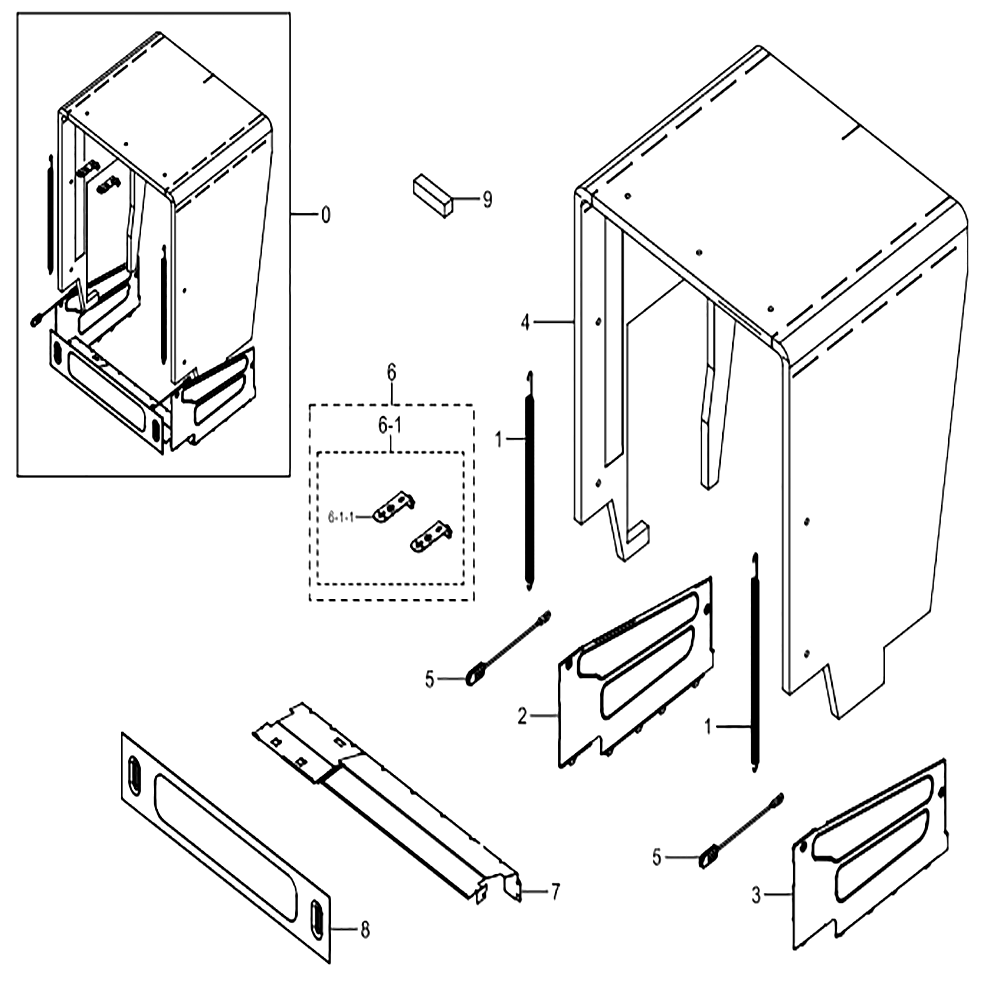

Assy Case

...
...
0
A/s Assy-Case; Dw6000j SAM-DD82-01241A
...
1
Spring Etc SAM-DD61-00245B
...
2
Frame-Left; Dmt800,gi-Sgcd,t0.6,w193,l521 SAM-DD61-00254A
...
3
Frame-Right; Dmt800,gi-Sgcd,t0.6,w193,l52 SAM-DD61-00255A
...
4
A/s-Absorber Top; Dw6000j,felt,10t SAM-DD81-01499B
...
5
A/s-Rope Door Spring; Dw80f800uws,dw80f60 SAM-DD81-01528A
...
6-1-1
Bracket-Install SAM-DD61-00176A
...
6-1
Assy-Install Kit; Dmr78,gi,install Kit/r- SAM-DD94-01002A
...
6
A/s Assy-Packing Parts; Dw6000j SAM-DD82-01242A
...
7
A/s Assy-Bracket Front Lower; Dw80j3020 SAM-DD82-01268A
...
8
Cover-Front Lower SAM-DD63-00081B
...
9
Absorber-Guide Wire; Dmt800,pur Foam,t25, SAM-DD63-00139A
