Samsung DW7933LARASR_AA

Model: DW7933LARASR_AA

Save Part Not Listed?
product name

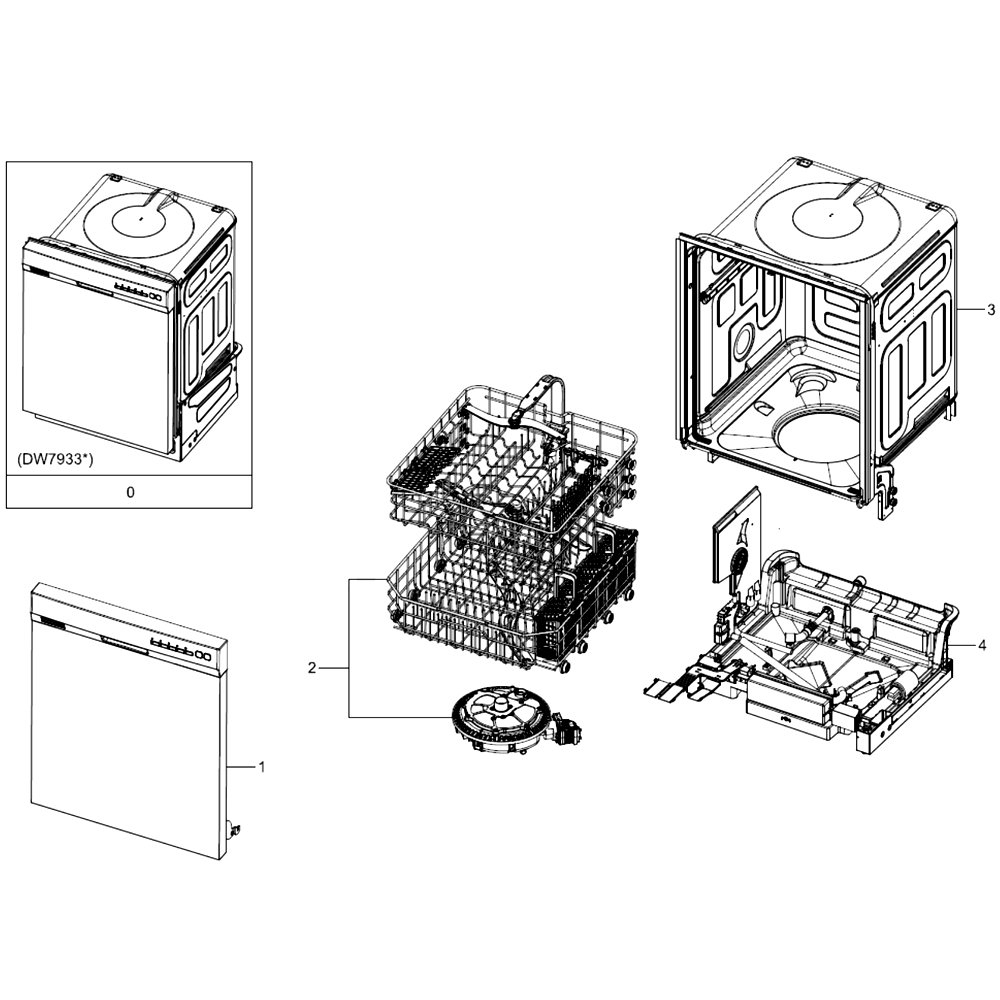

Main

...
...
1
Assembly Door SAM-DD97-00168A
...
2
Assy-Wash SAM-DD97-00167A
...
3
Assy-Tub SAM-DD94-01034A
...
4
Assembly Base SAM-DD90-00384A

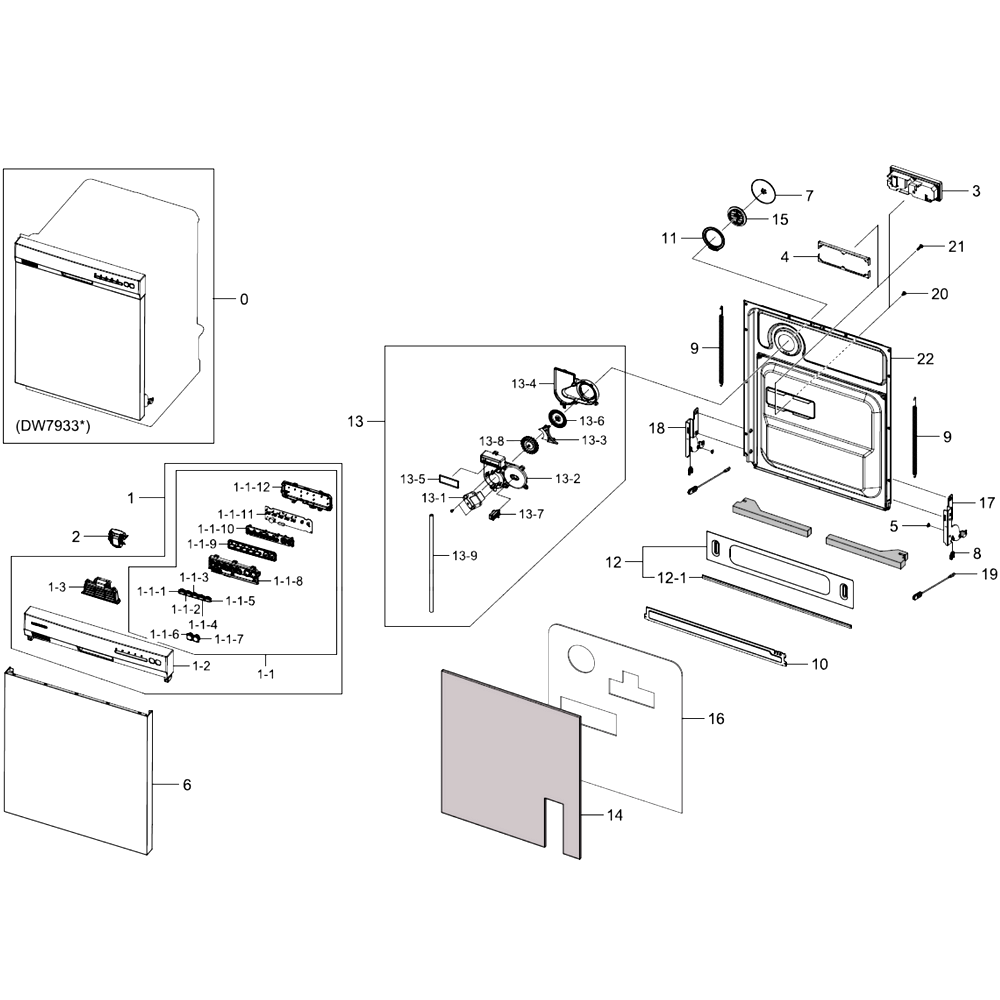

Assy Door

...
...
1-1-1
Button-Push(n) SAM-DD64-00124A
...
1-1-2
Button-Push(h) SAM-DD64-00122A
...
1-1-3
Button-Push(q) SAM-DD64-00127A
...
1-1-4
Button-Push(a) SAM-DD64-00125A
...
1-1-5
Button-Push(s) SAM-DD64-00126A
...
1-1-6
Button-Start SAM-DD64-00120A
...
1-1-7
Button-Power SAM-DD64-00121A
...
1-1-8
Guide-Led SAM-DD61-00405A
...
1-1-9
Button-Silicon SAM-DD64-00128A
...
1-1-10
Holder Led SAM-DD61-00407A
...
1-1-11
Assembly Pcb Sub SAM-DD92-00030A
...
1-1-12
Guide-Pcb(l) SAM-DD61-00406A
...
1-1
Assembly Panel Box SAM-DD97-00174A
...
1-2
Panel Control SAM-DD64-00119A
...
1-3
Handle-Front SAM-DD64-00123A
...
1
Assembly Control Panel SAM-DD97-00169A
...
2
Switch Door-Lock SAM-DD34-00002B
...
3
Dispenser-Rinse -Aid SAM-DD59-01001A
...
4
Bracket-Dispensor SAM-DD61-00103A
...
5
Spacer-Door Link SAM-DD60-00001A
...
6
Frame-Front SAM-DD61-00202A
...
7
Bracket-Cover Fan SAM-DD61-00203B
...
8
Guide-Door Link SAM-DD61-00207A
...
9
Spring Etc SAM-DD61-00245B
...
10
Bracket-Door Link SAM-DD61-00205A
...
11
Seal-Fan SAM-DD62-00044A
...
12-1
Packing-Noise Base SAM-DD69-00017A
...
12
Cover-Front Lower SAM-DD63-00081A
...
13-1
Motor Ventilation SAM-DD31-00006A
...
13-2
Case-Vent U SAM-DD61-00300A
...
13-3
Case-Vent M SAM-DD61-00301A
...
13-4
Case-Vent L SAM-DD61-00302A
...
13-5
Seal-Case Vent SAM-DD62-00089A
...
13-6
Gasket-Vent SAM-DD63-00111A
...
13-7
Actuator-Thermal SAM-DD66-00057A
...
13-8
Fan-Vent SAM-DD67-00062A
...
13-9
Hose-Vent SAM-DD67-00063A
...
13
Assy-Case Vent SAM-DD94-01054A
...
14
Absorber-Sound(front) SAM-DD63-00092A
...
15
Cover-Fan SAM-DD63-00112A
...
16
Absorber-Tub Front SAM-DD63-00121A
...
17
Door-Link(r) SAM-DD64-00046A
...
18
Door-Link(l) SAM-DD64-00047A
...
19
Rope-Door Spring SAM-DD67-00039B
...
20
Screw-Door(s) SAM-DD81-01151A
...
21
Screw-Door(l) SAM-DD81-01153A
...
22
Assy-Tub Front SAM-DD97-00106A

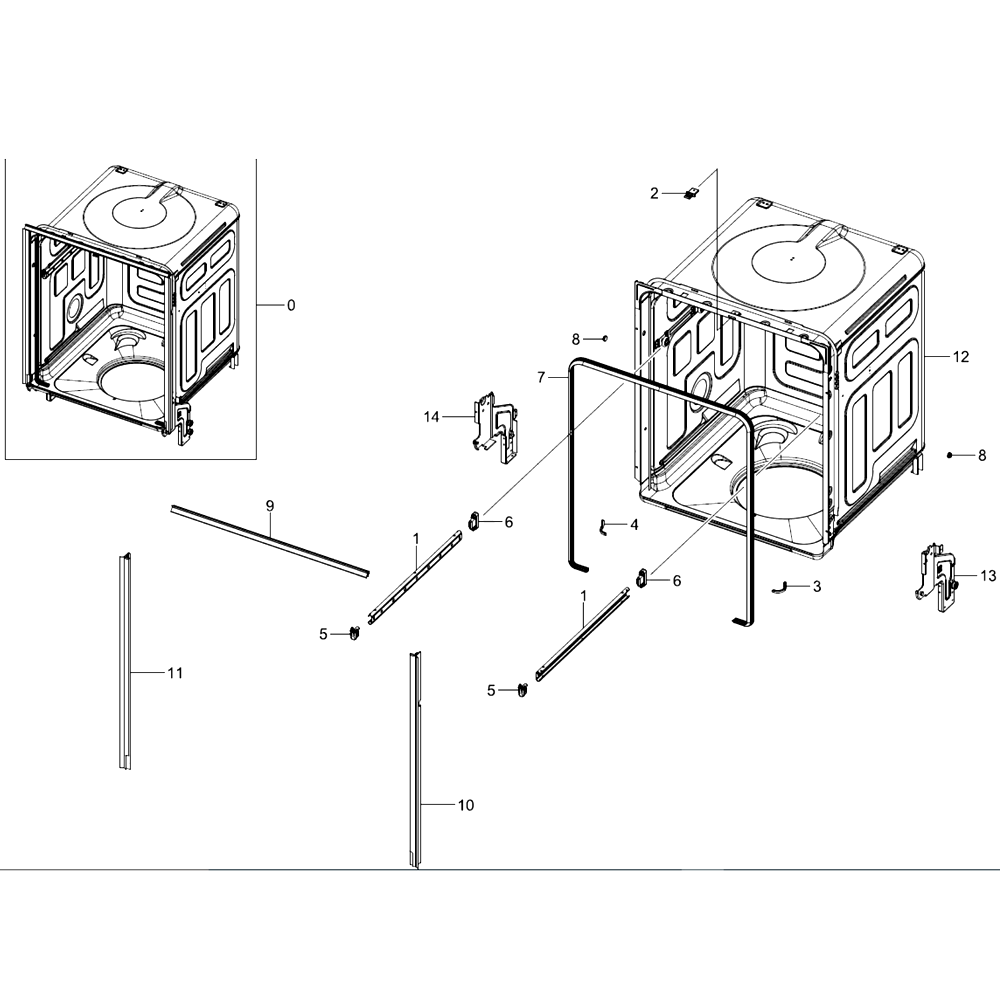

Assy Tub

...
...
0
Assy-Tub SAM-DD94-01034A
...
1
Rail-Basket SAM-DD61-00174A
...
2
Holder-Door Lock SAM-DD61-00175A
...
3
Guide-Tub Edge(r) SAM-DD61-00177A
...
4
Guide-Tub Edge(l) SAM-DD61-00178A
...
5
Stopper-Rail SAM-DD61-00182A
...
6
Stopper-Rail SAM-DD61-00183A
...
7
Seal-Tub Front SAM-DD62-00043A
...
8
Cap-Tub Spacer SAM-DD67-00040A
...
9
Packing-Noise Top SAM-DD69-00014A
...
10
Packing-Noise Side(r) SAM-DD69-00015A
...
11
Packing-Noise Side(l) SAM-DD69-00016A
...
12
Assy-Gross Tub SAM-DD94-01015A
...
13
Assy-Support Link(r) SAM-DD97-00114B
...
14
Assy-Support Link(l) SAM-DD97-00115B

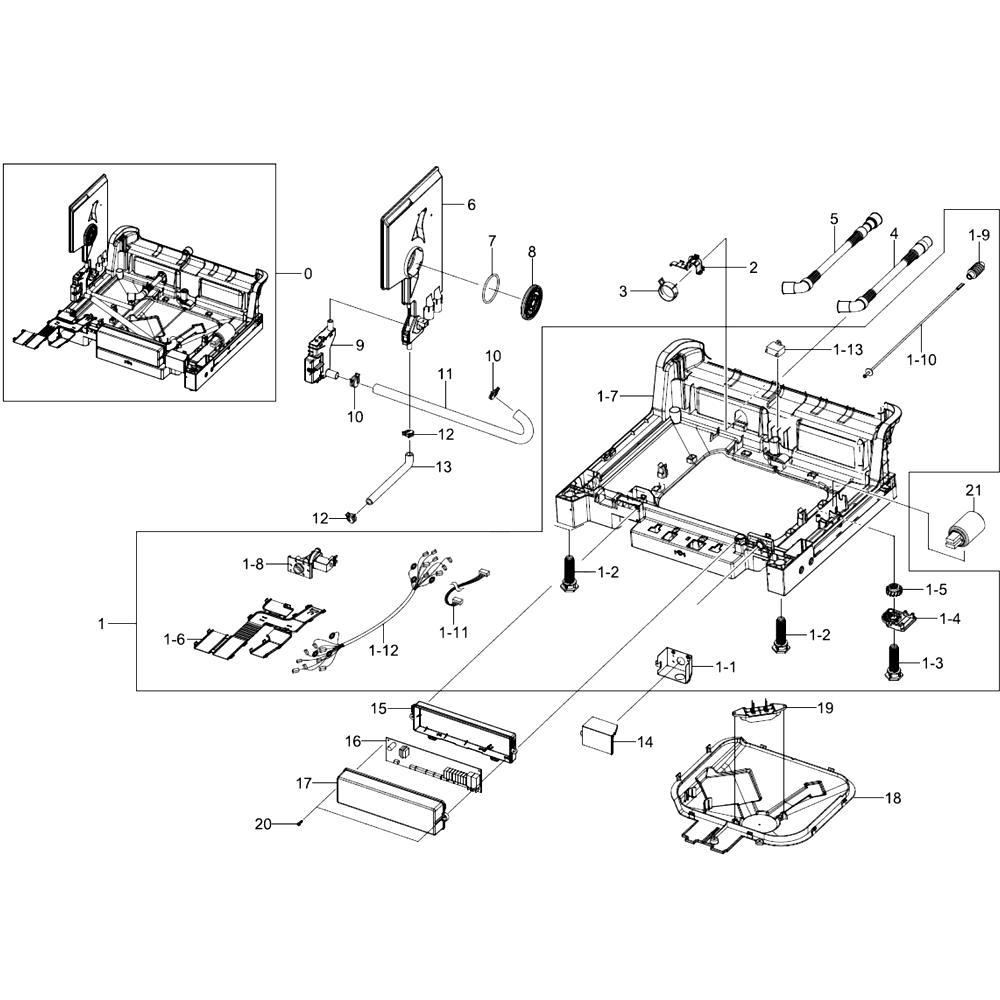

Assy Base

...
...
0
Assembly Base SAM-DD90-00384A
...
1-1
Case-Power Cord SAM-DD61-00229A
...
1-2
Leg-Adjust SAM-DD61-00232A
...
1-3
Leg-Adjust SAM-DD61-00232B
...
1-4
Case-Gear SAM-DD61-00281A
...
1-5
Gear-Helical SAM-DD66-00053A
...
1-6
Guide-Wire SAM-DD61-00293A
...
1-7
Plate-Base SAM-DD61-00295A
...
1-8
Valve-Water SAM-DD62-00084A
...
1-9
Gear-Worm SAM-DD66-00052A
...
1-10
Adjust-Leg-Bar SAM-DD70-01002A
...
1-11
Wire Harness-Sub SAM-DD39-00009A
...
1-12
Wire Harness-Main SAM-DD39-00010A
...
1-13
A/s-C-Film SAM-DD81-01478A
...
1
Assembly Base-Sub SAM-DD90-00385A
...
2
Holder-Hose Drain SAM-DD61-00230A
...
3
Clamper Hose SAM-DD65-00001G
...
4
Hose-Drain In SAM-DD67-00058A
...
5
Hose-Drain Out SAM-DD67-00059A
...
6
Assy-Case Brake SAM-DD94-01005A
...
7
Gasket-Brake SAM-DD63-00072A
...
8
Cover-Brake SAM-DD63-00073A
...
9
Assy-Case Sensor SAM-DD94-01006A
...
10
Clamper Hose SAM-DD65-00001H
...
11
Hose-Inlet SAM-DD67-00057A
...
12
Clamper Hose SAM-DD65-00001J
...
13
Hose-Sensor SAM-DD67-00052A
...
14
Cover-Power Cord SAM-DD63-00082A
...
15
Guide-Pcb SAM-DD61-00262A
...
16
Assembly Pcb Main SAM-DD92-00033A
...
17
Cover-Guide Pcb SAM-DD63-00098A
...
18
Shutter SAM-DD64-00067A
...
19
Assy-Sensor Leak SAM-DD94-01062A
...
20
Screw-Tap L12 SAM-DD81-01266A
...
21
Filter-Emi SAM-DD29-00007B

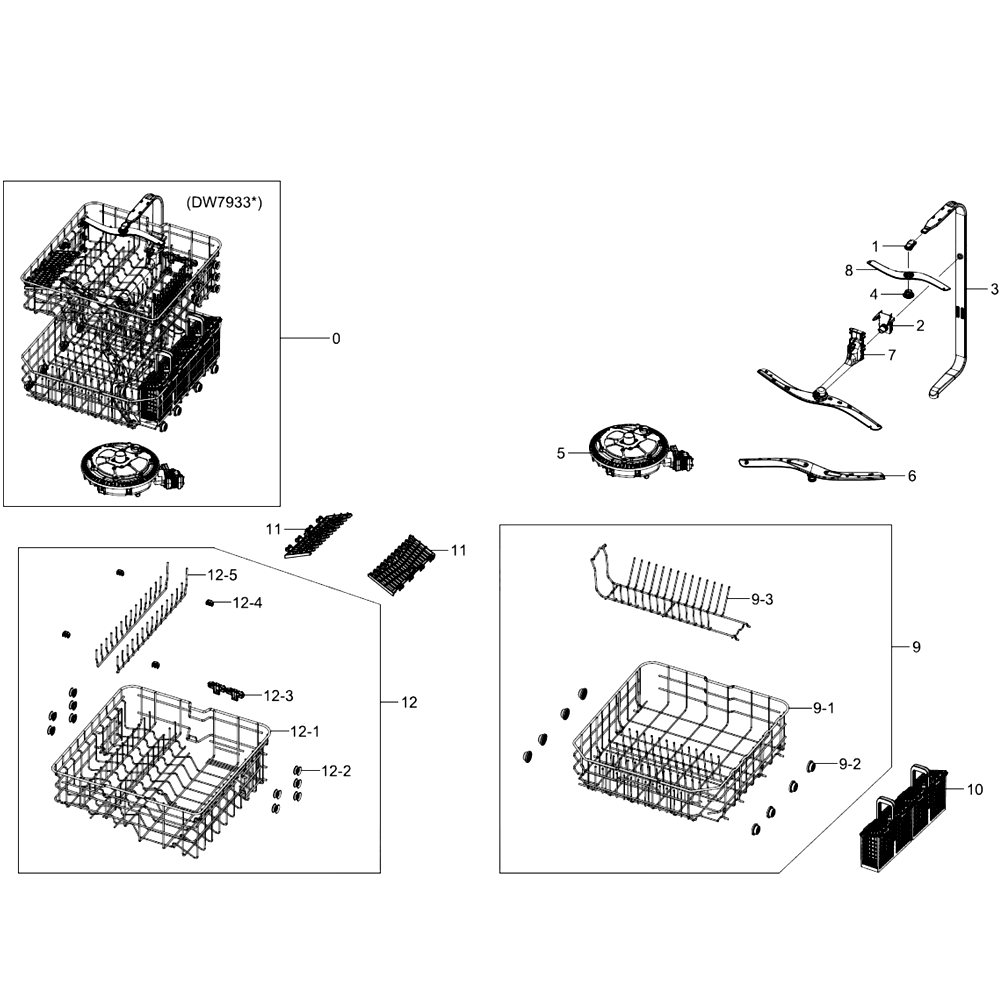

Assy Wash

...
...
0
Assy-Wash SAM-DD97-00167A
...
1
Holder-Nozzle(u) SAM-DD61-00256A
...
2
Cover-Duct Nozzle SAM-DD63-00096A
...
3
Duct-Nozzle SAM-DD67-00048A
...
4
Cap-Nozzle U SAM-DD67-00061A
...
5
Assy-Sump Better SAM-DD94-01025A
...
6
Assy-Nozzle Lower SAM-DD94-01007A
...
7
Assy-Nozzle Middle SAM-DD94-01008A
...
8
Assy-Nozzle Top SAM-DD94-01009A
...
9-1
Basket-Lower B SAM-DD61-00279A
...
9-2
Roller-Basket(l) SAM-DD66-00023A
...
9-3
Wire-Tine Lower Back SAM-DD66-00041A
...
9
Assembly Basket Lower SAM-DD97-00171A
...
10
Assy-Case Spoon SAM-DD94-01013A
...
11
Support-Cup B SAM-DD61-00282A
...
12-1
Basket-Upper(c) SAM-DD61-00408A
...
12-2
Roller-Basket(u) SAM-DD66-00022A
...
12-3
Holder-Tine(s) SAM-DD61-00217A
...
12-4
Holder-Tine SAM-DD61-00270A
...
12-5
Wire-Tine Upper(l) SAM-DD66-00026A
...
12
Assembly Basket-Upper SAM-DD97-00172A

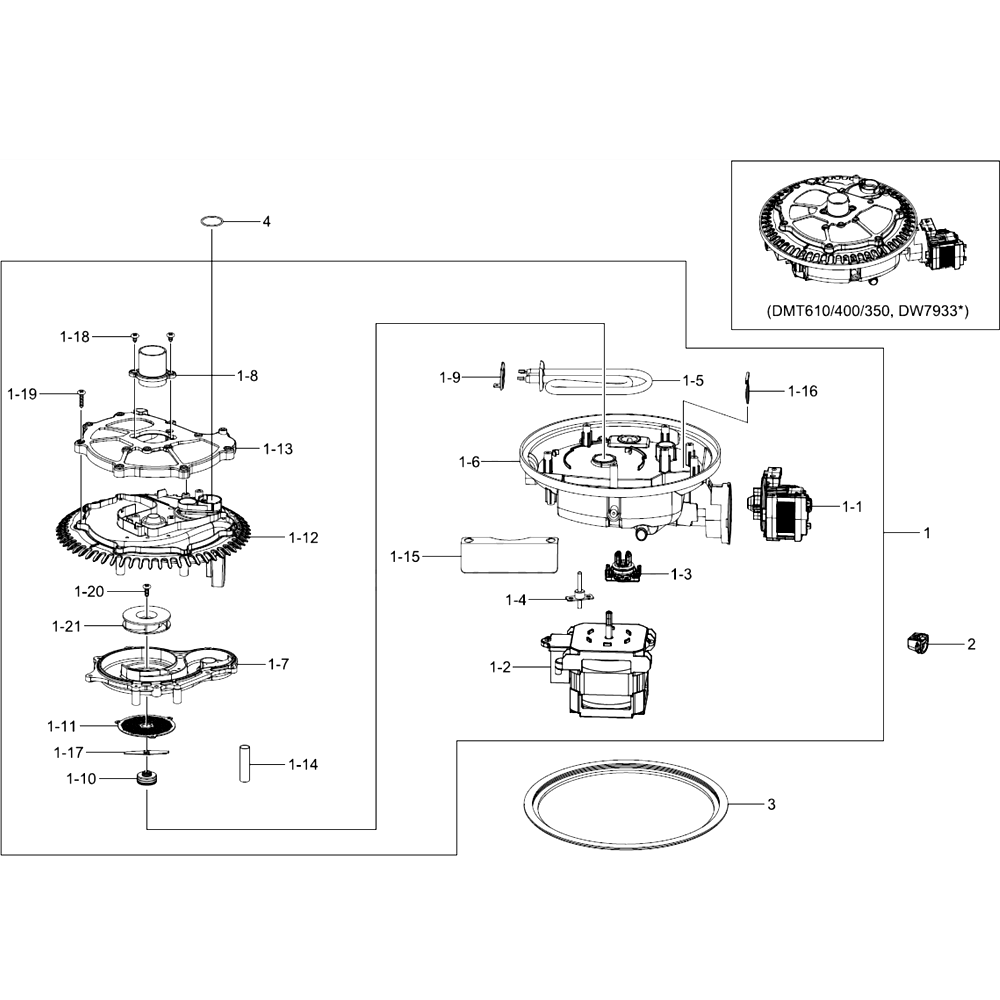

Assy Sump

...
...
1-1
Pump-Drain SAM-DD31-00005A
...
1-2
Pump-Circuration SAM-DD31-00008A
...
1-3
Sensor-Turbidity SAM-DD32-00003A
...
1-4
Thermistor SAM-DD32-00005A
...
1-5
Heater SAM-DD47-00004A
...
1-6
Case-Sump Better SAM-DD61-00261B
...
1-7
Case-Scroll Better SAM-DD61-00272B
...
1-8
Holder-Nozzle(l) SAM-DD61-00273A
...
1-9
Bracket-Heater SAM-DD61-00277A
...
1-10
Seal-Oil SAM-DD62-00053A
...
1-11
Filter-Circulation SAM-DD63-00087A
...
1-12
Cover-Sump Better SAM-DD63-00099B
...
1-13
Filter-Mesh-Body SAM-DD63-00104A
...
1-14
Protector-Boss SAM-DD63-00128A
...
1-15
Cover-C Motor SAM-DD63-00135A
...
1-16
Vane-Check Drain SAM-DD66-00045A
...
1-17
Cutter-Disposer SAM-DD70-01003A
...
1-18
Screw-Sump S SAM-DD81-01182A
...
1-19
Screw-Sump L SAM-DD81-01183A
...
1-20
Screw-Motor Impeller SAM-DD81-01189A
...
1-21
Assy-Impeller SAM-DD94-01003A
...
1
Assy-Sump Better SAM-DD94-01025A
...
2
Holder-Sump SAM-DD61-00212A
...
3
Seal-Sump SAM-DD62-00050A
...
4
Seal-Duct Nozzle SAM-DD62-00068A
