Samsung DVG50M7450W/A3_0000

Model: DVG50M7450W/A3_0000

Save Part Not Listed?
product name

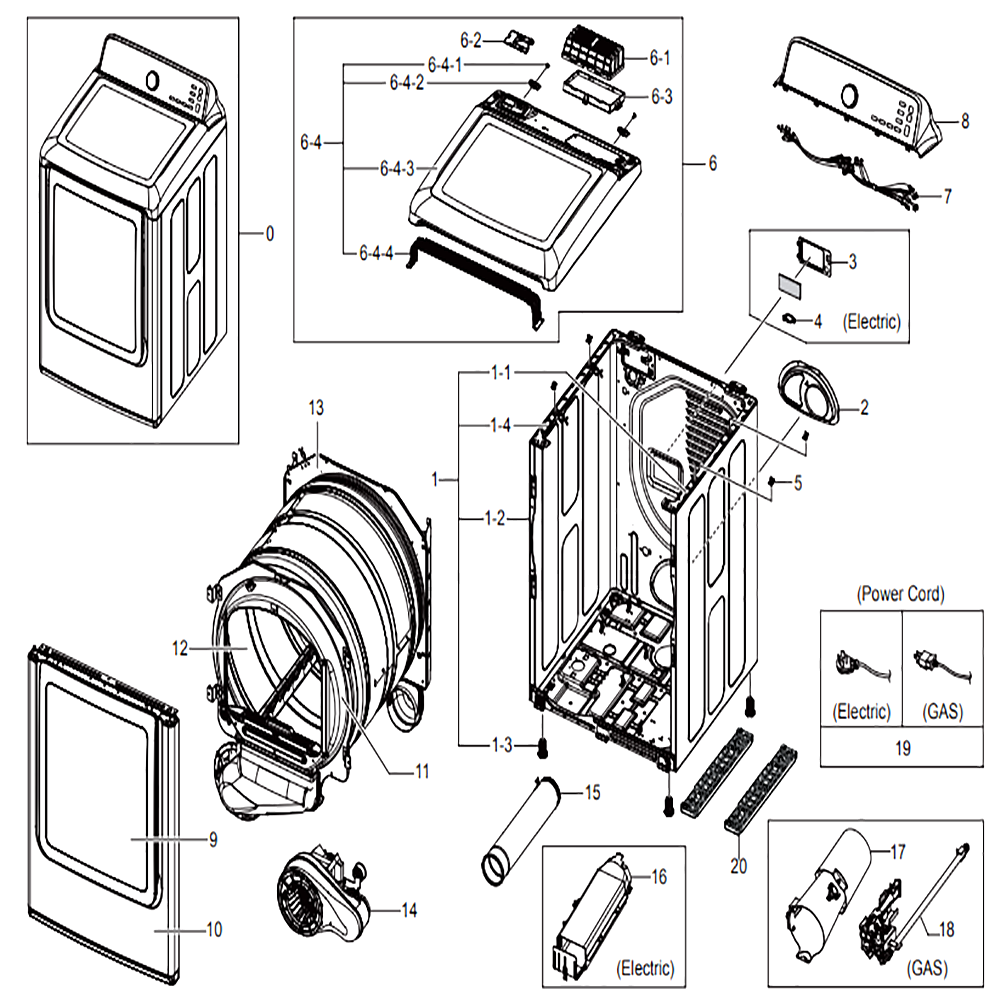

Main

...
...
0
Assy Clothes Dryer SAM-DVG50M7450W/A3V
...
1-1
Bracket-Spring(r) SAM-DC61-03047A
...
1-2
Frame SAM-DC61-04009C
...
1-3
Leg SAM-DC61-03128A
...
1-4
Assembly Bracket Spring(l) SAM-DC97-16750A
...
1
Assy Frame SAM-DC97-20075A
...
5
Guide Cover Top SAM-DC61-03400A
...
6-1
Cover Pcb-Sub SAM-DC63-01706A
...
6-2
Cap-Cover Top SAM-DC67-00607A
...
6-3
Assy Pcb Main SAM-DC92-01729P
...
6-4-1
Screw-Tapping SAM-6006-001174
...
6-4-2
Bracket Cover Top SAM-DC61-03134B
...
6-4-3
Cover Top SAM-DC63-01455A
...
6-4
Assy Cover Top SAM-DC97-16954M
...
6
Assy Cover Top SAM-DC90-24202A
...
7
Assy M. Wire Harness SAM-DC93-00191L
...
8
Assy Panel Control SAM-DC90-20089C
...
9
Assy Lamp Led SAM-DC97-18994A
...
10
Drum Lifter SAM-DC97-18551C
...
11
Assy Drum Front SAM-DC97-18962B
...
12
Assy Drum Wrapper SAM-DC97-16812G
...
13
Assy Drum Back SAM-DC97-17076X
...
14
Assy Motor Duct SAM-DC93-00657A
...
15
Assembly Burner SAM-DC97-14492A
...
16
Assembly Power Cord SAM-DC96-00038G
...
20
Base Stand SAM-DC61-03981A

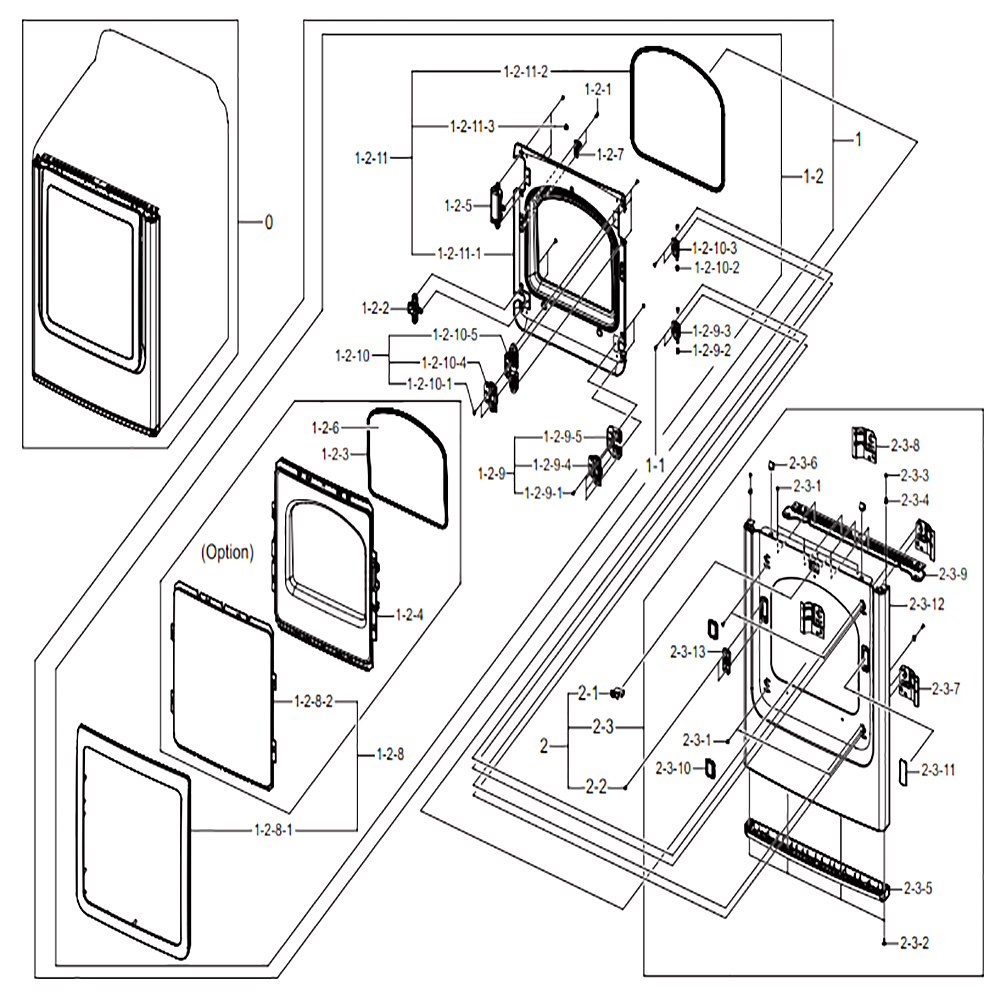

Assy Frame Front & Door

...
...
1-1
Screw-Hex SAM-6009-001522
...
1-2-1
Screw-Tapping SAM-6006-001174
...
1-2-2
Assy Drum Front SAM-DC61-03324D
...
1-2-3
Seal Door SAM-DC62-00339A
...
1-2-4
Cover-Door(i) SAM-DC63-01454A
...
1-2-5
Assy Duct Outlet SAM-DC64-02785D
...
1-2-6
Door Glass SAM-DC64-02789A
...
1-2-7
Lever-Door SAM-DC66-00395A
...
1-2-8-1
Absorber Sponge SAM-DC63-01453A
...
1-2-8-2
Absorber Sponge SAM-DC64-02788A
...
1-2-8
Duct-Outlet(b) SAM-DC97-17077A
...
1-2-9-1
Screw-Tapping SAM-6006-001174
...
1-2-9-2
Guide-Hinge SAM-DC61-00891A
...
1-2-9-3
Hinge Door SAM-DC61-03322B
...
1-2-9-4
Support Hinge SAM-DC61-03323A
...
1-2-9-5
Holder Hinge SAM-DC61-03332A
...
1-2-9
Assy Hinge Door(l) SAM-DC97-17078B
...
1-2-10-1
Screw-Tapping SAM-6006-001174
...
1-2-10-2
Assy-S.drum Front SAM-DC63-01458C
...
1-2-10-3
Cap-Drum Front SAM-DC97-17080D
...
1-2-10-4
Assy Drum Wrapper SAM-DC61-03331D
...
1-2-10-5
Seal Air SAM-DC62-00344A
...
1-2-10
Assy Case Filter SAM-DC97-17079E
...
1-2-11-1
Drum Lifter SAM-DC97-18551C
...
1-2-11-2
Door-S/w SAM-DC64-00828B
...
1-2-11-3
Assy Screw SAM-DC97-15847A
...
1-2-11
Cushin Door SAM-DC63-01498A
...
1-2
Assy Lamp Led SAM-DC97-18994A
...
1
Assy Lamp Led SAM-DC97-18994A
...
2-1
Screw-Tapping SAM-6002-000239
...
2-2
Screw-Tapping SAM-6002-001149
...
2-3-1
Screw-Tapping SAM-6006-001174
...
2-3-2
Guide-Cover Top SAM-DC61-03133A
...
2-3-3
Fixer-Cover Top SAM-DC61-03174A
...
2-3-4
Bracket Hinge-Right SAM-DC61-03325A
...
2-3-5
Base SAM-DC61-03980A
...
2-3-6
Bracket Frame-Front SAM-DC61-03328A
...
2-3-7
Cover-Door Hinge SAM-DC63-01456D
...
2-3-8
Bracket-Hinge(l) SAM-DC61-03326A
...
2-3-9
Assy Frame Front(s) SAM-DC97-16953A
...
2-3-10
Assy Holder Lever SAM-DC97-16970B
...
2-3-11
Cover Holder Lever SAM-DC63-01457E
...
2-3-12
Assy Frame Front(s) SAM-DC97-16953A
...
2-3-13
Assy Holder Lever SAM-DC97-16970B
...
2-3
Screw-Tapping SAM-6002-001436
...
2
Assy Frame Front(s) SAM-DC97-16953A

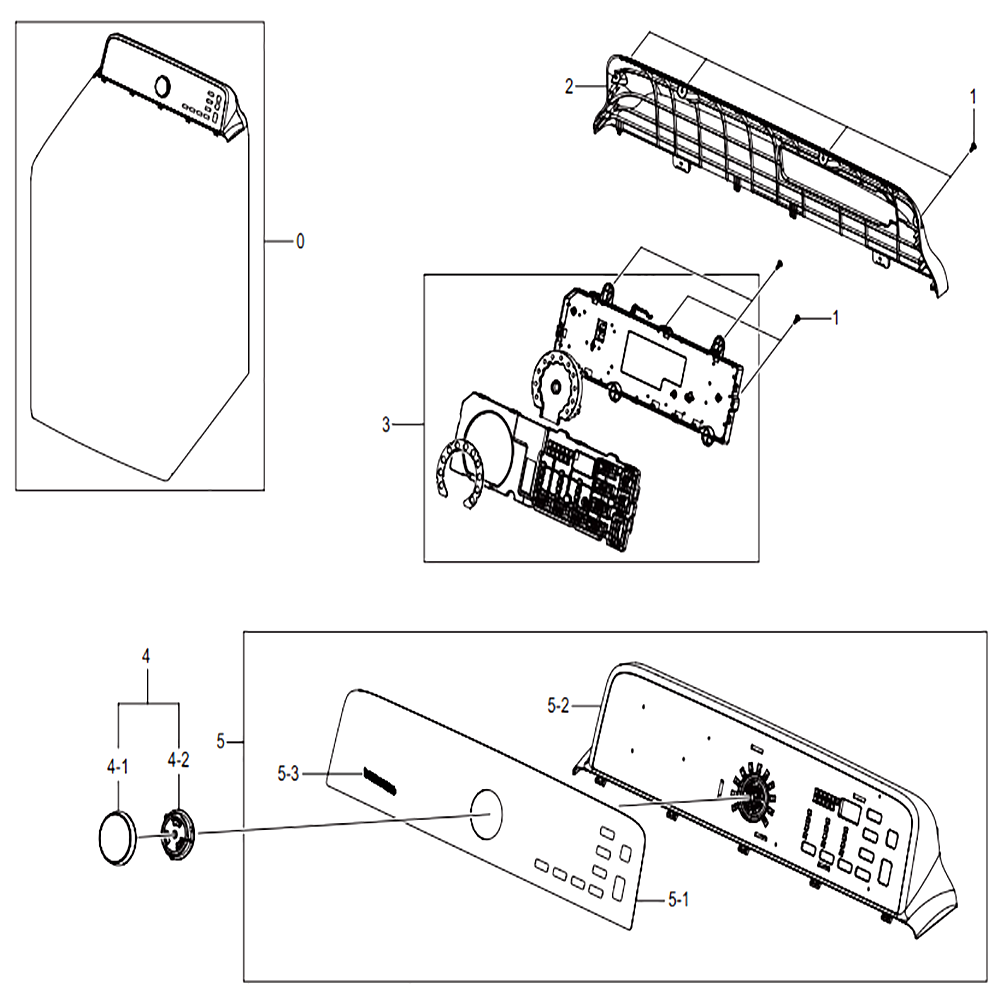

Assy Panel Control

...
...
0
Assy Panel Control SAM-DC90-20089C
...
1
Screw-Tapping SAM-6006-001174
...
2
Cover Panel SAM-DC63-01459A
...
3
Assy Pcb Display SAM-DC92-01624N
...
4-1
Decoration Encoder SAM-DC64-02767B
...
4-2
Knob Encoder SAM-DC64-02768A
...
4
Assy Knob Encoder SAM-DC97-16931B
...
5-1
Window-Panel SAM-DC64-03573A
...
5-2
Panel Control SAM-DC64-03070A
...
5-3
Mascot SAM-DA64-04020A
...
5
Assy S.panel Control SAM-DC97-18956B

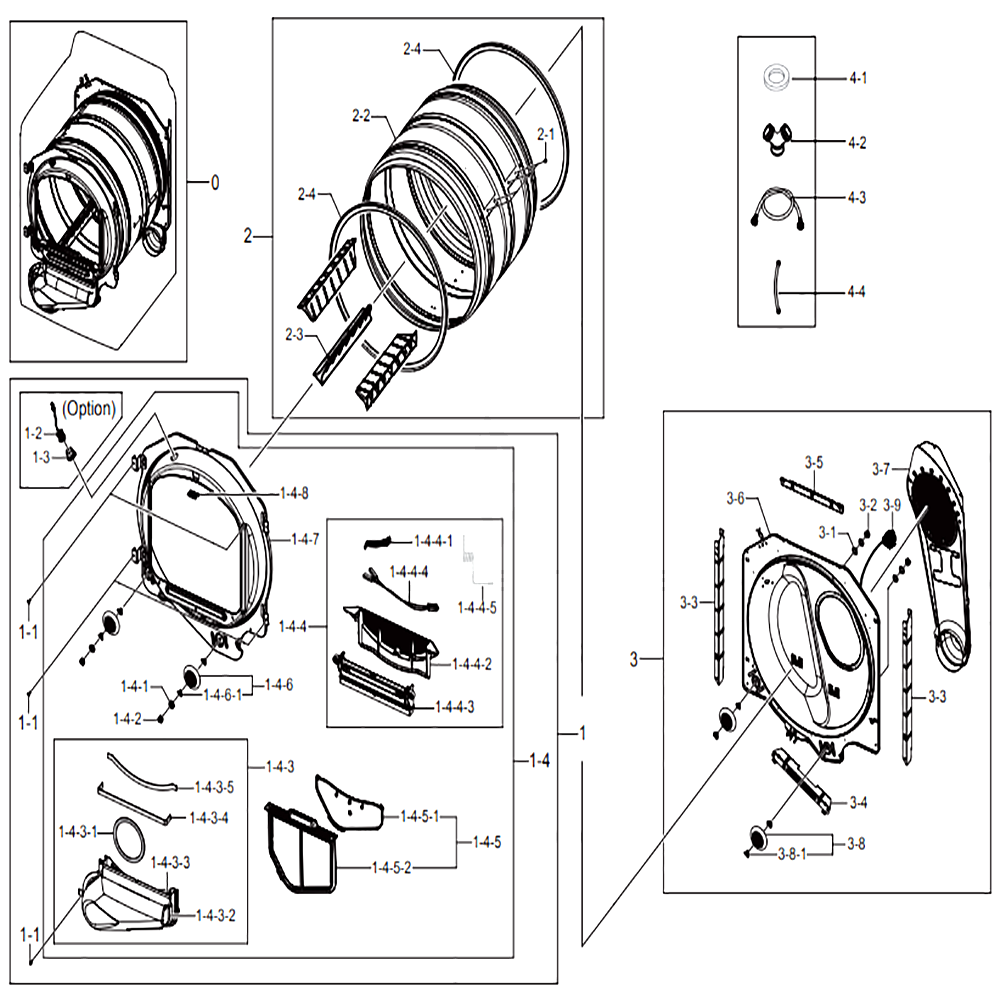

Assy Drum Parts

...
...
1-1
Screw-Tapping SAM-6006-001174
...
1-2
Lamp SAM-DC47-00027F
...
1-3
Fixer-Lamp SAM-DC61-02281A
...
1-4-1
Fastener-Plain SAM-DC60-00103A
...
1-4-2
Nut-Hex SAM-DC60-50145A
...
1-4-3-1
Absorber Sponge SAM-DC72-00032E
...
1-4-3-2
Duct-Outlet(f) SAM-DC67-00127A
...
1-4-3-3
Gi-Sgcc,t0.5 SAM-DC67-00128C
...
1-4-3-4
Absorber Sponge SAM-DC72-00032E
...
1-4-3-5
Absorber Sponge SAM-DC72-00032E
...
1-4-3
Dv3000j,dv40j3000ew/a2 SAM-DC97-07526E
...
1-4-4-1
Plate-Sensor SAM-DC61-02627A
...
1-4-4-2
Gi-Sgcc,t0.5 SAM-DC67-00128C
...
1-4-4-3
Cover-Filter(f) SAM-DC63-02072A
...
1-4-4-4
Assembly Wire Harness SAM-DC96-00766A
...
1-4-4-5
Spring Etc Filter SAM-DC61-02740A
...
1-4-4
Assy Cover Filter SAM-DC97-16741B
...
1-4-5-1
Case-Filter(u) SAM-DC61-02610A
...
1-4-5-2
Case-Filter SAM-DC61-03048A
...
1-4-5
Assembly Case Filter SAM-DC97-16742A
...
1-4-6-1
Holder-Shaft SAM-DC61-01228A
...
1-4-6
Assy Plastic Supportor SAM-DC97-16782B
...
1-4-7
Assy-S.drum Front SAM-DC97-17081A
...
1-4-8
Cap-Drum Front SAM-DC67-00652A
...
1-4
Assy Drum Front SAM-DC97-18962B
...
1
Assy Drum Front SAM-DC97-18962B
...
2-1
Screw-Tapping SAM-6002-000488
...
2-2
Drum Wrapper SAM-DC66-00405D
...
2-3
Drum Lifter SAM-DC66-00875A
...
2-4
Assembly Gasket Pad SAM-DC97-07618A
...
2
Assy Drum Wrapper SAM-DC97-16812G
...
3-1
Fastener-Plain SAM-DC60-00103A
...
3-2
Nut-Hex SAM-DC60-50145A
...
3-3
Bracket-Drum Back SAM-DC61-01238A
...
3-4
Bracket-Drum Back SAM-DC61-02826A
...
3-5
Bracket-Drum Back SAM-DC61-01238A
...
3-6
Drum-Back SAM-DC66-00411J
...
3-7
Assy Duct Air SAM-DC97-07521E
...
3-8-1
Holder-Shaft SAM-DC61-01228A
...
3-8
Assy Plastic Supportor SAM-DC97-16782B
...
3-9
Assy Steam Kit SAM-DC97-16919B
...
3
Assy Drum Back SAM-DC97-17076X
...
4-1
Seal-Water SAM-DC62-40178B
...
4-2
Assembly Connector SAM-DC97-15103A
...
4-3
Assy Hose Water SAM-DC97-15648A
...
4-4
Assembly Hose Connector SAM-DC97-15249A

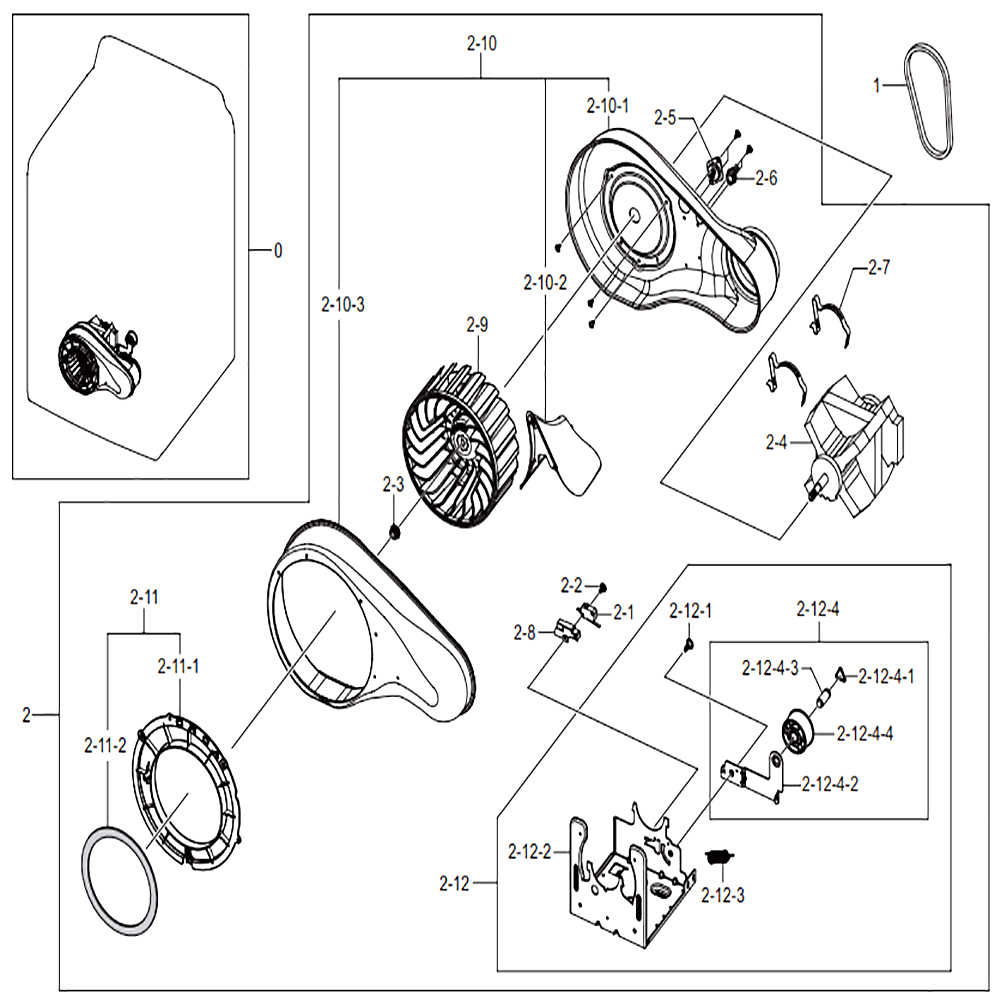

Assy Motor Duct

...
...
0
Assy Motor Duct SAM-DC93-00657A
...
1
Belt-Timing Gear SAM-6602-001655
...
2-1
Switch-Micro SAM-3405-001118
...
2-2
Screw-Tapping SAM-6006-001174
...
2-3
Nut-Inch SAM-6021-001201
...
2-4
Motor Ac Drive SAM-DC31-00055L
...
2-5
Thermistor SAM-DC32-00007A
...
2-6
Thermostat SAM-DC47-00016A
...
2-7
Spring Plate SAM-DC61-04225A
...
2-8
Cover-Switch SAM-DC63-00919A
...
2-9
Fan SAM-DC67-00180B
...
2-10-1
Guide-Duct Fan SAM-DC61-02348B
...
2-10-2
Guide-Fan SAM-DC61-03364A
...
2-10-3
Cover-Duct Fan SAM-DC63-01026A
...
2-10
Assembly Cover Duct SAM-DC93-00098D
...
2-11-1
Duct-Connector SAM-DC67-00586A
...
2-11-2
Absorber Sponge SAM-DC72-00032E
...
2-11
Assembly Duct Connector SAM-DC93-00282A
...
2-12-2
Bracket-Motor SAM-DC61-01213A
...
2-12-3
Spring Etc-Tension SAM-DC61-01215B
...
2-12-4-1
Holder-Shaft SAM-DC61-01228A
...
2-12-4-2
Bracket Idler SAM-DC61-01230C
...
2-12-4-3
Shaft Idler SAM-DC66-00902A
...
2-12-4-4
Assembly Roller SAM-DC97-07509C
...
2-12-4
Assembly Bracket Idler SAM-DC96-00882F
...
2-12
Assy Motor Duct SAM-DC93-00657A
...
2
Assy Motor SAM-DC93-00101Y

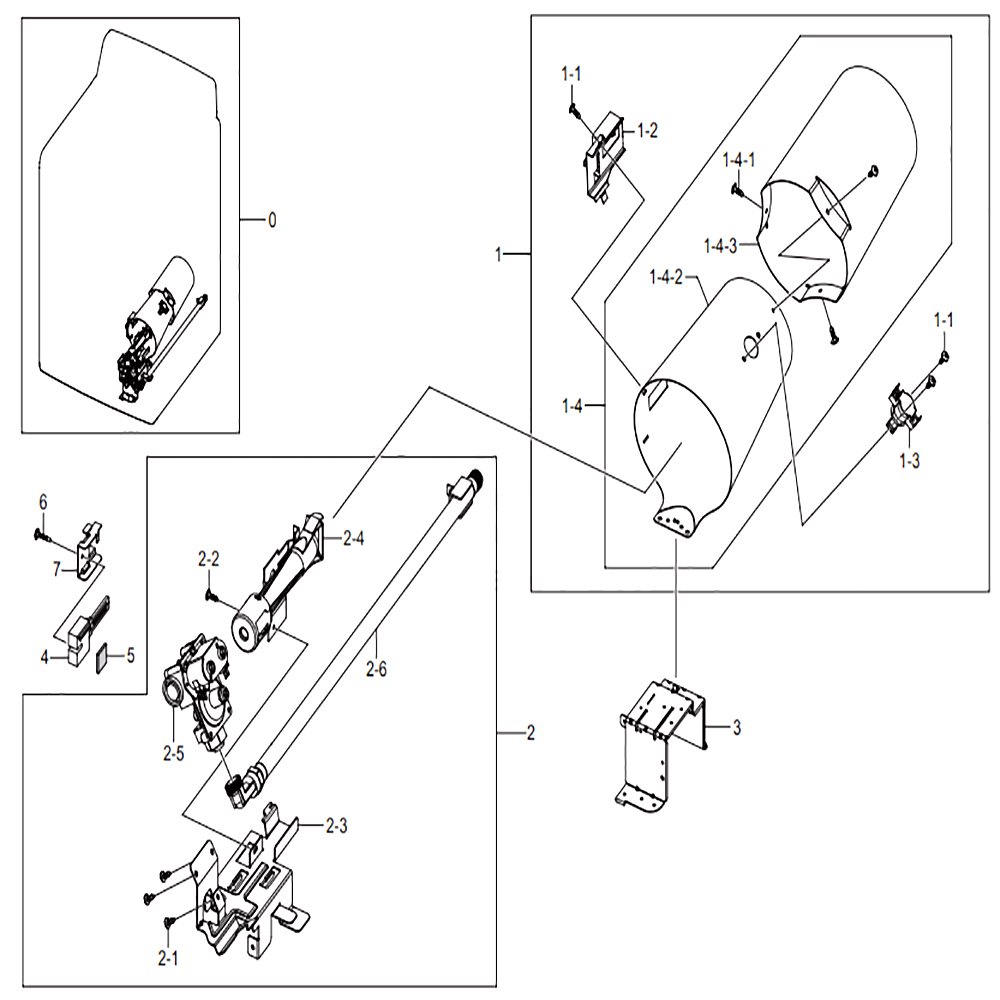

Assy Duct & Burner-gas

...
...
1-1
Screw-Tapping SAM-6002-000231
...
1-2
Sensor-Radiant SAM-DC32-00008A
...
1-3
Thermostat SAM-DC47-00017A
...
1-4-1
Screw-Tapping SAM-6002-000231
...
1-4-2
Duct-Cone(f) SAM-DC67-00136B
...
1-4-3
Duct-Cone(b) SAM-DC67-00137C
...
1-4
Assy Duct Cone SAM-DC97-07602C
...
2-1
Screw-Tapping SAM-6002-000231
...
2-2
Screw-Hex SAM-6009-001476
...
2-3
Bracket-Burner SAM-DC61-01232A
...
2-4
Tube-Burner SAM-DC62-00200A
...
2-5
Valve-Gas SAM-DC62-00201A
...
2-6
Assembly Pipe SAM-DC99-00507A
...
2
Assembly Burner SAM-DC97-14492A
...
3
Bracket Duct SAM-DC61-03755A
...
4
Heater-Igniter SAM-DC47-00022A
...
5
Absorber-Ignitor SAM-DC63-00623A
...
6
Assembly Screw SAM-DC97-09193A
...
7
Bracket Igniter SAM-DC61-02642A

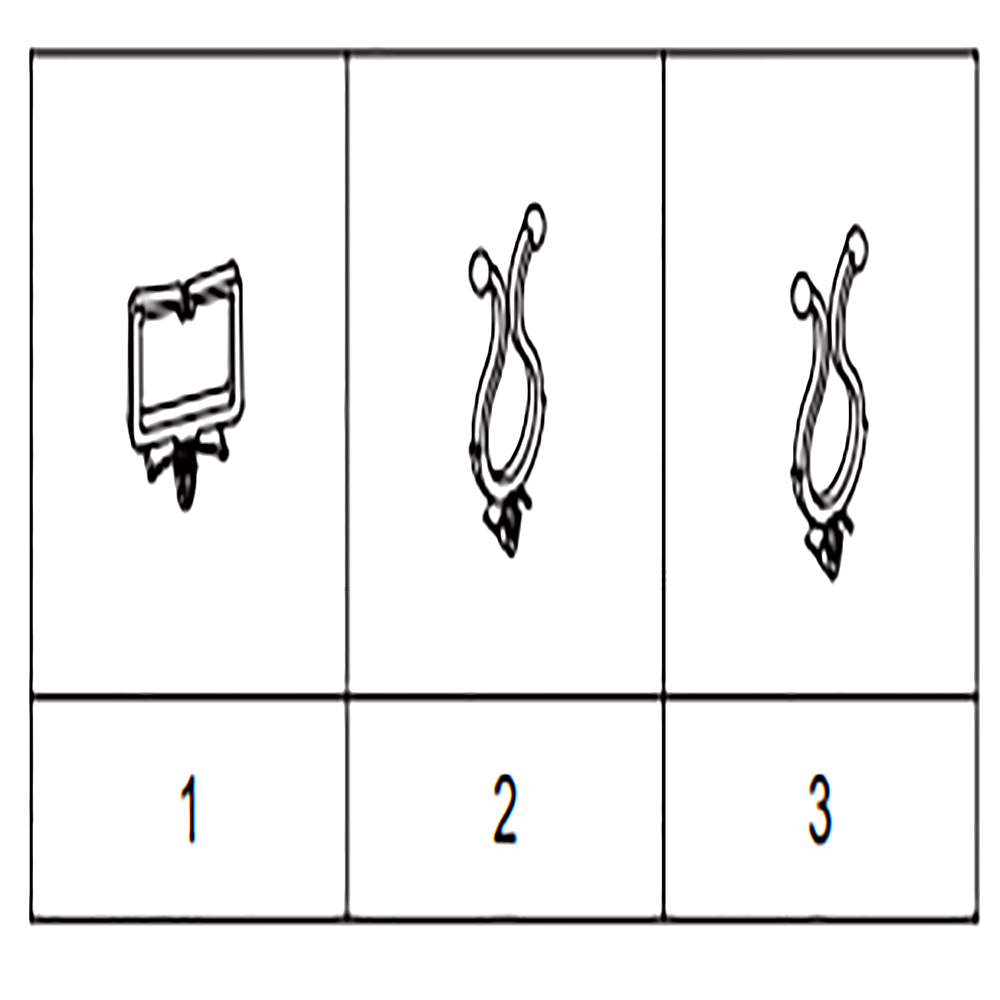

Small Parts

...
...
1
Holder-Wire Saddle SAM-DC61-00553C
...
2
Holder-Wire SAM-DC61-40081A
...
3
Clamper Hose-Fix SAM-DC61-00133A
