Samsung DVG45N5300W/A3_0000

Model: DVG45N5300W/A3_0000

Save Part Not Listed?
product name

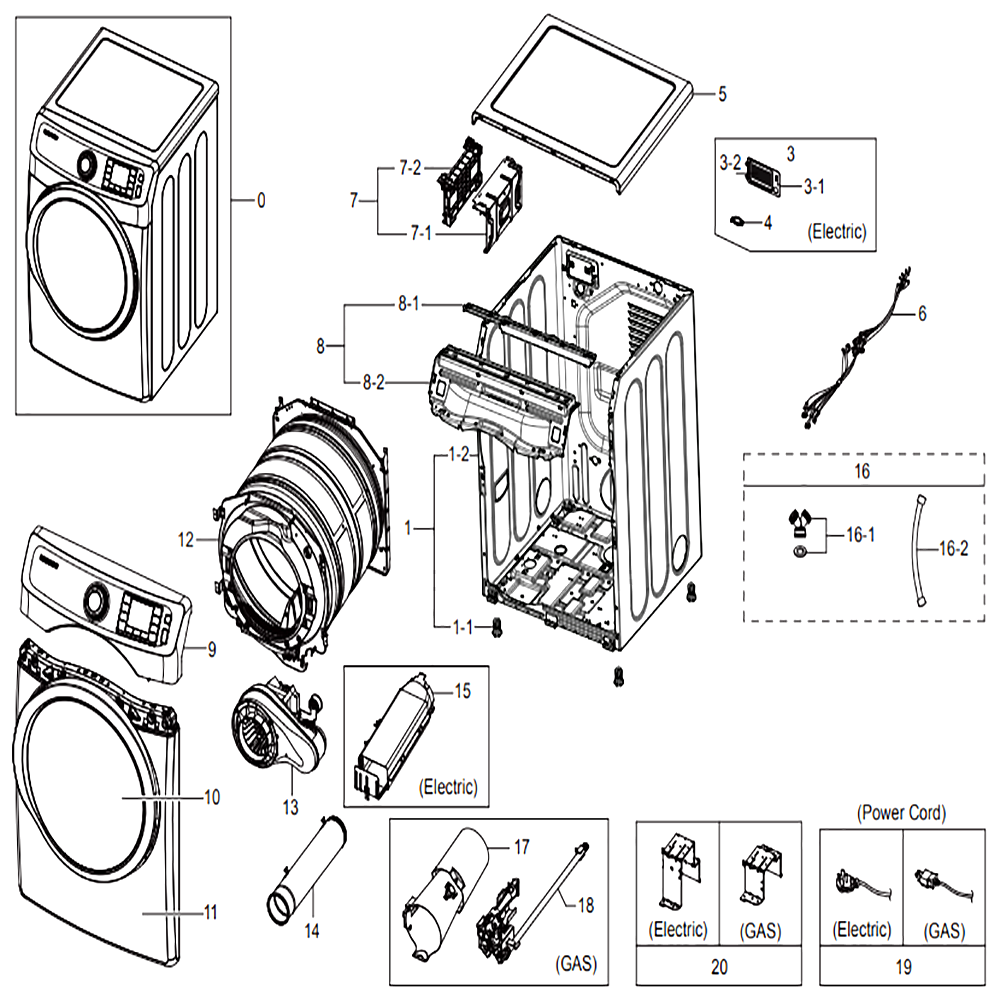

Main

...
...
0
Clothes Dryer SAM-DVE45N5300W
...
1-1
Leg SAM-DC61-03128A
...
1-2
Frame SAM-DC61-03387M
...
1
Assy Frame SAM-DC97-19381C
...
5
Assembly Cover Top SAM-DC97-19026A
...
6
Assy Wire Harness-Main SAM-DC93-00467F
...
7-1
Holder-Pcb SAM-DC61-01229A
...
7-2
Assy Pcb Main SAM-DC92-01729T
...
7
Assy Holder Pcb SAM-DC92-01896G
...
8-1
Frame Plate-Up SAM-DC61-02600A
...
8-2
Guide Panel SAM-DC61-02008B
...
8
Assembly Frame Plate(u) SAM-DC97-15985A
...
9
Assy Panel Control SAM-DC97-20769A
...
10
Assy Door SAM-DC97-15975E
...
11
Assembly Frame Front SAM-DC97-15979X
...
12
Assy Drum SAM-DC90-15190F
...
13
Assembly Motor Duct SAM-DC90-15188A
...
14
Assembly Duct Exhaust SAM-DC97-07519G
...
16-1
Assembly Connector SAM-DC97-15103A
...
16-2
Assy Hose Connector SAM-DC97-15249D
...
16
Assy Accessory SAM-DC98-02087B
...
17
Assy Duct Cone SAM-DC97-07602C
...
18
Assembly Burner SAM-DC97-14492A
...
19
Assembly Power Cord SAM-DC96-00038G
...
20
Bracket Duct SAM-DC61-03755A

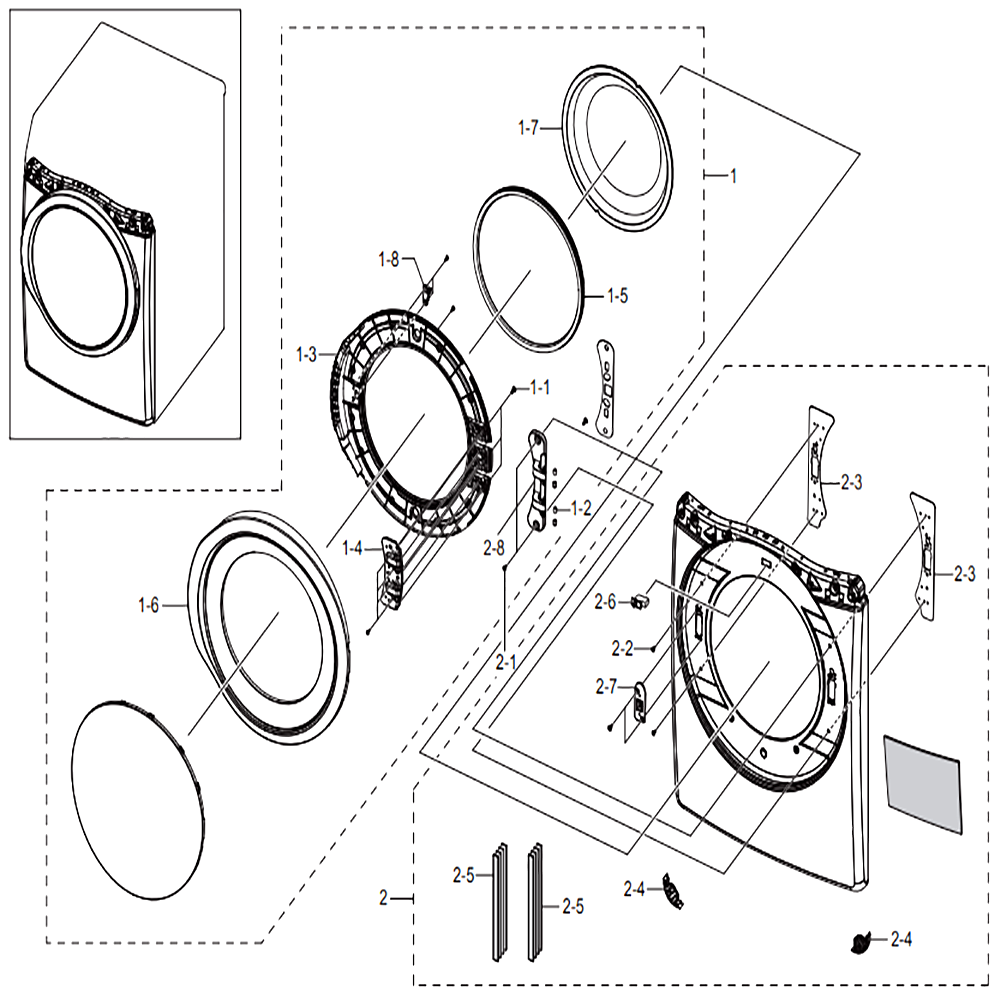

Assy Frame Front & Door

...
...
1-1
Screw-Machine SAM-6001-001668
...
1-2
Guide-Hinge SAM-DC61-00891A
...
1-3
Holder Glass SAM-DC61-02596A
...
1-4
Support Hinge SAM-DC61-04215A
...
1-5
Seal-Door SAM-DC62-00262A
...
1-6
Cover Door SAM-DC63-01748B
...
1-7
Door Glass SAM-DC64-02637A
...
1-8
Lever Door SAM-DC66-00814A
...
1
Assy Door SAM-DC97-15975E
...
2-1
Screw-Machine SAM-6001-001773
...
2-2
Screw-Tapping SAM-6002-000239
...
2-3
Bracket Hinge SAM-DC61-02626A
...
2-4
Cover Hinge SAM-DC63-01202A
...
2-5
Absorber Sponge SAM-DC63-10001C
...
2-6
Door-S/w SAM-DC64-00828B
...
2-7
Assembly Holder Lever SAM-DC97-18057C
...
2-8
Hinge-Door SAM-DC61-02597A
...
2
Assembly Frame Front SAM-DC97-15979X

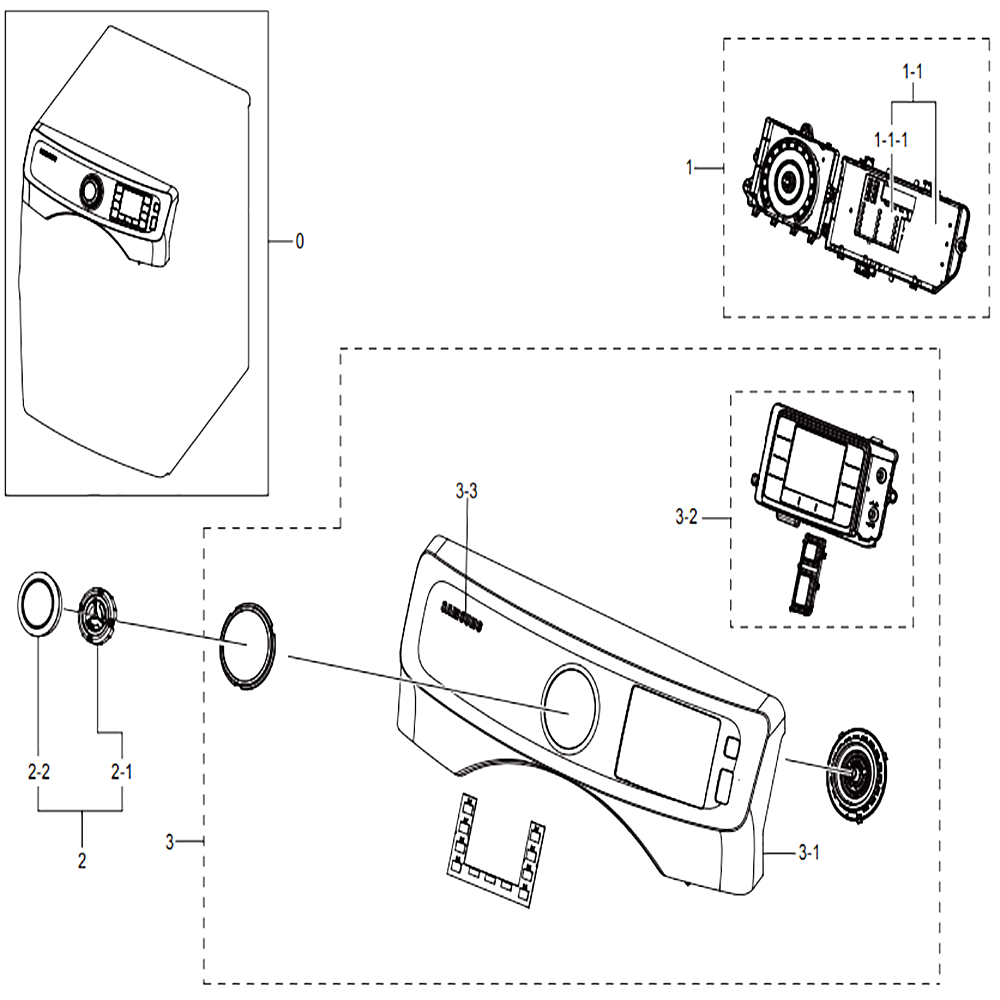

Assy Panel Control

...
...
0
Assy Panel Control SAM-DC97-20769A
...
1-1-1
Pcb Display SAM-DC41-00256A
...
1-1
Assy Pcb Smd SAM-DC94-07342A
...
1
Assy Pcb Display SAM-DC92-01607T
...
2-1
Knob Encoder SAM-DC64-03186A
...
2-2
Decoration Knob SAM-DC64-03060B
...
2
Assy Knob Encoder SAM-DC97-18058C
...
3-1
Button Push SAM-DC64-03066J
...
3-2
Window Panel SAM-DC64-03431Q
...
3-3
Mascot SAM-DA64-04020A
...
3
Assy S.panel Control SAM-DC97-20773A

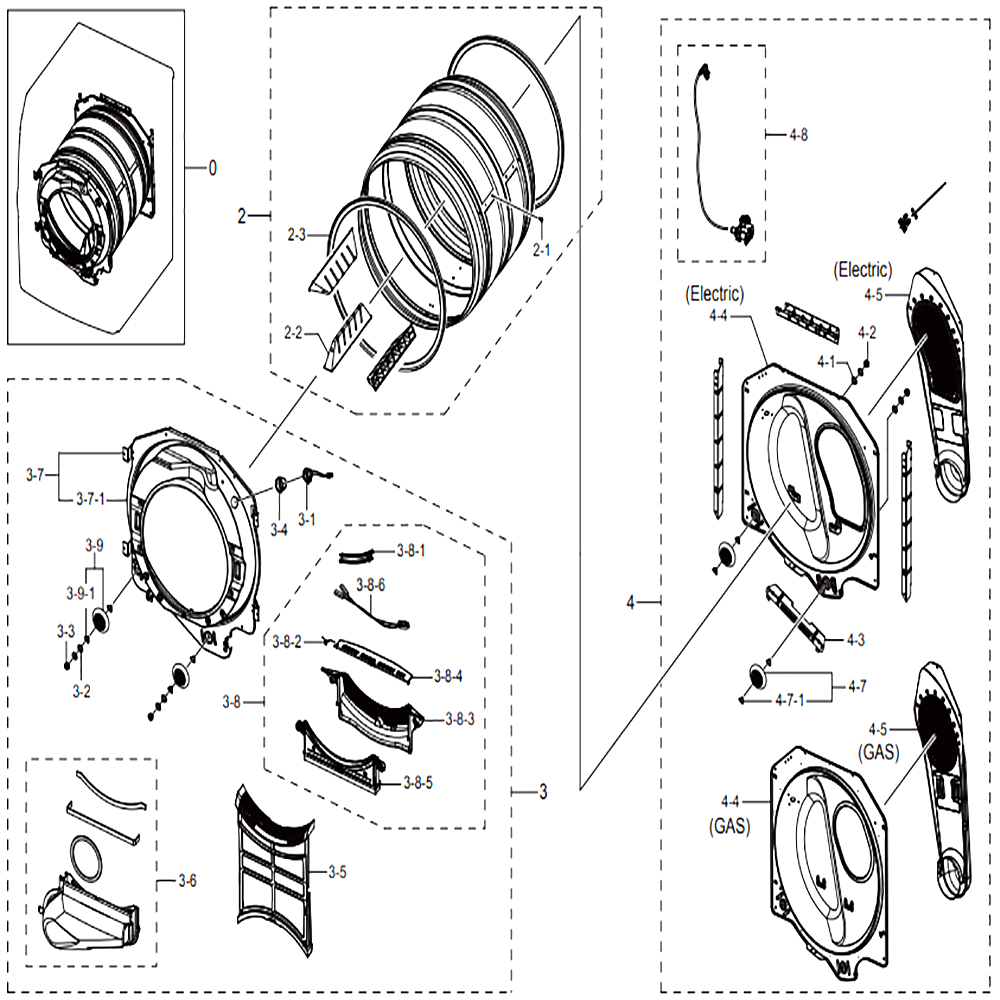

Assy Drum

...
...
0
Assy Drum SAM-DC90-15190F
...
2-1
Screw-Tapping SAM-6002-000215
...
2-2
Drum Lifter SAM-DC66-00511A
...
2-3
Assembly Gasket Pad SAM-DC97-07618A
...
2
Assy Drum Wrapper SAM-DC97-14849G
...
3-1
Lamp SAM-DC47-00027F
...
3-2
Fastener-Plain SAM-DC60-00103A
...
3-3
Nut-Hex SAM-DC60-50145A
...
3-4
Fixer-Lamp SAM-DC61-02281A
...
3-5
Case Filter SAM-DC61-02595A
...
3-6
Assembly Duct Outlet SAM-DC93-00187A
...
3-7-1
Drum Front SAM-DC66-00596B
...
3-7
Assembly S.drum Front SAM-DC97-15983B
...
3-8-1
Plate-Sensor SAM-DC61-02627A
...
3-8-2
Spring Etc Filter SAM-DC61-02740A
...
3-8-3
Cover Filter (b) SAM-DC63-01139A
...
3-8-4
Cover Filter(u) SAM-DC63-01140A
...
3-8-5
Cover Filter(f) SAM-DC63-01143A
...
3-8-6
Assembly Wire Harness SAM-DC96-00766A
...
3-8
Assembly Cover Filter SAM-DC97-16160A
...
3-9-1
Holder-Shaft SAM-DC61-01228A
...
3-9
Assy Plastic Supportor SAM-DC97-16782B
...
3
Assy Drum Front SAM-DC97-15984C
...
4-1
Fastener-Plain SAM-DC60-00103A
...
4-2
Nut-Hex SAM-DC60-50145A
...
4-3
Bracket-Drum Back SAM-DC61-02826A
...
4-4
Drum-Back SAM-DC66-00411J
...
4-5
Assy Duct Air SAM-DC97-07521E
...
4-7-1
Holder-Shaft SAM-DC61-01228A
...
4-7
Assy Plastic Supportor SAM-DC97-16782B
...
4-8
Assy Steam Kit SAM-DC97-16919B
...
4
Assy Drum Back SAM-DC97-15001R

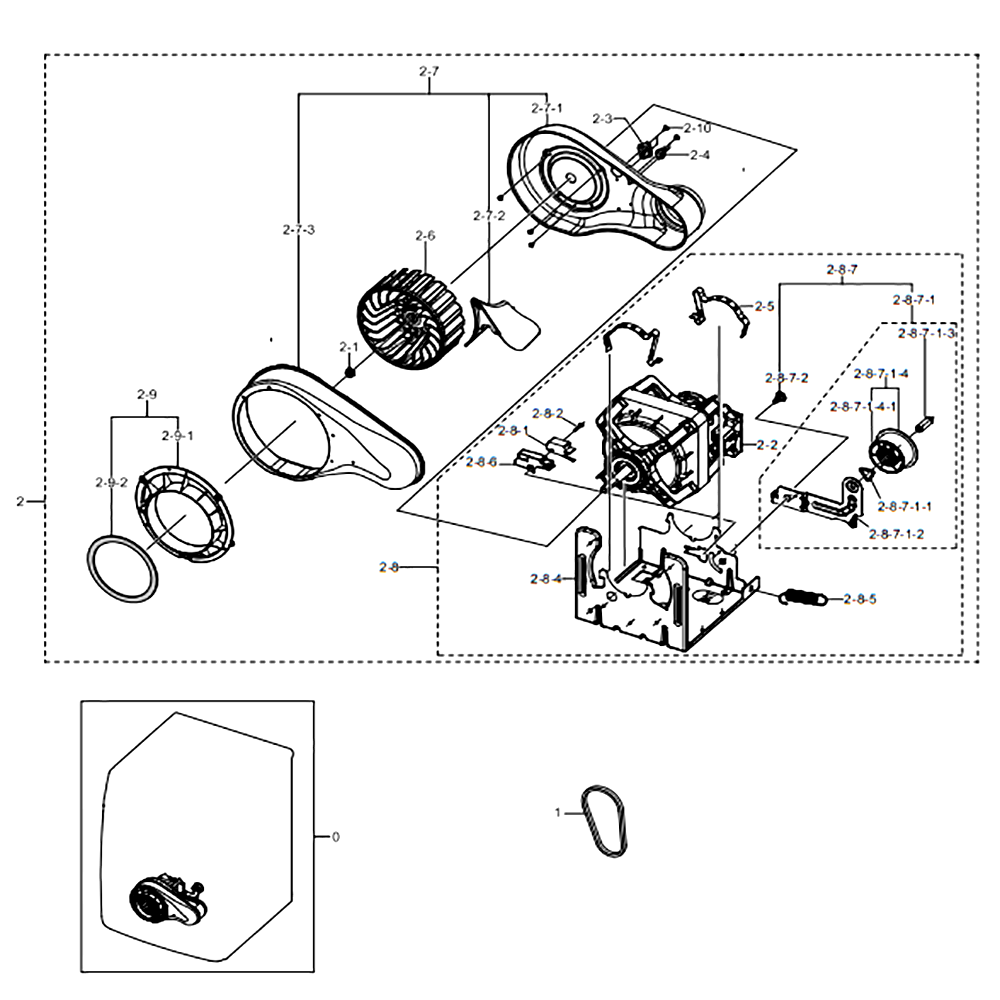

Assy Motor Duct

...
...
0
Assembly Motor Duct SAM-DC90-15188A
...
1
Belt-Timing Gear SAM-6602-001655
...
2-1
Nut-Inch SAM-6021-001201
...
2-2
Motor Ac Drive SAM-DC31-00055G
...
2-3
Thermistor SAM-DC32-00007A
...
2-4
Thermostat SAM-DC47-00016A
...
2-5
Spring Plate SAM-DC61-04225A
...
2-6
Fan SAM-DC67-00180B
...
2-7-1
Guide-Duct Fan SAM-DC61-02348B
...
2-7-2
Guide-Fan SAM-DC61-03364A
...
2-7-3
Cover-Duct Fan SAM-DC63-01026A
...
2-7
Assembly Cover Duct SAM-DC93-00098D
...
2-8-2
Switch-Micro SAM-3405-001118
...
2-8-3
Screw-Tapping SAM-6002-000488
...
2-8-4
Bracket-Motor SAM-DC61-01213A
...
2-8-5
Spring Etc-Tension SAM-DC61-01215B
...
2-8-6
Cover-Switch SAM-DC63-00919A
...
2-8-7-1-1
Holder-Shaft SAM-DC61-01228A
...
2-8-7-1-2
Bracket Idler SAM-DC61-01230C
...
2-8-7-1-3
Shaft Idler SAM-DC66-00902A
...
2-8-7-1-4-1
Roller-Idler SAM-DC66-00903A
...
2-8-7-1-4
Assembly Roller SAM-DC97-07509C
...
2-8-7-1
Assembly Bracket Idler SAM-DC96-00882F
...
2-8-7-2
Bolt-Etc SAM-6011-004797
...
2-8-7
Assembly Motor Parts SAM-DC93-00634A
...
2-8
Assy Bracket Motor SAM-DC96-00790G
...
2-9-1
Duct Connector SAM-DC67-00130A
...
2-9-2
Absorber Sponge SAM-DC72-00032E
...
2-9
Assembly Duct Connector SAM-DC97-07895A
...
2-10
Screw-Tapping SAM-6002-000239
...
2
Assembly Motor SAM-DC93-00101N

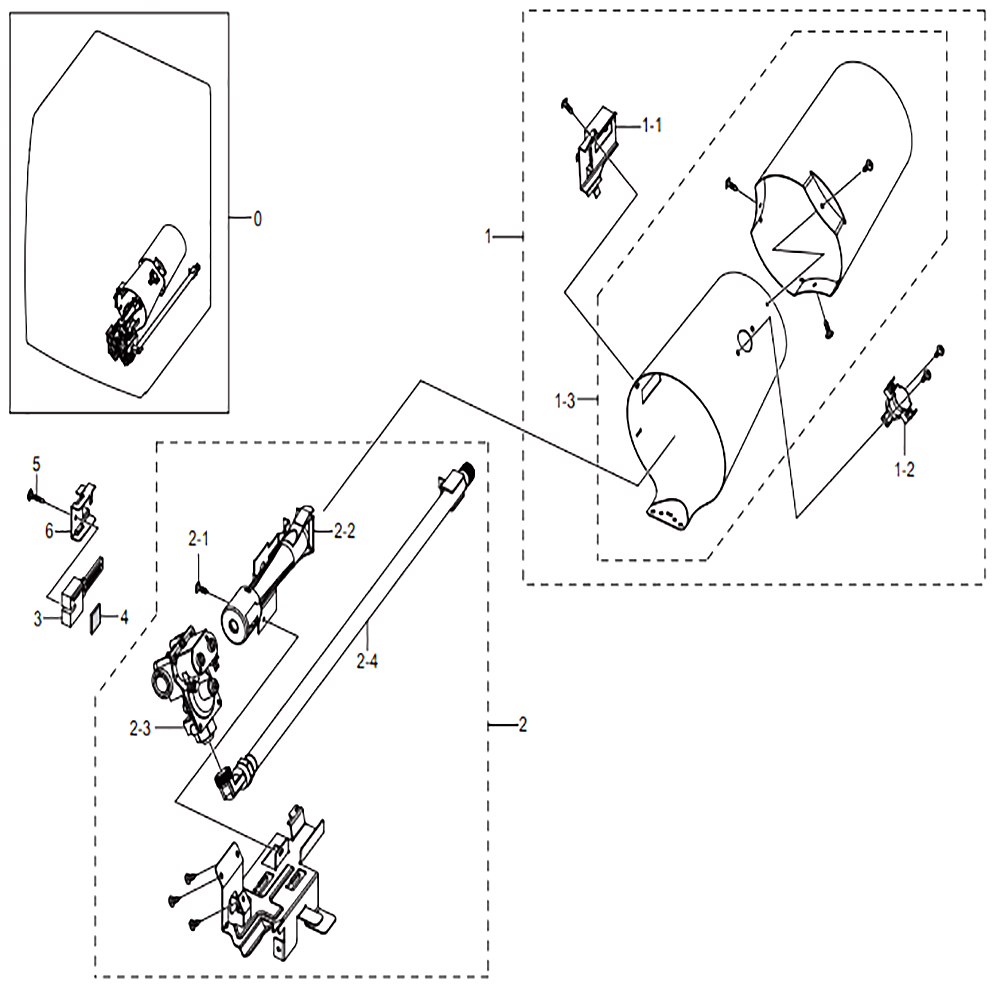

Assy Duct & Burner

...
...
1-1
Sensor-Radiant SAM-DC32-00008A
...
1-2
Thermostat SAM-DC47-00017A
...
1-3
Assy Duct Cone SAM-DC97-07602C
...
1
Assembly Duct SAM-DC97-10720A
...
2-1
Screw-Hex SAM-6009-001476
...
2-2
Tube-Burner SAM-DC62-00200A
...
2-3
Valve-Gas SAM-DC62-00201A
...
2-4
Assembly Pipe SAM-DC99-00507A
...
2
Assembly Burner SAM-DC97-14492A
...
3
Heater-Igniter SAM-DC47-00022A
...
4
Absorber-Ignitor SAM-DC63-00623A
...
5
Assembly Screw SAM-DC97-09193A
...
6
Bracket Igniter SAM-DC61-02642A

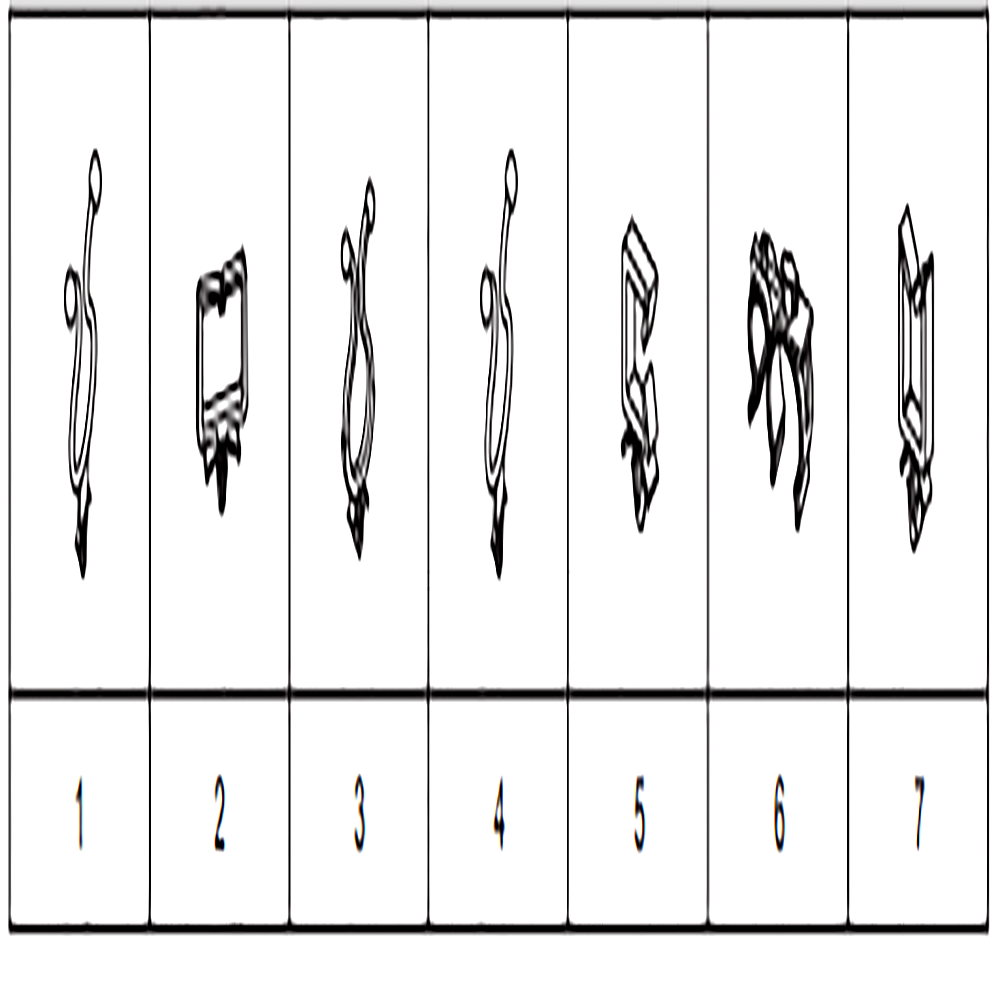

Small Parts

...
...
1
Stand Off SAM-6046-000310
...
2
Holder-Wire SAM-DC61-60074A
...
3
Holder-Wire SAM-DC61-40081A
...
4
Cable Clamp SAM-6502-000127
...
5
Holder-Wire Saddle SAM-DC61-00553C
...
6
Clamper Hose-Fix SAM-DC61-00133A
