Samsung DVD-HD960

Model: DVD-HD960

Save Part Not Listed?
product name

Cabinet Parts 2

...
...
F261
Ffc Cable SAM-3809-001839
...
H214
Gear-Backlash SAM-AK66-00057A
...
H213
Spring Etc-Clamper SAM-AK61-00357A
...
H212
Holder-Chuck SAM-AK61-00359A
...
H211
Assembly Pick Up SAM-AK97-01660A
...
H210
Motor SAM-AK31-00005A
...
H207
Motor SAM-AK31-00017A
...
H206
Holder-Cam Skew SAM-AK61-00363A
...
H205
Gear-Feed B SAM-AK66-00044A
...
H204
Gear-Feed A SAM-AK66-00043A
...
H109
Pcb Assembly Deck SAM-AK92-01031A
...
H102
Body Clamper-Disc SAM-AK61-00360A
...
H103
Gear-Pulley SAM-AK66-00042A
...
H104
Motor SAM-AK97-00608A
...
H105
Rectifier Belt SAM-6602-001076
...
H106
Gear-Tray SAM-AK66-00041A
...
H107
Slider-Housing SAM-AK66-00045A
...
H108
Tray-Disc SAM-AK63-00101D
...
H202
Spacer-Silicone SAM-AK73-00005B

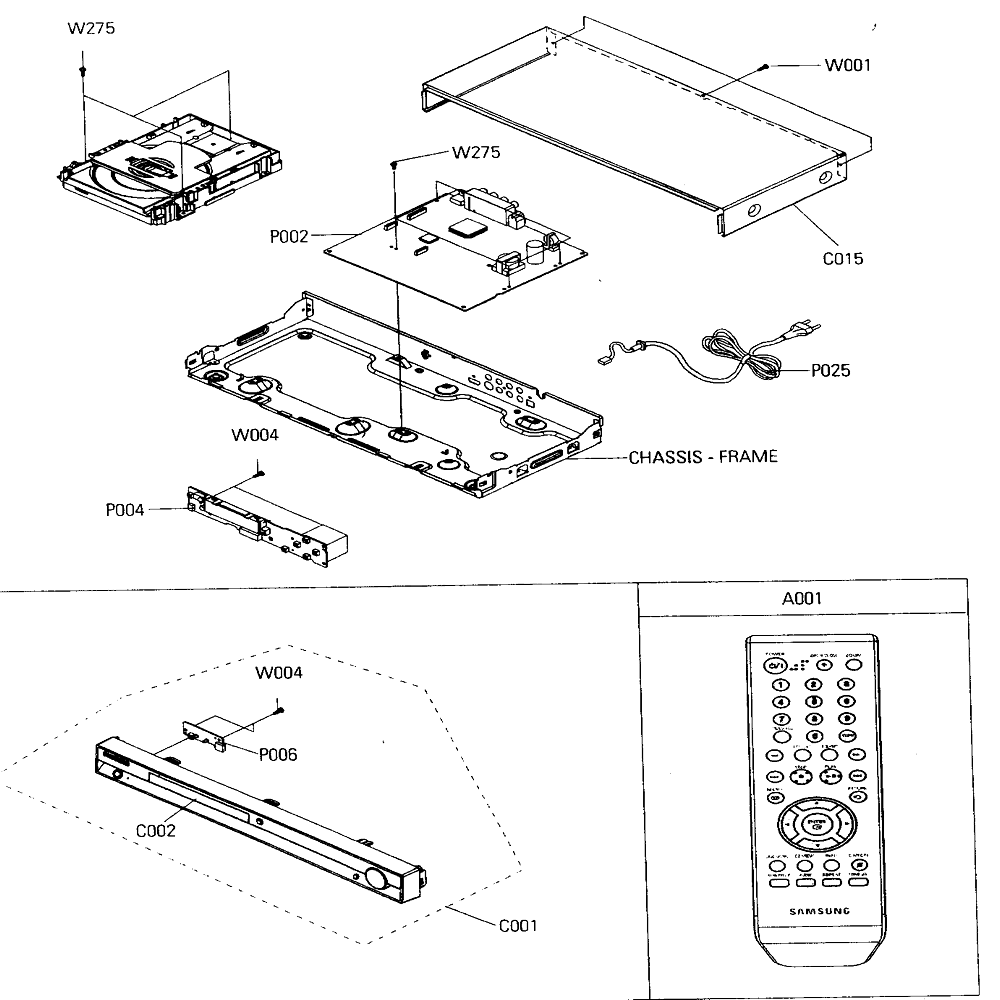

Cabinet Parts 1

...
...
A001
Remote Control Assembly SAM-AK59-00055D
...
C001
Assembly Cabinet Front SAM-AK97-01605B
...
C002
Door-Tray SAM-AK64-01707A
...
C015
Cabinet,to SAM-AK64-00567D
...
P002
Main Pcb Assembly Dvd SAM-AK92-00949A
...
P004
Pcb Assembly-Sub SAM-AK92-00834D
...
P006
Power Key SAM-AK92-00597E
...
P025
Ac Cord SAM-AC39-10200N
