Samsung DV5451AEW_0000

Model: DV5451AEW_0000

Save Part Not Listed?
product name

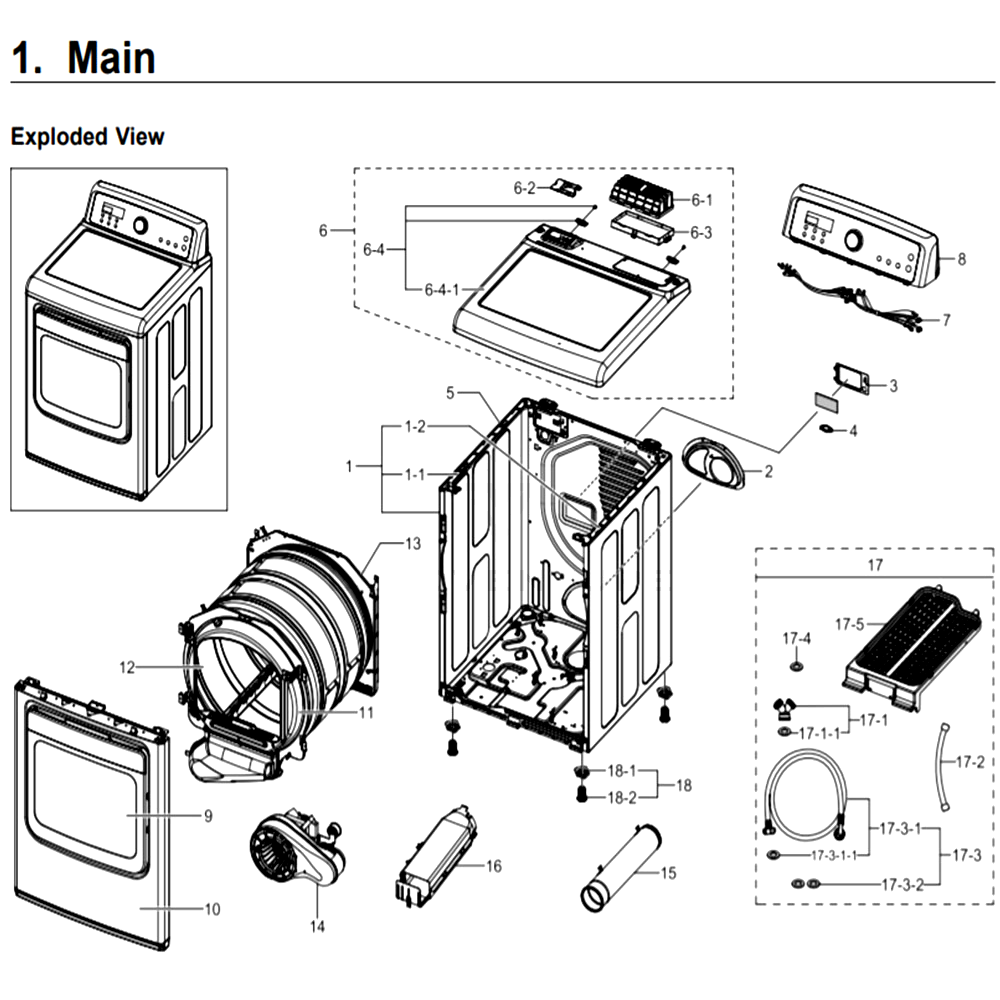

Main

...
...
1-1
Assembly Bracket Spring(l) SAM-DC97-16750A
...
1-2
Bracket-Spring(r) SAM-DC61-03047A
...
1
Assembly Frame SAM-DC97-16739C
...
2
Cover-Back SAM-DC63-00534B
...
3
Cover-Power SAM-DC63-00540A
...
4
Holder-Power SAM-DC61-01428A
...
5
Guide-Cover Top SAM-DC61-03127A
...
6-1
Cover-Pcb(m) SAM-DC63-01360A
...
6-2
Cap-Cover Top SAM-DC67-00607A
...
6-3
Assembly Pcb Main SAM-DC92-00322E
...
6-4-1
Cover-Top SAM-DC63-01325B
...
6-4
Assembly Cover Top SAM-DC97-16751B
...
6
Assembly Cover Top SAM-DC90-06970A
...
7
Assembly M. Wire Harness SAM-DC93-00153B
...
8
Assembly Panel Control SAM-DC90-07100A
...
9
Assembly Door SAM-DC97-16827A
...
10
Assembly Frame Front SAM-DC97-16791A
...
11
Assembly Drum Front SAM-DC97-16757A
...
12
Assembly Drum Wrapper SAM-DC97-16812A
...
13
Assembly Drum Back SAM-DC97-16813A
...
14
Assembly Motor Duct SAM-DC90-06576A
...
15
Assembly Duct Exhaust SAM-DC97-07519A
...
16
Assembly Duct Heater SAM-DC97-14486A
...
17-1-1
Seal-Water SAM-DC62-40178B
...
17-1
Assembly Connector SAM-DC97-15103A
...
17-2
Assembly Hose Connector SAM-DC97-15249A
...
17-3-1-1
Seal-Water SAM-DC62-40178A
...
17-3-1
Hose-Water(c) SAM-DC62-00075B
...
17-3-2
Seal-Water SAM-DC62-40178A
...
17-3
Assembly Hose Water SAM-DC97-15692A
...
17-4
Seal-Water SAM-DC62-40178A
...
17-5
Die-Rack Dry SAM-DC61-03052A
...
17
Assembly Accessory SAM-DC90-06610A
...
18-1
Bracket-Leg SAM-DC61-01226A
...
18-2
Leg SAM-DC61-01693A
...
18
Assembly Leg SAM-DC97-12150A

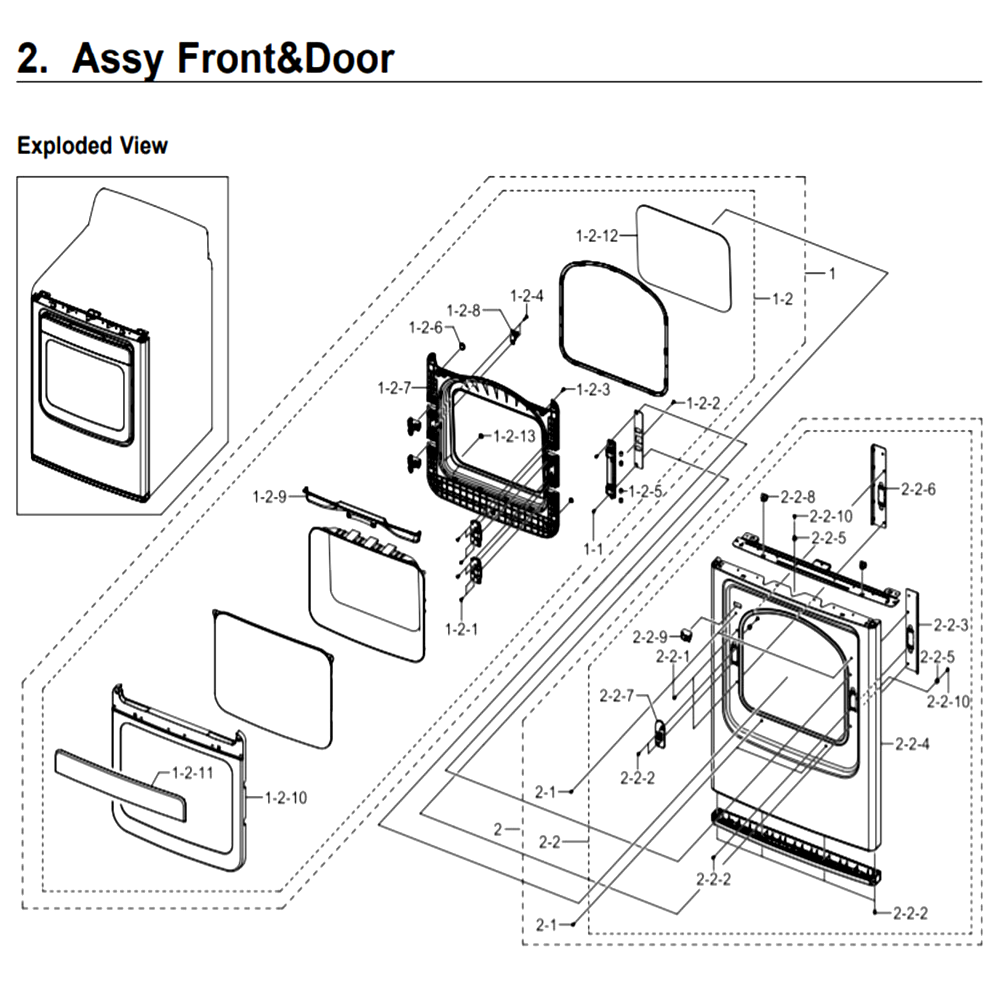

Assy Front&door

...
...
1-1
Screw-Machine SAM-6001-001773
...
1-2-1
Screw-Tapping SAM-6002-000213
...
1-2-2
Screw-Tapping SAM-6002-000241
...
1-2-3
Screw-Tapping SAM-6002-000444
...
1-2-4
Screw-Tapping SAM-6002-000445
...
1-2-5
Guide-Hinge SAM-DC61-00891A
...
1-2-6
Cushion-Cover(f) SAM-DC63-01396A
...
1-2-7
Holder-Glass SAM-DC61-03054A
...
1-2-8
Lever-Door SAM-DC66-00691A
...
1-2-9
Handle-Door SAM-DC64-02706B
...
1-2-10
Cover-Door SAM-DC63-01326B
...
1-2-11
Decoration-Door SAM-DC64-02616B
...
1-2-12
Door-Glass SAM-DC64-02705A
...
1-2-13
Cushion-Cover(f) SAM-DC63-00613B
...
1-2
Assembly Door SAM-DC97-16735C
...
1
Assembly Door SAM-DC97-16827A
...
2-1
Assembly Screw SAM-DC97-14006B
...
2-2-1
Screw-Machine SAM-6001-001773
...
2-2-2
Screw-Tapping SAM-6002-001149
...
2-2-3
Bracket-Hinge(r) SAM-DC61-03045A
...
2-2-4
Assembly Frame Front(s) SAM-DC97-16737C
...
2-2-5
Guide-Cover Top SAM-DC61-03133A
...
2-2-6
Bracket-Hinge(l) SAM-DC61-03135A
...
2-2-7
Assembly Holder Lever SAM-DC97-07510B
...
2-2-8
Fixer-Cover Top SAM-DC61-03234A
...
2-2-9
Door-S/w SAM-DC64-00828B
...
2-2-10
Screw-Tapping SAM-6002-001436
...
2-2
Assembly Frame Front SAM-DC97-16744C
...
2
Assembly Frame Front SAM-DC97-16791A

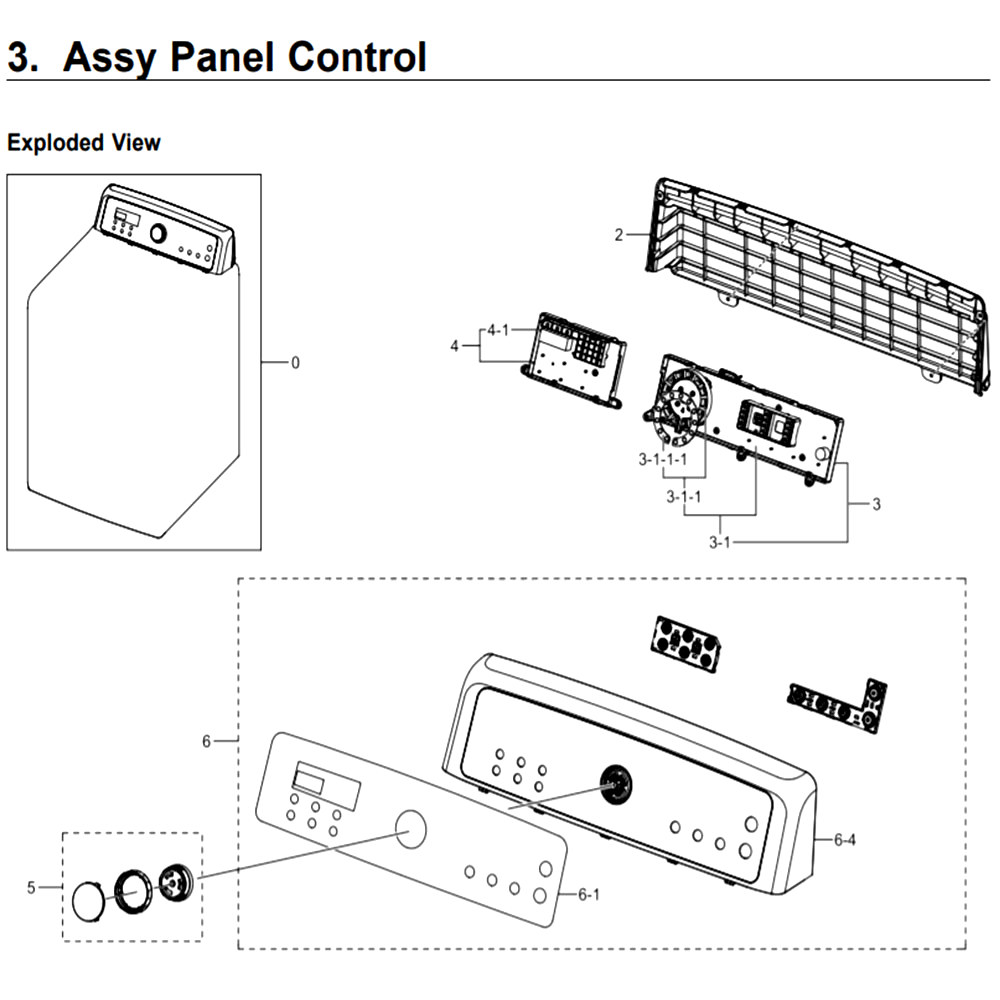

Assy Panel Control

...
...
0
Assembly Panel Control SAM-DC90-07100A
...
2
Cover-Panel SAM-DC63-01359A
...
3-1-1-1
Inlay Encoder SAM-DC64-02723A
...
3-1-1
Assembly Bracket Encoder SAM-DC97-16736A
...
3-1
Assembly Pcb Manual SAM-DC94-01252A
...
3
Assembly Pcb Sub SAM-DC92-00619D
...
4-1
Assembly Pcb Manual SAM-DC94-01384A
...
4
Assembly Pcb Sub SAM-DC92-00621C
...
5
Assembly Knob Encoder SAM-DC97-16068D
...
6-1
Inlay-Panel SAM-DC64-02730D
...
6-4
Panel-Control SAM-DC64-02744B
...
6
Assembly S.panel Control SAM-DC97-16844C

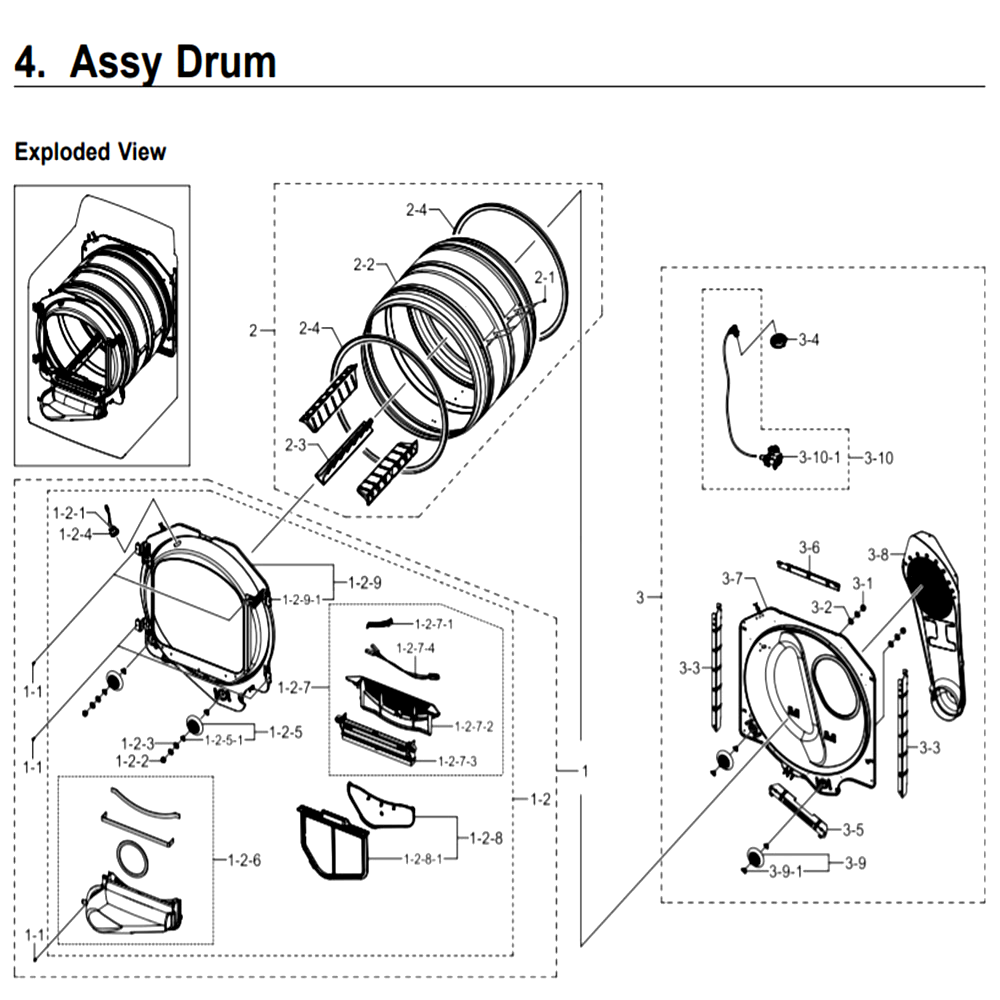

Assy Drum

...
...
1-1
Screw-Tapping SAM-6006-001174
...
1-2-1
Lamp SAM-DC47-00027D
...
1-2-2
Nut-Hex SAM-DC60-50145A
...
1-2-3
Washer SAM-DC60-60060A
...
1-2-4
Fixer-Lamp SAM-DC61-02281A
...
1-2-5-1
Holder-Shaft SAM-DC61-01228A
...
1-2-5
Assembly Roller SAM-DC97-07523B
...
1-2-6
Assembly Duct Outlet SAM-DC97-07526B
...
1-2-7-1
Plate-Sensor SAM-DC61-02627A
...
1-2-7-2
Cover-Filter(b) SAM-DC63-01319A
...
1-2-7-3
Cover-Filter(f) SAM-DC63-01322A
...
1-2-7-4
Assembly Wire Harness SAM-DC96-00766A
...
1-2-7
Assembly Cover Filter SAM-DC97-16741A
...
1-2-8-1
Case-Filter SAM-DC61-03048A
...
1-2-8
Assembly Case Filter SAM-DC97-16742A
...
1-2-9-1
Bracket-Drum Front SAM-DC61-01236A
...
1-2-9
Assy-S.drum Front SAM-DC97-16743A
...
1-2
Assembly Drum Front SAM-DC97-16740A
...
1
Assembly Drum Front SAM-DC97-16757A
...
2-1
Screw-Tapping SAM-6002-000215
...
2-2
Drum-Wrapper SAM-DC66-00405B
...
2-3
Drum-Lifter SAM-DC66-00664A
...
2-4
Assembly Gasket Pad SAM-DC97-07618A
...
2
Assembly Drum Wrapper SAM-DC97-16812A
...
3-1
Nut-Hex SAM-DC60-50145A
...
3-2
Washer SAM-DC60-60060A
...
3-3
Bracket-Drum Back SAM-DC61-01238A
...
3-4
Guide-Nozzle SAM-DC61-02063A
...
3-5
Bracket-Drum Back SAM-DC61-02826A
...
3-6
Bracket-Drum Back SAM-DC61-03130A
...
3-7
Drum-Back SAM-DC66-00411E
...
3-8
Assembly Duct Air SAM-DC97-07521A
...
3-9-1
Holder-Shaft SAM-DC61-01228A
...
3-9
Assembly Roller SAM-DC97-07523B
...
3-10-1
Valve-Water SAM-DC62-30042A
...
3-10
Assembly Steam Kit SAM-DC97-14929B
...
3
Assembly Drum Back SAM-DC97-16813A

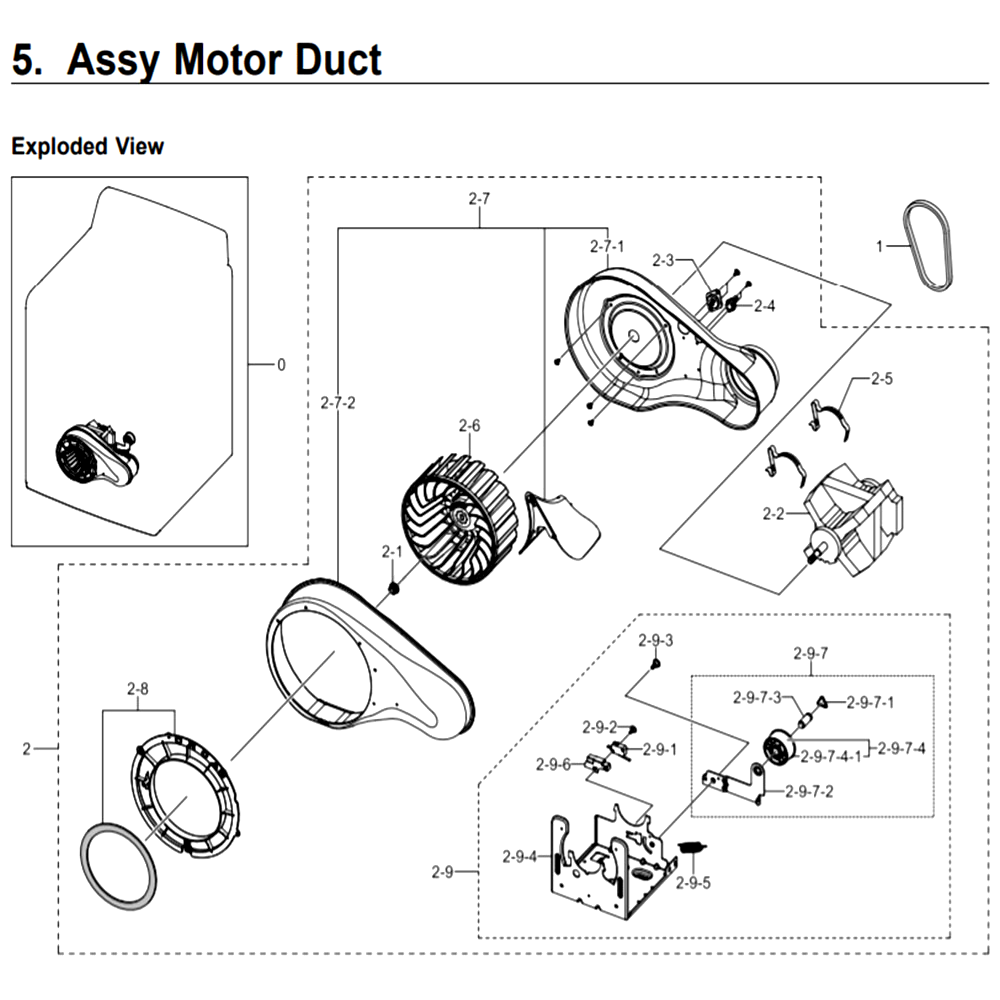

Assy Motor Duct

...
...
0
Assembly Motor Duct SAM-DC90-06576A
...
1
Belt-Timing Gear SAM-6602-001655
...
2-1
Nut-Inch SAM-6021-001201
...
2-2
Motor Induction-Dryer SAM-DC31-00055D
...
2-3
Thermistor SAM-DC32-00007A
...
2-4
Thermostat SAM-DC47-00016A
...
2-5
Spring-Plate SAM-DC61-01214A
...
2-6
Fan SAM-DC67-00180A
...
2-7-1
Guide-Duct Fan SAM-DC61-02348A
...
2-7-2
Cover-Duct Fan SAM-DC63-01026A
...
2-7
Assembly Cover Duct SAM-DC93-00098B
...
2-8
Assembly Duct Connector SAM-DC93-00282A
...
2-9-1
Switch-Micro SAM-3405-001077
...
2-9-2
Screw-Tapping SAM-6002-000488
...
2-9-3
Screw-Special SAM-6009-001342
...
2-9-4
Bracket-Motor SAM-DC61-01213A
...
2-9-5
Spring Etc-Tension SAM-DC61-01215B
...
2-9-6
Cover-Switch SAM-DC63-00919A
...
2-9-7-1
Holder-Shaft SAM-DC61-01228A
...
2-9-7-2
Bracket-Idler SAM-DC61-01230B
...
2-9-7-3
Shaft-Idler SAM-DC66-00401A
...
2-9-7-4-1
Roller-Idler SAM-DC66-00402A
...
2-9-7-4
Assembly Roller SAM-DC97-07509B
...
2-9-7
Assembly Bracket Idler SAM-DC96-00882C
...
2-9
Assembly Bracket Motor SAM-DC96-00790C
...
2
Assembly Motor SAM-DC93-00101E

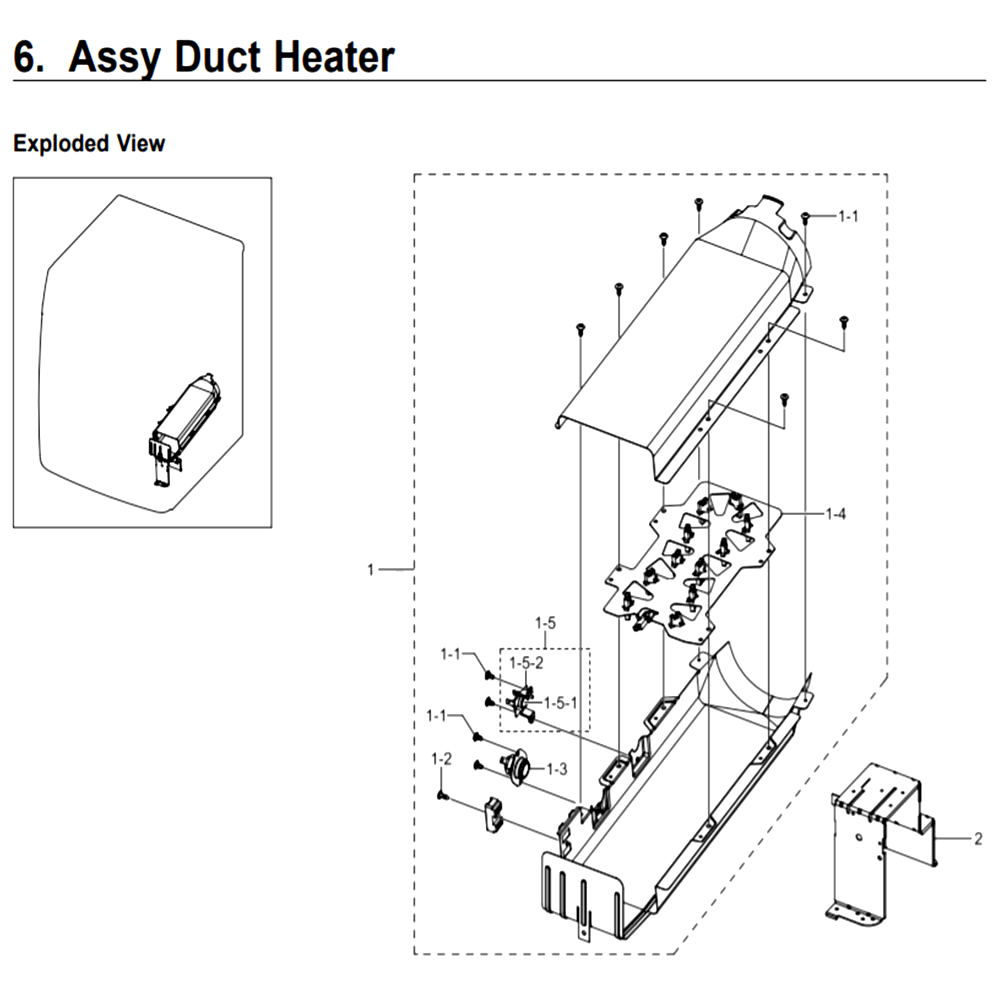

Assy Duct Heater

...
...
1-1
Screw-Tapping SAM-6002-000239
...
1-2
Screw-Tapping SAM-6002-001306
...
1-3
Thermostat SAM-DC47-00018A
...
1-4
Heater-Dry SAM-DC47-00019A
...
1-5-1
Thermostat SAM-DC47-00015A
...
1-5-2
Bracket-Thermostat SAM-DC61-01204A
...
1-5
Assembly Bracket Thermostat SAM-DC96-00887A
...
1
Assembly Duct Heater SAM-DC97-14486A
...
2
Die-Heater SAM-DC61-02016A

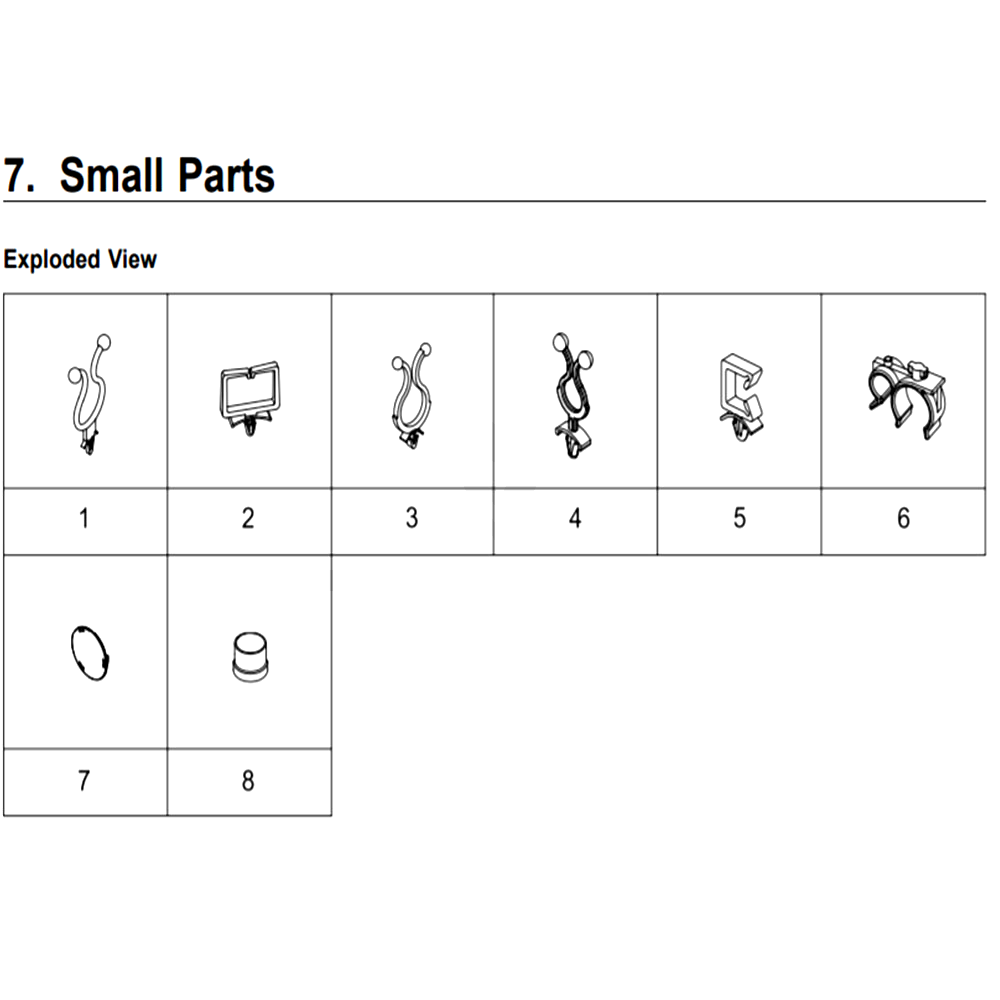

Small Parts

...
...
1
Stand Off SAM-6046-000310
...
2
Holder-Wire SAM-DC61-40086A
...
3
Holder-Wire SAM-DC61-40081A
...
4
Cable Clamp SAM-6502-000127
...
5
Holder-Wire Saddle SAM-DC61-00553C
...
6
Clamper Hose-Fix SAM-DC61-00133A
...
7
Cap Plate Bottom SAM-DC67-00202A
...
8
Cap-V.w SAM-DC61-10329A
