Samsung DV52J8700EP-A2-01 Dryer

Model: DV52J8700EP-A2-01

Save Part Not Listed?
product name

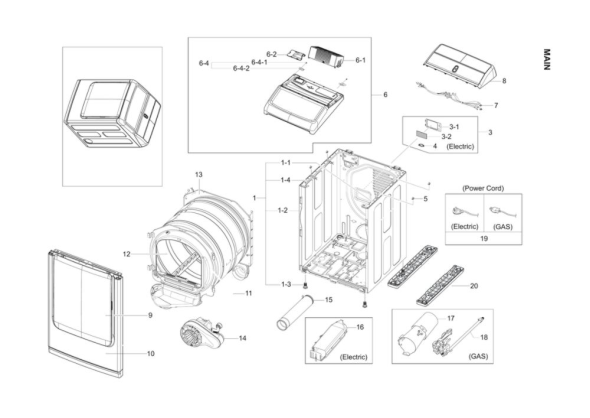

Samsung DV52J8700EP-A2-01

...
...
1
Frame Assembly SAM-DC97-18594M
...
1-3
Dryer Leveling Leg SAM-DC61-03128A
...
1-4
Bracket Assembly SAM-DC97-16750A
...
3
Dryer Terminal Block Cover SAM-DC97-08855A
...
3-1
Dryer Terminal Block Cover SAM-DC97-08855A
...
4
Dryer Power Cord Strain Relief SAM-DC61-01428A
...
5
Washer Cabinet Panel Guide Pin Cover SAM-DC61-03400A
...
6-3
Dryer Electronic Control Board SAM-DC92-01729A
...
6-4
Dryer Top Panel SAM-DC97-16954P
...
6-2
Dryer Top Panel Clip Cover SAM-DC67-00607A
...
11
Dryer Drum Front Cover SAM-DC97-18962A
...
15
Dryer Exhaust Duct SAM-DC97-07519G
...
16
Dryer Heating Element Assembly SAM-DC93-00154A
...
20
Dryer Cabinet Base SAM-DC61-03981A

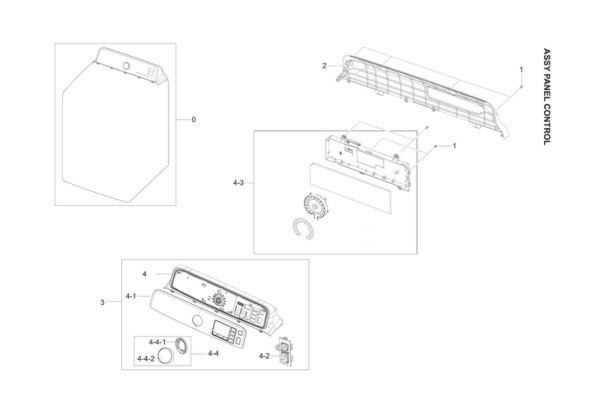

Samsung DV52J8700EP-A2-01

...
...
3
Dryer Control Panel Assembly SAM-DC97-18553C
...
4-3
Commercial Dryer User Interface SAM-DC92-01309B
...
4-4
Laundry Appliance Control Knob SAM-DC97-16931A

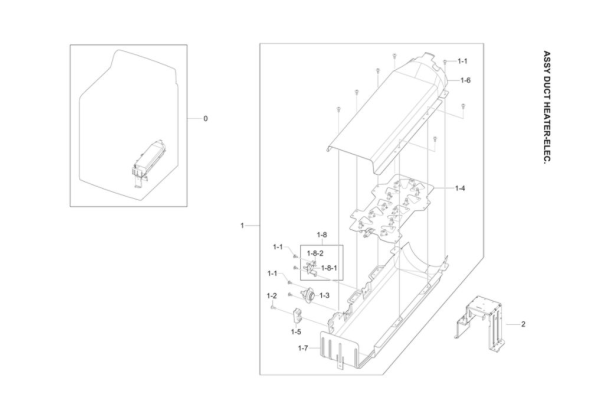

Samsung DV52J8700EP-A2-01

...
...
1
Dryer Heating Element Assembly SAM-DC93-00154A
...
1-3
Dryer High-Limit Thermostat SAM-DC47-00018A
...
1-8-1
Dryer Thermal Cut-Off Fuse, 320-Degree F SAM-DC47-00015A

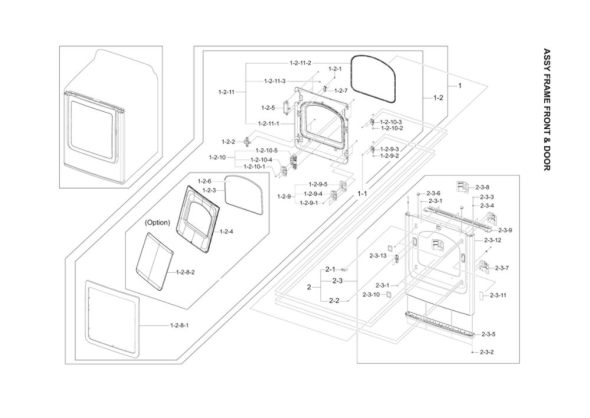

Samsung DV52J8700EP-A2-01

...
...
1-2-9-2
Dryer Door Hinge Guide SAM-DC61-00891A
...
1-2-11-2
Dryer Front Panel Air Seal SAM-DC62-00344A
...
1-2-9
Dryer Hinge SAM-DC97-17078B
...
1-2
Dryer Door Assembly SAM-DC97-18995A
...
1-2-7
Dryer Door Strike SAM-DC66-00395A
...
2-1
Dryer Door Switch SAM-DC64-00828B
...
2-3-4
Dryer Cabinet Panel Guide Pin Cover SAM-DC61-03133A
...
2-3-6
Laundry Appliance Spring Clip SAM-DC61-03174A
...
2-3-8
Dryer Door Hinge Support Bracket, Left SAM-DC61-03326A
...
40210
Dryer Hinge SAM-DC97-17079B
...
40575
Glass Holder SAM-DC97-17080A

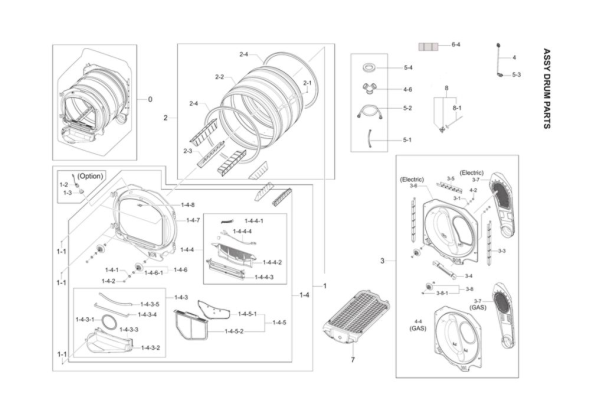

Samsung DV52J8700EP-A2-01

...
...
1-4-5-1
Dryer Lint Screen Case SAM-DC61-02610A
...
1-4-5
Dryer Lint Screen SAM-DC97-16742A
...
1-4-4-4
Dryer Wire Harness SAM-DC96-00766A
...
1-4-3
Dryer Lint Duct SAM-DC97-07526B
...
1
Dryer Drum Front Cover SAM-DC97-18962A
...
1-4-1
Dryer Washer SAM-DC60-00103A
...
2-3
Dryer Drum Baffle SAM-DC66-00664A
...
3-4
Drive Bracket SAM-DC61-02826A
...
3-7
Air Duct SAM-DC97-07521G
...
4
Dryer Steam Kit SAM-DC97-16919A
...
5-1
Dryer Inlet Hose Connector SAM-DC97-15249A
...
7
Dryer Drying Rack SAM-DC93-00374H
...
8-1
Housing SAM-DC61-03396A

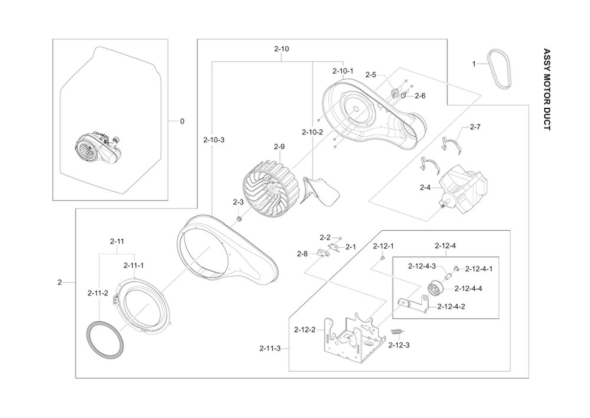

Samsung DV52J8700EP-A2-01

...
...
2-5
Dryer Thermistor SAM-DC32-00007A
...
2-6
Dryer Thermal Cut-Off Thermostat SAM-DC47-00016A
...
2-8
Dryer Belt Switch Housing SAM-DC63-00919A
...
2-10
Dryer Blower Housing SAM-DC93-00098D
...
2-10-1
Dryer Blower Housing SAM-DC61-02348B
...
2-10-2
Dryer Blower Fan Guide SAM-DC61-03364A
...
2-11
Dryer Exhaust Duct Connector SAM-DC93-00282A
...
2-12-2
Dryer Motor Bracket SAM-DC61-01213A
...
2-12-3
Dryer Idler Spring SAM-DC61-01215B
