Samsung DV45K6500EV/A3_0001

Model: DV45K6500EV/A3_0001

Save Part Not Listed?
product name

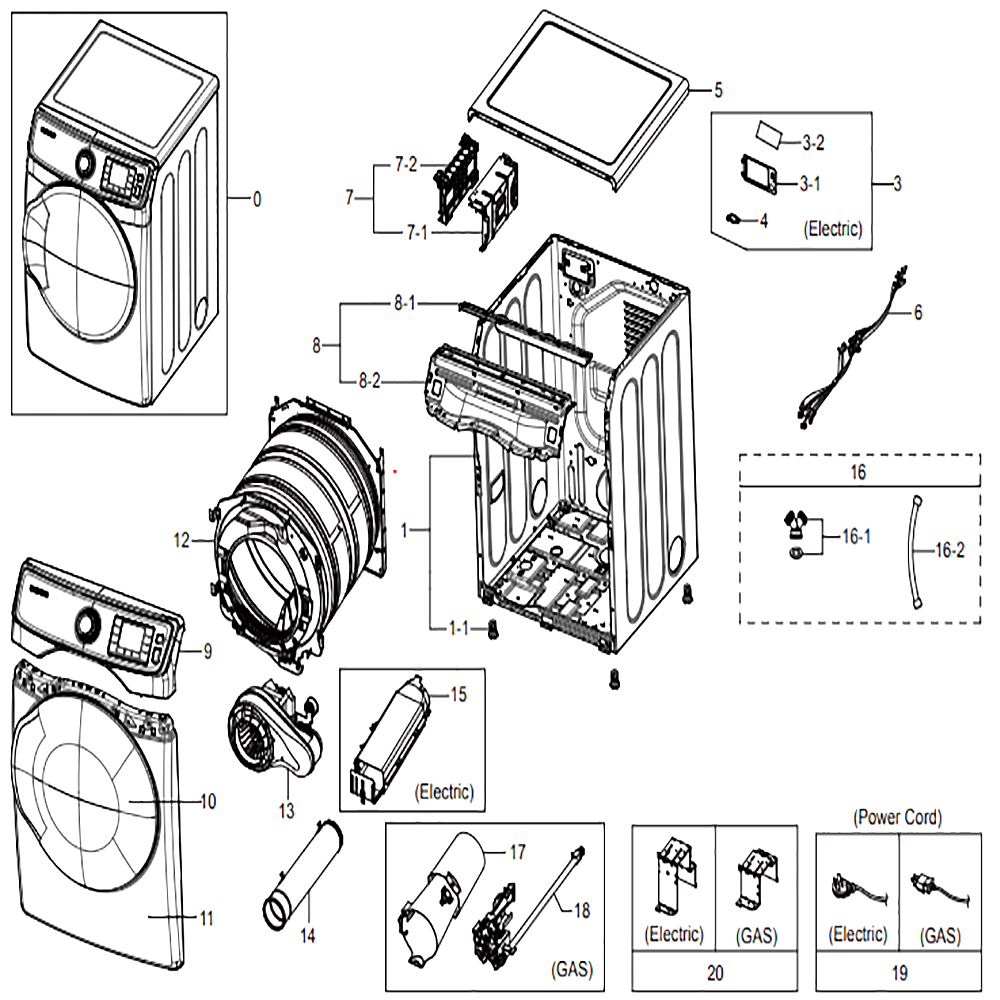

Main

...
...
0
Assy-Clothes Dryer SAM-DV45K6500EV
...
1
Assy Frame SAM-DC97-17826W
...
2
Leg SAM-DC61-03128A
...
3-1
Cover-Power SAM-DC63-00540A
...
3-2
Sponge-Cushion SAM-DC72-00056A
...
3
Assy-Cover Power SAM-DC97-08855A
...
4
Holder-Power SAM-DC61-01428A
...
5
Assy Cover Top SAM-DC97-19378C
...
6
Assy Wire Harness-Main SAM-DC93-00465A
...
7-1
Holder-Pcb SAM-DC61-01229A
...
7-2
Assy Pcb Main SAM-DC92-01729F
...
7
Assy Holder Pcb SAM-DC92-01896A
...
8-1
Frame Plate-Up SAM-DC61-02600A
...
8-2
Guide Panel SAM-DC61-02008B
...
8
Assembly Frame Plate(u) SAM-DC97-15985A
...
9
Assy Panel Control SAM-DC97-19326E
...
10
Assy Door SAM-DC97-19329A
...
11
Assy Frame Front SAM-DC97-19330A
...
12
Assy Drum SAM-DC90-15190A
...
13
Assembly Motor Duct SAM-DC90-15188A
...
14
Assembly Duct Exhaust SAM-DC97-07519G
...
15
Assy Duct Heater SAM-DC93-00154A
...
16-1
Assembly Connector SAM-DC97-15103A
...
16-2
Assembly Hose Connector SAM-DC97-15249A
...
16
Assy Accessory SAM-DC98-02087C
...
19
Cbf-Power Cord SAM-DC96-00762A
...
20
Bracket Duct SAM-DC61-03754A

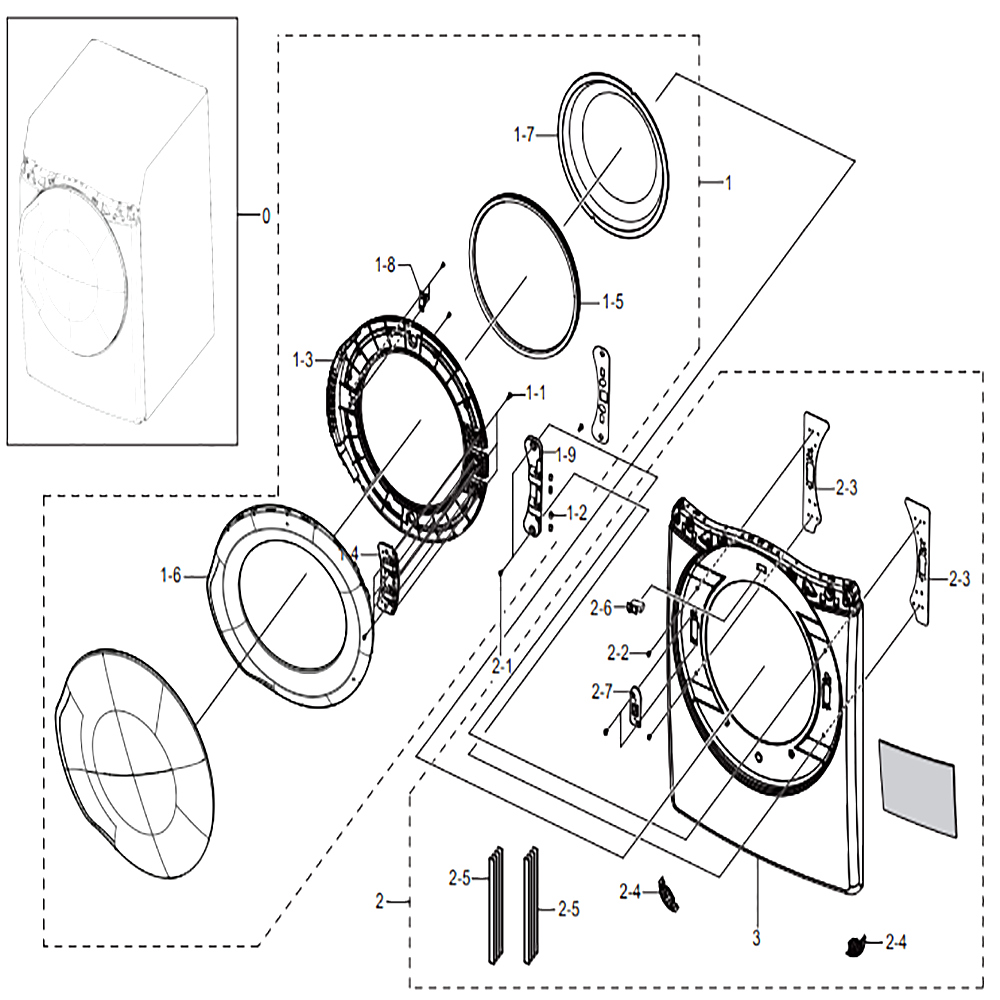

Assy Frame Front & Door

...
...
1-1
Screw-Machine SAM-6001-001668
...
1-2
Guide-Hinge SAM-DC61-00891A
...
1-3
Holder Glass SAM-DC61-04155A
...
1-4
Support Hinge SAM-DC61-04154A
...
1-5
Seal-Door SAM-DC62-00262A
...
1-6
Cover Door SAM-DC63-01954A
...
1-7
Door Glass SAM-DC64-02637A
...
1-8
Lever Door SAM-DC66-00814A
...
1-9
Hinge Door SAM-DC61-04152A
...
1
Assy Door SAM-DC97-19329A
...
2-1
Screw-Machine SAM-6001-001773
...
2-2
Screw-Tapping SAM-6002-000239
...
2-3
Bracket Hinge SAM-DC61-02626A
...
2-4
Cover Front SAM-DC63-00959A
...
2-5
Absorber Sponge SAM-DC63-10001C
...
2-6
Door-S/w SAM-DC64-00828B
...
2-7
Assembly Holder Lever SAM-DC97-18057C
...
2
Assy Frame Front SAM-DC97-19330A
...
3
Frame Front SAM-DC61-03869F

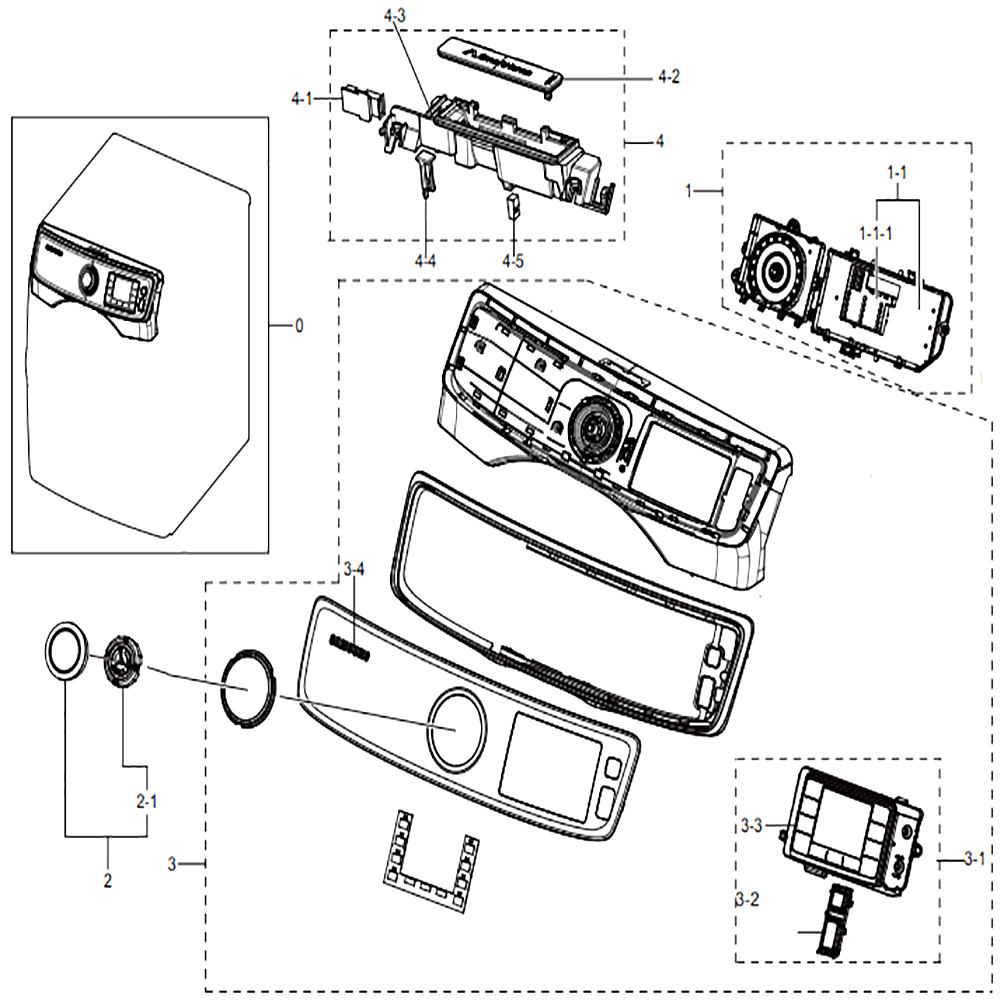

Assy Panel Control

...
...
0
Assy Panel Control SAM-DC97-19326E
...
1-1-1
Assy Pcb Auto SAM-DC94-06667A
...
1-1
Assy Pcb Smd SAM-DC94-06647A
...
1
Assy Pcb Display SAM-DC92-01607M
...
2-1
Knob Encoder SAM-DC64-03186A
...
2
Assembly Knob Encoder SAM-DC97-18058B
...
3-1
Assy Window Panel SAM-DC97-19328C
...
3-2
Button Push SAM-DC64-03066Y
...
3-3
Window Panel SAM-DC64-03116U
...
3-4
Mascot SAM-DA64-04020A
...
3
Assy S.panel Control SAM-DC97-19327C
...
4-1
Assy Module SAM-DB92-03769A
...
4-2
Panel Cover Dongle SAM-DC64-03428G
...
4-3
Panel Housing Dongle SAM-DC64-03428E
...
4-4
Cap Dongle SAM-DC67-00853A
...
4-5
Latch SAM-DC66-00899A
...
4
Assy Dongle SAM-DC97-19504A

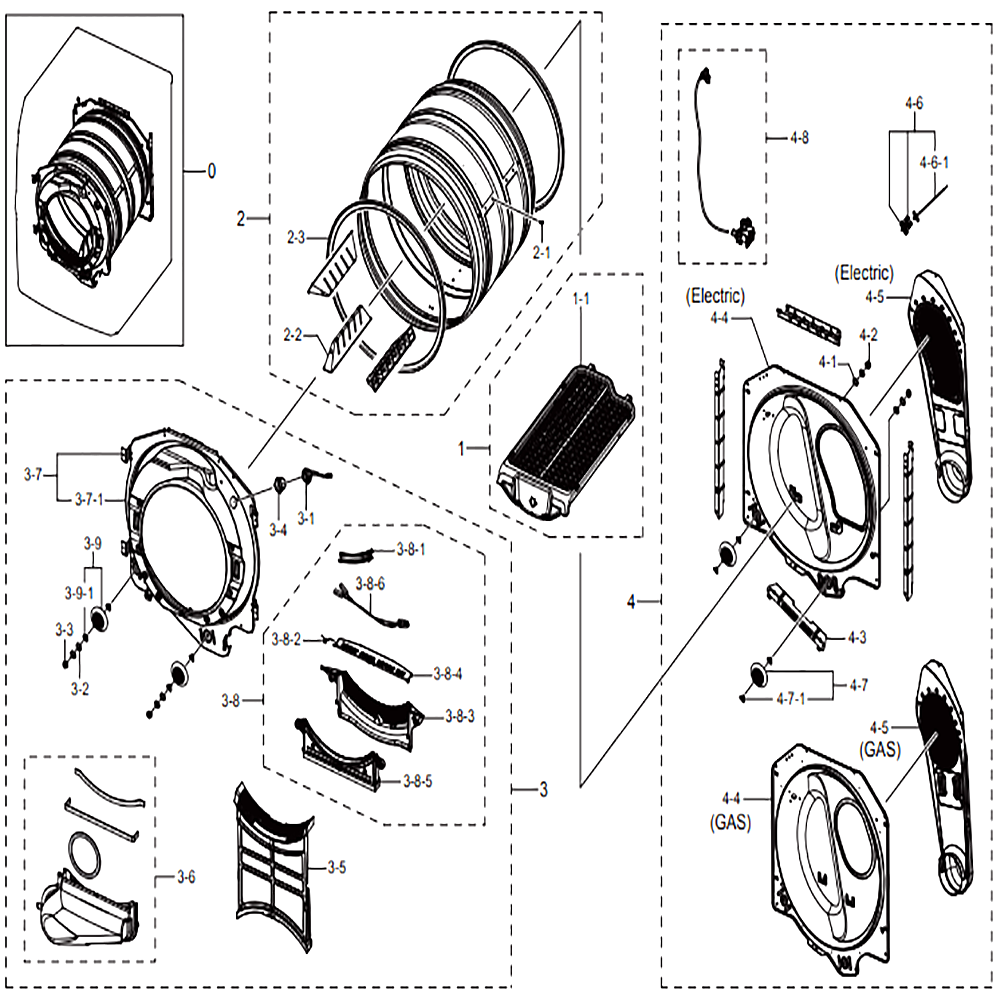

Assy Drum

...
...
0
Assy Drum SAM-DC90-15190A
...
2-1
Screw-Tapping SAM-6002-000215
...
2-2
Drum Lifter SAM-DC66-00511A
...
2-3
Assembly Gasket Pad SAM-DC97-07618A
...
2
Assy Drum Wrapper SAM-DC97-14849A
...
3-1
Lamp SAM-DC47-00027F
...
3-2
Fastener-Plain SAM-DC60-00103A
...
3-3
Nut-Hex SAM-DC60-50145A
...
3-4
Fixer-Lamp SAM-DC61-02281A
...
3-5
Case Filter SAM-DC61-02595A
...
3-6
Assembly Duct Outlet SAM-DC93-00187A
...
3-7-1
Drum Front SAM-DC66-00596B
...
3-7
Assembly S.drum Front SAM-DC97-15983B
...
3-8-1
Plate-Sensor SAM-DC61-02627A
...
3-8-2
Spring Etc Filter SAM-DC61-02740A
...
3-8-3
Cover Filter (b) SAM-DC63-01139A
...
3-8-4
Cover Filter(u) SAM-DC63-01140A
...
3-8-5
Cover Filter(f) SAM-DC63-01143A
...
3-8-6
Assembly Wire Harness SAM-DC96-00766A
...
3-8
Assembly Cover Filter SAM-DC97-16160A
...
3-9-1
Holder-Shaft SAM-DC61-01228A
...
3-9
Assembly Roller SAM-DC97-16782A
...
3
Assembly Drum Front SAM-DC97-15984B
...
4-1
Fastener-Plain SAM-DC60-00103A
...
4-2
Nut-Hex SAM-DC60-50145A
...
4-3
Bracket-Drum Back SAM-DC61-02826A
...
4-4
Drum Back SAM-DC66-00735F
...
4-5
Assy Duct Air SAM-DC93-00165B
...
4-6-1
Housing-Thermistor SAM-DC61-03396A
...
4-6
Assy Thermistor SAM-DC93-00329A
...
4-7-1
Holder-Shaft SAM-DC61-01228A
...
4-7
Assembly Roller SAM-DC97-16782A
...
4-8
Assy Steam Kit SAM-DC97-16919B
...
4
Assy Drum Back SAM-DC97-16040M

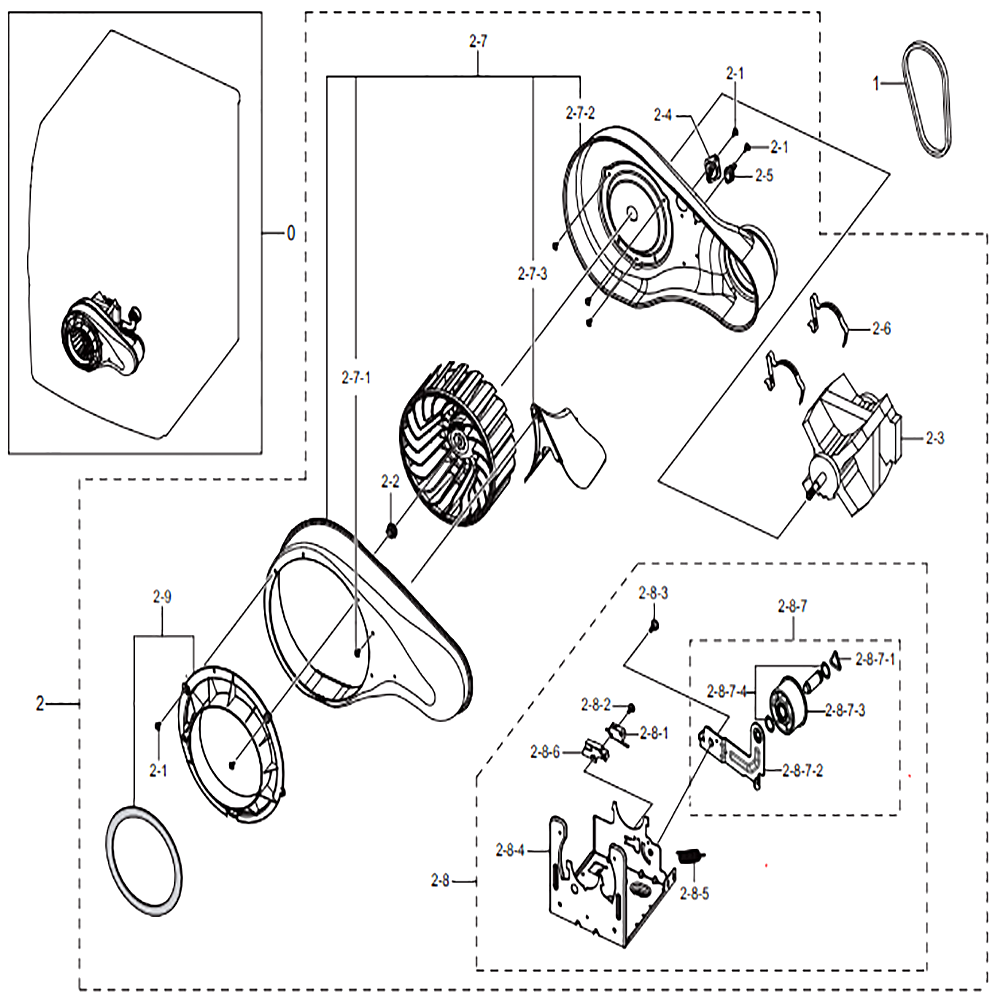

Assy Motor Duct

...
...
0
Assembly Motor Duct SAM-DC90-15188A
...
1
Belt-Timing Gear SAM-6602-001655
...
2-1
Screw-Tapping SAM-6002-000470
...
2-2
Nut-Inch SAM-6021-001201
...
2-3
Motor Ac Drive SAM-DC31-00055G
...
2-4
Thermistor SAM-DC32-00007A
...
2-5
Thermostat SAM-DC47-00016A
...
2-6
Spring Plate SAM-DC61-04225A
...
2-7-1
Screw-Tapping SAM-6002-000470
...
2-7-2
Guide-Duct Fan SAM-DC61-02348B
...
2-7-3
Guide-Fan SAM-DC61-03364A
...
2-7
Assembly Cover Duct SAM-DC93-00098D
...
2-8-1
Switch-Micro SAM-3405-001118
...
2-8-2
Screw-Tapping SAM-6002-000488
...
2-8-3
Screw-Special SAM-6009-001342
...
2-8-4
Bracket-Motor SAM-DC61-01213A
...
2-8-5
Spring Etc-Tension SAM-DC61-01215B
...
2-8-6
Cover-Switch SAM-DC63-00919A
...
2-8-7-1
Holder-Shaft SAM-DC61-01228A
...
2-8-7-2
Bracket-Idler SAM-DC61-01230B
...
2-8-7-3
Assembly Roller SAM-DC97-07509B
...
2-8-7-4
Wahser-Plain SAM-6031-002671
...
2-8-7
Assembly Bracket Idler SAM-DC96-00882C
...
2-8
Assy Bracket Motor SAM-DC96-00790G
...
2-9
Assembly Duct Connector SAM-DC97-07895A
...
2
Assembly Motor SAM-DC93-00101N

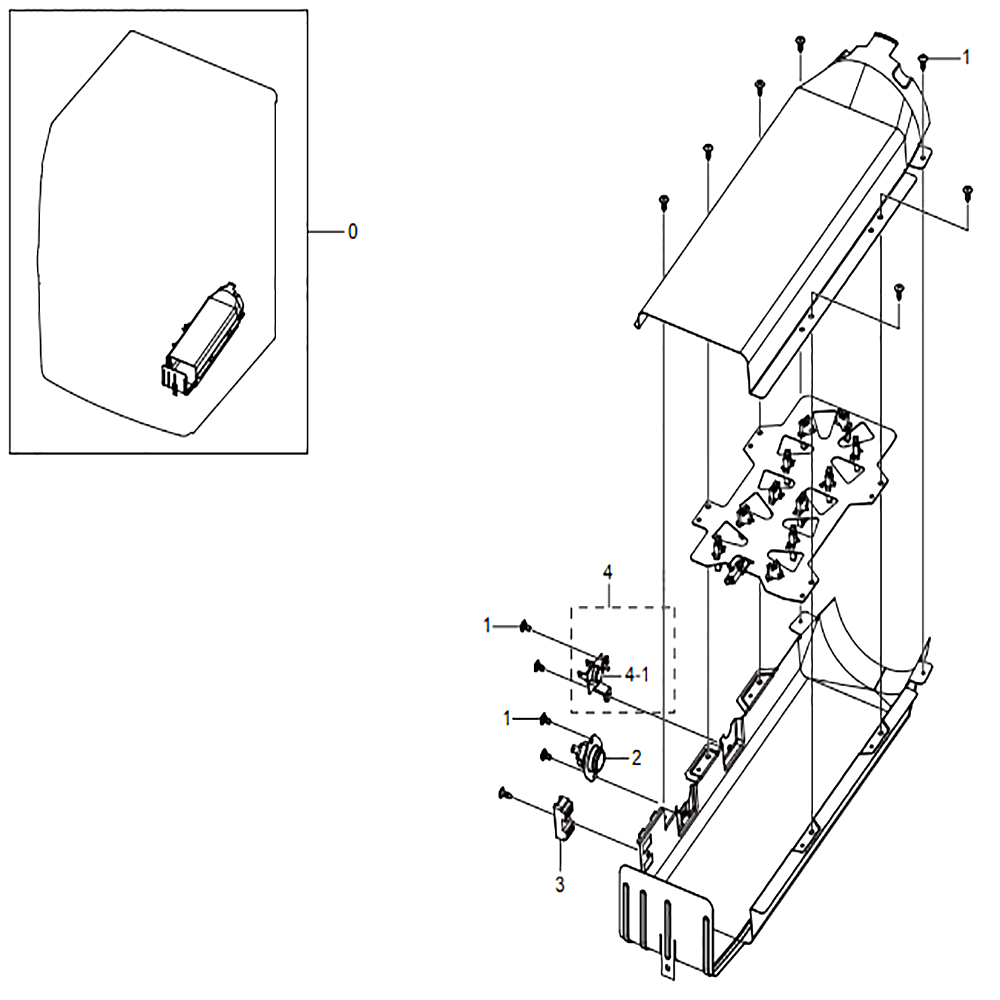

Assy Duct Heater

...
...
0
Assy Duct Heater SAM-DC93-00154A
...
1
Screw-Tapping SAM-6002-000239
...
2
Thermostat SAM-DC47-00018A
...
3
Terminal Block SAM-DC65-00028A
...
4-1
Thermostat SAM-DC47-00015A
...
4
Assembly Bracket Thermostat SAM-DC96-00887A

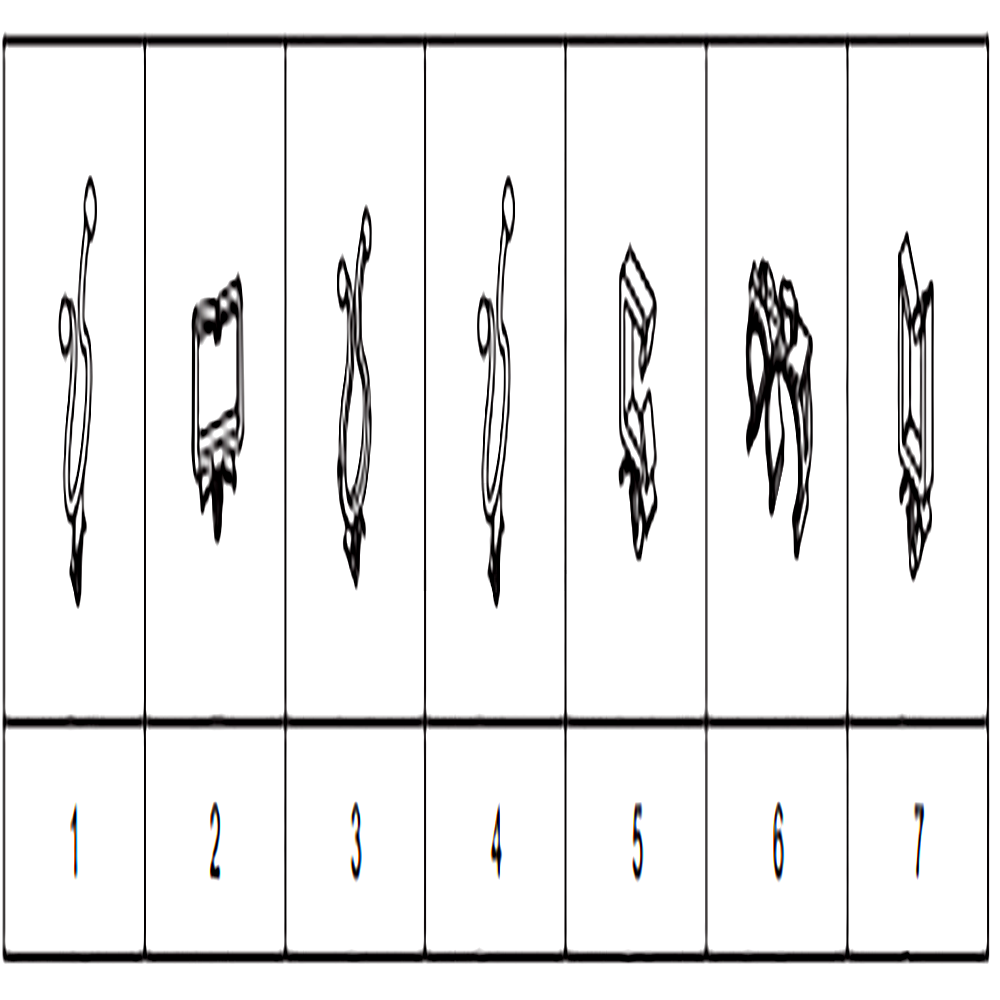

Small Parts

...
...
1
Stand Off SAM-6046-000310
...
2
Holder-Wire SAM-DC61-60074A
...
3
Holder-Wire SAM-DC61-40081A
...
4
Cable Clamp SAM-6502-000127
...
5
Holder-Wire Saddle SAM-DC61-00553C
...
6
Clamper Hose-Fix SAM-DC61-00133A
...
7
Cable Clamp SAM-DC61-00553B
