product name

Samsung DV45H7000EW/A2_0002

Model: DV45H7000EW/A2_0002

Save Part Not Listed?
product name

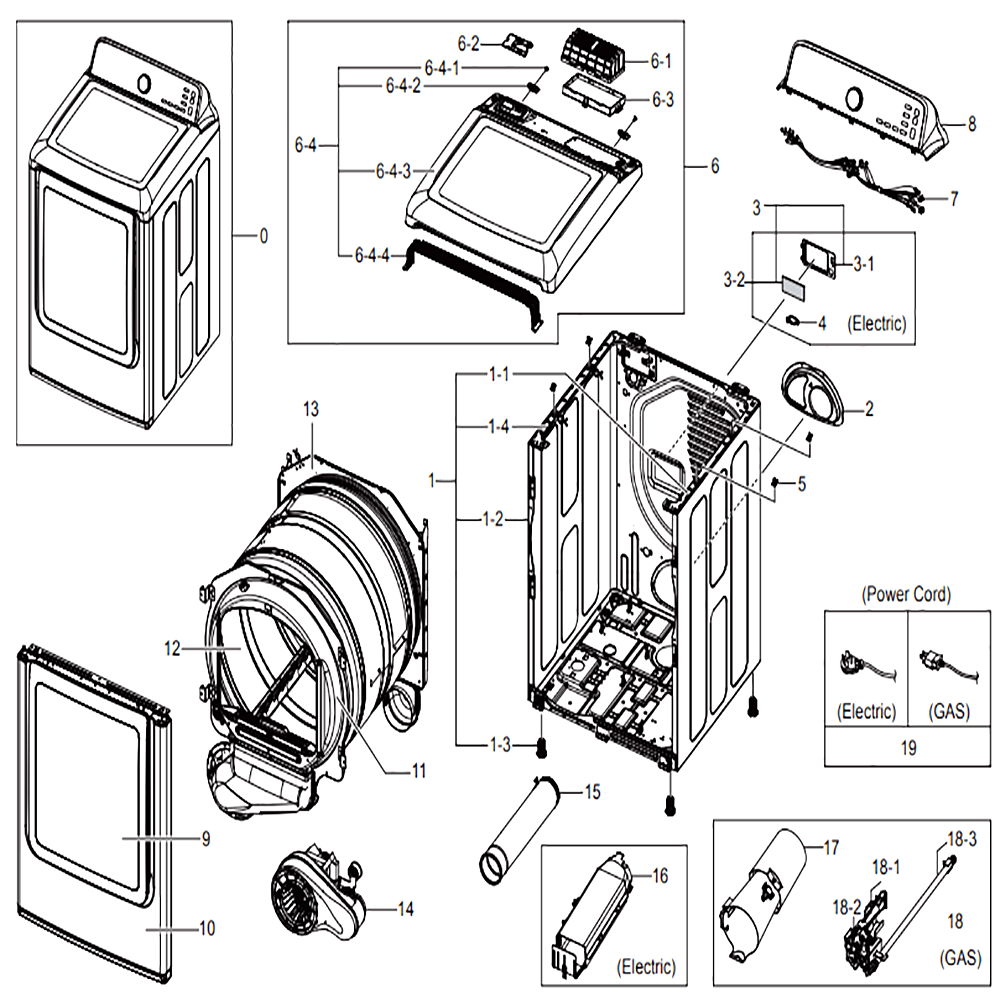

Main

...
...
0
Assy Clothes Dryer SAM-DV45H7000EP
...
1-1
Bracket-Spring(r) SAM-DC61-03047A
...
1-2
Frame SAM-DC61-04009A
...
1-3
Leg SAM-DC61-03128A
...
1-4
Assembly Bracket Spring(l) SAM-DC97-16750A
...
1
Assy Frame SAM-DC97-18970A
...
3-1
Cover-Power SAM-DC63-00540A
...
3-2
Sponge-Cushion SAM-DC72-00056A
...
3
Assy-Cover Power SAM-DC97-08855A
...
4
Holder-Power SAM-DC61-01428A
...
5
Guide Cover Top SAM-DC61-03400A
...
6-1
Cover Pcb-Sub SAM-DC63-01706A
...
6-2
Cap-Cover Top SAM-DC67-00607A
...
6-3
Assy Pcb Main SAM-DC92-01626B
...
6-4-1
Screw-Tapping SAM-6006-001174
...
6-4-2
Bracket Cover Top SAM-DC61-03134B
...
6-4-3
Cover Top SAM-DC63-01455A
...
6-4-4
Cover Plate SAM-DC63-01859A
...
6-4
Assy Cover Top SAM-DC97-16954M
...
6
Assy Cover Top SAM-DC90-20105A
...
7
Assembly Wire Harness SAM-DC96-00766A
...
8
Assy Panel Control SAM-DC90-20090A
...
9
Screw-Hex SAM-DC97-19022A
...
10
Assy Frame Front SAM-DC97-18966A
...
11
Dv40j3000ew/a2,egi-Secc,lamp,-,-,-,- SAM-DC97-16956E
...
12
Dv7000h-Steam,etc,-,-,-,-,- SAM-DC97-16812H
...
13
Assy Drum Back SAM-DC97-17076U
...
14
Assy Motor Duct SAM-DC90-20077A
...
15
Assembly Duct Exhaust SAM-DC97-07519G
...
16
Assembly Duct Heater SAM-DC97-14486A

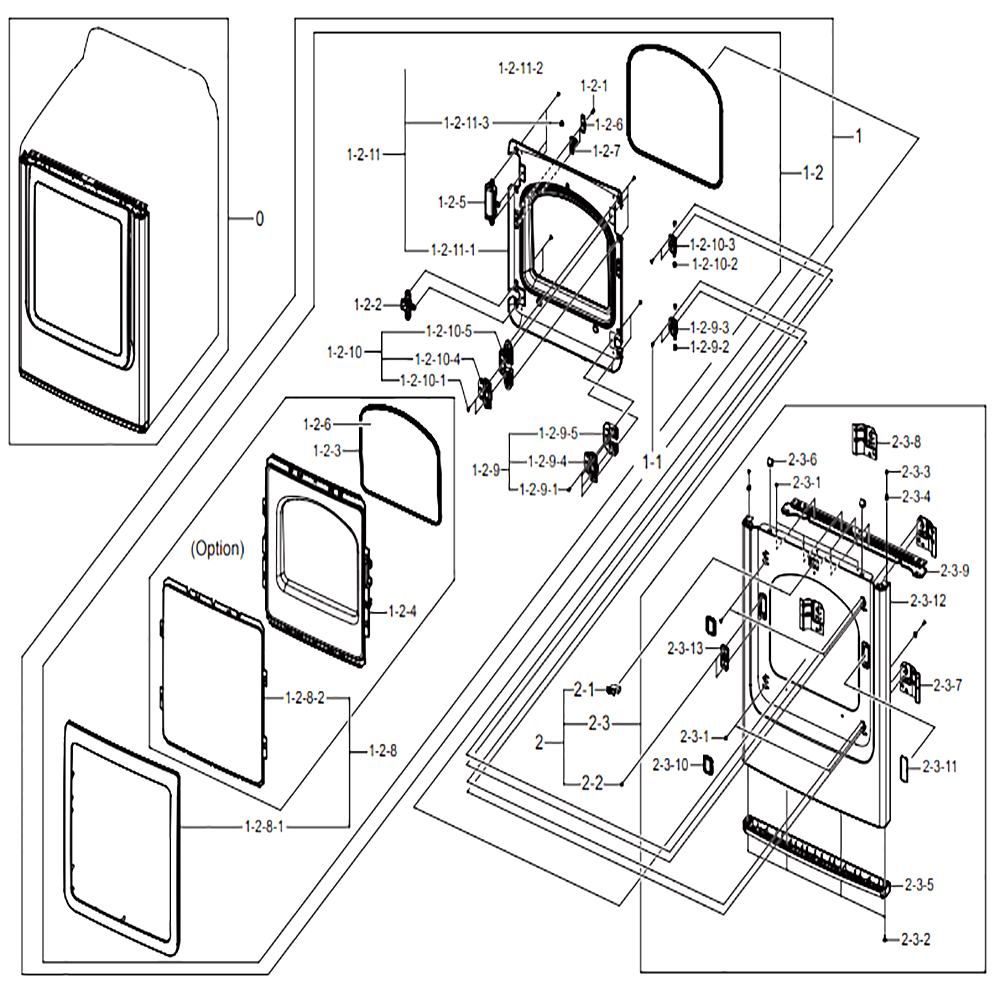

Assy Frame Front & Door

...
...
1-1
Screw-Hex SAM-DC97-19022A
...
1-2-1
Screw-Hex SAM-6009-001522
...
1-2-2
Screw-Tapping SAM-DC97-18996A
...
1-2-4
Screw-Tapping SAM-6006-001174
...
1-2-5
Cover-Door(i) SAM-DC61-03324C
...
1-2-6
Cushin Door SAM-DC63-01498A
...
1-2-7
Lever Door SAM-DC64-02785C
...
1-2-8-1
Lever-Door SAM-DC66-00395A
...
1-2-8
Assy Cover Door SAM-DC63-01502B
...
1-2-9-1
Assy Hinge Door(l) SAM-DC97-17078B
...
1-2-9-2
Screw-Tapping SAM-6006-001174
...
1-2-9-3
Screw-Tapping SAM-6006-001174
...
1-2-9-4
Guide-Hinge SAM-DC61-00891A
...
1-2-9-5
Hinge Door SAM-DC61-03322B
...
1-2-9
Assy Cover Door SAM-DC97-17121A
...
1-2-10-1
Assy Hinge Door SAM-DC97-17079B
...
1-2-10-2
Screw-Tapping SAM-6006-001174
...
1-2-10-3
Screw-Tapping SAM-6006-001174
...
1-2-10-4
Cover Handle SAM-DC63-01458A
...
1-2-10-5
Seal Air SAM-DC97-17080B
...
1-2-10
Support Hinge SAM-DC61-03323A
...
1-2-11-1
Seal Air SAM-DC62-00344A
...
1-2-11-2
Cushin Door SAM-DC63-01498A
...
1-2-11-3
Assy Frame Front SAM-DC97-16952L
...
1-2-11
Cushin Door SAM-DC61-03331B
...
2-1
Screw-Tapping SAM-6002-000239
...
2-2
Screw-Tapping SAM-6002-001149
...
2-3-1
Screw-Tapping SAM-6006-001174
...
2-3-2
Base SAM-DC61-03169C
...
2-3-3
Fixer-Cover Top SAM-DC61-03174A
...
2-3-4
Bracket Hinge-Right SAM-DC61-03325A
...
2-3-5
Bracket-Hinge(l) SAM-DC61-03326A
...
2-3-6
Bracket Frame-Front SAM-DC61-03328A
...
2-3-7
Cover-Door Hinge SAM-DC63-01456D
...
2-3-8
Cover Holder Lever SAM-DC63-01457E
...
2-3-9
Assy Frame Front SAM-DC97-18966A
...
2-3-10
Assy Holder Lever SAM-DC97-16970A
...
2-3-11
Cover Holder Lever SAM-DC63-00556A
...
2-3-12
Assy Frame Front SAM-DC97-16952L
...
2-3-13
Assy Holder Lever SAM-DC97-16970A
...
2-3
Screw-Tapping SAM-6002-001436
...
2
Assy Frame Front SAM-DC97-18966A

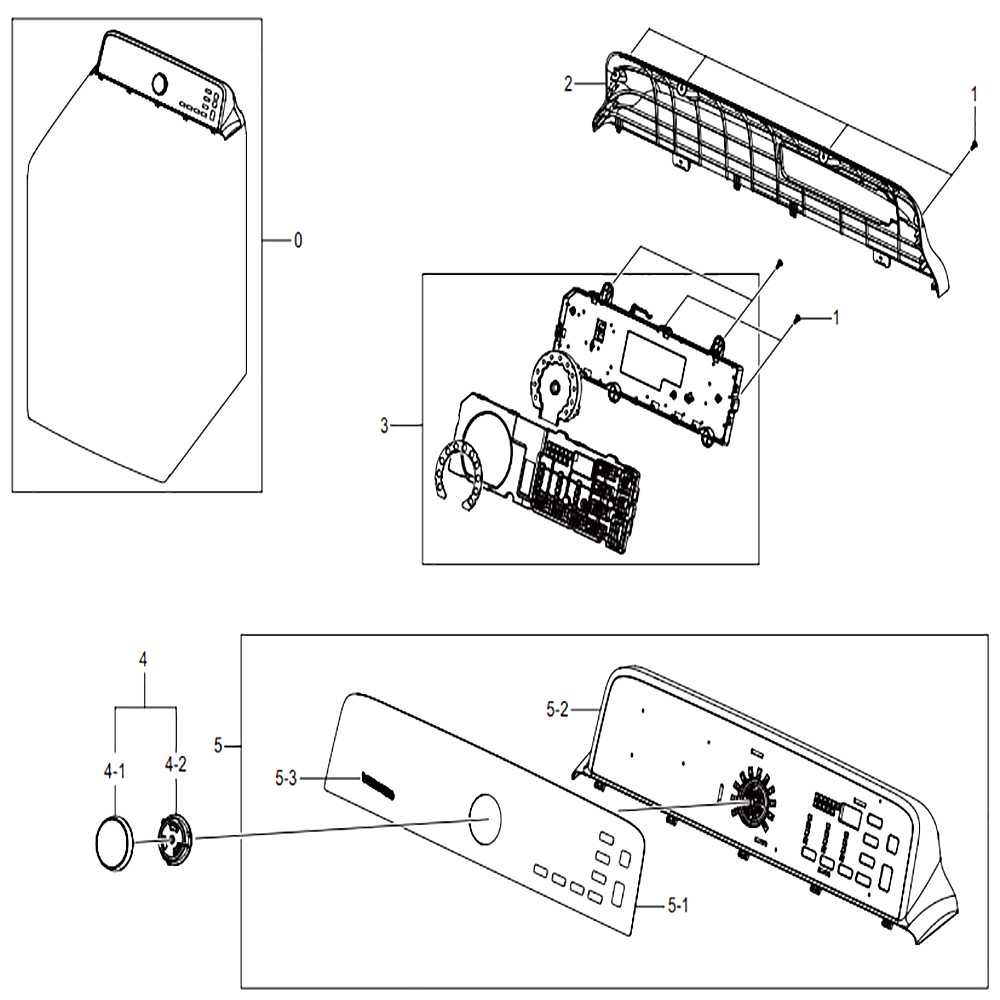

Assy Panel Control

...
...
0
Assy Panel Control SAM-DC90-20090A
...
1
Screw-Tapping SAM-6006-001174
...
2
Cover Panel SAM-DC63-01459A
...
3
Assy Pcb Sub SAM-DC92-01624E
...
4-1
Decoration Encoder SAM-DC64-02767A
...
4-2
Knob Encoder SAM-DC64-02768A
...
4
Assembly Knob Encoder SAM-DC97-16931A
...
5-1
Window-Panel SAM-DC64-03071E
...
5-2
Panel Control SAM-DC64-03070A
...
5-3
Mascot SAM-DA64-04020A
...
5
Assy S.panel Control SAM-DC97-18981A

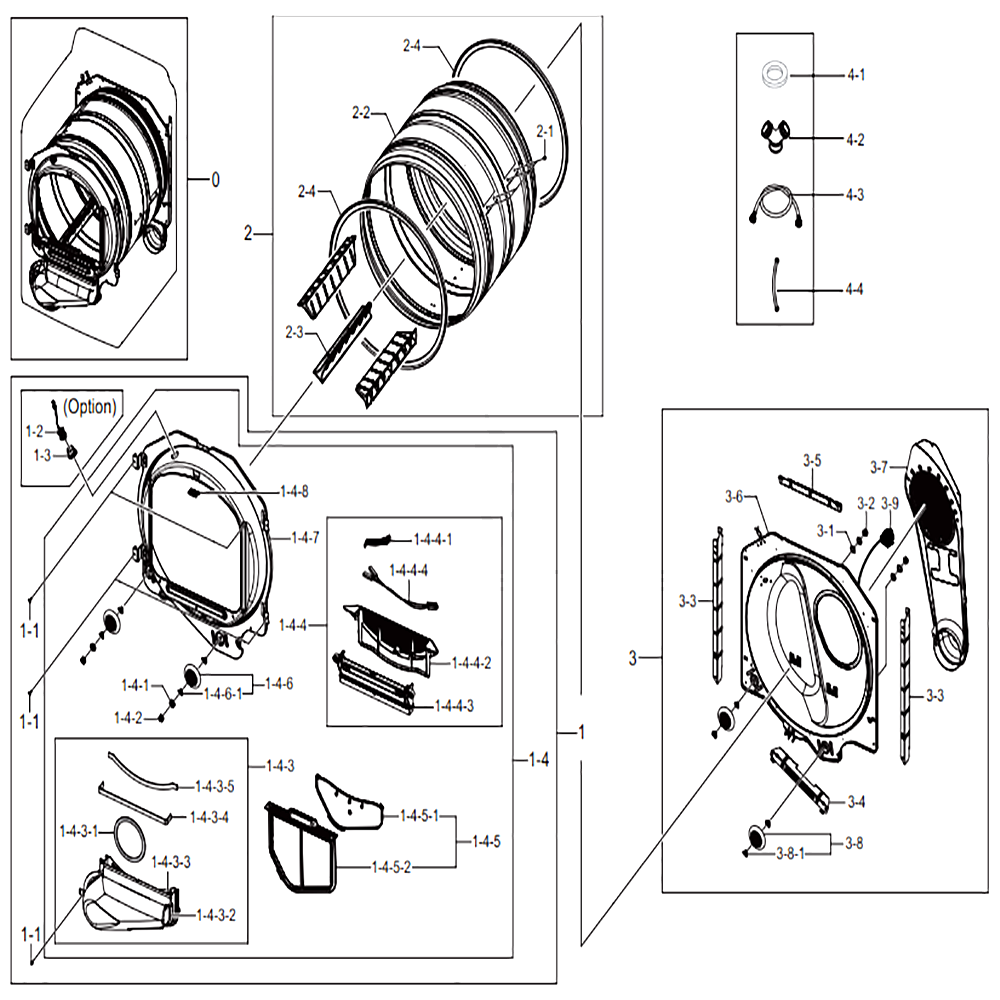

Assy Drum Part

...
...
1-1
Screw-Tapping SAM-6006-001174
...
1-4-1
Fastener-Plain SAM-DC60-00103A
...
1-4-2
Nut-Hex SAM-DC60-50145A
...
1-4-3-1
Absorber Sponge SAM-DC63-01548A
...
1-4-3-2
Duct-Outlet(f) SAM-DC67-00127A
...
1-4-3-3
Gi-Sgcc,t0.5 SAM-DC67-00128C
...
1-4-3-4
Absorber Sponge SAM-DC72-00032A
...
1-4-3-5
Absorber Sponge SAM-DC72-00032C
...
1-4-3
Dv3000j,dv40j3000ew/a2 SAM-DC97-07526E
...
1-4-4-1
Plate-Sensor SAM-DC61-02627A
...
1-4-4-2
Cover-Filter(b) SAM-DC63-01319A
...
1-4-4-3
Cover-Filter(f) SAM-DC63-01322A
...
1-4-4-4
Dryer-L,hudson,top Of The Frame SAM-DC93-00153J
...
1-4-4
Assembly Cover Filter SAM-DC97-16741A
...
1-4-5-1
Case-Filter(u) SAM-DC61-02610A
...
1-4-5-2
Case-Filter SAM-DC61-03048A
...
1-4-5
Assembly Case Filter SAM-DC97-16742A
...
1-4-6-1
Holder-Shaft SAM-DC61-01228A
...
1-4-6
Assembly Roller SAM-DC97-16782A
...
1-4-7
Assy-S.drum Front SAM-DC97-17081B
...
1-4-8
Cap-Drum Front SAM-DC67-00652A
...
1-4
Dv40j3000ew/a2,egi-Secc,lamp,-,-,-,- SAM-DC97-16956E
...
1
Dv40j3000ew/a2,egi-Secc,lamp,-,-,-,- SAM-DC97-16956E
...
2-1
Screw-Tapping SAM-6002-000488
...
2-2
Egi-Secc,t0.6,neat White SAM-DC66-00405E
...
2-3
Drum-Lifter SAM-DC66-00664A
...
2-4
Assembly Gasket Pad SAM-DC97-07618A
...
2
Dv7000h-Steam,etc,-,-,-,-,- SAM-DC97-16812H
...
3-1
Fastener-Plain SAM-DC60-00103A
...
3-2
Nut-Hex SAM-DC60-50145A
...
3-3
Bracket-Drum Back SAM-DC61-01238A
...
3-4
Bracket-Drum Back SAM-DC61-02826A
...
3-5
Bracket-Drum Back SAM-DC61-03130A
...
3-6
Drum Back SAM-DC66-00411H
...
3-7
Assembly Duct Air SAM-DC97-07521A
...
3-8-1
Holder-Shaft SAM-DC61-01228A
...
3-8
Assembly Roller SAM-DC97-16782A
...
3
Assy Drum Back SAM-DC97-17076U

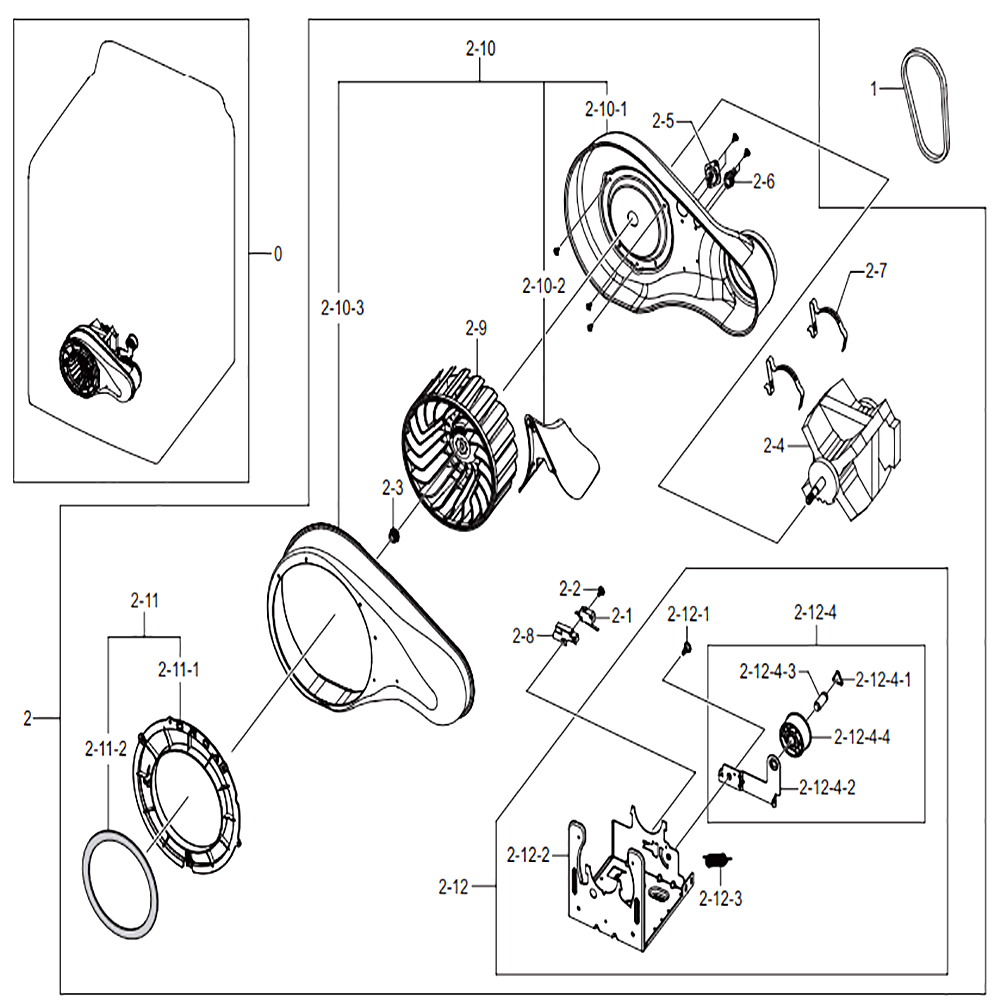

Assy Motor Duct

...
...
0
Assy Motor Duct SAM-DC90-20077A
...
1
Belt-Timing Gear SAM-6602-001655
...
2-1
Switch-Micro SAM-3405-001118
...
2-2
Screw-Tapping SAM-6006-001174
...
2-3
Nut-Inch SAM-6021-001201
...
2-4
Motor Ac Drive SAM-DC31-00055G
...
2-5
Thermistor SAM-DC32-00007A
...
2-6
Thermostat SAM-DC47-00016A
...
2-7
Spring Plate SAM-DC61-04225A
...
2-8
Cover-Switch SAM-DC63-00919A
...
2-9
Fan SAM-DC67-00180B
...
2-10-1
Guide-Duct Fan SAM-DC61-02348B
...
2-10-2
Guide-Fan SAM-DC61-03364A
...
2-10-3
Cover-Duct Fan SAM-DC63-01026A
...
2-10
Assembly Cover Duct SAM-DC93-00098D
...
2-11-1
Duct-Connector SAM-DC67-00586A
...
2-11-2
Absorber Sponge SAM-DC72-00032E
...
2-11
Assembly Duct Connector SAM-DC93-00282A
...
2-12-2
Bracket-Motor SAM-DC61-01213A
...
2-12-3
Spring Etc-Tension SAM-DC61-01215B
...
2-12-4-1
Holder-Shaft SAM-DC61-01228A
...
2-12-4-2
Bracket-Idler SAM-DC61-01230B
...
2-12-4-3
Shaft-Idler SAM-DC66-00401A
...
2-12-4-4
Assembly Roller SAM-DC97-07509B
...
2-12-4
Assembly Bracket Idler SAM-DC96-00882C
...
2-12
Assy Motor Duct SAM-DC90-20077A
...
2
Assy Motor SAM-DC93-00101U

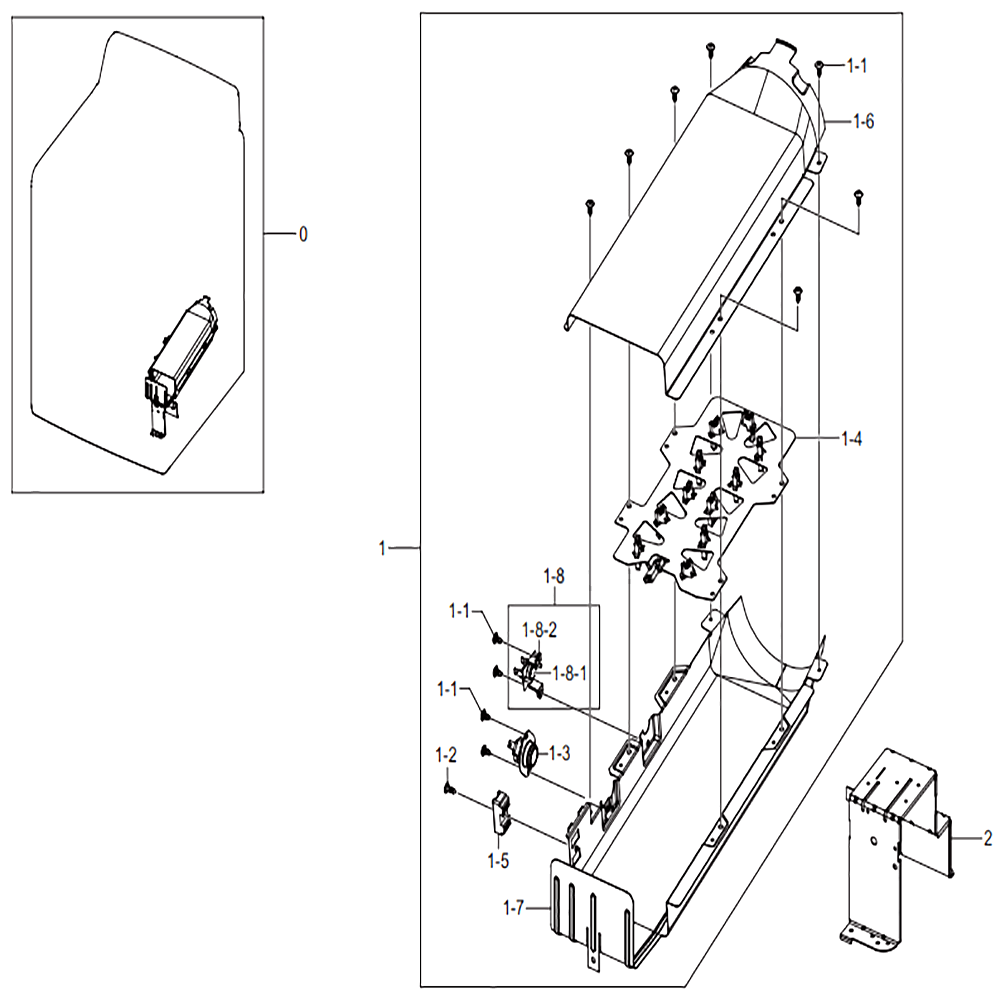

Assy Duct Heater - Electric

...
...
1-1
Screw-Tapping SAM-6006-001174
...
1-2
Screw-Tapping SAM-6006-001174
...
1-3
Thermostat SAM-DC47-00018A
...
1-4
Heater-Dry SAM-DC47-00019A
...
1-5
Terminal-Block SAM-DC65-00013A
...
1-6
Duct-Heater(u) SAM-DC67-00132A
...
1-7
Duct-Heater(l) SAM-DC67-00133A
...
1-8-1
Thermostat SAM-DC47-00015A
...
1-8-2
Bracket-Thermostat SAM-DC61-01204A
...
1-8
Assembly Bracket Thermostat SAM-DC96-00887A
...
1
Assembly Duct Heater SAM-DC97-14486A

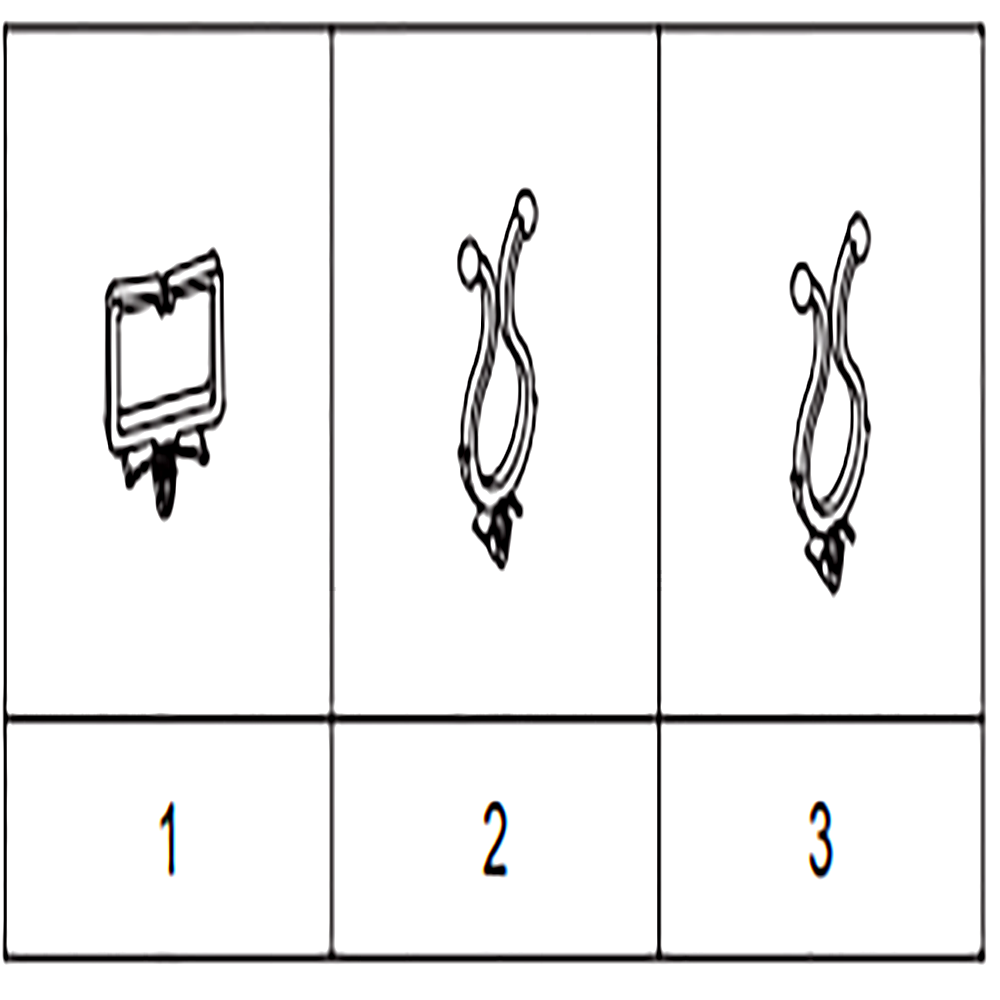

Small Parts

...
...
1
Holder-Wire SAM-DC61-60074A
...
2
Holder-Wire SAM-DC61-40081A
...
3
Cable Clamp SAM-6502-000127
