Samsung DV42H5200GF-A3-03 Dryer

Model: DV42H5200GF-A3-03

Save Part Not Listed?
product name

Samsung DV42H5200GF-A3-03

...
...

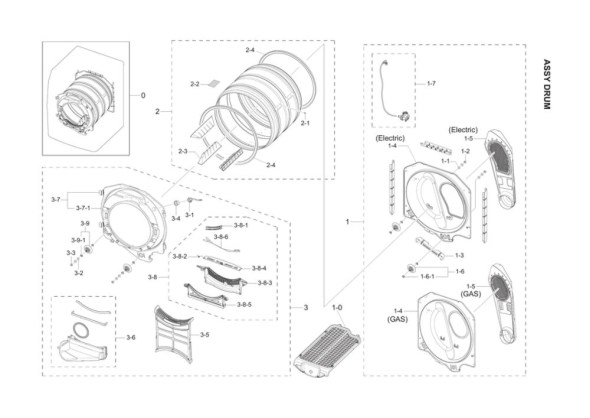

1
Drum Back SAM-DC97-15001R
...
1-1
Dryer Washer SAM-DC60-00103A
...
1-2
Dryer Roller Wheel Nut SAM-DC60-50145A
...
1-3
Drive Bracket SAM-DC61-02826A
...
1-5
Air Duct SAM-DC97-07521E
...
1-6
Dryer Drum Support Roller SAM-DC97-16782E
...
1-6-1
Dryer Retainer Clip SAM-DC61-01228A
...
1-7
Dryer Steam Nozzle SAM-DC97-16919B
...
2-1
Refrigerator Screw SAM-6002-000215
...
2-3
Dryer Drum Baffle SAM-DC66-00511A
...
2-4
Dryer Drum Assembly SAM-DC97-14849H
...
3-8-2
Dryer Lint Screen Cover Spring SAM-DC61-02740A
...
3-8-6
Dryer Wire Harness SAM-DC96-00766A
...
3-8-4
Dryer Filter Cover SAM-DC63-01140A
...
3-8-1
Dryer Moisture Sensor SAM-DC61-02627A
...
3-5
Dryer Lint Screen SAM-DC61-02595A
...
3-4
Dryer Drum Light Support Bracket SAM-DC61-02281A
...
3-1
Dryer Drum Light Assembly SAM-DC47-00027F
...
3
Dryer Front Bulkhead And Lint Chute Assembly SAM-DC97-15984C

Samsung DV42H5200GF-A3-03

...
...

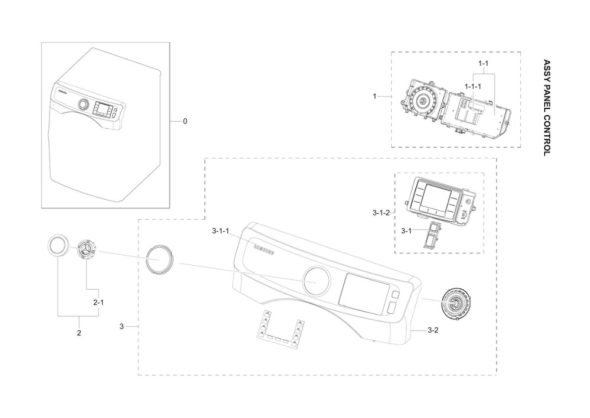

1
Dryer User Interface SAM-DC92-01607G
...
2
Laundry Appliance Control Knob SAM-DC97-18058C
...
3-1
Button Pus SAM-DC64-03066T
...
3-1-1
Laundry Appliance Nameplate SAM-DA64-04020A
...
3-1-2
Window Pan SAM-DC97-18485A

Samsung DV42H5200GF-A3-03

...
...

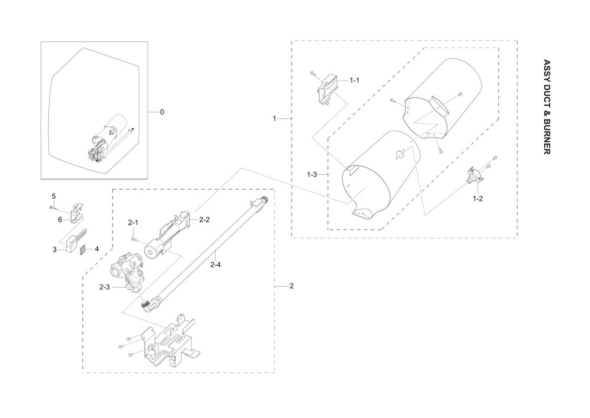

1-3
Dryer Burner Duct Cone SAM-DC97-07602C
...
1-2
Dryer High-Limit Thermostat SAM-DC47-00017A
...
1-1
Dryer Radiant Sensor SAM-DC32-00008A
...
2-3
Dryer Gas Valve SAM-DC62-00201A
...
2-1
Laundry Appliance Hex Screw SAM-6009-001476
...
2-4
Dryer Gas Supply Pipe SAM-DC99-00507A
...
2
Dryer Burner And Gas Valve Assembly SAM-DC97-14492A
...
3
Dryer Burner Igniter SAM-DC47-00022A
...
4
Dryer Burner Igniter Insulator SAM-DC63-00623A
...
5
Screw Assembly SAM-DC97-09193A
...
6
Bracket SAM-DC61-02642A

Samsung DV42H5200GF-A3-03

...
...

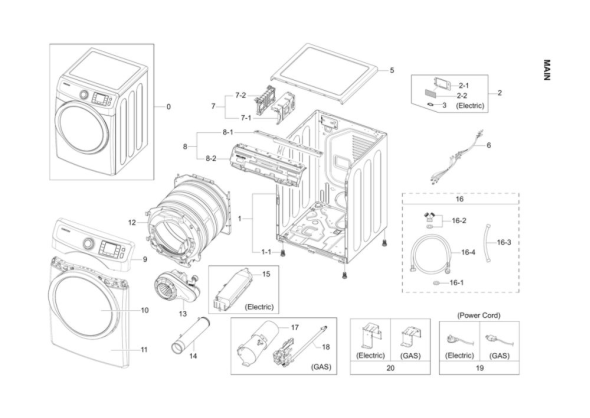

1-1
Dryer Leveling Leg SAM-DC61-03128A
...
5
Dryer Top Panel SAM-DC97-15136U
...
6
Dryer Wire Harness SAM-DC93-00467B
...
7
Dryer Electronic Control Board SAM-DC92-00669Y
...
7-2
Dryer Electronic Control Board SAM-DC92-00669Y
...
7-1
Dryer Electronic Control Board Housing SAM-DC61-01229A
...
8
Frame Assembly SAM-DC97-15985A
...
8-2
Frame Plate SAM-DC61-02600A
...
8-1
Dryer Guide Panel SAM-DC61-02008B
...
10
Dryer Door Assembly SAM-DC97-15975E
...
11
Frame SAM-DC97-15979M
...
14
Dryer Exhaust Duct SAM-DC97-07519G
...
16-3
Assembly Hose Connector SAM-DC97-15249D
...
16-4
Washer Cold/Hot Water Fill Hose SAM-DC97-15648A
...
16-1
Dryer Inlet Hose Y-Connector Seal SAM-DC62-40178B
...
16-2
Dryer Inlet Hose Y-Connector SAM-DC97-15103A
...
17
Dryer Burner Duct Cone SAM-DC97-07602C
...
18
Dryer Burner And Gas Valve Assembly SAM-DC97-14492A
...
19
Dryer Power Cord SAM-DC96-00038G

Samsung DV42H5200GF-A3-03

...
...

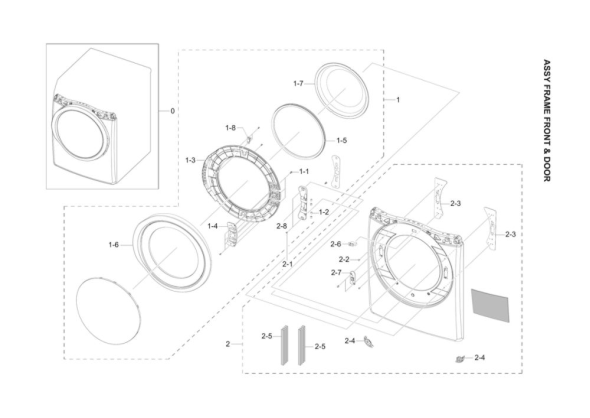

1
Dryer Door Assembly SAM-DC97-15975E
...
1-1
Dryer Screw SAM-6001-001668
...
1-2
Dryer Door Hinge Guide SAM-DC61-00891A
...
1-5
Dryer Door Seal SAM-DC62-00262A
...
1-8
Dryer Door Latch SAM-DC66-00814A
...
2-6
Dryer Door Switch SAM-DC64-00828B
...
2-8
Door Hinge SAM-DC61-02597A
...
2-7
Dryer Door Catch SAM-DC97-18057C
...
2-5
Dryer Front Panel Air Seal SAM-DC63-10001C
...
2-4
Washer Front Panel Corner Cap SAM-DC63-00959A
...
2-3
Dryer Door Hinge Support Bracket SAM-DC61-02626A
...
2-1
Appliance Machine Screw SAM-6001-001773
...
2
Frame SAM-DC97-15979M

Samsung DV42H5200GF-A3-03

...
...

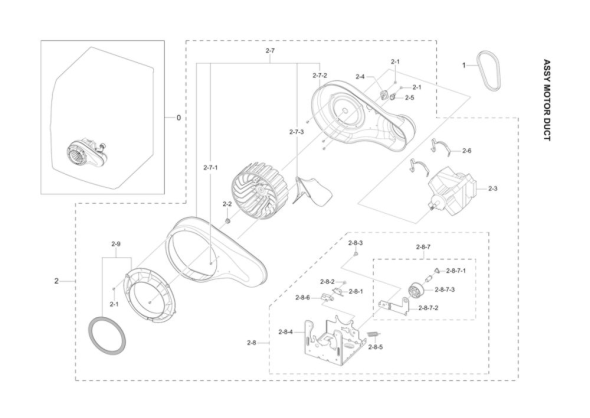

1
Dryer Drum Belt SAM-6602-001655
...
2-9
Dryer Exhaust Duct Connector SAM-DC97-07895A
...
2-8-7-1
Dryer Retainer Clip SAM-DC61-01228A
...
2-8-7
Dryer Idler Assembly SAM-DC96-00882F
...
2-8-6
Dryer Belt Switch Housing SAM-DC63-00919A
...
2-8-5
Dryer Idler Spring SAM-DC61-01215B
...
2-8-4
Dryer Motor Bracket SAM-DC61-01213A
...
2-8-2
Dryer Screw SAM-6002-000488
...
2-8
Dryer Drive Motor Assembly SAM-DC96-00790G
...
2-7-3
Dryer Blower Fan Guide SAM-DC61-03364A
...
2-7-2
Dryer Blower Housing SAM-DC61-02348B
...
2-7
Dryer Blower Housing SAM-DC93-00098D
...
2-6
Dryer Motor Clamp SAM-DC61-04225A
...
2-5
Dryer Thermal Cut-Off Thermostat SAM-DC47-00016A
...
2-4
Dryer Thermistor SAM-DC32-00007A
...
2-3
Dryer Drive Motor SAM-DC31-00055G
...
2-2
Dryer Blower Wheel Nut SAM-6021-001201
...
2-1
Refrigerator Tapping Screw SAM-6002-000470
...
2
Dryer Motor And Blower Assembly SAM-DC93-00101N
