Samsung DV42H5000EW_A3_0002

Model: DV42H5000EW_A3_0002

Save Part Not Listed?

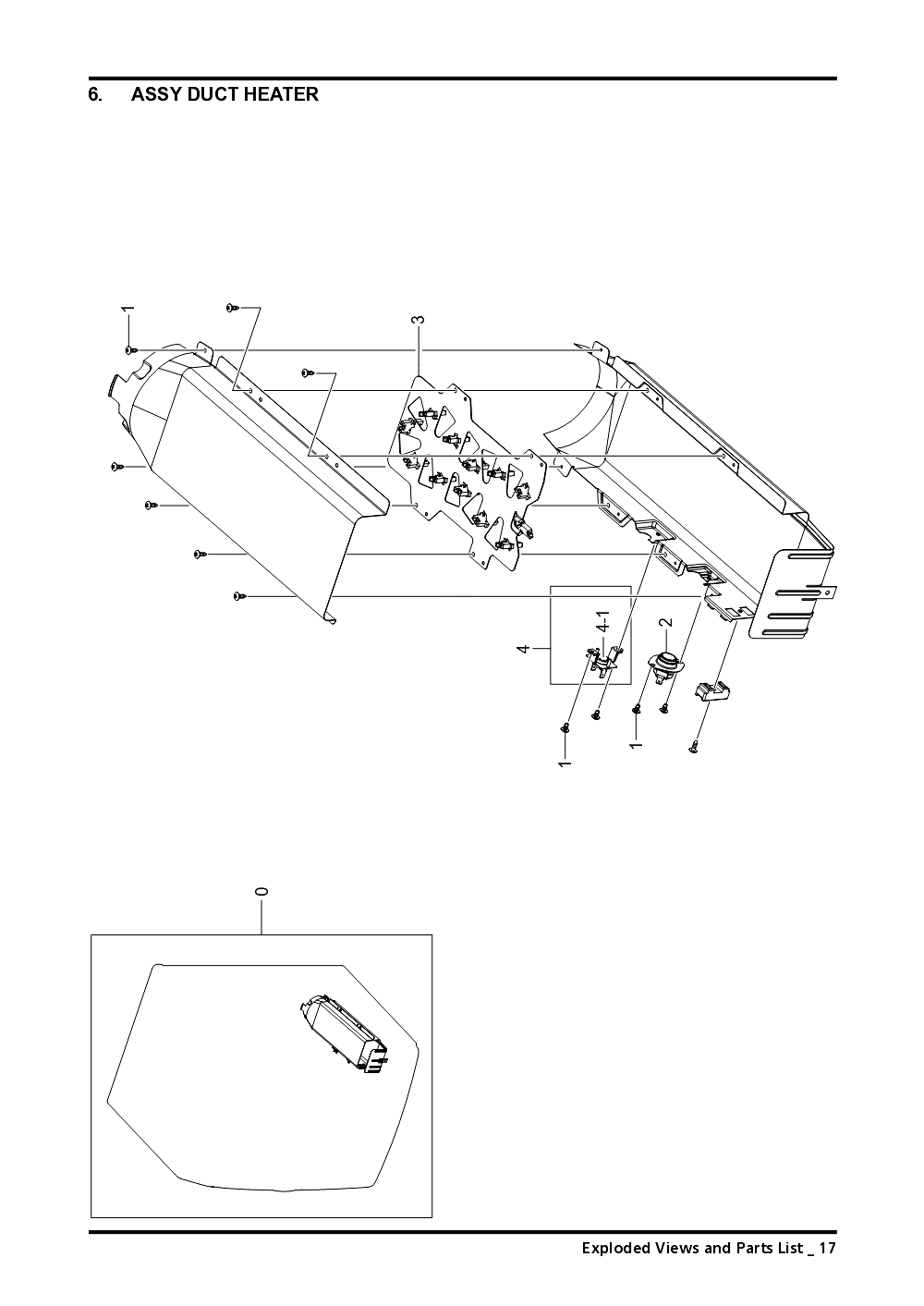

product name

Assy Duct Heater

...
...
0
Assembly Duct Heater SAM-DC97-14486A
...
1-Apr
Thermostat SAM-DC47-00015A
...
1
Screw-Tapping SAM-6002-000239
...
2
Thermostat SAM-DC47-00018A
...
3
Heater-Dry SAM-DC47-00019A
...
4
Assembly Bracket Thermostat SAM-DC96-00887A

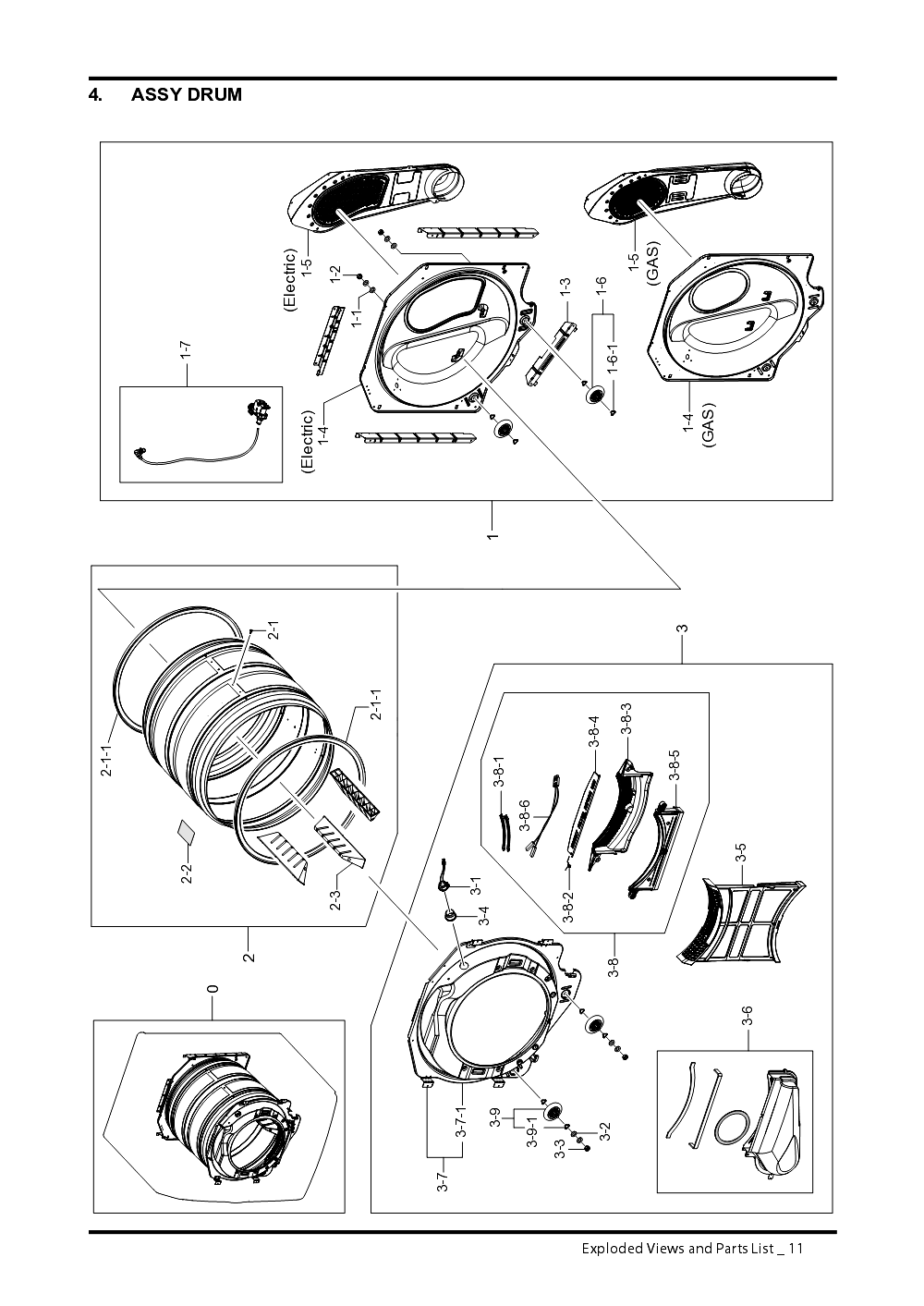

Assy Drum

...
...
0
Assydrum SAM-DC90-15183A
...
1-Feb
Screw-Tapping SAM-6002-000215
...
1-Jan
Fastener-Plain SAM-DC60-00103A
...
1-Mar
Lamp SAM-DC47-00027F
...
1
Assembly Drum Back SAM-DC97-15001V
...
1/6/2001
Holder-Shaft SAM-DC61-01228A
...
2-Jan
Nut-Hex SAM-DC60-50145A
...
2-Mar
Fastener-Plain SAM-DC60-00103A
...
2
Assembly Drum Wrapper SAM-DC97-14849F
...
2/1/2001
Assembly Gasket Pad SAM-DC97-07618A
...
3-Feb
Drum Lifter SAM-DC66-00511A
...
3-Jan
Bracket-Drum Back SAM-DC61-02826A
...
3-Mar
Nut-Hex SAM-DC60-50145A
...
3
Assembly Drum Front SAM-DC97-15984B
...
3/7/2001
Drum Front SAM-DC66-00596B
...
3/8/2001
Plate-Sensor SAM-DC61-02627A
...
3/8/2002
Spring Etc Filter SAM-DC61-02740A
...
3/8/2003
Cover Filter (b) SAM-DC63-01139A
...
3/8/2004
Cover Filter(u) SAM-DC63-01140A
...
3/8/2005
Cover Filter(f) SAM-DC63-01143A
...
3/8/2006
Assembly Wire Harness SAM-DC96-00766A
...
3/9/2001
Holder-Shaft SAM-DC61-01228A
...
4-Jan
Drum Back SAM-DC66-00411H
...
4-Mar
Fixer-Lamp SAM-DC61-02281A
...
5-Jan
Assembly Duct Air SAM-DC97-07521A
...
5-Mar
Case Filter SAM-DC61-02595A
...
6-Jan
Assembly Roller SAM-DC97-16782A
...
6-Mar
Assembly Duct Outlet SAM-DC93-00187A
...
7-Mar
Assembly S.drum Front SAM-DC97-15983B
...
8-Mar
Assembly Cover Filter SAM-DC97-16160A
...
9-Mar
Assembly Roller SAM-DC97-16782A

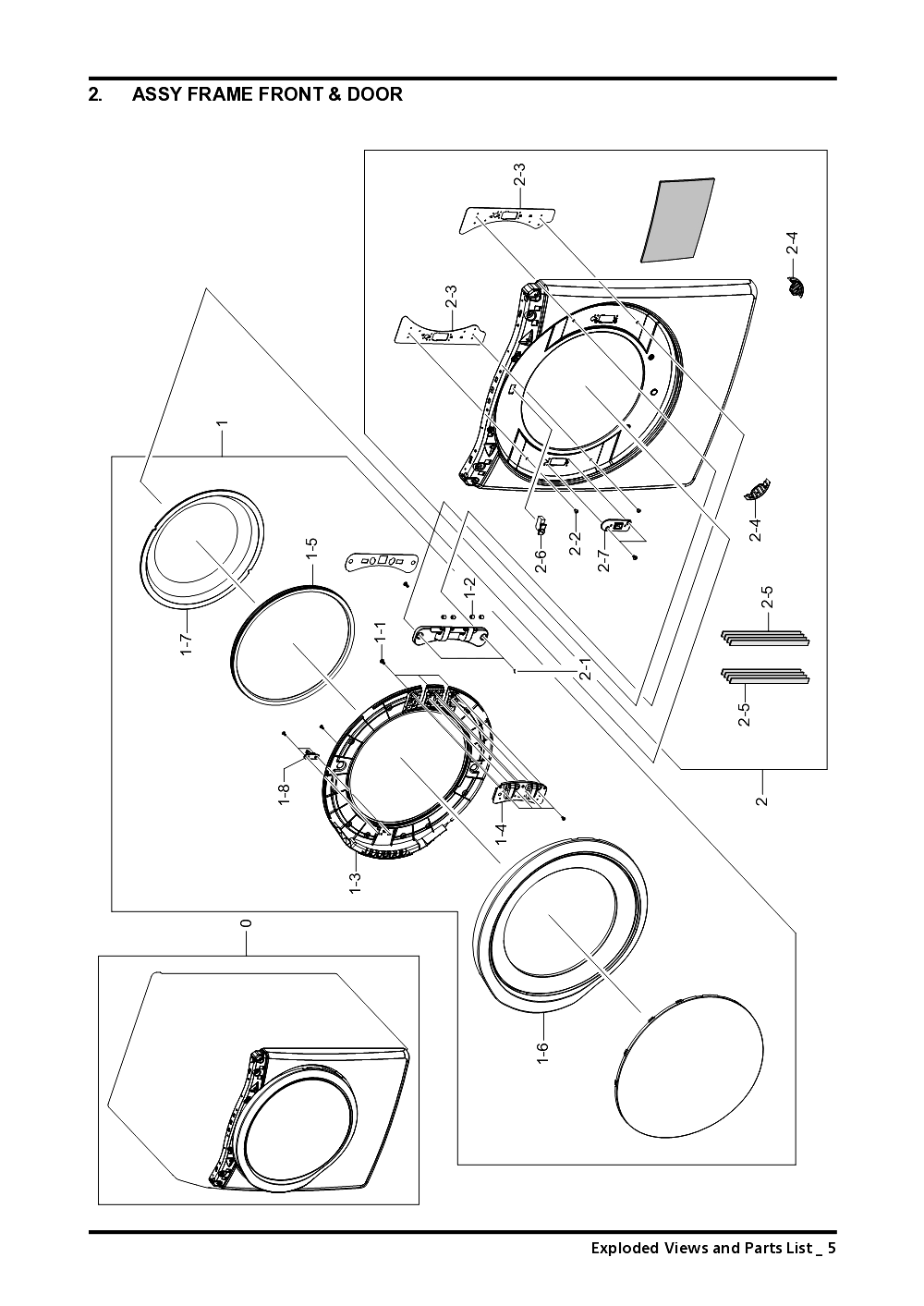

Assy Frame Front & Door

...
...
0
Assy-Frame Front & Door SAM-DV42H5000EW/AC
...
1-Feb
Screw-Machine SAM-6001-001773
...
1-Jan
Screw-Machine SAM-6001-001668
...
1
Assembly Door SAM-DC97-15975F
...
2-Feb
Screw-Tapping SAM-6002-000239
...
2-Jan
Guide-Hinge SAM-DC61-00891A
...
2
Assembly Frame Front SAM-DC97-15979X
...
3-Feb
Bracket Hinge SAM-DC61-02626A
...
3-Jan
Holder Glass SAM-DC61-02596A
...
4-Jan
Support Hinge SAM-DC61-04215A
...
5-Feb
Absorber Sponge SAM-DC63-10001C
...
5-Jan
Seal-Door SAM-DC62-00262A
...
6-Feb
Door-S/w SAM-DC64-00828B
...
6-Jan
Cover Door SAM-DC63-01748A
...
7-Feb
Assembly Holder Lever SAM-DC97-18057C
...
7-Jan
Door Glass SAM-DC64-02637A
...
8-Jan
Lever Door SAM-DC66-00814A

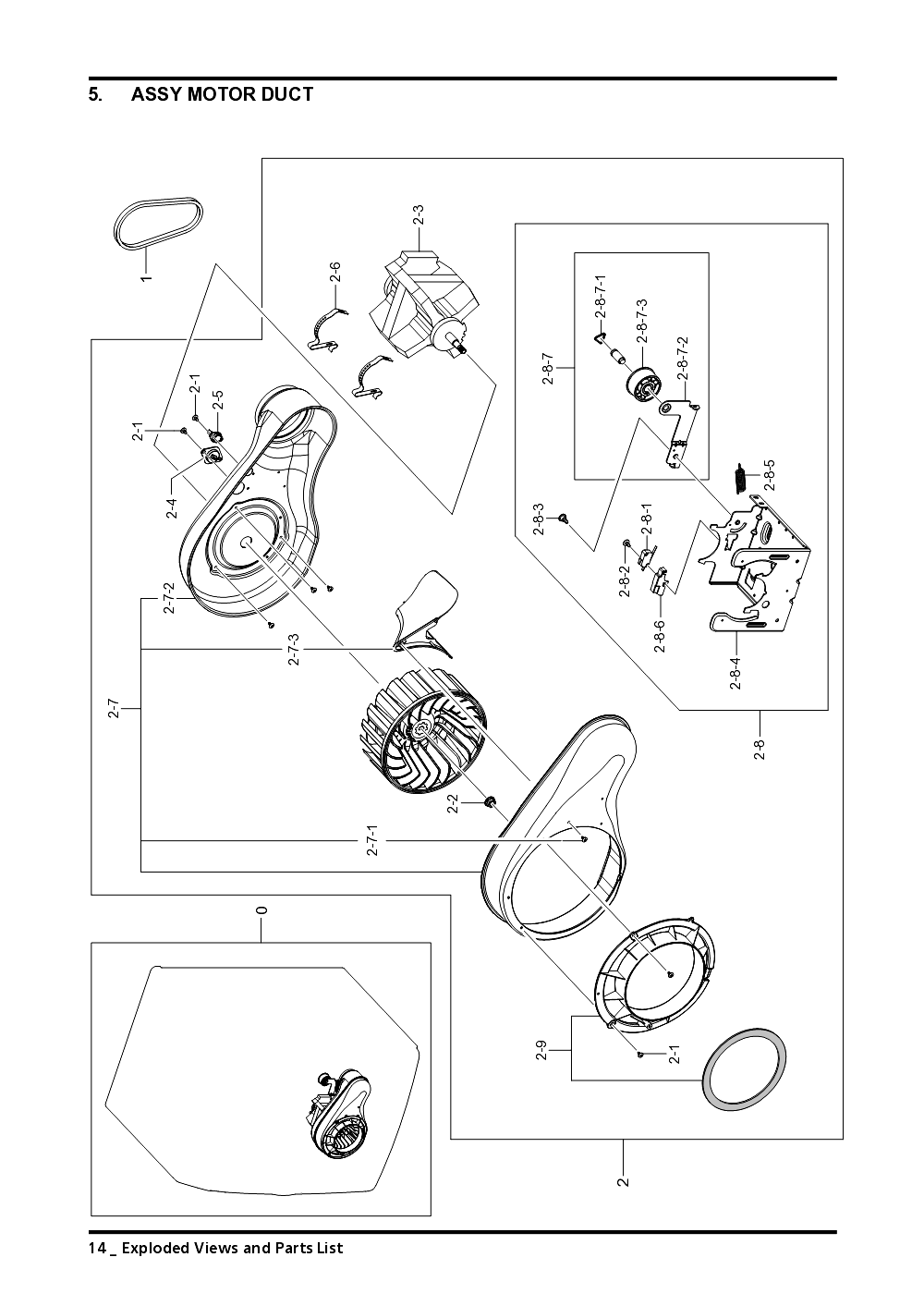

Assy Motor Duct

...
...
0
Assembly Motor Duct SAM-DC90-15188A
...
1
Belt-Timing Gear SAM-6602-001655
...
2-1
Screw-Tapping SAM-6002-000470
...
2-2
Nut-Inch SAM-6021-001201
...
2-3
Motor Ac Drive SAM-DC31-00055G
...
2-4
Thermistor SAM-DC32-00007A
...
2-5
Thermostat SAM-DC47-00016A
...
2-6
Spring-Plate SAM-DC61-01214A
...
2-7-1
Screw-Tapping SAM-6002-000470
...
2-7-2
Guide-Duct Fan SAM-DC61-02348B
...
2-7-3
Guide-Fan SAM-DC61-03364A
...
2-7
Assembly Cover Duct SAM-DC93-00098D
...
2-8-1
Switch-Micro SAM-3405-001118
...
2-8-2
Screw-Tapping SAM-6002-000488
...
2-8-3
Screw-Special SAM-6009-001342
...
2-8-4
Bracket-Motor SAM-DC61-01213A
...
2-8-5
Spring Etc-Tension SAM-DC61-01215B
...
2-8-6
Cover-Switch SAM-DC63-00919A
...
2-8-7-1
Holder-Shaft SAM-DC61-01228A
...
2-8-7-2
Bracket-Idler SAM-DC61-01230B
...
2-8-7-3
Assembly Roller SAM-DC97-07509B
...
2-8-7
Assembly Bracket Idler SAM-DC96-00882C
...
2-8
Assembly Bracket Motor SAM-DC96-00790C
...
2-9
Assembly Duct Connector SAM-DC97-07895A
...
2
Assembly Motor SAM-DC93-00101N

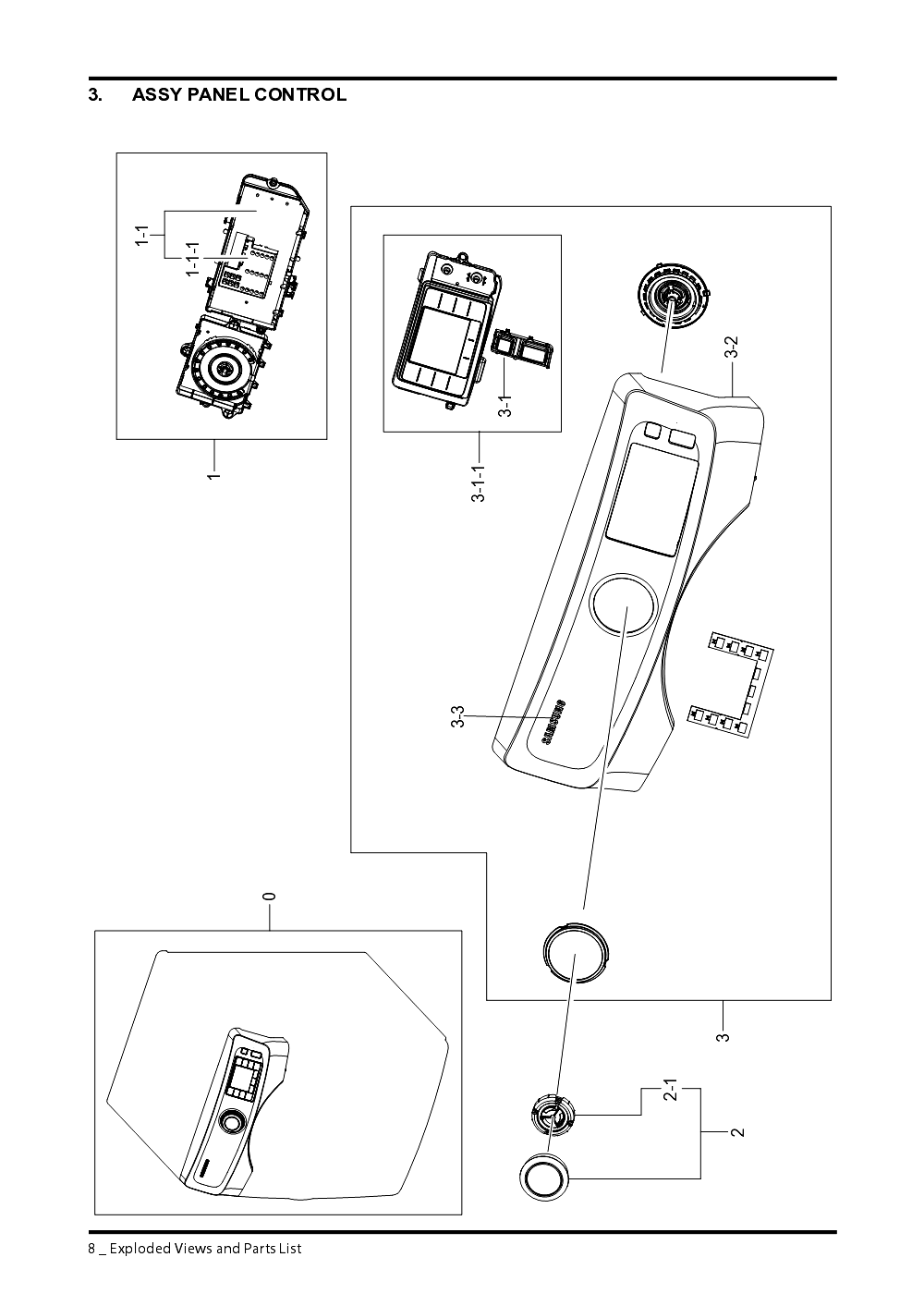

Assy Panel Control

...
...
0
Assembly Panel Control SAM-DC97-18078D
...
1-Feb
Knob Encoder SAM-DC64-03186A
...
1-Jan
Assembly Pcb Smd SAM-DC94-04332A
...
1-Mar
Button Push SAM-DC64-03066J
...
1
Assembly Pcb Sub SAM-DC92-01607H
...
1/1/2001
Assembly Pcb Auto SAM-DC94-04330A
...
2-Mar
Window Panel SAM-DC64-03116L
...
2
Assembly Knob Encoder SAM-DC97-18058B
...
3-Mar
Mascot SAM-DA64-04020A
...
3
Assembly S.panel Control SAM-DC97-18106D
...
3/1/2001
Assembly Window Panel SAM-DC97-18494A

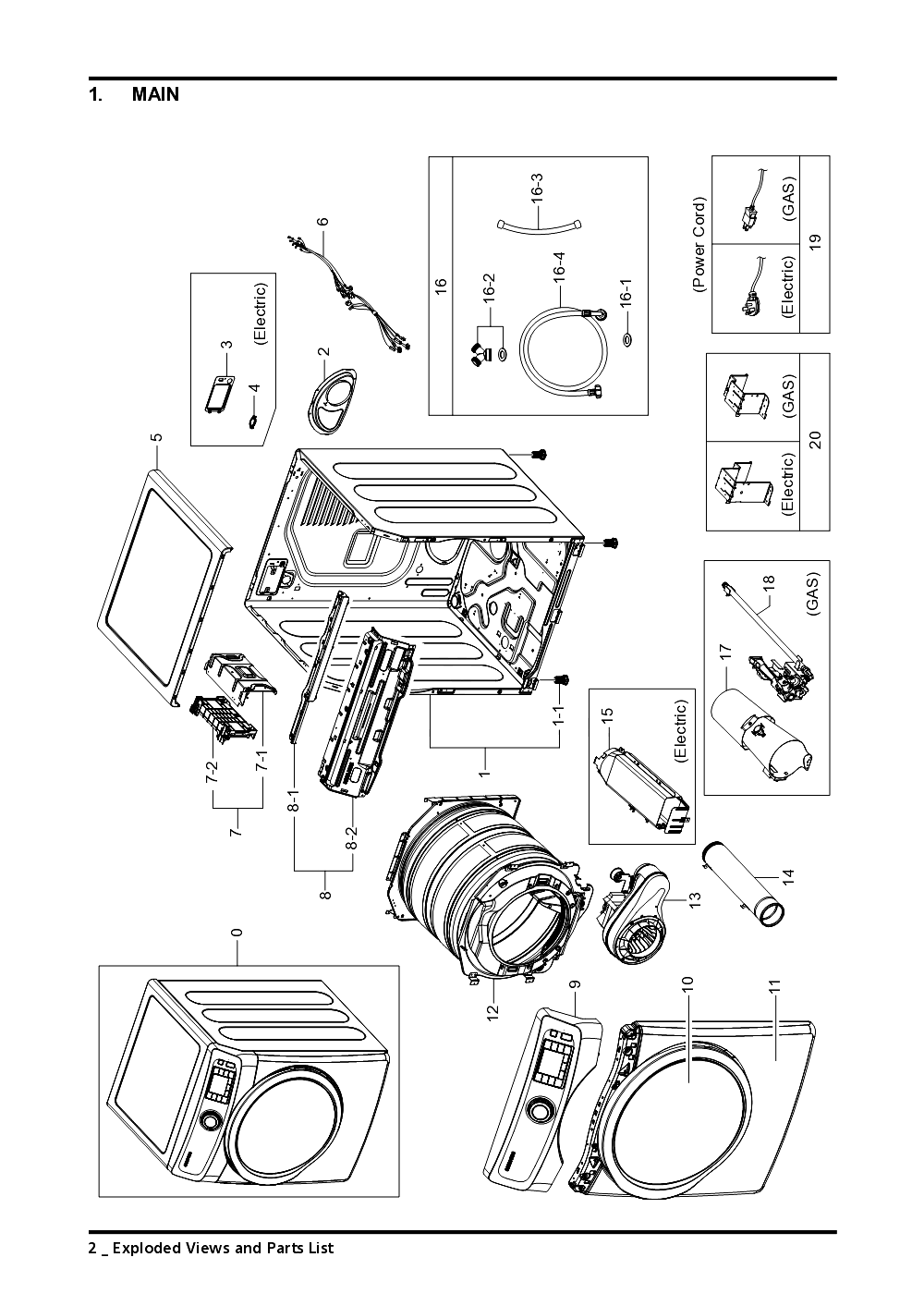

Main

...
...
0
Assy-Clothes Dryer SAM-DV42H5200EW
...
1-Aug
Guide Panel SAM-DC61-02008B
...
1-Jan
Leg SAM-DC61-03128A
...
1-Jul
Holder-Pcb SAM-DC61-01229A
...
1
Assembly Frame SAM-DC97-17826T
...
2-Aug
Frame Plate-Up SAM-DC61-02600A
...
2-Jul
Assembly Pcb Main SAM-DC92-01606C
...
2
Cover Back SAM-DC63-01499A
...
3
Cover-Power SAM-DC63-00540A
...
4
Holder-Power SAM-DC61-01428A
...
5
Assembly Cover Top SAM-DC97-19026A
...
6
Assembly Wire Harness-Main SAM-DC93-00466B
...
7
Assembly Holder Pcb SAM-DC92-01596D
...
8
Assembly Frame Plate(u) SAM-DC97-15985A
...
9
Assembly Panel Control SAM-DC97-18078D
...
10
Assembly Door SAM-DC97-15975F
...
11
Assembly Frame Front SAM-DC97-15979X
...
12
Assydrum SAM-DC90-15183A
...
13
Assembly Motor Duct SAM-DC90-15188A
...
14
Assembly Duct Exhaust SAM-DC97-07519D
...
15
Assembly Duct Heater SAM-DC97-14486A
...
20
Bracket Duct SAM-DC61-03754A
