product name

Samsung DV22K6800EW_A1_0001

Model: DV22K6800EW_A1_0001

Save Part Not Listed?
product name

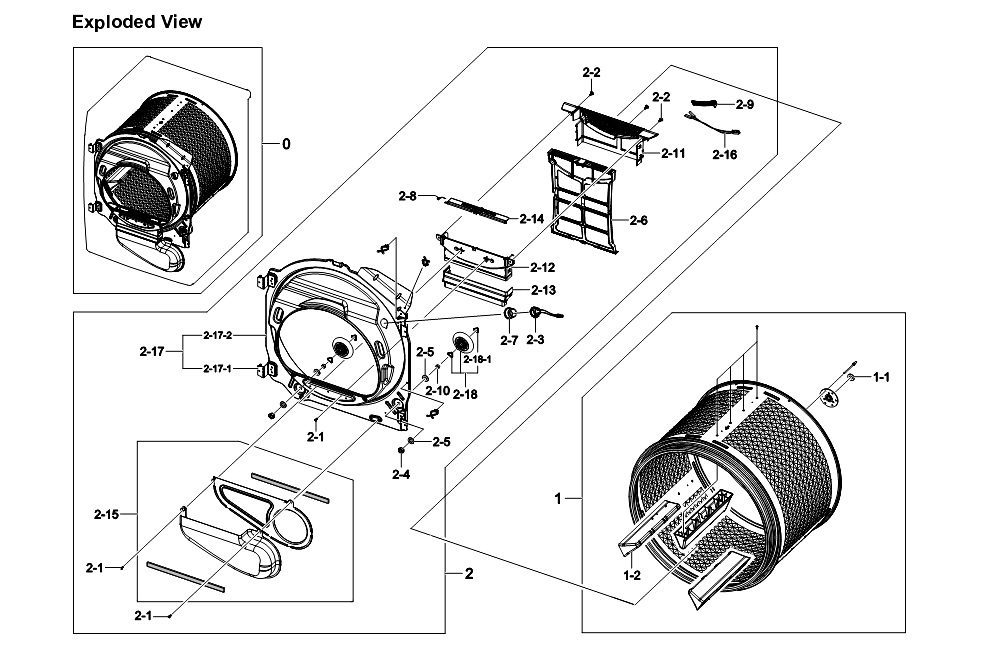

Assy Drum

...
...
0
Assembly Drum SAM-DC90-21269A
...
1-Feb
Screw-Tapping SAM-6002-000171
...
1-Jan
Washer-Plain SAM-6031-001683
...
1
Assembly Drum Wrapper SAM-DC97-15551A
...
2-Feb
Screw-Tapping SAM-6002-000475
...
2-Jan
Drum Lifter SAM-DC66-00541A
...
2
Assembly Drum Front SAM-DC97-19274A
...
2/17/2001
Bracket-Drum Front SAM-DC61-01236A
...
2/17/2002
Drum Front-R SAM-DC66-00543A
...
2/18/2001
Holder-Shaft SAM-DC61-01228A
...
3-Feb
Lamp SAM-DC47-00027F
...
4-Feb
Nut-Hex SAM-DC60-50145A
...
5-Feb
Washer SAM-DC60-60060A
...
6-Feb
Case Filter SAM-DC61-02273A
...
7-Feb
Fixer-Lamp SAM-DC61-02281A
...
8-Feb
Spring Etc Filter SAM-DC61-02338A
...
9-Feb
Plate Sensor SAM-DC61-02359A
...
10-Feb
Bush Support Drum SAM-DC61-03896A
...
11-Feb
Cover-Filter(b) SAM-DC63-01002A
...
12-Feb
Cover-Filter(b) SAM-DC63-01003A
...
13-Feb
Cover-Filter(f) SAM-DC63-01004A
...
14-Feb
Cover-Filter(u) SAM-DC63-01009A
...
15-Feb
Assembly Duct Outlet SAM-DC93-00063A
...
16-Feb
Assembly Wire Harness SAM-DC96-00766A
...
17-Feb
Assembly S.drum Front SAM-DC97-15780A
...
18-Feb
Assembly Roller SAM-DC97-16782A

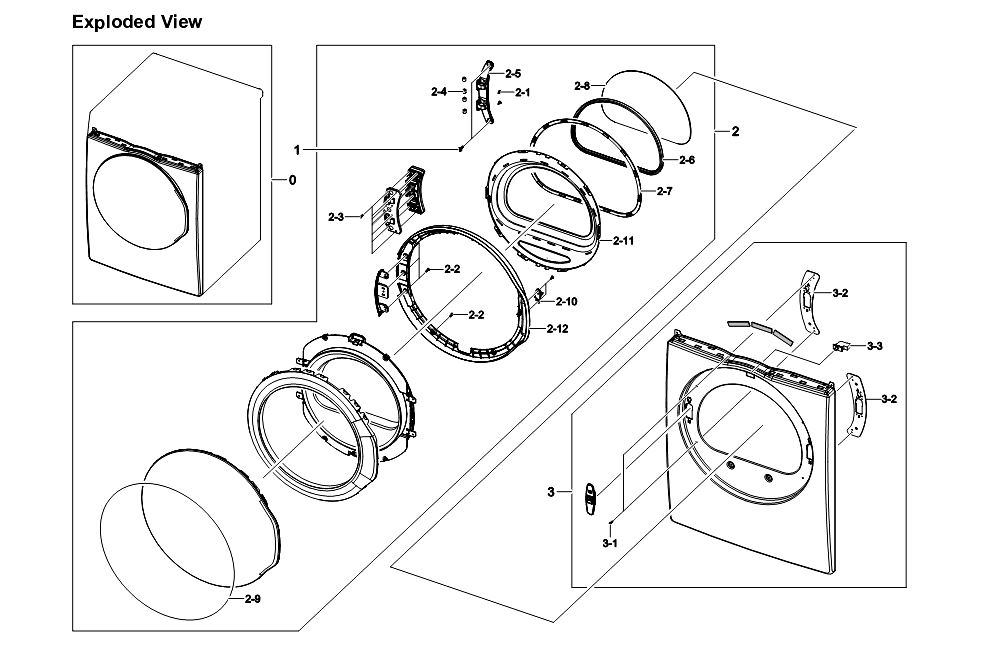

Assy Front

...
...
0
Assembly Front SAM-DC97-19240A
...
1-Feb
Screw-Tapping SAM-6002-000239
...
1-Mar
Screw-Machine SAM-6001-001773
...
1
Screw-Hex SAM-6009-001522
...
2-Feb
Screw-Tapping SAM-6002-000445
...
2-Mar
Bracket Hinge SAM-DC61-02669A
...
2
Assembly Door SAM-DC97-19237A
...
3-Feb
Screw-Tapping SAM-6002-000520
...
3-Mar
Door-S/w SAM-DC64-00828B
...
3
Assembly Frame Front SAM-DC97-19239A
...
4-Feb
Guide-Hinge SAM-DC61-00891A
...
5-Feb
Hinge Door SAM-DC61-03954A
...
6-Feb
Seal Door SAM-DC62-00270A
...
7-Feb
Seal Air SAM-DC62-00271A
...
8-Feb
Door Glass SAM-DC64-01841A
...
9-Feb
Inlay SAM-DC64-03188A
...
10-Feb
Lever Door SAM-DC66-00814A
...
11-Feb
Holder Glass SAM-DC61-04086A
...
12-Feb
Door Handle SAM-DC64-03366A

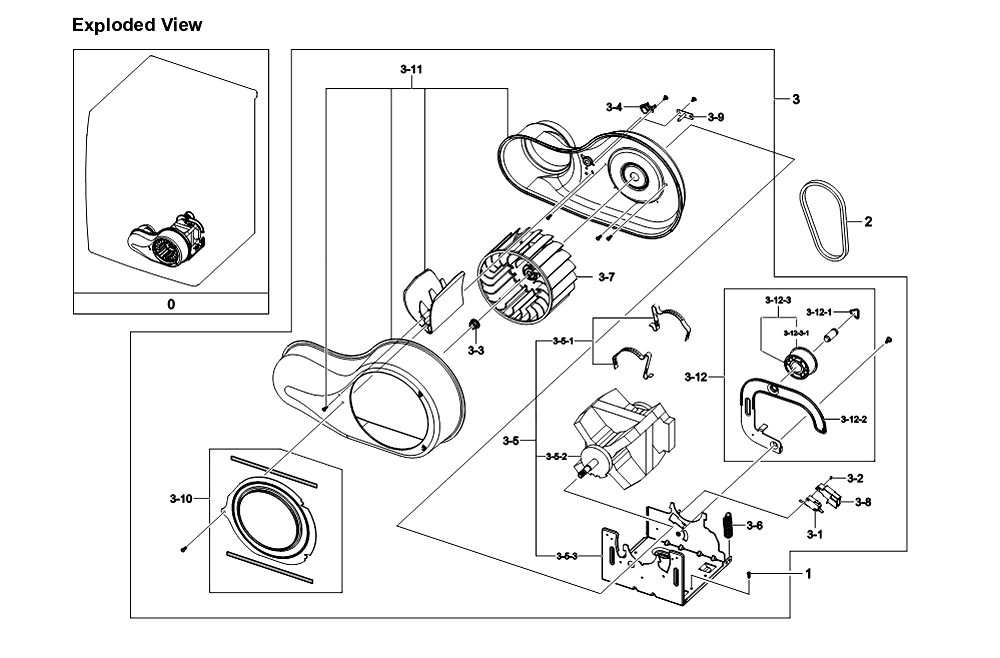

Assy Motor Duct

...
...
0
Assembly Motor Duct SAM-DC93-00610A
...
1-Mar
Switch-Micro SAM-3405-001118
...
1
Screw-Tapping SAM-6002-000520
...
2-Mar
Screw-Tapping SAM-6002-000488
...
2
Belt-Timing Gear SAM-6602-001717
...
3-Mar
Nut-Inch SAM-6021-001201
...
3
Assembly Motor SAM-DC93-00609A
...
3/12/2001
Holder-Shaft SAM-DC61-01228A
...
3/12/2002
Bracket Idler SAM-DC61-02260A
...
3/12/2003
Assembly Roller SAM-DC97-07509B
...
3/5/2001
Spring Plate SAM-DC61-04225A
...
3/5/2002
Motor Ac Drive SAM-DC31-00055K
...
3/5/2003
Bracket Motor SAM-DC61-02259A
...
4-Mar
Thermostat SAM-DC47-00031A
...
5-Mar
Assembly Bracket Motor SAM-DC96-00790F
...
6-Mar
Spring Tension SAM-DC61-01308B
...
7-Mar
Fan SAM-DC67-00411B
...
8-Mar
Cover-Switch SAM-DC63-00919A
...
9-Mar
Assembly Thermistor SAM-DC90-10128G
...
10-Mar
Assembly Duct Connector SAM-DC93-00070A
...
11-Mar
Assembly Cover Duct SAM-DC93-00073A
...
12-Mar
Assembly Bracket Idler SAM-DC93-00606A
...
12/3/2003
Roller-Idler SAM-DC66-00402A

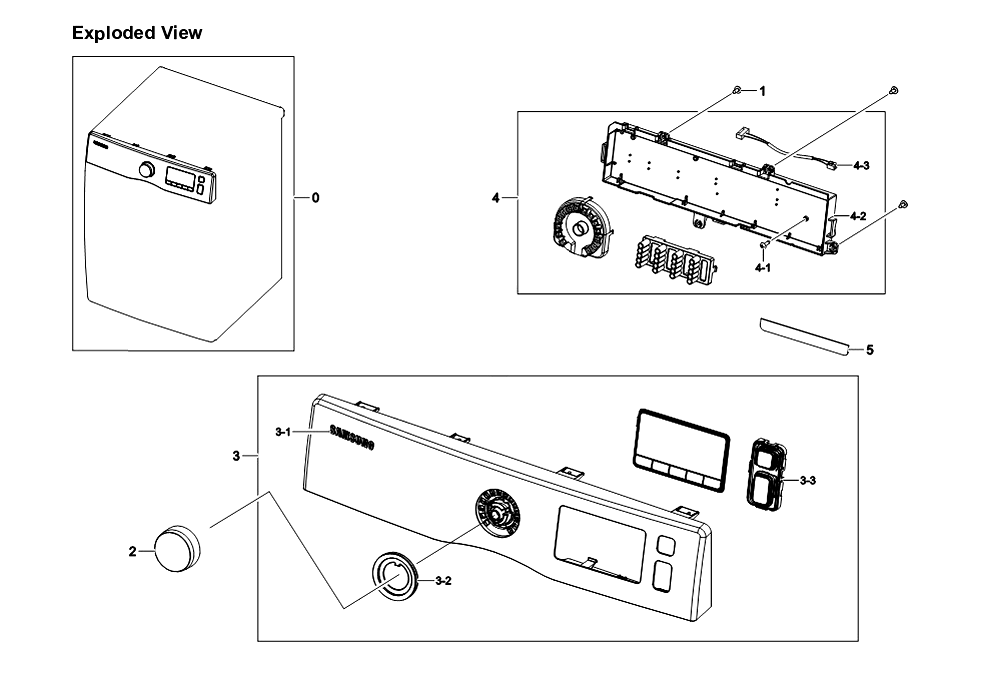

Assy Panel Control

...
...
0
Assembly Panel Control SAM-DC97-19236A
...
1-Apr
Screw-Tapping SAM-6002-000239
...
1-Mar
Mascot SAM-DA64-03804A
...
1
Screw-Tapping SAM-6002-001306
...
2-Apr
Cover Pcb-Sub SAM-DC63-01759A
...
2-Mar
Window Encoder SAM-DC64-02856B
...
2
Knob Encoder SAM-DC64-03312B
...
3-Apr
Assembly Flat Wire SAM-DC93-00431A
...
3-Mar
Assembly Button SAM-DC97-17392A
...
3
Assembly S.panel Control SAM-DC97-19233A
...
4
Assembly Pcb Display SAM-DC92-01852A
...
5
Assembly Sensor SAM-DC93-00540A

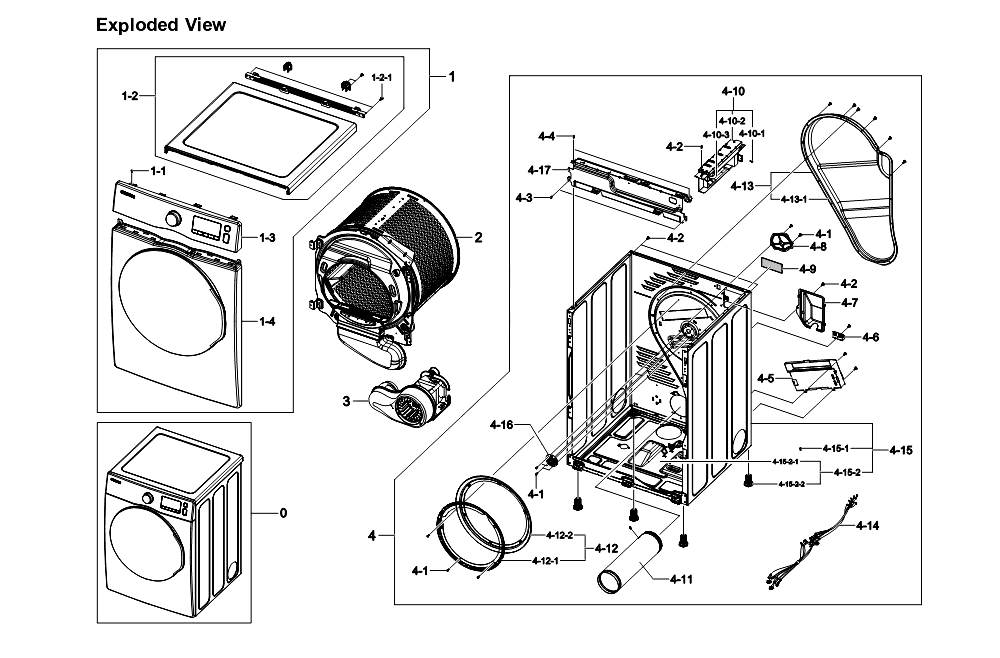

Main

...
...
1-Apr
Screw-Tapping SAM-6002-000239
...
1-Jan
Screw-Tapping SAM-6002-000520
...
1
Assembly Control SAM-DC90-21267A
...
1/2/2001
Screw-Tapping SAM-6002-001431
...
2-Apr
Screw-Tapping SAM-6002-000520
...
2-Jan
Assembly Cover Top SAM-DC97-19215A
...
2
Assembly Drum SAM-DC90-21269A
...
3-Apr
Screw-Tapping SAM-6002-001431
...
3-Jan
Assembly Panel Control SAM-DC97-19236A
...
3
Assembly Motor Duct SAM-DC93-00610A
...
4-Apr
Screw-Special SAM-6009-001240
...
4-Jan
Assembly Front SAM-DC97-19240A
...
4-15-2-1
Leg SAM-DC61-02447A
...
4-15-2-2
Plate-Bottom SAM-DC61-02264A
...
4
Assembly Frame Case SAM-DC90-21452A
...
4/10/2001
Screw-Tapping SAM-6002-000239
...
4/10/2002
Assembly Cover Pcb SAM-DC97-19280A
...
4/10/2003
Assembly Pcb Main SAM-DC92-01851A
...
4/12/2001
Bracket Gasket Felt SAM-DC61-02263A
...
4/12/2002
Assembly Gasket Felt Sub SAM-DC93-00093A
...
4/13/2001
Cover Back SAM-DC63-00996A
...
4/15/2001
Screw-Tapping SAM-6002-000239
...
4/15/2002
Bracket-Bottom SAM-DC61-02399A
...
5-Apr
Heater Dry SAM-DC47-00030H
...
6-Apr
Bracket Power SAM-DC61-02345A
...
7-Apr
Cover Power SAM-DC63-00993A
...
8-Apr
Cover Bearing SAM-DC63-00994A
...
9-Apr
Absorber Sponge SAM-DC63-10001J
...
10-Apr
Assembly Cover Pba-Main SAM-DC92-01860A
...
11-Apr
Assembly Duct Exhaust SAM-DC93-00059A
...
12-Apr
Assembly Gasket Felt SAM-DC93-00072A
...
13-Apr
Assembly Cover Back SAM-DC93-00105A
...
14-Apr
Assembly Wire Harness-Main SAM-DC93-00607A
...
15-Apr
Assembly Frame SAM-DC97-15555A
...
16-Apr
Assembly Housing Bearing SAM-DC97-15720A
...
17-Apr
Assembly Frame Plate-Up SAM-DC97-19278A

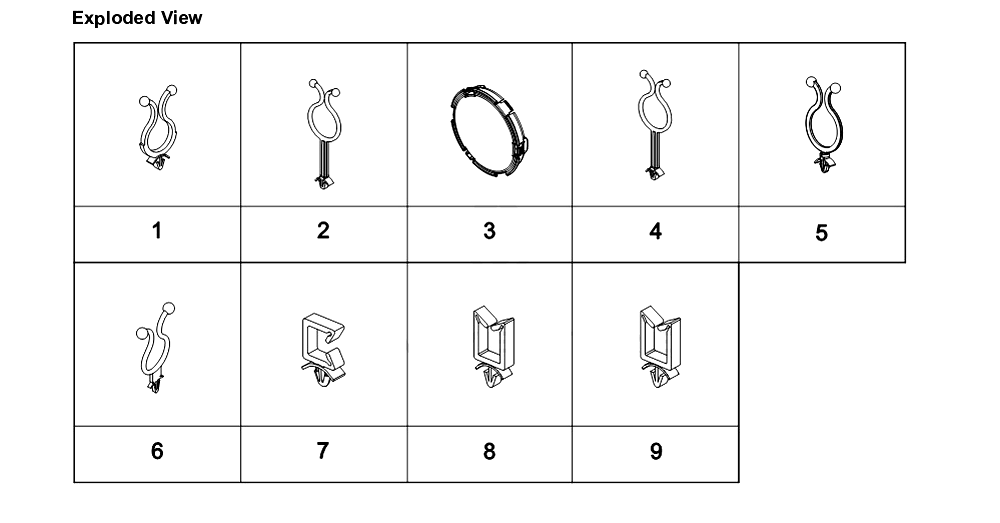

Small Parts

...
...
1
Holder-Wire SAM-DC61-40081A
...
2
Holder Wire SAM-DC61-01736A
...
3
Cap-Exhuast SAM-DC81-00167A
...
4
Holder Wire SAM-DC61-01736B
...
5
Holder Wire SAM-DC61-40083A
...
6
Cable Clamp SAM-6502-000127
...
7
Holder-Wire Saddle SAM-DC61-00553C
...
8
Cable Clamp SAM-DC61-00553B
...
9
Cable Clamp SAM-DC61-00553B
