Samsung DV219AGW_XAA

Model: DV219AGW_XAA

Save Part Not Listed?
product name

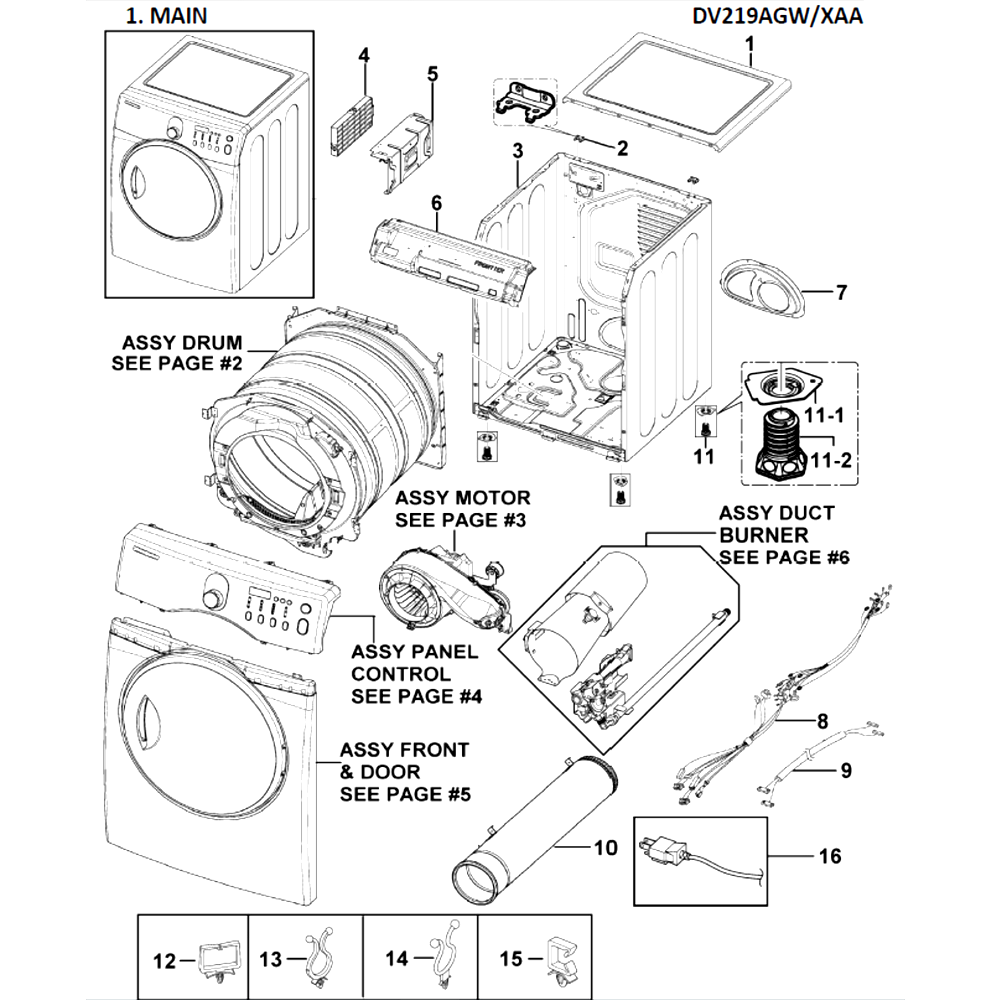

Main

...
...
1
Assembly Cover Top SAM-DC97-08634K
...
2
Bracket-Cover Top SAM-DC61-02020B
...
3
Assembly Frame SAM-DC97-07516B
...
4
Assembly Pcb Main SAM-DC92-00160A
...
5
Holder-Pcb SAM-DC61-01229A
...
6
Assembly Frame Plate(u) SAM-DC97-10912A
...
7
Cover-Back SAM-DC63-00534B
...
8
Assembly M. Wire Harness SAM-DC96-00765C
...
9
Assembly Flat Wire Harness SAM-DC96-00763A
...
10
Assembly Duct Exhaust SAM-DC97-07519A
...
11-1
Bracket-Leg SAM-DC61-01226A
...
11-2
Leg SAM-DC61-01693A
...
11
Assembly Leg SAM-DC97-12150A
...
12
Holder-Wire SAM-DC61-60074A
...
13
Holder-Wire SAM-DC61-40081A
...
14
Cable Clamp SAM-6502-000127
...
15
Holder-Wire Saddle SAM-DC61-00553C
...
16
Assembly Power Cord SAM-DC96-00038G

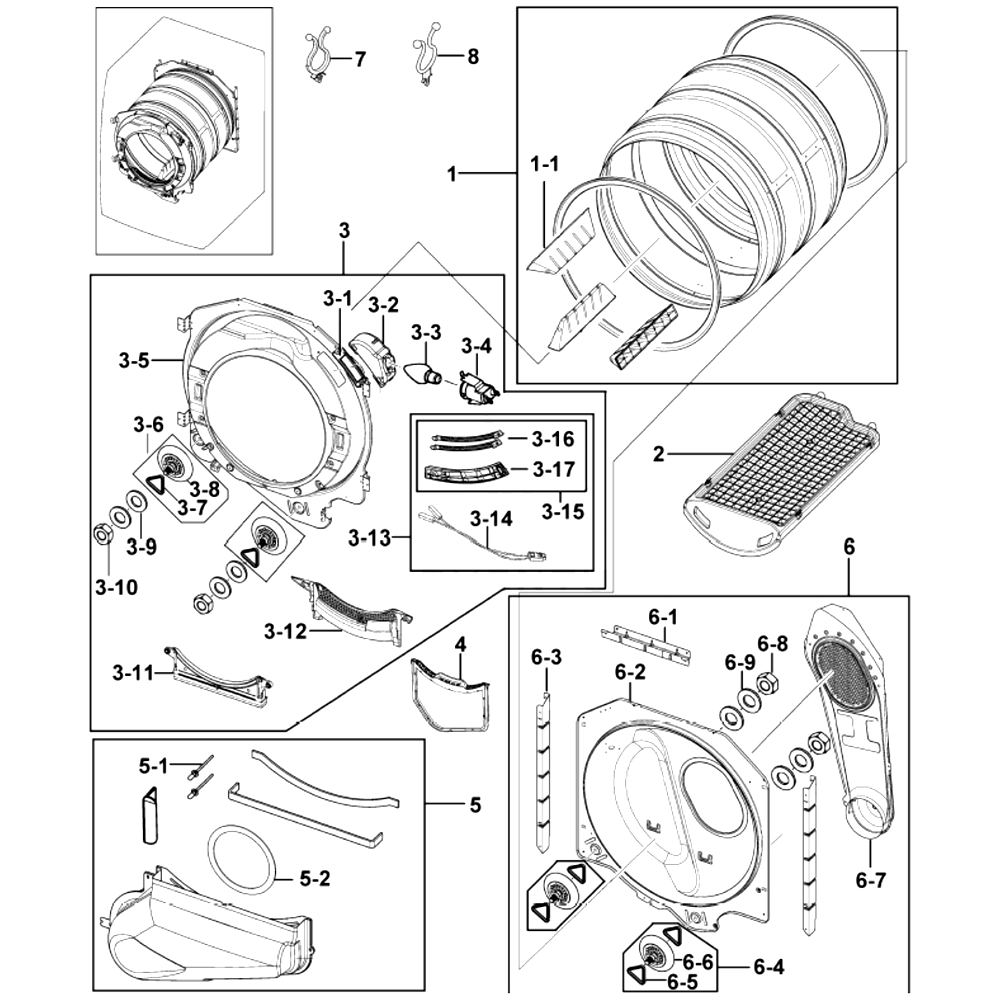

Assy Drum

...
...
1-1
Drum-Lifter SAM-DC66-00436A
...
1
Assembly Drum Wrapper SAM-DC97-10355C
...
2
Die-Rack Dry SAM-DC61-01522A
...
3-1
Cover-Lamp SAM-DC63-00531A
...
3-2
Guide-Lamp SAM-DC61-01220A
...
3-3
Lamp-Incandescent SAM-4713-001199
...
3-4
Socket-Lamp SAM-DC47-00021A
...
3-5
Assy-S.drum Front SAM-DC97-10362A
...
3-6
Assembly Roller SAM-DC97-16782A
...
3-7
Holder-Shaft SAM-DC61-01228A
...
3-8
Roller SAM-DC66-00394A
...
3-9
Washer SAM-DC60-60060A
...
3-10
Nut-Hex SAM-DC60-50145A
...
3-11
Cover-Filter(f) SAM-DC63-00538A
...
3-12
Cover-Filter(b) SAM-DC63-00675A
...
3-13
Assembly Guide Sensor(m) SAM-DC97-08894A
...
3-14
Assembly Wire Harness SAM-DC96-00766A
...
3-15
Assembly Guide Sensor SAM-DC97-08889A
...
3-16
Plate-Sensor SAM-DC61-01231A
...
3-17
Guide-Sensor SAM-DC61-01235A
...
3
Assembly Drum Front SAM-DC97-10354A
...
4
Case-Filter SAM-DC61-01521A
...
5-1
Rivet-Rh SAM-6041-001035
...
5-2
Absorber Sponge SAM-DC63-10001K
...
5
Assembly Duct Outlet SAM-DC97-07526B
...
6-1
Bracket-Drum Back SAM-DC61-01237A
...
6-2
Drum-Back SAM-DC66-00398C
...
6-3
Bracket-Drum Back SAM-DC61-01238A
...
6-4
Assembly Roller SAM-DC97-16782A
...
6-5
Holder-Shaft SAM-DC61-01228A
...
6-6
Roller SAM-DC66-00394A
...
6-7
Assembly Duct Air SAM-DC97-07521C
...
6
Assembly Drum Back SAM-DC97-08300B
...
7
Holder-Wire SAM-DC61-40081A
...
8
Stand Off SAM-6046-000310

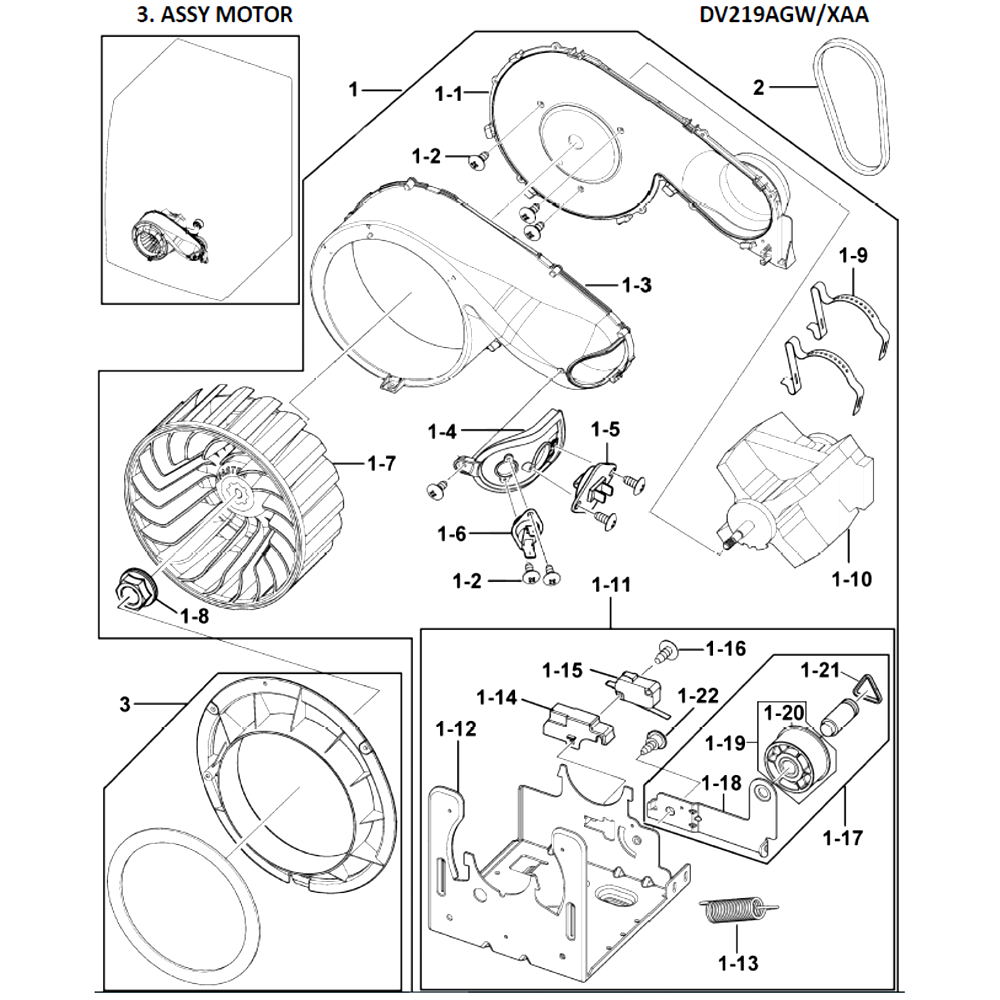

Assy Motor

...
...
1-1
Guide-Duct Fan SAM-DC61-01241A
...
1-2
Screw-Tapping SAM-6002-000470
...
1-3
Cover-Duct Fan SAM-DC63-00536A
...
1-4
Bracket-Thermistor SAM-DC61-01240A
...
1-5
Thermistor SAM-DC32-00007A
...
1-6
Thermostat SAM-DC47-00016A
...
1-7
Fan SAM-DC67-00180A
...
1-8
Nut-Inch SAM-6021-001201
...
1-9
Spring-Plate SAM-DC61-01214A
...
1-10
Motor Induction-Dryer SAM-DC31-00055D
...
1-11
Assembly Bracket Motor SAM-DC96-00790C
...
1-12
Bracket-Motor SAM-DC61-01213A
...
1-13
Spring Etc-Tension SAM-DC61-01215B
...
1-14
Cover-Switch SAM-DC63-00919A
...
1-15
Switch-Micro SAM-3405-001077
...
1-16
Screw-Tapping SAM-6002-000488
...
1-17
Assembly Bracket Idler SAM-DC96-00882C
...
1-18
Bracket-Idler SAM-DC61-01230B
...
1-19
Assembly Roller SAM-DC97-07509B
...
1-20
Roller-Idler SAM-DC66-00402A
...
1-21
Holder-Shaft SAM-DC61-01228A
...
1-22
Screw-Special SAM-6009-001342
...
1
Assembly Motor SAM-DC96-01112E
...
2
Belt-Timing Gear SAM-6602-001655
...
3
Assembly Duct Connector SAM-DC97-07895A

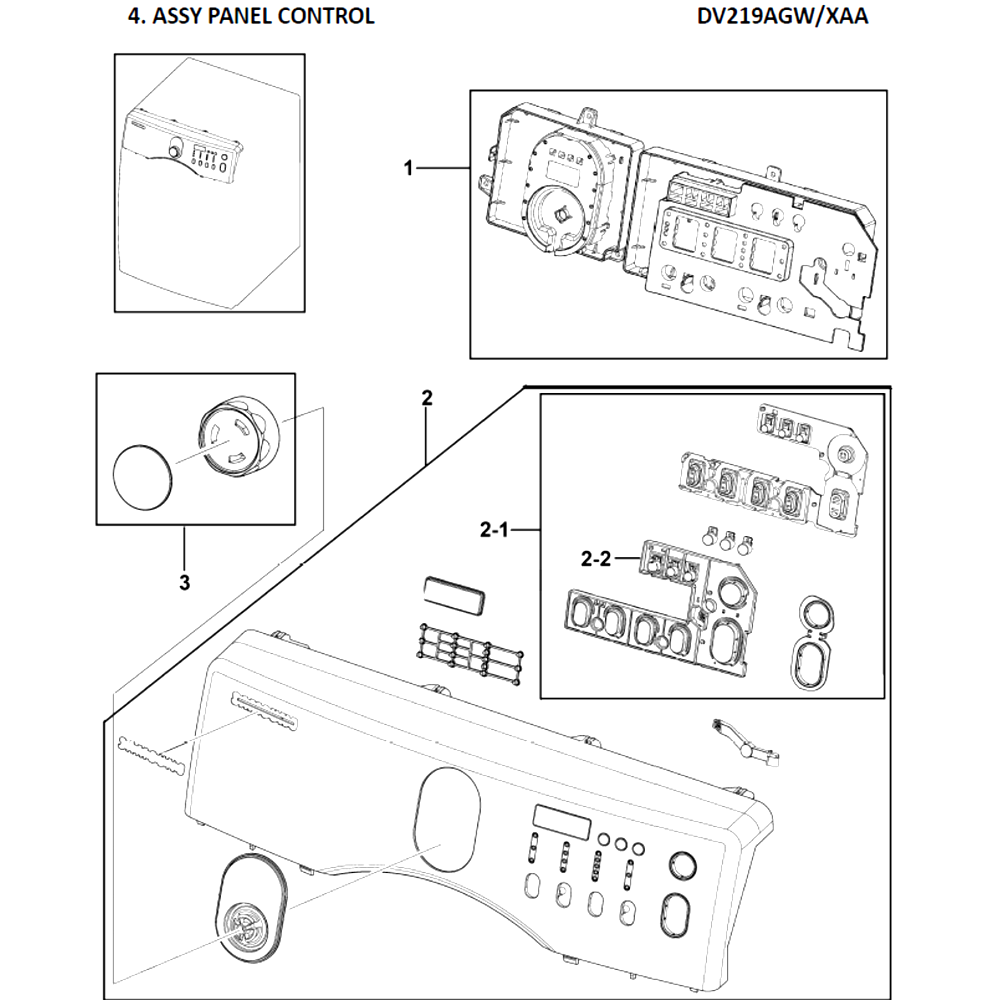

Assy Panel Control

...
...
1
Assembly Pcb Sub SAM-DC92-00162B
...
2-1
Assembly Button SAM-DC97-15333A
...
2-2
Button-Push SAM-DC64-01623A
...
2
Assembly S.panel Control SAM-DC97-14869A
...
3
Assembly Knob Encoder SAM-DC97-12954E

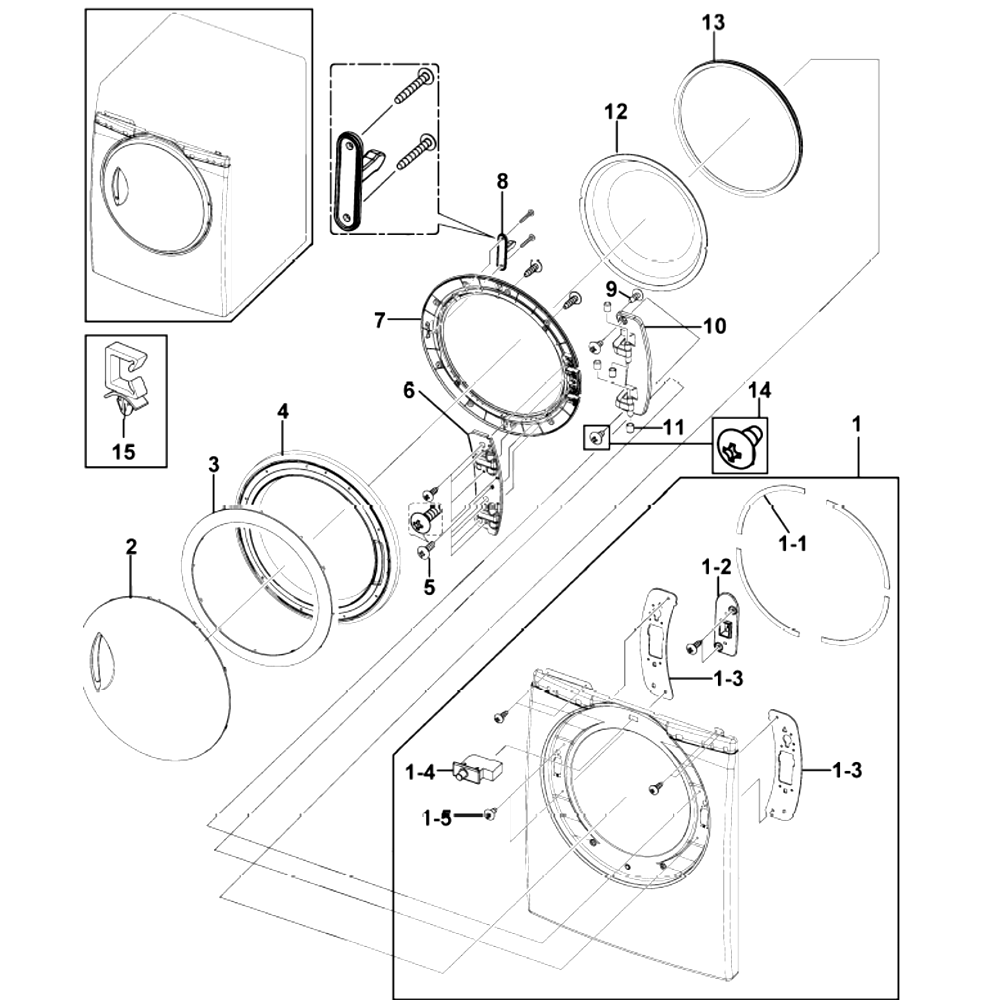

Assy Frame And Door

...
...
1-1
Absorber Sponge SAM-DC63-10001C
...
1-2
Assembly Holder Lever SAM-DC97-07510B
...
1-3
Bracket-Hinge SAM-DC61-01222A
...
1-4
Door-S/w SAM-DC64-00828A
...
1-5
Screw-Machine SAM-6001-001773
...
1
Assembly Frame Front SAM-DC97-10353A
...
2
Door-Safety SAM-DC64-01354B
...
3
Decoration-Door SAM-DC64-01366B
...
4
Assembly Cover Door SAM-DC97-12609E
...
5
Screw-Machine SAM-6001-001668
...
6
Support-Hinge SAM-DC61-01576A
...
7
Holder-Glass SAM-DC61-01523A
...
8
Lever-Door SAM-DC66-00395A
...
9
Screw-Tapping SAM-6002-000241
...
10
Hinge-Door SAM-DC61-01532B
...
11
Guide-Hinge SAM-DC61-00891A
...
12
Door-Glass SAM-DC64-00993A
...
13
Seal-Door SAM-DC62-00262A
...
14
Screw-Machine SAM-6001-001773
...
15
Holder-Wire Saddle SAM-DC61-00553C

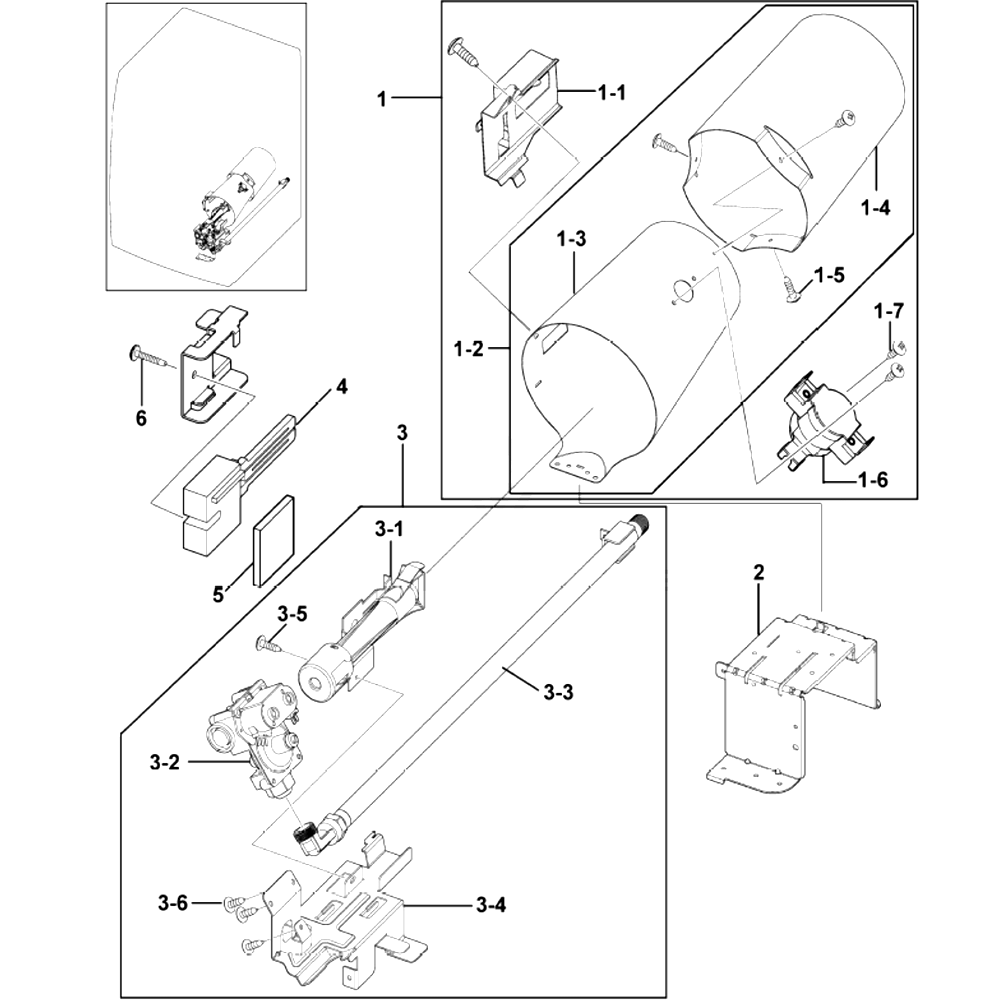

Assy Duct Burner

...
...
1-1
Sensor-Radiant SAM-DC32-00008A
...
1-2
Assembly Duct Cone SAM-DC97-07602B
...
1-3
Duct-Cone(f) SAM-DC67-00136B
...
1-4
Duct-Cone(b) SAM-DC67-00137B
...
1-5
Screw-Tapping SAM-6002-000231
...
1-6
Thermostat SAM-DC47-00017A
...
1-7
Screw-Tapping SAM-6002-000231
...
1
Assembly Duct SAM-DC97-10720A
...
2
Die-Heater SAM-DC61-01224A
...
3-1
Tube-Burner SAM-DC62-00200A
...
3-2
Valve-Gas SAM-DC62-00201A
...
3-3
Assembly Pipe SAM-DC99-00507A
...
3-4
Bracket-Burner SAM-DC61-01232A
...
3-5
Screw-Hex SAM-6009-001476
...
3-6
Screw-Tapping SAM-6006-001174
...
3
Assembly Burner SAM-DC97-14492A
...
4
Heater-Igniter SAM-DC47-00022A
...
5
Absorber-Ignitor SAM-DC63-00623A
...
6
Assembly Screw SAM-DC97-09193A
