Samsung DMR78AHS/XAA

Model: DMR78AHS/XAA

Save Part Not Listed?
product name

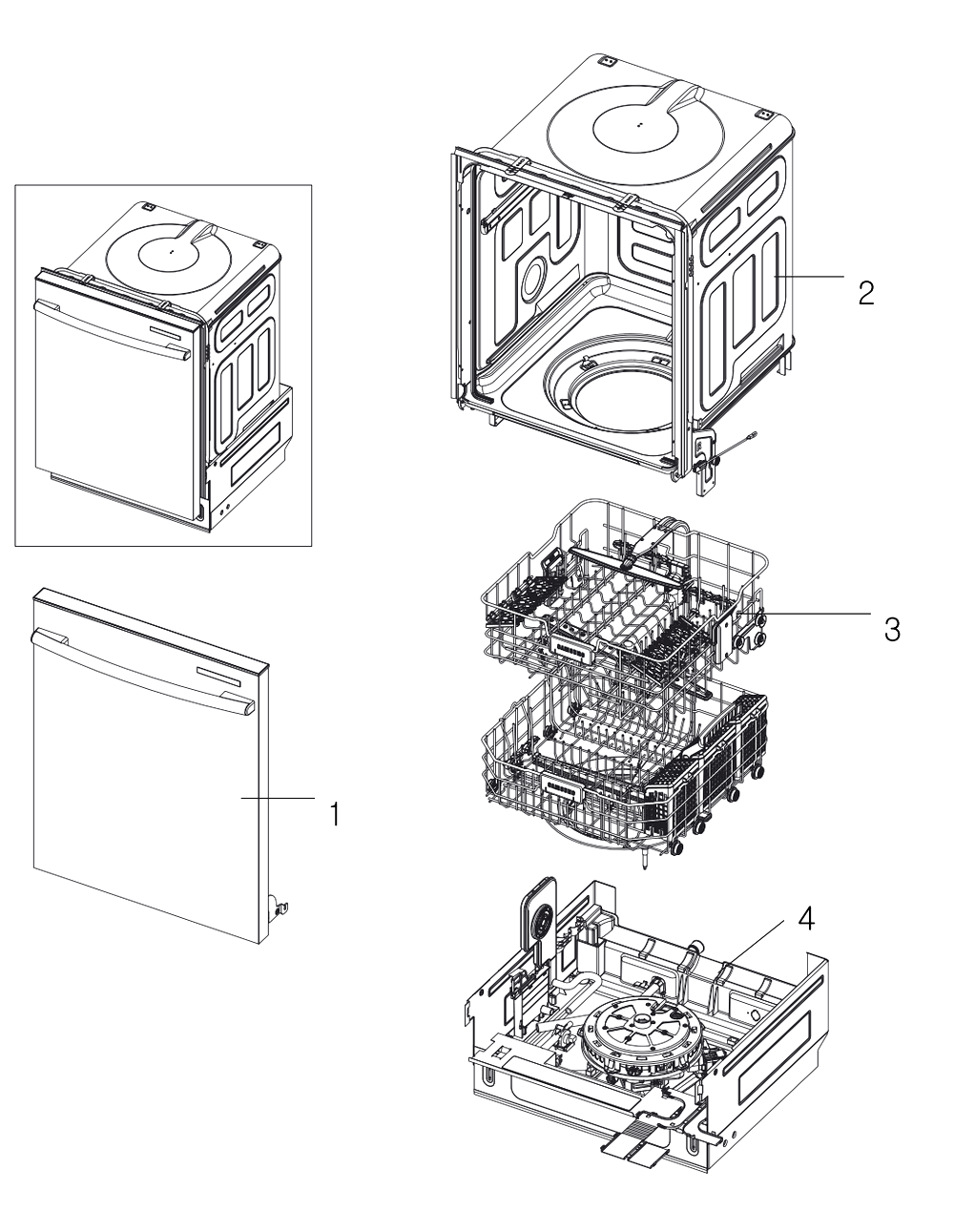

Main

...
...
1
Assy-Door SAM-DD97-00103B
...
2
Assy-Tub SAM-DD97-00113A
...
3
Assy-Case SAM-DD94-01001A
...
4
Assy-Base SAM-DD97-00110A

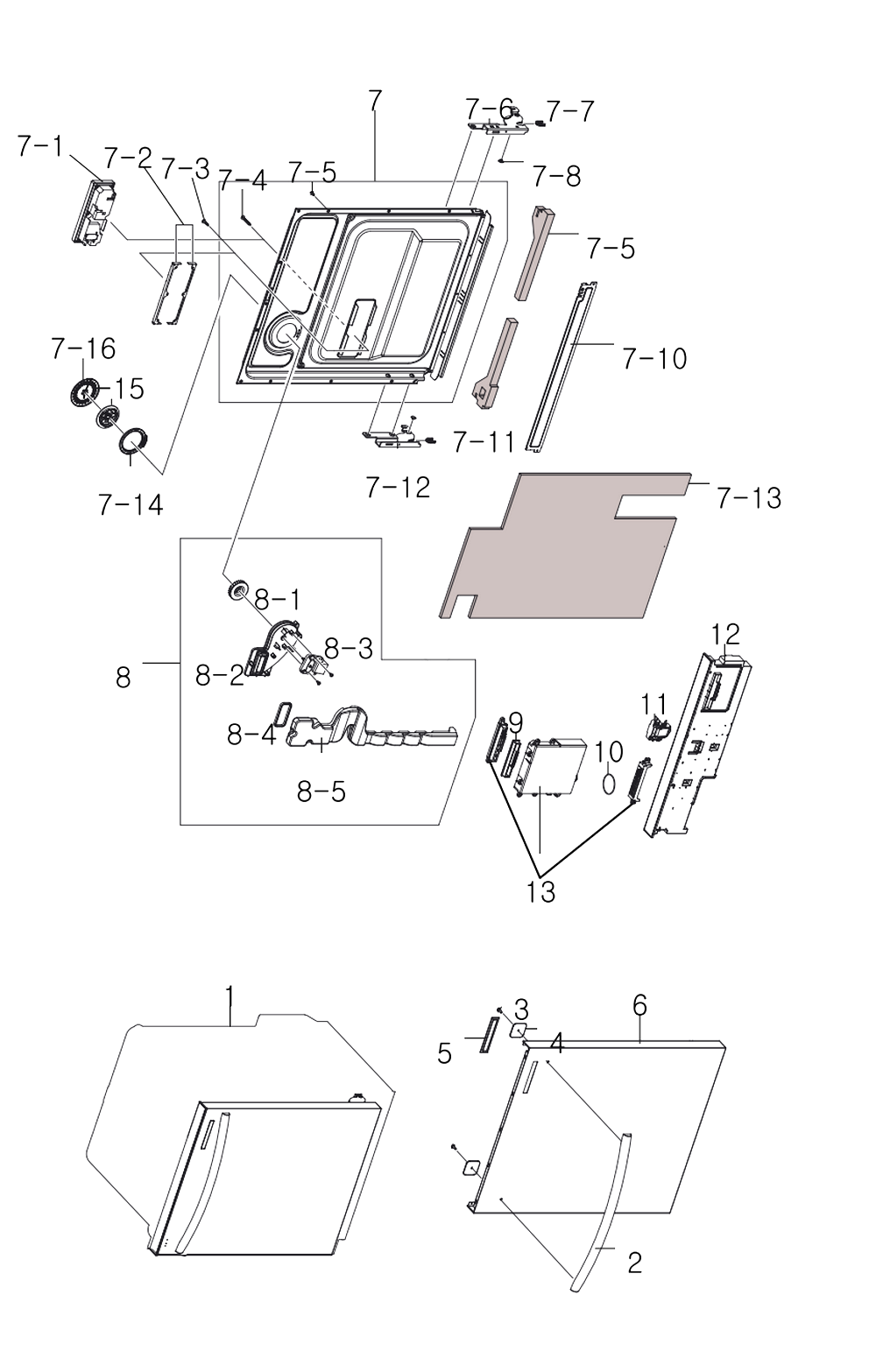

Assembly Door

...
...
1
Assy-Door SAM-DD97-00103B
...
2
Handle-Door SAM-DD64-00060A
...
3
Bolt-Hex SAM-6011-001805
...
4
Holder-Bolt SAM-DD61-00243A
...
5
Window-Panel Front SAM-DD64-00041A
...
6
Frame-Front SAM-DD61-00201D
...
7-1
Dispenser-Rinse -Aid SAM-DD59-01001A
...
7-2
Bracket-Dispensor SAM-DD61-00103A
...
7-3
Screw-Door(m) SAM-DD81-01152A
...
7-4
Screw-Door(l) SAM-DD81-01153A
...
7-5
Cushion-Duct(r) SAM-DD63-00094A
...
7-6
Door-Link(r) SAM-DD64-00046A
...
7-7
Guide-Door Link SAM-DD61-00207A
...
7-8
Spacer-Door Link SAM-DD60-00001A
...
7-10
Bracket-Door Link SAM-DD61-00205A
...
7-11
Cushion-Duct(l) SAM-DD63-00066A
...
7-12
Door-Link(l) SAM-DD64-00047A
...
7-13
Absorber-Sound(front) SAM-DD63-00059A
...
7-14
Seal-Fan SAM-DD62-00044A
...
7-15
Cover-Fan SAM-DD63-00065A
...
7-16
Bracket-Cover Fan SAM-DD61-00203A
...
7
Assy-Tub Front SAM-DD97-00106A
...
8-1
Fan-Vent SAM-DD67-00038A
...
8-2
Assy-Case Vent SAM-DD97-00147A
...
8-3
Motor Ventilation SAM-DD31-00006A
...
8-4
Seal-Vent SAM-DD62-00049A
...
8-5
Duct-Condenser SAM-DD67-00037A
...
8
Assy-Condensing SAM-DD97-00107A
...
9
Seal-Guide Led(f) SAM-DD62-00047A
...
10
Seal-Guide Led SAM-DD62-00045A
...
11
Switch Door-Lock SAM-DD34-00002B
...
12
Window-Panel Front SAM-DD64-00041A
...
13
Assembly Pcb Main SAM-DE92-02130A

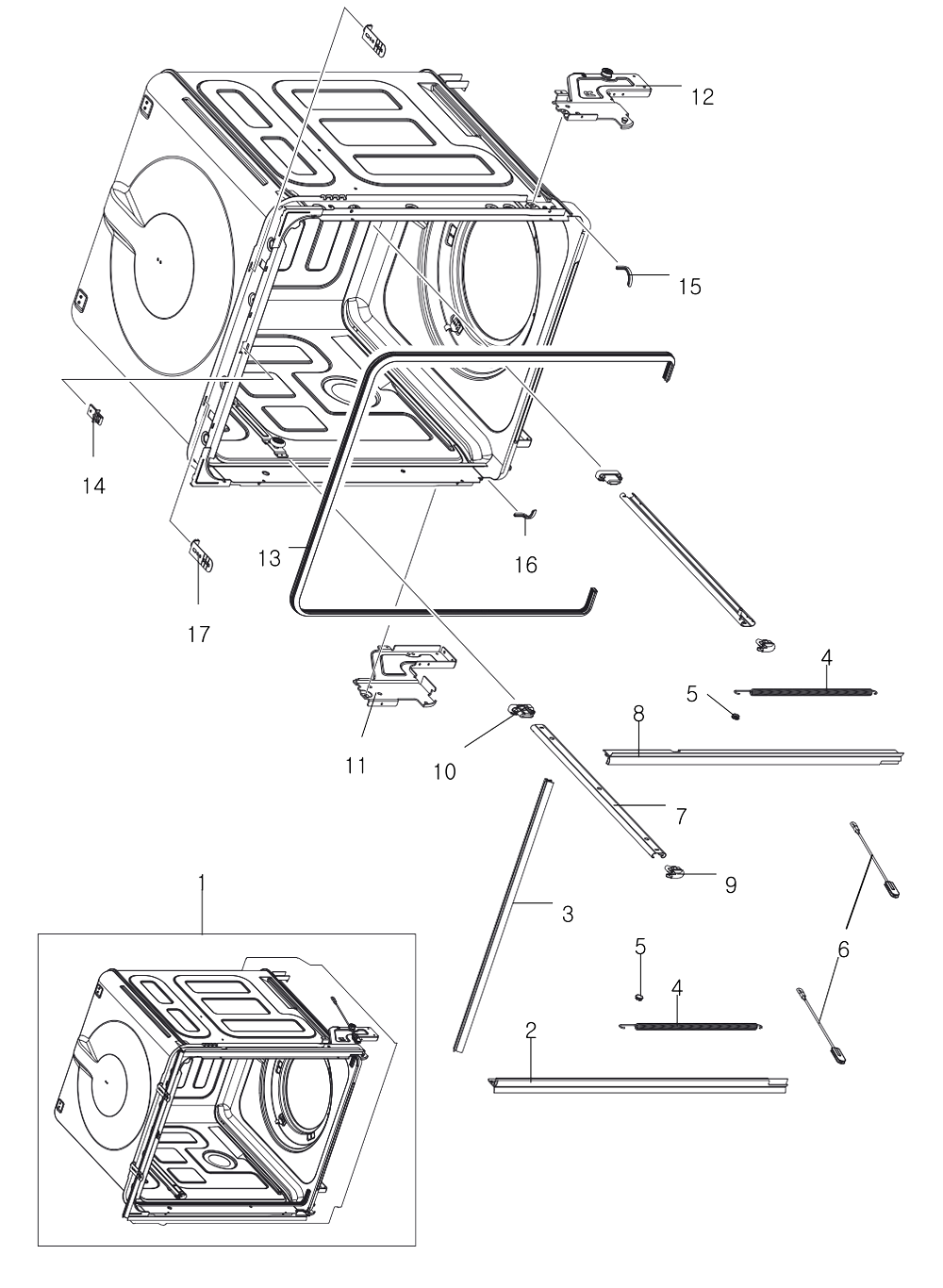

Assembly Tub

...
...
1
Assy-Tub SAM-DD97-00113A
...
2
Packing-Noise Side(l) SAM-DD69-00016A
...
3
Packing-Noise Top SAM-DD69-00014A
...
4
Spring Etc SAM-DD61-00245A
...
5
Cap-Tub Spacer SAM-DD67-00040A
...
6
Rope-Door Spring SAM-DD67-00039A
...
7
Rail-Basket SAM-DD61-00174A
...
8
Packing-Noise Side(r) SAM-DD69-00015A
...
9
Stopper-Rail SAM-DD61-00182A
...
10
Stopper-Rail SAM-DD61-00183A
...
11
Assy-Support Link(l) SAM-DD97-00115A
...
12
Assy-Support Link(r) SAM-DD97-00114A
...
13
Seal-Tub Front SAM-DD62-00043A
...
14
Holder-Door Lock SAM-DD61-00175A
...
15
Guide-Tub Edge(r) SAM-DD61-00177A
...
16
Guide-Tub Edge(l) SAM-DD61-00178A
...
17
Bracket-Install SAM-DD61-00176A

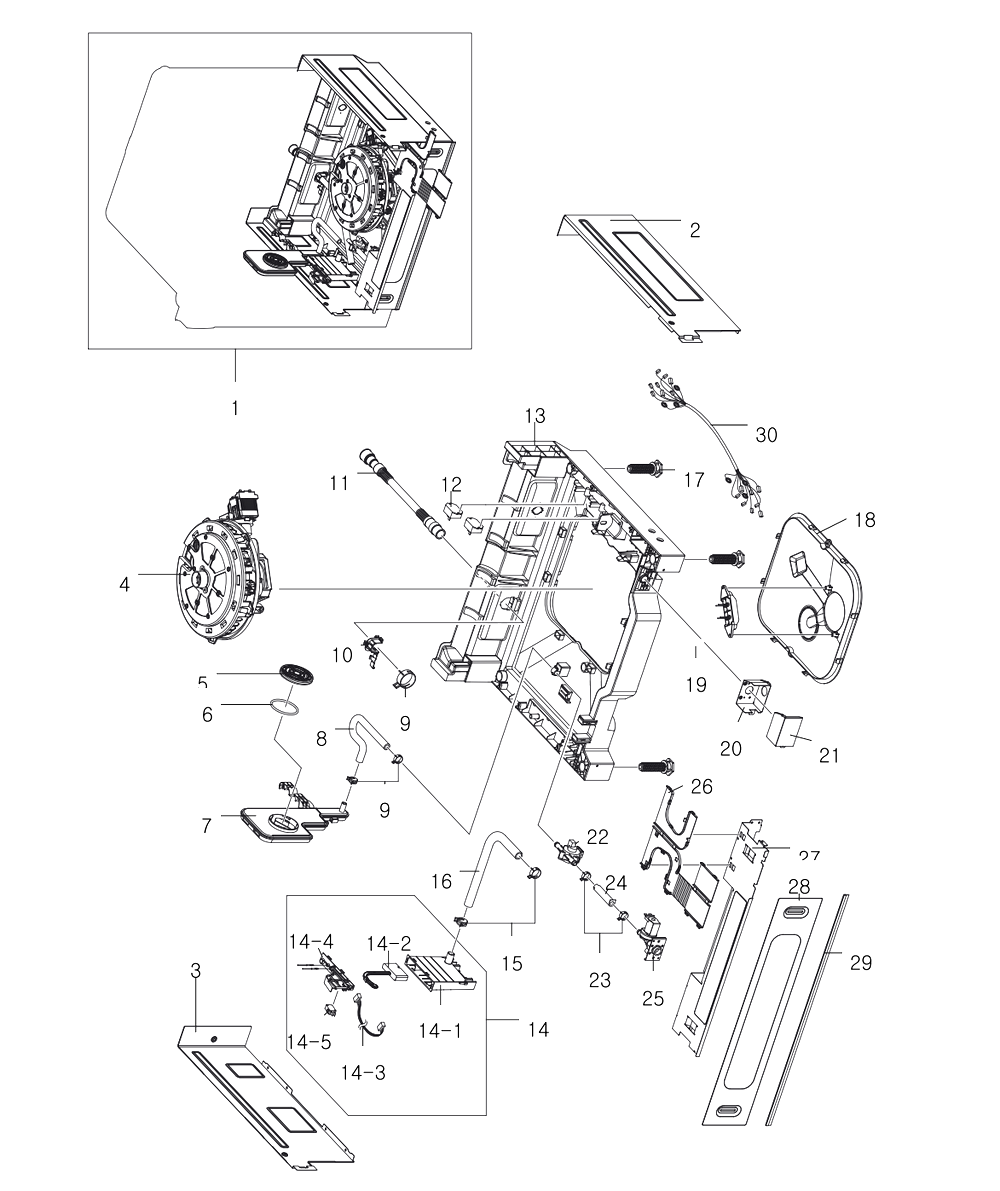

Assembly Base

...
...
1
Assy-Base SAM-DD97-00110A
...
2
Frame-Right SAM-DD61-00209A
...
3
Frame-Left SAM-DD61-00208A
...
4
Assy-Sump SAM-DD97-00111A
...
5
Cover-Brake SAM-DD63-00073A
...
6
Gasket-Brake SAM-DD63-00072A
...
7
Assy-Case Brake SAM-DD97-00132A
...
8
Hose-Inlet Flow SAM-DD67-00046A
...
9
Clamper Hose SAM-DD65-00001G
...
10
Holder-Hose Drain SAM-DD61-00230A
...
11
Assy-Hose Drain SAM-DD97-00137A
...
12
Relay-Power SAM-3501-000260
...
13
Base SAM-DD61-00233A
...
14-1
Case-Sensor SAM-DD61-00236A
...
14-2
Lever-Float SAM-DD66-00034A
...
14-3
Assy-Wire Harness SAM-DD96-00043A
...
14-4
Cover-Sensor SAM-DD63-00083A
...
14-5
Switch-Micro SAM-DD34-00003A
...
14
Assy-Sensor Level SAM-DD97-00131A
...
15
Clamper Hose SAM-DD65-00001H
...
16
Hose-Sensor SAM-DD67-00047A
...
17
Leg-Adjust SAM-DD61-00232A
...
18
Shutter SAM-DD64-00055A
...
19
Assy-Sensor Leak SAM-DD97-00130A
...
20
Case-Power Cord SAM-DD61-00229A
...
21
Cover-Power Cord SAM-DD63-00082A
...
22
Sensor-Flow SAM-DD32-00004A
...
23
Clamper Hose SAM-DD65-00001J
...
24
Hose-Inlet SAM-DD67-00045A
...
25
Valve-Water SAM-DD62-00067A
...
26
Guide-Wire SAM-DD61-00234A
...
27
Bracket-Front Lower SAM-DD61-00231A
...
28
Cover-Front Lower SAM-DD63-00081A
...
29
Packing-Noise Base SAM-DD69-00017A
...
30
Assy-Wire Harness SAM-DD96-00043A

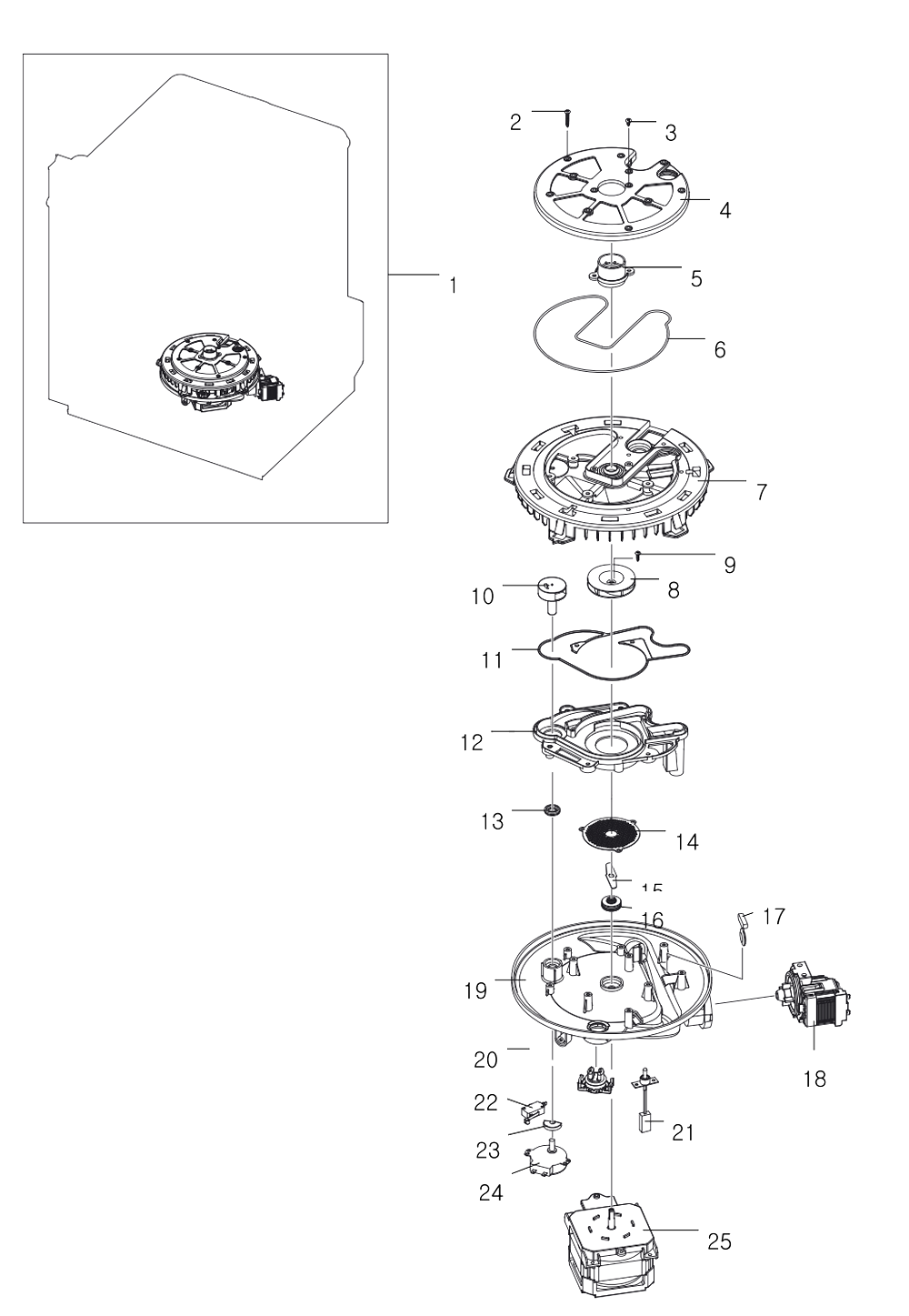

Assembly Sump

...
...
1
Assy-Sump SAM-DD97-00111A
...
2
Screw-Sump(s) SAM-DD81-01149A
...
3
Screw-Sump(l) SAM-DD81-01150A
...
4
Assy-Filter Mesh SAM-DD97-00133A
...
5
Holder-Nozzle(l) SAM-DD61-00241A
...
6
Seal-Filter Mesh SAM-DD62-00052A
...
7
Assy-Cover Sump SAM-DD97-00134A
...
8
Assy-Impeller SAM-DD97-00136A
...
9
Screw-Motor Impeller SAM-DD81-01172A
...
10
Valve-Distributer SAM-DD62-00066A
...
11
Seal-Rubber Scroll SAM-DD62-00055A
...
12
Case-Scroll SAM-DD61-00240A
...
13
Seal-Distributer SAM-DD62-00054A
...
14
Filter-Circulation SAM-DD63-00087A
...
15
Cutter-Disposer SAM-DD70-01001A
...
16
Seal-Oil SAM-DD62-00053A
...
17
Vane-Check Drain SAM-DD66-00019A
...
18
Pump-Drain SAM-DD31-00005A
...
19
Case-Sump SAM-DD61-00239A
...
20
Sensor-Turbidity SAM-DD32-00003A
...
21
Thermistor SAM-DD32-00001A
...
22
Switch-Micro SAM-DD34-00004A
...
23
Cam-Switch SAM-DD66-00035A
...
24
Motor Synchronous SAM-DD31-00007A
...
25
Pump-Circulation SAM-DD31-00004A

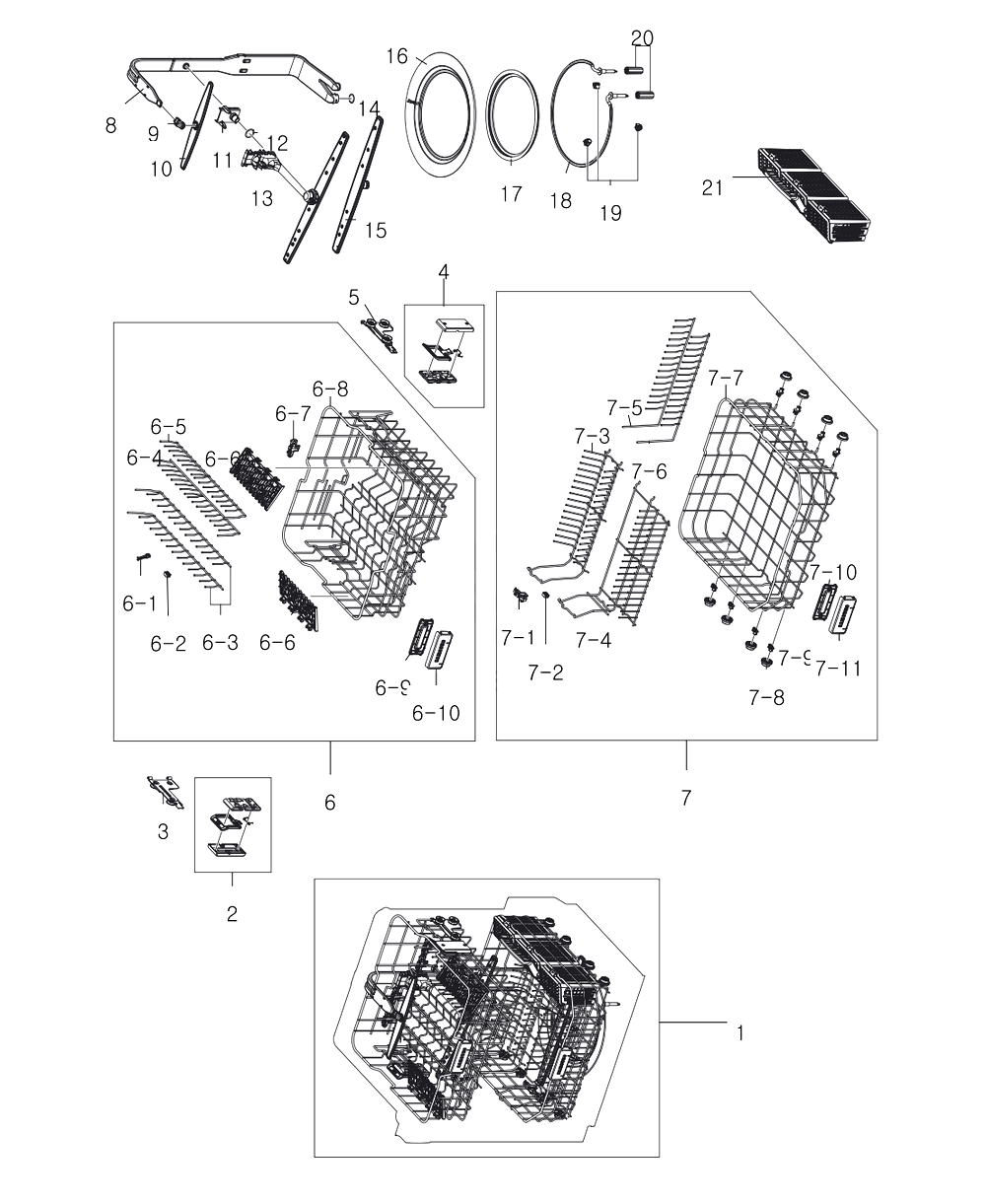

Assembly Case

...
...
1
Assy-Case SAM-DD94-01001A
...
2
Assy-Basket Adjuster(l) SAM-DD97-00120A
...
3
Assy-Bracket Adjuster(l) SAM-DD97-00121A
...
4
Assy-Basket Adjuster(r) SAM-DD97-00119A
...
5
Assy-Bracket Adjuster(r) SAM-DD97-00122A
...
6-1
Clip-Cup SAM-DD61-00219A
...
6-2
Holder-Tine(s) SAM-DD61-00217A
...
6-3
Wire-Tine Upper(s) SAM-DD66-00028A
...
6-4
Wire-Tine Upper(r) SAM-DD66-00027A
...
6-5
Wire-Tine Upper(l) SAM-DD66-00026A
...
6-6
Support-Cup SAM-DD61-00218A
...
6-7
Holder-Tine SAM-DD61-00216A
...
6-8
Basket-Upper SAM-DD61-00179A
...
6-9
Handle-Basket(l) SAM-DD64-00057A
...
6-10
Handle-Basket(u) SAM-DD64-00058A
...
6
Assy-Basket Upper SAM-DD97-00117A
...
7-1
Holder-Tine SAM-DD61-00216A
...
7-2
Holder-Tine(s) SAM-DD61-00217A
...
7-3
Wire-Tine Lower(b) SAM-DD66-00030A
...
7-4
Wire-Tine Lower(f) SAM-DD66-00029A
...
7-5
Wire-Tine Lower(l) SAM-DD66-00032A
...
7-6
Wire-Tine Lower(r) SAM-DD66-00031A
...
7-7
Basket-Lower SAM-DD61-00215A
...
7-8
Roller-Basket(l) SAM-DD66-00023A
...
7-9
Holder-Roller SAM-DD61-00222A
...
7-10
Handle-Basket(l) SAM-DD64-00057A
...
7-11
Handle-Basket(u) SAM-DD64-00058A
...
7
Assy-Basket Lower SAM-DD97-00123A
...
8
Duct-Nozzle SAM-DD67-00041A
...
9
Holder-Nozzle(u) SAM-DD61-00228A
...
10
Assy-Nozzle(u) SAM-DD97-00127A
...
11
Cover-Duct Nozzle SAM-DD63-00069A
...
12
Packing-Duct SAM-DD69-00019A
...
13
Assy-Nozzle(m) SAM-DD97-00126A
...
14
Seal-Duct Nozzle SAM-DD62-00068A
...
15
Assy-Nozzle(l) SAM-DD97-00128A
...
16
Cover-Heater SAM-DD63-00071A
...
17
Seal-Sump SAM-DD62-00050A
...
18
Heater SAM-DD47-00003A
...
19
Holder-Sump SAM-DD61-00212A
...
20
Holder-Heater SAM-DD61-00211A
...
21
Assy-Case Spoon SAM-DD97-00125A
