Samsung DMR57LFB_XAA

Model: DMR57LFB_XAA

Save Part Not Listed?

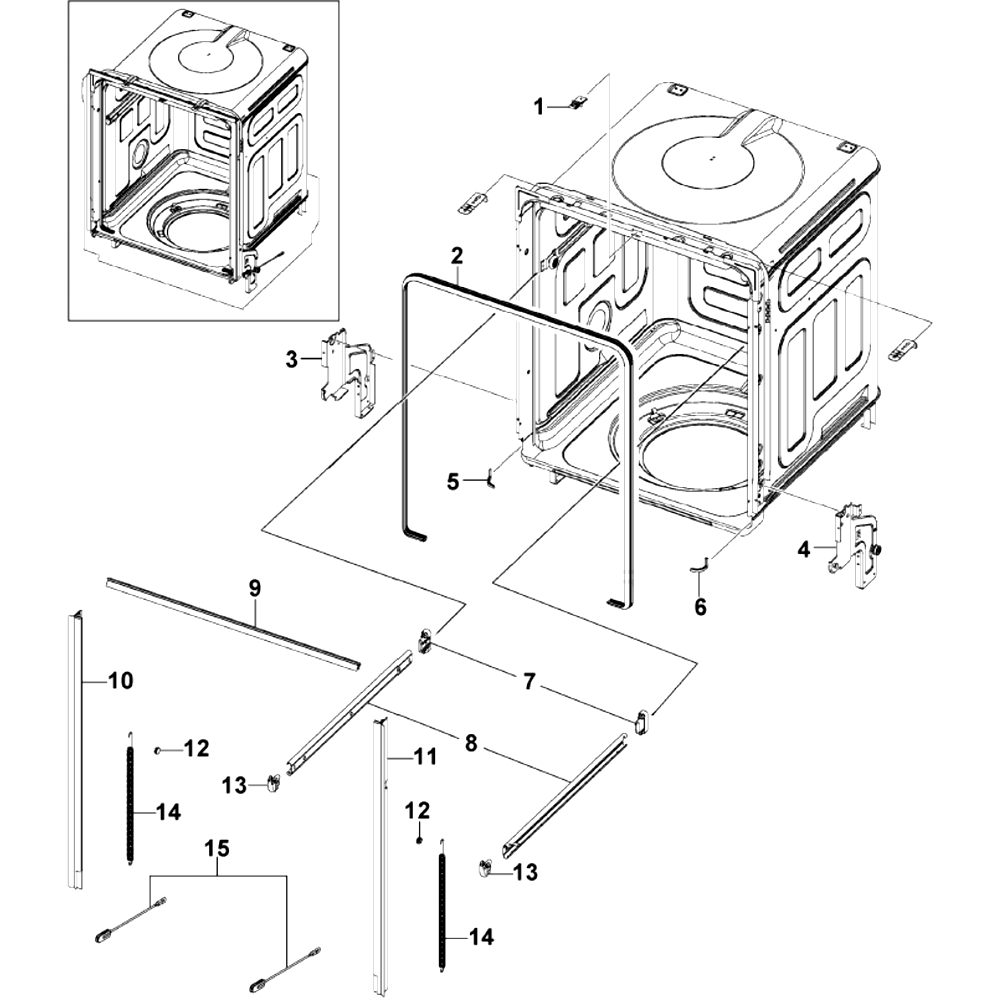

product name

Assy Tub

...
...
1
Holder-Door Lock SAM-DD61-00175A
...
2
Seal-Tub Front SAM-DD62-00043A
...
3
Assy-Support Link(l) SAM-DD97-00115A
...
4
Assy-Support Link(r) SAM-DD97-00114A
...
5
Guide-Tub Edge(l) SAM-DD61-00178A
...
6
Guide-Tub Edge(r) SAM-DD61-00177A
...
7
Stopper-Rail SAM-DD61-00183A
...
8
Rail-Basket SAM-DD61-00174A
...
9
Packing-Noise Top SAM-DD69-00014A
...
10
Packing-Noise Side(l) SAM-DD69-00016A
...
11
Packing-Noise Side(r) SAM-DD69-00015A
...
12
Cap-Tub Spacer SAM-DD67-00040A
...
13
Stopper-Rail SAM-DD61-00182A
...
14
Spring Etc SAM-DD61-00245A
...
15
Rope-Door Spring SAM-DD67-00039A

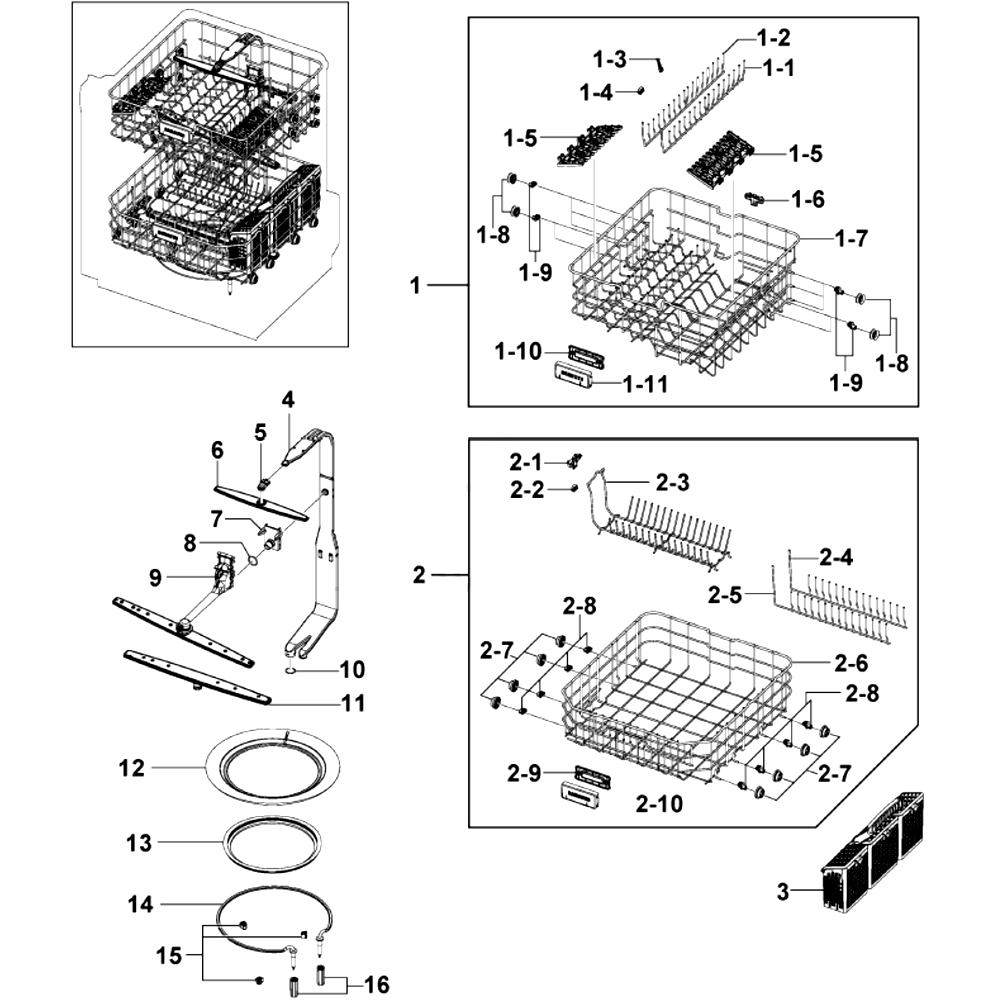

Assy Case

...
...
1-1
Wire-Tine Upper(l) SAM-DD66-00026A
...
1-2
Wire-Tine Upper(r) SAM-DD66-00027A
...
1-3
Clip-Cup SAM-DD61-00219A
...
1-4
Holder-Tine(s) SAM-DD61-00217A
...
1-5
Support-Cup SAM-DD61-00218B
...
1-6
Holder-Tine SAM-DD61-00216A
...
1-7
Basket-Upper SAM-DD61-00213A
...
1-8
Roller-Basket(u) SAM-DD66-00022A
...
1-9
Holder-Roller SAM-DD61-00222A
...
1-10
Handle-Basket(l) SAM-DD64-00057A
...
1-11
Handle-Basket(u) SAM-DD64-00058A
...
1
Assy-Basket Upper SAM-DD97-00118A
...
2-1
Holder-Tine SAM-DD61-00216A
...
2-2
Holder-Tine(s) SAM-DD61-00217A
...
2-3
Wire-Tine Lower(b) SAM-DD66-00030A
...
2-4
Wire-Tine Lower(l) SAM-DD66-00032A
...
2-5
Wire-Tine Lower(r) SAM-DD66-00031A
...
2-6
Basket-Lower SAM-DD61-00214A
...
2-7
Roller-Basket(l) SAM-DD66-00023A
...
2-8
Holder-Roller SAM-DD61-00222A
...
2-9
Handle-Basket(l) SAM-DD64-00057A
...
2-10
Handle-Basket(u) SAM-DD64-00058A
...
2
Assy-Basket Lower SAM-DD97-00124A
...
3
Assy-Case Spoon SAM-DD97-00125A
...
4
Duct-Nozzle SAM-DD67-00041A
...
5
Holder-Nozzle(u) SAM-DD61-00228A
...
6
Assy-Nozzle(u) SAM-DD97-00127A
...
7
Cover-Duct Nozzle SAM-DD63-00069A
...
8
Assy-Sensor Level SAM-DD97-00131A
...
9
Assy-Nozzle(m) SAM-DD97-00126A
...
10
Seal-Duct Nozzle SAM-DD62-00068A
...
11
Assy-Nozzle(l) SAM-DD97-00128A
...
12
Cover-Heater SAM-DD63-00071A
...
13
Seal-Sump SAM-DD62-00050A
...
14
Heater SAM-DD47-00003A
...
15
Holder-Sump SAM-DD61-00212A
...
16
Holder-Heater SAM-DD61-00211A

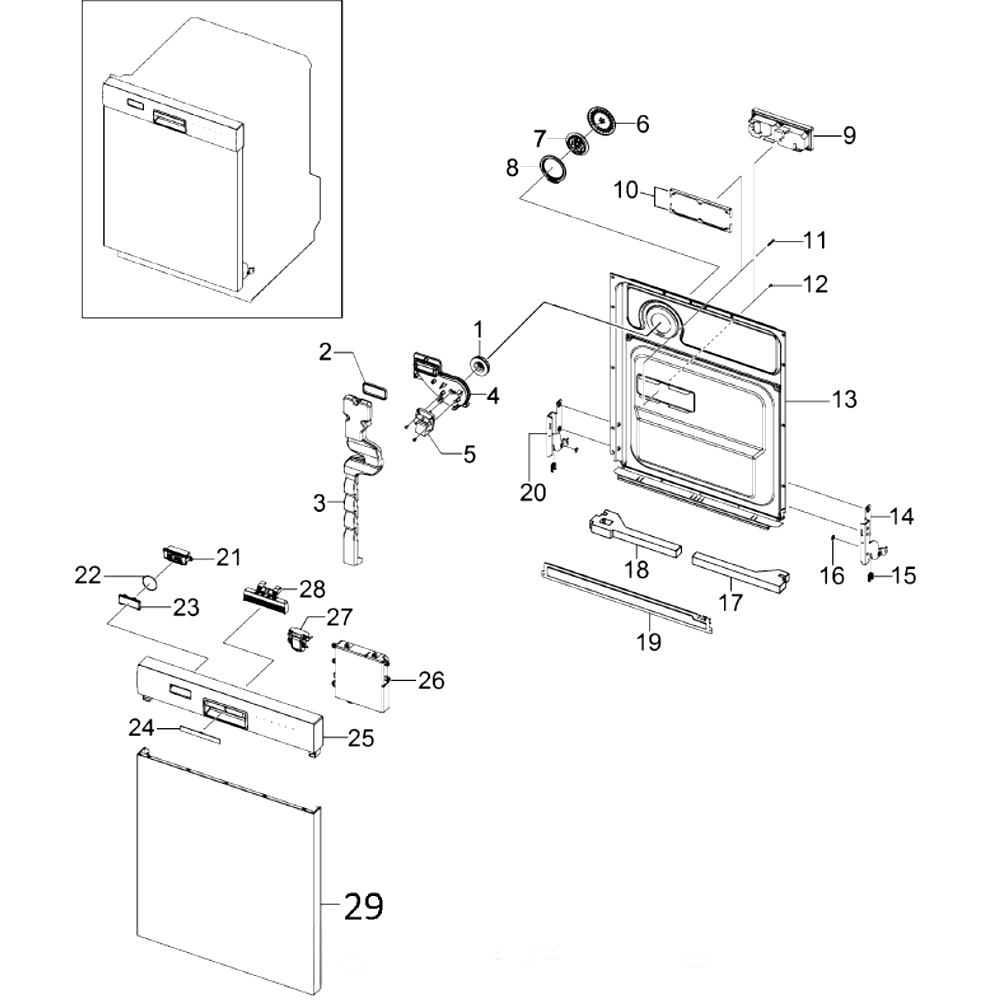

Assy Door

...
...
1
Fan-Vent SAM-DD67-00038A
...
2
Seal-Vent SAM-DD62-00049A
...
3
Duct-Condenser SAM-DD67-00037A
...
4
Assy-Case Vent SAM-DD97-00147A
...
5
Motor Ventilation SAM-DD31-00006A
...
6
Bracket-Cover Fan SAM-DD61-00203A
...
7
Cover-Fan SAM-DD63-00065A
...
8
Seal-Fan SAM-DD62-00044A
...
9
Dispenser-Rinse -Aid SAM-DD59-01001A
...
10
Bracket-Dispensor SAM-DD61-00103A
...
11
Screw-Door(l) SAM-DD81-01153A
...
12
Screw-Door(s) SAM-DD81-01151A
...
13
Assy-Tub Front SAM-DD97-00106A
...
14
Door-Link(r) SAM-DD64-00046A
...
15
Guide-Door Link SAM-DD61-00207A
...
16
Spacer-Door Link SAM-DD60-00001A
...
17
Cushion-Duct(r) SAM-DD63-00094A
...
18
Cushion-Duct(l) SAM-DD63-00066A
...
19
Bracket-Door Link SAM-DD61-00205A
...
20
Door-Link(l) SAM-DD64-00047A
...
21
Led Display SAM-DD07-00010A
...
22
Seal-Led Display SAM-DD62-00057A
...
23
Window-Panel Front SAM-DD64-00044A
...
24
Cover-Handle SAM-DD63-00088B
...
25
Assy-Panel Control SAM-DD97-00105B
...
26
Assembly Pcb Main SAM-DE92-02130B
...
27
Switch Door-Lock SAM-DD34-00002B
...
28
Handle-Front SAM-DD64-00056B
...
29
Frame-Front SAM-DD61-00202B

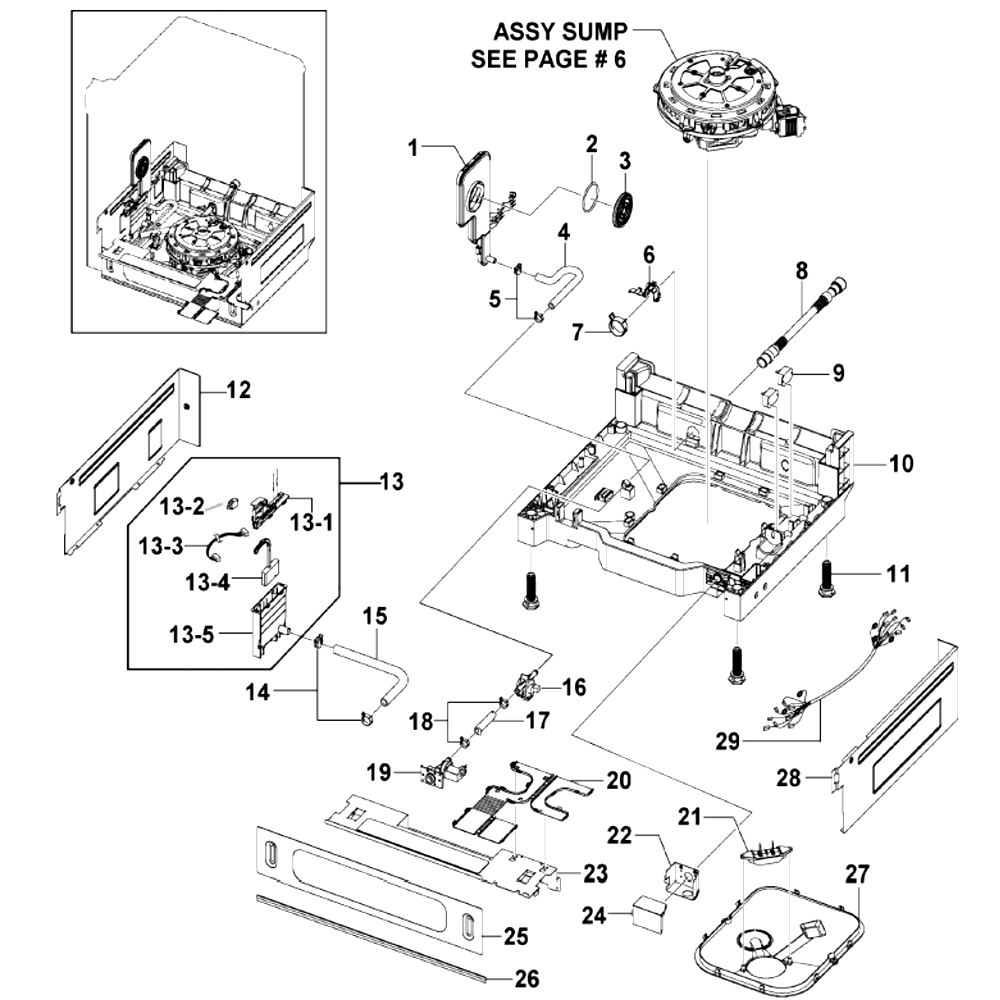

Assy Base

...
...
1
Assy-Case Brake SAM-DD97-00132A
...
2
Gasket-Brake SAM-DD63-00072A
...
3
Cover-Brake SAM-DD63-00073A
...
4
Hose-Inlet Flow SAM-DD67-00046A
...
5
Clamper Hose SAM-DD65-00001G
...
6
Holder-Hose Drain SAM-DD61-00230A
...
7
Clamper Hose SAM-DD65-00001G
...
8
Assy-Hose Drain SAM-DD97-00137A
...
9
Relay-Power SAM-3501-000260
...
10
Base SAM-DD61-00233A
...
11
Leg-Adjust SAM-DD61-00232A
...
12
Frame-Left SAM-DD61-00208A
...
13-1
Cover-Sensor SAM-DD63-00083A
...
13-2
Switch-Micro SAM-DD34-00003A
...
13-3
Assy-Wire Harness SAM-DD96-00043A
...
13-4
Lever-Float SAM-DD66-00034A
...
13-5
Case-Sensor SAM-DD61-00236A
...
13
Assy-Sensor Level SAM-DD97-00131A
...
14
Clamper Hose SAM-DD65-00001H
...
15
Hose-Sensor SAM-DD67-00047A
...
16
Sensor-Flow SAM-DD32-00004A
...
17
Hose-Inlet SAM-DD67-00045A
...
18
Clamper Hose SAM-DD65-00001J
...
19
Valve-Water SAM-DD62-00067A
...
20
Guide-Wire SAM-DD61-00234A
...
21
Assy-Sensor Leak SAM-DD97-00130A
...
22
Case-Power Cord SAM-DD61-00229A
...
23
Bracket-Front Lower SAM-DD61-00231A
...
24
Cover-Power Cord SAM-DD63-00082A
...
25
Cover-Front Lower SAM-DD63-00081B
...
26
Packing-Noise Base SAM-DD69-00017A
...
27
Shutter SAM-DD64-00055A
...
28
Frame-Right SAM-DD61-00209A
...
29
Assy-M.wire Harness SAM-DD96-00040A

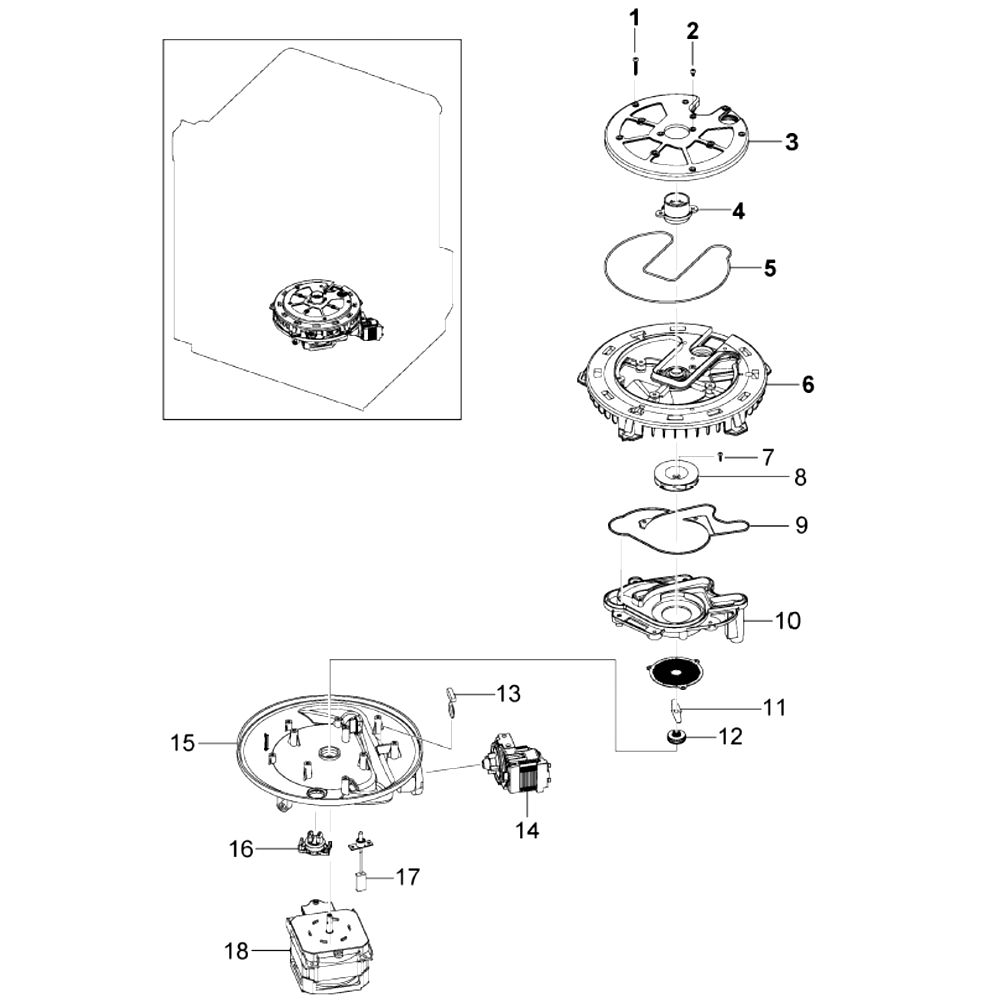

Assy Sump

...
...
1
Screw-Sump(l) SAM-DD81-01150A
...
2
Screw-Sump(s) SAM-DD81-01149A
...
3
Assy-Filter Mesh SAM-DD97-00133A
...
4
Holder-Nozzle(l) SAM-DD61-00241A
...
5
Seal-Filter Mesh SAM-DD62-00052A
...
6
Assy-Cover Sump SAM-DD97-00134B
...
7
Screw-Motor Impeller SAM-DD81-01172A
...
8
Assy-Impeller SAM-DD97-00136A
...
9
Seal-Rubber Scroll SAM-DD62-00055A
...
10
Case-Scroll SAM-DD61-00240B
...
11
Cutter-Disposer SAM-DD70-01001A
...
12
Seal-Oil SAM-DD62-00053A
...
13
Vane-Check Drain SAM-DD66-00019A
...
14
Pump-Drain SAM-DD31-00005A
...
15
Case-Sump SAM-DD61-00239B
...
16
Sensor-Turbidity SAM-DD32-00003A
...
17
Thermistor SAM-DD32-00001A
...
18
Pump-Circulation SAM-DD31-00004A
