Saeco Via Venezia Manual Espresso Machine Black RI9366/47

Model: RI9366/47

Save Part Not Listed?
product name

...
...
1
3 TH .FIX. SPRING EARTH SYMBOL. ST 230V-240V SAE-996530011816
...
2
3 WAY JUNCT.BLOCK PA 27/3 + SYMBOLS SAE-996530026354
...
3
90 CONNECTOR PUMP INLET SAE-996530017348
...
4
ANTIDIST.CONDENSER R.46 0,1MF 275VAC SAE-996530023199
...
5
BAND FOR LIFTING L=1550 H=150 MM SAE-996530022763
...
6
BLACK BOILER SUPPORT PLATE VAP/PROFI SAE-996530030099
...
7
BLACK DRIP TRAY A100/A110 S/CREEN SAECO SAE-996530004458
...
8
BLACK DRIP TRAY SUPPORT A100/A110 SAE-996530017695
...
9
BLACK KNOB FAUCET SHAFT A100/A110 230V-240V SAE-996530016922
...
10
BLACK PRESS.FILTERH.BRASS (SEE EXP.COD.E90005) SAE-996530029833
...
11
BLACK REPOSITORY DRAWER A100/A110 SAE-996530014062
...
12
BLACK WATER TANK FUNNEL SAE-996530015093
...
13
BLACK/BLACK PANNARELLO G100 ASSY. SAE-996530038904
...
14
BLACK/CHROM.BRASS FILTERHOLD. STARBUCK (SEE EXP.COD.E90022) SAE-996530029842
...
15
BLACK/SML CASING V.V.RST S/S.VIA VENEZIA SAE-996530004507
...
16
BOX POLYST.RIO VAPORE A10/A100 SAE-996530022741
...
17
CABLE CLAMP BLACK SAE-996530026786
...
18
CAM FOR FAUCET SHAFT SAE-996530013754
...
19
CAP NUT M5 UNI 5721-69 CL5S SAE-996530011206
...
20
COFFEE LIGHT BIPOL.SWITCH 1AA5CLG000 SAE-996530007914
...
21
COFFEE LIGHT BIPOL.SWITCH UL 1AA5HLG000 SAE-996530007932
...
22
CROUZET LEVER 161 F 70507528 SAE-996530011504
...
23
DISPAY BOX SAECO VIA VENEZIA RST SS SAE-996530008222
...
24
DISPAY BOX V2 SAECO VIA VENEZIA RST BLK SAE-996530008255
...
25
ELASTIC WASHER FOR SHAFT D=2MM SAE-996530012332
...
26
FILTERHOLD SEAL SAE-996530015809
...
27
GEN.WIRING VIA VENEZIA SIN.RST UL ASSY. 120V /UL USA SAE-996530004651
...
28
GREY FILTERHOLDER LOCK. RING S/SCREEN ONLY 120V SAE-996530004835
...
29
GREY INNER SUPPORT BUTTON AROMA RST SAE-996530003925
...
30
GREY SCREW COVER PLATE SAE-996530014736
...
31
GREY/7016 COFFEE MEASURE SAE-996530016519
...
32
GROMMET AB/9 BLACK 75SHORE 1017712 SAE-996530026429
...
33
HEAT ELEMENT+TEA/BRASS TERMINAL 120V-900W SAE-996530026608
...
34
HEAT ELEMENT+TEA/BRASS TERMINAL 230V-900W SAE-996530026612
...
35
INSTR.MANUAL SAECO VIA VENEZIA RST SAE-996530008963
...
36
INSTRUCT.MANUAL SAECO VIA VENEZIA RST SS SAE-996530008992
...
37
INSULATE PROTECTION 24X38,8 FOR MICRO SAE-996530005241
...
38
LO. SEMISPHERE SEAL SAE-996530017477
...
39
MICRO SUPPORT PLA. SAE-996530012591
...
40
MICROSWITCH 83161.1 IW3 UL/CSA 8316116 SAE-996530007954
...
41
NIKELED FAUCET FOR SS.BOILER A100-A110 SAE-996530012407
...
42
NIKELED PISTON L=21 SAE-996530000838
...
43
NUT 42377 GAS H=4.5 CH=13 BRASS SAE-996530011211
...
44
NUT FOR CONNECTOR 1/8 SAE-996530051758
...
45
NUT M 12 X1,25 H= 4,5 SAE-996530011231
...
46
NUT M5 HIGH UNI 5587-68 GALVANIZED SAE-996530011189
...
47
OGIVE BUSH 6 ( DE=8,4 DI =6,2 L=7 SAE-996530010853
...
48

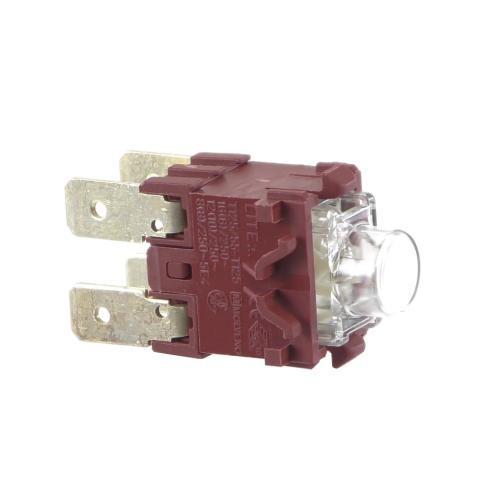

ON-OFF LIGHT BIPOL.SWITCH 11A8CLG000 SAE-996530007928
...
49
OR 108 IN SILICONE SAE-996530013454
...
50
OR 176 IN SILICONE SAE-996530013489
...
51
OR 2018 IN SILICONE SAE-996530013462
...
52
OR 2031 IN TERMOIL SAE-996530013471
...
53
OR 2043 IN SILICONE SAE-996530013492
...
54
OR 2050 SILICONE SAE-996530013479
...
55
P.CABLE AUSTRALIA BLACK L=1600MM SAE-996530025536
...
56
P.CABLE USA/UL BLACK L=1600MM SAE-996530025818
...
57
PERCOLATOR DE =48,8 SS BOILER JACOBS SAE-996530011292
...
58
PLAST.INSULATE JUNCT.BLOCK 4 WAY SAE-996530035149
...
59
POD FILTER F.D=31 MM H=20,2MM P=2 MM SAE-996530011363
...
60
POD FILTER F.D=31MM H=20,2MM P=1,5MM ONLY U.S.A. SAE-996530011358
...
61
POLISHED FILTERHOLDER LOCKING RING SAE-996530027059
...
62
POWER CABLE SCHUKO BLACK L=1600MM SAE-996530025522
...
63
POWER CABLE UK BLACK L=2000MM SAE-996530025879
...
64
PRES.FILTER HOLDER SS.BOILER H=11,3 SAE-996530015901
...
65
PUMP SUPPORT TYPE ULKA SAE-996530017711
...
66
RAPID CONNECTOR D=10,6 H=5 SP=1 SAE-996530010777
...
67
RESSORT THERMOSTATIQUE SAE-996530011789
...
68
ROUND ADHESIVE FOOT 5025 BLACK SAE-996530016849
...
69
ROUND SELF ADH. FOOT SJ 5003 BLACK SAE-996530016852
...
70
SB/STAINLESS STEEL GRATE A100 /A110 SAE-996530004628
...
71
SCRAPER SEAL CLEANING CROSS INSERT SAE-996530017406
...
72
SCREW AUT.TCB 2,9X16 DIN 7981 C SAE-996530061886
...
73
SCREW TCB 2,9X6,4 DIN 7981 NICK SAE-996530012815
...
74
SCREW TCB3,5X19 DIN 7981 NICK SAE-996530012852
...
75
SCREW WITH WASHER TE M5X20 GALVANIZ SAE-996530013006
...
76
SEAL FOR ARTICULA. STEAM TUBE SAE-996530015795
...
77
SILICONE TUBE 5X8 70SR IN ROLL SAE-996530018269
...
78
SILICONE VALVE 65SH BOILER SEALING SAE-996530018311
...
79
SILV.WATER-STEAM KNOB LID V.VEN.RST S/SC SAE-996530004558
...
80
SILVER BUTTON 1 CUP VIA VENEZIA RST SAE-996530004456
...
81
SILVER BUTTON EXTERNAL FRAME AROMA RST SAE-996530004032
...
82
SILVER BUTTON ON/OFF VIA VENEZIA RST SAE-996530004455
...
83
SPRING FOR BOILER VALVE SAE-996530011596
...
84
SQUARE NUT M4 CH=8 H=2.5 ZNP SAE-996530011229
...
85
SS BOIL.GEN (A100-110/3T W/O.SP) ASSY. 230V SAE-996530032962
...
86
SS BOILER GEN.V.VENEZIA RST SS 120V ASSY SAE-996530007578
...
87
SS BOILER GEN.VIA VENEZIA RST ASSY. 120V SAE-996530004543
...
88
SS BOILER GEN.VIA VENEZIA RST ASSY. 230V SAE-996530005285
...
89
SS.LOWER BOILER CASING + BRASS/TEA HUB SAE-996530028965
...
90
SS.SATINY CASING V.V.RST S/S.VIA VENEZIA SAE-996530004666
...
91
ST.STEEL FIN.7 CUPWARMING LID A10/A100 SAE-996530004555
...
92
ST.STEEL STEAM TUBE V.VENEZIA RST ASSY. SAE-996530004831
...
93
STAINLESS STEEL GRATE A100 /A110 SAE-996530011417
...
94
STEAM LIGHT ONE-POLE SWIT. UL1AA5HLG001 SAE-996530007935
...
95
STEAM LIGHT ONE-POLE SWITCH 1AA5CLG001 SAE-996530037501
...
96
STEI SCREW M4X8 UNI 5929 BURNISHED SAE-996530011405
...
97
SUBJUNCTION BLOCK PA 52 24 WAY SAE-996530026349
...
98
SUCTION FILTER SAE-996530015427
...
99
TC SCREW M5X16 UNI 6107 ZNP SAE-996530013055
...
100
TCB SCREW M4X8 UNI 7687 ZNP SAE-996530013077
...
101
TEA/BRASS CONNEC.FOR SS BOILER A100-A110 SAE-996530030384
...
102
TEA/BRASS CONNECT.D=12+PUMP SAFETY VALVE SAE-996530000881
...
103
TEA/BRASS FAUCET SHAFT L=57 MM AUS SAE-996530000869
...
104
TEA/BRASS FAUCET SHAFT L=73,3 MM SAE-996530004459
...
105
TEA/BRASS INNER TUBE BUSH ( DE4XDI3X10) SAE-996530005078
...
106
TEA/BRASS INTERNAL TUBE FOR SS BOILER SAE-996530012671
...
107
TEA/BRASS NUT 42377 GAS H=6 CH=14 SAE-996530011208
...
108
TEA/BRASS STRAIGHT FITTING FOR SS.BOILER SAE-996530012253
...
109
TEFLON SEAL D=6 FOR PISTON SAE-996530001978
...
110
TEFLON TUBE 4X6 IN ROLL SAE-996530051146
...
111
THERMAL PROTECTOR 120 C CABLES112/265 SAE-996530026853
...
112
THERMOSTAT 127 1NT-01L-0499 SAE-996530026928
...
113
THERMOSTAT 175 1NT-08L-3794 230V-240V SAE-996530026954
...
114
THERMOSTAT 95 1NT-01L-0036 SAE-996530026907
...
115
TSP SCREW M4X8 UNI 7688 SS SAE-996530013107
...
116
ULKA PUMP EAP5/S 120V-60HZ SAE-996530007754
...
117
ULKA PUMP EP5/S GW 230V-50HZ SAE-996530007753
...
118
UNPAINTED WATER-STEAM KNOB P236 SAE-996530002678
...
119
UPPER BOIL. CASING + BRACKETS W/O VAPIS SAE-996530011112
...
120
VASCH.RECUP.ACQUA A100/A110 VERN.NERO SAE-996530032042
...
121
VIS DE VALVE CHAUDIERE SAE-996530000701
...
122
WASHER UNI 8842 A12 BURN. SAE-996530012352
...
123
WASHER UNI 8842 A3 BURNISHED SAE-996530012338
...
124
WASHER UNI 8842 A3 SS SAE-996530012339
...
125
WASHER UNI 8842 A4 BURNISHED SAE-996530012342
...
126
WASHER UNI 8842 A5 BURN. SAE-996530012345
...
127
WATER CONT.A100/A110 TRANSP/GREY S/S.MAX SAE-996530004549
