Saeco Picobaristo Super-Automatic Espresso Machine HD8927/47

Model: HD8927/47

Save Part Not Listed?
product name

...
...
1
16P.CPU-USER INTERF.FLATCABLE SMRG SAE-421946020421
...
2
2P.CONN.SENS.REED DUMP BOX CST UL ASSEMBLY SAE-996530073661
...
3
2POLES CONNECTOR PUMP SMR UL SAE-996530074282
...
4
2POLES CONNET.COFFEE GRINDER MOTOR SMR UL SAE-996530073454
...
5
3P.CONN.WATER LEVEL V2 SMR UL ASSEMBLY SAE-421946035161
...
6
3POLES CONNECTOR FLOWMETER SMR UL SAE-996530073488
...
7
5X8 9 SILICONE TUBE IN ROLL SAE-996530009505
...
8
ANTIVIBRATION FOR MOTOR SAE-996530049896
...
9
AXIAL BEARING EKKO 342.35252 SAE-996530011183
...
10
BAKED CLAY GRINDER 48X28 SAE-996530016342
...
11
BLACK 90 CONNECTOR PUMP OUTLE SAE-996530001186
...
12
BLACK BREW UNIT CONVEYOR SLIDE L EQUALS 56 3 SAE-996530073426
...
13
BLACK CARAFE HANDLE V2 NPR/T SAE-996530074479
...
14
BLACK CARAFE MICRO INSERT NPR/T SAE-996530069817
...
15
BLACK COFFEE DISPENSER TUBE NO SBS CST SAE-421944050111
...
16
BLACK CONNECTING ROD FOR UNIT 8GR. SAE-996530001452
...
17
BLACK COUNTER PISTON BREW UNIT 8GR.P124 SAE-421944079991
...
18
BLACK DRILLED BLOCK BREW UNIT SAE-996530050539
...
19
BLACK FRONT PLATE BREW UNIT SMART S.SCR. SAE-996530003228
...
20
BLACK GRINDER MOTOR SUPPORT P124 SAE-996530000115
...
21
BLACK HOPPER DOSER BREW UNIT SMART1 SAE-996530018241
...
22
BLACK INFRAREDS PLATE RYL SAE-996530073462
...
23
BLACK LID FOR DUCKBILL VALVE SMR SAE-996530073463
...
24
BLACK MICRO COMPENSATOR SMR SAE-996530073469
...
25
BLACK POWER CABLE KOREA 3X1 L1200 SAE-996530001089
...
26
BLACK POWER CABLE RVV 3X1 CHINA L EQUALS 1200MM SAE-996530002167
...
27
BLACK POWER CABLE SCHUKO L EQUALS 1200MM SAE-996530025808
...
28
BLACK POWER CABLE TAIWAN HVCTF L1200 SAE-996530002166
...
29
BLACK PUMP SUPPORT TYPE ULKA SAE-996530018056
...
30
BLACK REAR CASING PROGRAM.INSERT NPR SAE-996530068728
...
31
BLACK REAR PLATE FOR BREW UNIT SMART SAE-996530050832
...
32
BLACK SCRAPER FOR COFFEE UNIT SAE-996530002096
...
33
BLACK SEAL FOR COFFEE DISPENSER MYB9 SAE-421944057391
...
34
BLACK WATER CONTAINER HANDLE SMR0.0.60 SAE-996530073442
...
35
BLACK WATER INLET SLEEVE BREW UNIT ASSEMBLY SAE-421944050641
...
36
BLACK WATER LEVEL SENSOR SUPPORT SMR SAE-996530073436
...
37
BLK ABS COFFEE MEASURE SMART SAE-421944033301
...
38
BLK BODY ATT.FOR COFFEE DISP.SMRC SAE-421944045371
...
39
BLK BREW UNIT COF.OUTLET SLEEVE SMR ASSEMBLY SAE-996530005415
...
40
BLK BREW UNIT COFFEE OUTLET CONNECT.SMR SAE-996530073464
...
41
BLK BREW UNIT DRAWER COFFEE V2 SMR SAE-421944008911
...
42
BLK CARAFE COVER PLUG SMRC ASSEMBLY SAE-421944051411
...
43
BLK CARAFE GRAFT BODY INSERT SMR T SAE-421944008851
...
44
BLK CARAFE INSERT BODY SMRC/T SAE-421944049331
...
45
BLK COF.CONTAIN.BREW UNIT V2 M5000 ASSEMBLY SAE-421944079431
...
46
BLK COF.DISPENS.SUPP.CAP S SCR.CST H SAE-421941301241
...
47
BLK COF.GRINDER UPPER GRINDER SUPPORT V2 SAE-421941094152
...
48
BLK COF.GRINDER UPPER GRINDER SUPPORT V3 SAE-421944053581
...
49
BLK COFFEE DISPENSER CONNECTOR V2 SMRC SAE-421944045202
...
50
BLK CONNECTOR FOR PIN BOILER V2 SMR SAE-421944069751
...
51
BLK CONT.SEP.INSERT SMR SAE-996530074054
...
52
BLK CONT.SEP.INSERT SMR SAE-421944040451
...
53
BLK CONTROL PANEL S SCR.SMRC T SAE-421944072901
...
54
BLK DISPLAY KEYB.-INTERFACE SUPPORT SMRC SAE-421944049741
...
55
BLK DISPLAY SEAL SMRC/P-T SAE-421944046901
...
56
BLK DISPLAY SUPPORT SMRC SAE-421944045031
...
57
BLK DRIP TRAY LOCKING LEFT INSERT SMR/T SAE-996530073642
...
58
BLK DRIP TRAY LOCKING RIGHT INSERT SMR/T SAE-996530073635
...
59
BLK DUMP BOX INSERT V2 NPR SAE-421944063132
...
60
BLK DUMP BOX V2 SMRG SAE-421944067551
...
61
BLK GRIND.ADJUST.KNOB 10 POS. SMR SAE-421944075151
...
62
BLK GROUND COFF.OUTLET CONVEYOR V4 ASSEMBLY SAE-421941230122
...
63
BLK HOT WATER DISPENSER SMRG ASSEMBLY SAE-421944042971
...
64

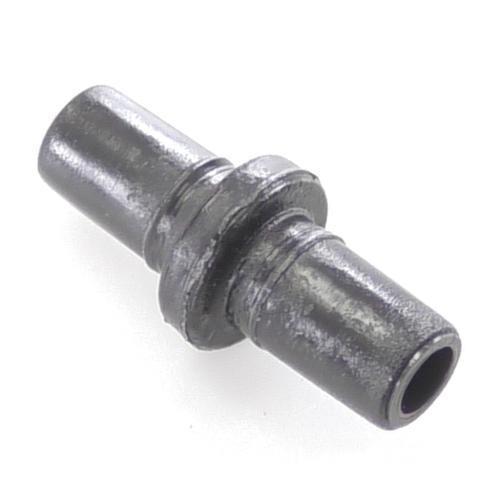

BLK MILK INTAKE TUBE CONNECT.INS.V2 RYL SAE-996530068626
...
65
BLK PIN FOR BOILER VALVE 4BAR ASSEMBLY SAE-421946011491
...
66
BLK RATIOMOTOR MOUNTING PLATE SMRC ASSEMBLY SAE-421944052111
...
67
BLK REAR LID FIXING INSERT V3 SMRG SAE-421944068961
...
68
BLK REED SUPPORT SMR SAE-421944009411
...
69
BLK SEAL CONT.LIDS SMRG SAE-421944067621
...
70
BLK SEAL CONT.LIDS V2 SMRG SAE-421944072821
...
71
BLK SLIM TUB.BOILER SUPPORT V2 SMR SAE-421944040831
...
72
BLK TOUCH PANEL 4KEYS S/SCR. SMRC SAE-421944051881
...
73
BLK TOUCH PANEL 8KEYS SMRC T-P SAE-421944045671
...
74
BLK TOUCH PANEL 8KEYS V2 SMRC/T-P SAE-421944063191
...
75
BLK/YLW BREW UNIT 8GR.5BAR SMR SAE-421944092331
...
76
BLOCK KEY SUPP. SMRG SAE-421944034431
...
77
BLW BEAN COFFEE GRINDER INSERT V2 SMR SAE-421944052341
...
78
BOROSILICATE SPHERE D.5 MM SAE-421944034451
...
79
BRASS BUSH BEAN CONT.FINGER PROTEC.P0057 SAE-996530006412
...
80
BRUSH FOR CLEANING SAE-996530011867
...
81
BUSH FOR FIXING UPP.CAS.COVER SMRC SAE-421944062011
...
82
CAP FOR WORM SCREW MC/V3 CENTRING SAE-996530018139
...
83
CARAFE HOLE PLUG INSERT SMRG/T-TE SAE-421944052001
...
84
CARAFFE BOARD COVER SMRC/T SAE-421944049341
...
85
CHR.LOWER LEFT FRAME SMRG SAE-421944043791
...
86
CHR.LOWER RIGHT FRAME SMRG SAE-421944043801
...
87
CHR.TOUCH PANEL 8KEYS SMRC T ASSEMBLY SAE-421944053771
...
88
CHR.UPPER COVER FRAME SMRC SAE-421944051631
...
89
CHRM.COVER FOR CARAFE HOLE SMRG SAE-421944052361
...
90
CHROM.COFFEE DISPENSER SUPPORT SMRC SAE-421944053631
...
91
CHROM.COFFEE DISPENSER SUPPORT V2 SMRC SAE-421944053632
...
92
COF.DISPENS.SMRC ASSEMBLY SAE-421944049912
...
93
COFFEE GRINDER SEAL P119 GRY 7035 SAE-421941085872
...
94
COFFEE GRINDER SUPPORT SPRING P124 SAE-996530000376
...
95
COFFEE GRINDING ADJUSTMENT GEAR P0049 SAE-996530001907
...
96
CPR SMRC/T 120V ASSEMBLY SAE-421941309751
...
97
CPR SMRC/T 230V ASSEMBLY SAE-421941308561
...
98
CPU G.P. SMRC 120V V2 ASSEMBLY SAE-421941309762
...
99
CPU SW WATER LEVEL SENSOR V3 ASSEMBLY SAE-421941306721
...
100
CRINKLE WASHER 21 8X15 8X0 2 SAE-996530012374
...
101
CUP SOCKET EN 60320 C 13 SAE-996530072437
...
102
D BLK UPP.CASING COVER SMRC P-T 120V SAE-421944068641
...
103
DEEP BLK FRONT LID FIXING INSERT V2 SMRG SAE-421944056222
...
104
DEEP BLK REAR LID FIXING INSERT V2 SMRG SAE-421944056212
...
105
DEEP BLK UPP.CASING COV.SMRC P-T SAE-421944044761
...
106
DISPL.BOX SMRC/T SAE USA PICO SAE-421946035921
...
107
DISPL.BOX V2 SMRC/T SAE SAE-421944055922
...
108
DISPLAY HIGO FL SAE-421941307861
...
109
EPDM OR METRIC 0190-10 SAE-996530013571
...
110
EXTERNAL FILTER FOR WATER CONTAINER ASSEMBLY SAE-996530029115
...
111
FELT RING 45 4X39 4X4 SAE-996530013597
...
112
GALV.WASHER UNI 8842 A4 SAE-996530012341
...
113
GALVAN.FLAT WASH.DI EQUALS 4 3 DE EQUALS 14 SP EQU SAE-996530012375
...
114
GEAR SX Z EQUALS 38 FOR GRINDER MOTION ASSEMBLY SAE-996530029609
...
115
GEN.MOTOR COF.GRINDER V2 SMR B 120V ASSEMBLY SAE-421944054651
...
116
GEN.MOTOR COF.GRINDER V2 SMR/B 230V ASSEMBLY SAE-421944054631
...
117
GEN.TUB.BOILER XS4 1900W 230V ASSEMBLY SAE-421944046301
...
118
GEN.TUB.BOILER XS4 GAG 1300W 120V ASSEMBLY SAE-421944055941
...
119
GRINDER REGULATION SPRING P124 SAE-996530001308
...
120
GROUND COFFEE CONT.SEAL UPPER SMART1 SAE-996530015958
...
121
GRY BREW UNIT 8GR.INT.PISTON GEN.V3 ASSEMBLY SAE-421944065811
...
122
GRY BREW UNIT INTEGR.PISTON 8GR.V3 ASSEMBLY SAE-421944065791
...
123
GRY GROUND COF.CONT.LOWER SEAL V2 SMART1 SAE-421944060561
...
124
GRY WATER CONTAINER VALVE INSERT P0049 SAE-421944040071
...
125
GRY WATER LEVEL SENSOR COVER SMR SAE-421944006871
...
126
HOT WATER TUBE SPRING P124 SAE-996530000487
...
127
INSULATOR BUSH FOR GRINDER MOTOR P124 SAE-996530001389
...
128
KIT PS-E INSERT FOR BOX SMRC SAE-421941309051
...
129
KIT SPAR.BLK CAP.COV.SERVO CAR.SMRT/T AS SAE-421941307191
...
130
KIT SPARES BLK CARAFE HANDLE V2 NPR/T SAE-421941309041
...
131
KIT SPARES BLK UPP.COV.SERVO CAR.SMRT/T SAE-421941307041
...
132
KIT SPARES CONTAINERS LIDS B SAE-421941309471
...
133
KIT SPARES TIT DRIP TRAY SMRG/T SAE-421941310101
...
134
KLUBERLUB NH1 11-222 TUBE 5GR. SAE-421946017941
...
135
KYB DIGITAL SMRC SAE-421941307401
...
136
L-F/BR.SAFETY VALVE 16-18 BAR ASSEMBLY SAE-996530068178
...
137
LOWER GEAR SUPPORT COFFEE GRINDER P124 SAE-996530001314
...
138
LOWER GRINDER SUPPORT COFFEE GRINDER SAE-996530017952
...
139
M BLK DRIP TRAY SMRG T ASSEMBLY SAE-421944056171
...
140
M/BLK CASING V2 SMRC/P ASSEMBLY SAE-421944063691
...
141
M/BLK UPP.CASING COV.V2 SMRC/H-T SAE-421944068911
...
142
MAGNET FOR FLOAT SUPERAUTOM. SAE-996530050555
...
143
MATT/BLACK RIGHT SIDE DOOR SMR SAE-996530073429
...
144
MICROSWITCH XC/SM1 V2 SAE-421946046461
...
145
MICROSWITCH XG/V3D SAE-996530073209
...
146
MOTOR COFFEE GRINDER V3.2 120V ASSEMBLY SAE-421941305001
...
147
MOTOR COFFEE GRINDER V3.2 230V ASSEMBLY SAE-421944049151
...
148
MOTOR FOR RATIOMOTOR P124 ASSEMBLY SAE-996530002796
...
149
MYLAR WASHER FOR RATIOMOTOR SAE-996530050569
...
150
NAT GRY WATER CONTAINER SMRG P-H ASSEMBLY SAE-421945003751
...
151
NBR FDA OR METRIC 0530-15 SAE-996530013577
...
152
NPR-V2-CARAFE SAE-421941308431
...
153
OETIKER CLAMP D EQUALS 9 5 15400022 SAE-996530007742
...
154
OR 2015 IN SILICONE PTFE/FDA SAE-996530013564
...
155
OR 2025 TERMOIL SAE-996530059441
...
156
OR METRIC 0060-15 IN SILICONE SAE-996530007732
...
157
OR ORM 0050-20 IN SILICONE SAE-996530059419
...
158
OR ORM 0060-10 NBR SAE-996530059489
...
159
OR ORM 0090-20 SILICONE SAE-996530059399
...
160
OR ORM 0320-40 IN SILICONE PTFE/FDA SAE-996530059406
...
161
PERCOLATOR DE EQUALS 35 8 ELFO SAE-996530050709
...
162
PICOBARISTO OTC TAB1 SAE-996530074244
...
163
PICOBARISTO OTC TAB2 SAE-996530074249
...
164
PICOBARISTO OTC TAB3 SAE-996530074251
...
165
PICOBARISTO OTC TAB4 SAE-996530074245
...
166
PLURIBALL BAG 300X430 MM SAE-996530051689
...
167
POWER CABLE SJT3 USA BLACK UL L EQUALS 1200 SAE-996530025843
...
168
RADIAL BEARING 61900.2RS1 SAE-996530011182
...
169
RED/3003 FLOAT FOR DRIP TRAY XSM SAE-421941304791
...
170
SCREW TCB TORX 10 3 5X16 PLAST.ZN-B SAE-996530013165
...
171
SCREW TCB TORX 10 3 5X20 PLAST.SS SAE-996530007953
...
172
SCREW TCB TORX 10 3X25 PLAST.SS SAE-996530007838
...
173
SCREW TCB TORX 10 3X8 PLAST.ZN-B.- SAE-996530013156
...
174
SCREW TCB TORX 20 M4X30 ZN-B SAE-996530012928
...
175
SCREW TCB TORX 20 M4X8 AUTOFORMING ZN-B SAE-996530069758
...
176
SCREW TCB TORX 3 5X30 PLAST.ZN-B SAE-996530012992
...
177
SCREW TCB TORX B 3 5X9 5 SCHEET NIK SAE-996530068586
...
178
SCREW TCBR TORX 10 3 5X12 PLAST.ZN-N SAE-996530007819
...
179
SCREW TCBR TORX 10 3 5X14 PLAST.SS SAE-996530013148
...
180
SCREW TCBR TORX 10 3,5X12 PLAST.SS SAE-421940222961
...
181
SCREW TSP TORX 10 3 5X12 PLAST.SS SAE-996530013166
...
182
SCREW TSP TORX 10 3X10 PLAST.SS SAE-996530007951
...
183
SCREW TSP TORX 10 5X20 PLAST.ZN-B SAE-996530008024
...
184
SILICONE TUBE 3 5X6 L EQUALS 140 MM SAE-996530067584
...
185
SILICONE TUBE 5X10 60 SHORE IN ROLL SAE-996530002093
...
186
SILICONE TUBE 5X8 70SR IN ROLL SAE-996530051226
...
187
SINTERED BUSH FOR MOTOR SAE-996530049898
...
188
SOLENOID VALVES SMR T 24V ASSEMBLY SAE-421944029341
...
189
SPARES KIT GEARS FOR RATIOMOTOR V2 SAE-996530009913
...
190
SPRING FOR CONTERPISTON UNIT S0053 SAE-421944082361
...
191
SPRING FOR MICRO COMPENSATOR SMR SAE-421944006861
...
192
SPRING FOR TUBE PRODUCT 1 SAE-996530073439
...
193
SPRING FOR UNIT SCRAPER SAE-996530050455
...
194
SPRING FOR WATER CONTAINER VALVE P0049 SAE-996530001831
...
195
SPRING H EQUALS 49 FOR COFFEE BREW UNIT SMART SAE-996530000898
...
196
SPRING HOPPER SMART BREW UNIT SAE-996530050838
...
197
SS BEAN COF.CONT.LID V2 SMRG 120V ASSEMBLY SAE-421944056163
...
198
SS BEAN COF.CONT.LID V2 SMRG ASSEMBLY SAE-421944043723
...
199
SS CARAFE MICRO INSERT SPRING MYB9 SAE-996530009566
...
200
SS COFFEE BEANS CONTAIN.LID V3 SMRG ASSEMBLY SAE-421944069181
...
201
SS CYL.PIN D EQUALS 3.4 L EQUALS 15.3 SAE-421944061701
...
202
SS FORK FOR TUBE D.4 SAE-996530048885
...
203
SS GRATE FOR DRIP TRAY SMRG/T SAE-421944037711
...
204
SS LOWER FRONT INSERT SMRG ASSEMBLY SAE-421944043711
...
205
SS WATER CONTAINER LID V2 SMRG ASSEMBLY SAE-421944043732
...
206
SS WATER CONTAINER LID V3 SMRG ASSEMBLY SAE-421944069191
...
207
SS.8GR.BREW UNIT PISTON SPRING SAE-996530050627
...
208
STEEL DRIP TRAY INSERT SMRG ASSEMBLY SAE-421944043651
...
209
STEEL PLATE FOR DOOR MAGNET XSM SAE-996530069857
...
210
STICKER FOR WATER HARDNESS TEST SAE-996530039604
...
211
SWI POW 2P 10A 250V FASTON 8500 B SAE-242212625106
...
212
SWI POW 2P 12A 250V FASTON GP12H B SAE-242212625104
...
213
TEA/ZAMA INCREASE SCREW GRINDER SAE-996530005586
...
214
TEMPERATURE SENSOR NTC UL L EQUALS 550MM SAE-996530073428
...
215
THERMOSTAT ONE SHOT 190 SAE-996530007973
...
216
THERMOSTATES SPRING FOR BOILER SAE-996530000997
...
217
TR.INN.BEAN COF.CONT.LID W/SEAL S/SC.SMR SAE-421944070662
...
218
TRANS.BEAN CONTAIN.FINGER PROTECT.SMR UL SAE-996530073467
...
219
TRANSP BLK GEN.CARAFE SLID.SMRC ASSEMBLY SAE-421944052441
...
220
TRANSP.CARAFE SMRC/T SAE-421944047311
...
221
TRANSP.GLASS FOR DISPLAY SMRC SAE-421944046911
...
222
TRANSP.SILICONE FOOT SMR SAE-996530073468
...
223
TRANSP.VALVE FOR WATER CONTAINER P0049 SAE-421944040781
...
224
TRANSP/GREY GROUND COFFEE HOPPER LID NPR SAE-996530073487
...
225
TRANSPAR.10 5X12 3 SILICONE TUBE IN ROLL SAE-996530009523
...
226
TUB.BOILER XS4 1300W 120V ASSEMBLY SAE-421944046121
...
227
TUB.BOILER XS4 1900W 230V ASSEMBLY SAE-421944028841
...
228
TUBE FOR COUNTER PISTON BREW UNIT S0053 SAE-996530005372
...
229
TURBINE D EQUALS 1 2 932-8521/00 ASSEMBLY SAE-996530059843
...
230
TWO WAY TEFLON TUBES SUPPORT SPRING MYB9 SAE-996530009559
...
231
ULKA PUMP EAP5 S 120V-60HZ SAE-421944081531
...
232
ULKA PUMP EP5 S GW 220V-60HZ SAE-996530007782
...
233
ULKA PUMP EP5FMGW 230V-50HZ SAE-421941305991
...
234
UPP.CAS.COVER INS.S SCR V2 SMRC T ASSEMBLY SAE-421944063451
...
235
UPPER BODY WITH COFFE.GROUND OUTLET SAE-996530015258
...
236
UPPER GEAR SUPPORT COFFEE GRINDER P124 SAE-996530001296
...
237
WASHER BAKELIZZATE D EQUALS 5 5 SAE-996530017424
...
238
WHITE 8GR.-12GR.BREW UNIT PISTON BUSH SAE-996530050618
...
239
WHT ADH.LABEL 65X62 SAE-996530074446
...
240
WHT PREFORM.TEFLON TUBE SUP.145 SMR/T AS SAE-421944029721
...
241
YLW BEAN COFFEE GRINDER INSERT SMR SAE-421944025161
...
242
YLW BREW UNIT COUPLING PLATE V2 SMART SAE-421944046931
...
243
YLW BREW UNIT ELBOW SHAFT M5000 SAE-421944051231
...
244
YLW BREWUNIT HOPPER BLOCKING PLATE SMART SAE-421944050711
...
245
ZN-B TCB SCREW M4X16 SAE-996530061808
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
