Ryobi RTS08 8-1/4 Inch Table Saw

Model: RTS08

Save Part Not Listed?
product name

Ryobi RTS08

...
...
xx
Styrofoam Removal Warning Label HM-089290001909
...
xx
Operator'S Manual HM-995000842
...
1
Throat Plate Assembly HM-089240063701
...
2
Set Screw (M8 X 30 Mm, Soc. Hd.) HM-089015001001
...
3
Screw (M4 X 21 Mm, Phillips Hd) HM-089240063905
...
4
Push Stick HM-089240063902
...
5
Table Assembly HM-089240063702
...
6
Rip Scale Label HM-089240046905
...
7
Combination Blade Wrench HM-080015001505
...
8
Open End Wrench HM-080015001506
...
9
Hex Key Wrench (M5 X 75 Mm) HM-089110102005
...
10
Rod Bracket (Large) HM-089240063007
...
11
Adjustment Plate HM-089240063008
...
12
Screw W/Washer (M6 X 20 Mm, Hex Soc. Hd.) HM-089037007022
...
13
Eccentric Shaft HM-089240035068
...
14
Screw W/Washer (M6 X 15 Mm, Hex Soc. Hd.) HM-089110101021
...
15
Fixed Plate HM-089240063009
...
16
Rod Bracket (Small) HM-089240063010
...
17
Spring Pin (D4 X 13 Mm) HM-080015001445
...
18
Rod HM-089240063013
...
19
Block HM-080015001443
...
20
Upper Bracket HM-080015001444
...
21
Screw (1/4-20 X 3/4 Inch, Hex Flange Hd.) HM-080015001446
...
22
Screw W/Washer (M5 X 20 Mm, Hex Hd.) HM-089037007011
...
23
Middle Bracket HM-089240063012
...
24
Spring Pin (D8 X 90 Mm) HM-080015001458
...
25
Washer (Od20 X Id6.5 X 1.6T) HM-089037007102
...
26
Hex Nut (1/4-20) HM-080015001455
...
27
Screw W/Washer (M4 X 8 Mm, Round Hd.) HM-089240015054
...
28
Bevel Indicator HM-089240063025
...
29
Hex Nut (3/8-16) HM-089037007034
...
30
Washer (Od13 X Id6.5 X 0.5T) HM-089037011047
...
31
Screw (1/4-20 X 3-1/4 Inch, Hex Hd.) HM-089240035037
...
32
Work Plate HM-089240063011
...
33
Spacer HM-089240035074
...
34
Carriage Bolt (1/4 Inch X 42 Mm) HM-089037007035
...
35
Block HM-089037007033
...
36
Lock Nut (1/4 In.) HM-080015001603
...
37
Nut (1/4-20 Unc) HM-089290001050
...
38
Nut (1/4-20 Unc) HM-089240063026
...
39
Screw (M6 X 18 Mm, Hex Flange Hd.) HM-080015001436
...
40
Motor Bracket HM-089240063014
...
41
Mounting Bracket HM-089240015045
...
42
Support Board HM-089240015047
...
43
Carriage Bolt (M6 X 15.5 Mm) HM-089037007015
...
44
Pull Rod HM-089037007012
...
45
Screw (M6 X 8 Mm, Special Hex. Soc. Hd.) HM-089240015112
...
46
Screw (M5 X 10 Mm) HM-089240021011
...
47
Guard Fabric (84) HM-089240063017
...
48
Screw (M4 X 0.7 Mm) HM-089037007017
...
49
Restrictive Plate HM-089240063016
...
50
Lock Nut (M6) HM-089110101101
...
51
Lever HM-089240063015
...
52
Clamp Lock HM-089037007020
...
53
Lever Support HM-089037007097
...
54
Screw (M5 X 12 Mm, Pan Hd) HM-080016005056
...
55
Hex Nut (1/4-20) HM-089110101033
...
56
Screw (M4 X 10 Mm, Truss Hd.) HM-089240015116
...
57
Clamp HM-089037007021
...
58
Screw (M5 X 10 Mm, Button Hd.) HM-089037007101
...
59
Washer (D5) HM-089037007100
...
60
Washer (Od12 X Id5 X 1.5T) HM-089037007099
...
61
Support Plate HM-089037007098
...
62
Screw (M6 X 15 Mm, Hex Soc. Hd.) HM-089037007018
...
63
Blade (8-1/4 Inch, 24 Tooth) HM-089240046910
...
64
Outer Blade Washer HM-089240035010
...
65
Blade Nut (5/8-18) HM-080015001410
...
66
Blade Guard Warning Label (Left End) HM-089240028908
...
67
Blade Guard Warning Label (Right End) HM-089240028909
...
68
No Hands Warning Label HM-089240028910
...
69
Warning Label (Upper Barrier) HM-089037007908
...
70
Blade Guard Assembly HM-089240063709
...
71
Riving Knife Assembly, Includes #75 HM-089240063715
...
72
Motor Assembly HM-089240063704
...
73
Miter Gauge Assembly HM-089240063711
...
74
Rip Fence Assembly HM-089240063710
...
75
Riving Knife HM-089240063027

Ryobi RTS08

...
...
1
Knob HM-089037007108
...
2
Compression Spring HM-089240035071
...
3
Washer (Od16 X Id1/4 Inch X 1T) HM-089110101033
...
4
Bevel Lock Lever HM-089240063035
...
5
Washer (Od20 X Id6.5 X 1.6T) HM-089037007102
...
6
Nylon Washer (Od16 X Id6.5 X 2T) HM-080015001475
...
7
Hand Grip Cap HM-089240035023
...
8
Screw (1/4-20 X 55 Mm) HM-089240015009
...
9
Hand Grip HM-089240015010
...
10
Washer (Od13 X Id1/4 X 1.5T) HM-080015001479
...
11
Hand Wheel Assembly HM-089240035022
...
12
Lock Nut (1/4-20) HM-089110102180
...
13
Spring Pin HM-089037007103
...
14
Danger And Warning Label HM-089240046903
...
15
Front Panel And Bevel Scale Label HM-089240046902
...
16
Foot Pad (Right) HM-089240063050
...
17
Foot Pad (Left) HM-089240063052
...
18
Screw (M4 X 12 Mm, Truss Hd.) HM-089240015116
...
19
Switch Cover HM-089240035019
...
20
Switch HM-089240028009
...
21
Screw (M4 X 7 Mm, Flat Hd.) HM-080015001473
...
22
Front Panel Assembly HM-089240063053
...
23
Switch Box HM-089240061003
...
24
Cord Clamp HM-089240063055
...
25
Screw (#8-16 X 19.05 Mm) HM-089110101067
...
26
Screw (M4 X 16 Mm, Pan Hd.) HM-089006017051
...
27
Reinforcement Plate HM-089240063056
...
28
Miter Gauge Holder HM-089240063051
...
29
Screw (M4 X 10 Mm, Truss Hd.) HM-089240015188
...
30
Power Cord Warning Label (Fr/Sp) HM-089240028906
...
31
Power Cord Assembly HM-089240063054
...
32
Screw (M6 X 30 Mm, Truss Soc. Hd.) HM-089240015088
...
33
Screw (M6 X 20 Mm, Truss Soc. Hd.) HM-089240015087
...
34
Dust Chute Assembly HM-089240063031
...
35
Screw (M4 X 10 Mm, Truss Hd.) HM-089240015084
...
36
Dust Chute Door HM-089240063032
...
37
Screw (M5 X 10 Mm) HM-089240021011
...
38
Screw (M4 X 5 Mm, Truss Hd.) HM-089240015188
...
39
Driving Rod HM-089240063028
...
40
Screw W/Washer (M5 X 25 Mm) HM-089240015072
...
41
Bracket HM-089240015073
...
42
Lock Nut (M4) HM-089240015089
...
43
Plastic Block HM-089240063029
...
44
Screw W/Washer (M5 X 15 Mm, Round Hd.) HM-089240035028
...
45
Holder HM-089240015091
...
46
Dust Cover HM-089240063030
...
47
Screw (M4 X 12 Mm, Truss Hd.) HM-089240015093
...
48
Frame Tube (Left) HM-089240063713
...
49
Frame Tube (Right) HM-089240063060
...
50
Screw (M5 X 40 Mm) HM-089240063057
...
51
Screw (M6 X 18 Mm, Hex Flange Hd.) HM-080015001436
...
52
Knob HM-089240035006
...
53
Rubber Insert HM-089240063080
...
54
Rear Panel HM-089240063058
...
55
Blade Guard Plate HM-089240063059
...
56
Lock Nut (1/4-20) HM-089110101033
...
57
New Driving Rod HM-089240063034
...
58
Data Label (Rts08) HM-089240046901

Ryobi RTS08

...
...
1
Fence Lever HM-089040002003
...
2
Screw (#8-16 Unc X 5/8 Inch, Truss Hd.) HM-089240063042
...
3
Rod HM-089240063043
...
4
Handle Bracket HM-089037007083
...
5
Spring Pin (D4 X 10.5 Mm) HM-080015001549
...
6
Spring Pin (D4 X 20 Mm) HM-089110102187
...
7
Rip Fence Cover HM-089240035055
...
8
Fence Bracket HM-089240063081
...
9
Indicator HM-080015001554
...
10
Screw (5/32-32 X 1/4 Inch) HM-089015001011
...
11
Washer (1/4 Inch) HM-089110101102
...
12
Screw (1/4-20 X 1/2 Inch, Hex Hd.) HM-089240061001
...
13
Rip Fence HM-089240063044
...
14
Slide Block HM-080015001544
...
15
Compression Spring HM-089240063045
...
16
Washer (Od16 X Id1/4 X 1T) HM-089110101033
...
17
Rear Clamp HM-089037007085
...
18
Lock Nut (1/4-20) HM-089110102180
...
19
Block HM-089240063046
...
20
Screw (M4 X 10 Mm, Truss Hd.) HM-089110101011

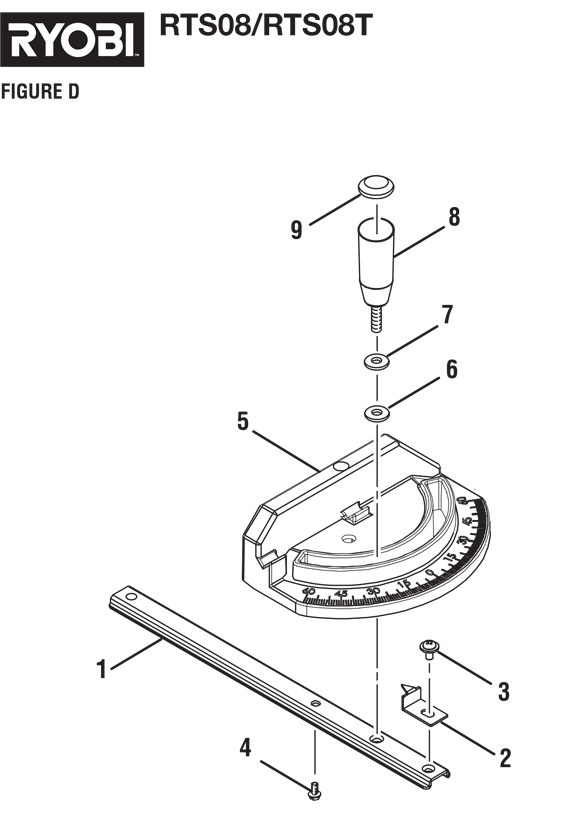

Ryobi RTS08

...
...
1
Miter Gauge Rod HM-089240063048
...
2
Pointer HM-089240063049
...
3
Screw (3/16-24 X 1/4 Inch, Round. Hd.) HM-080015001662
...
4
Screw (M4 X 14.8 Mm, Hex Hd.) HM-089037007078
...
5
Miter Gauge HM-089240035078
...
6
Nylon Washer (Od16 X Id6.5 X 2T) HM-089240063076
...
7
Washer (Od16 X Id6.5 X 2T) HM-080015001560
...
8
Miter Gauge Knob HM-089040002005
...
9
Miter Gauge Cap HM-089040002006

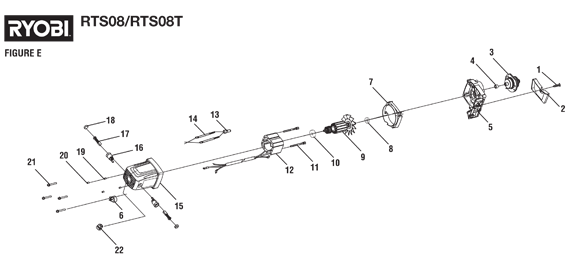

Ryobi RTS08

...
...
1
Screw (17 Mm, Self-Tapping) HM-089240063083
...
2
Gear Box Cover HM-089240063018
...
3
Arbor Assembly HM-089240063705
...
4
Needle Bearing HM-089110102263
...
5
Gear Box Assembly W/Bearing HM-089240063020
...
6
Wire Clamp HM-089110101081
...
7
Baffle HM-089240063021
...
8
Needle Bearing HM-089006017099
...
9
Armature Assembly HM-089240063706
...
10
Needle Bearing HM-089006017086
...
11
Screw W/Washer (M5 X 65 Mm, Truss Hd.) HM-089290001182
...
12
Field Assembly HM-089240063707
...
13
Wire Connector HM-089240021020
...
14
Motor Cord HM-089240035016
...
15
Motor Housing Assembly HM-089240063708
...
16
Brush Holder HM-089006017091
...
17
Brush Assembly HM-089240063024
...
18
Brush Cap HM-089006017093
...
19
Set Screw (M5 X 5 Mm) HM-089240063023
...
20
Set Screw (M5 X 8 Mm) HM-089006017090
...
21
Screw W/Washer (M5 X 40 Mm) HM-089006017089
...
22
Strain Relief HM-089240015140

The Ryobi RTS08 8-1/4 Inch Table Saw is a compact yet powerful tool designed for precision cutting in various materials. Its portable design and efficient motor make it perfect for job sites and workshops. PartsWarehouse offers genuine OEM parts for the RTS08, ensuring your table saw continues to deliver accurate and safe cuts. Regular maintenance with original parts is essential for long-lasting performance.

Why Choose Us for Ryobi RTS08 Table Saw Parts?

At PartsWarehouse, we provide high-quality, original parts for your RTS08 table saw, quick shipping, and expert support to keep your tool operating smoothly.
