Ryobi RGBV3100 41DSGBVG034 Gas Blower

Model: RGBV3100 41DSGBVG034 41DSGBVG034 RGBV3100

Save Part Not Listed?
product name

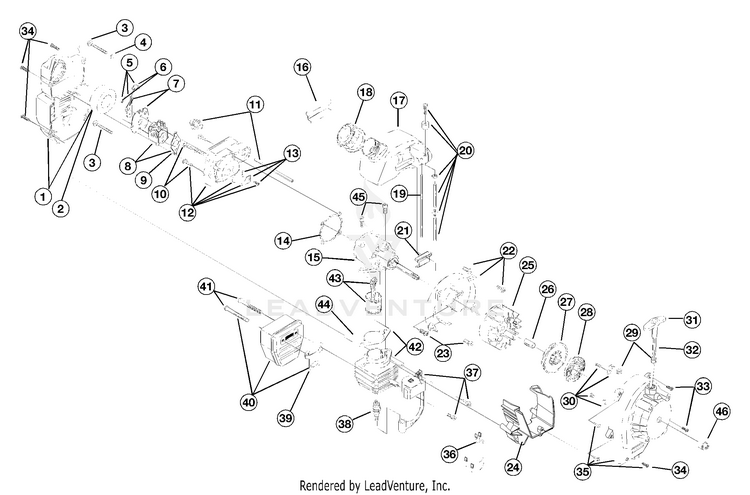

Engine Parts

...
...
1
Air Cleaner Cover Assembly (includes 2 & 38) (includes 2 & 34) MTD-753-04511
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
4
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
5
CHOKE LEVER ASSEMBLY:W/ (includes 6) MTD-753-04418
...
6
ASSEMBLY, CHOKE KNOB & MTD-791-182202
...
7
PLATE ASSEMBLY:CHOKE:WV (includes 5) MTD-753-04419
...
8
Carburetor Assembly (includes 9 & 20) MTD-753-04408
...
9
CARBURETOR GASKET MTD-791P610675
...
10
SCREW, 10-24X.75 T-2 MTD-791-181860
...
11
Primer and Hose Assembly MTD-791-683974B
...
12
CARBURETOR MOUNT ASSEMBLY (includes 10 & 13-14) MTD-753-1196
...
13
REED VALVE ASSEMBLY MTD-791-684451
...
14
Carburetor Mount Gasket MTD-753-1208
...
15
ASSEMBLY, CRANK (includes 10 & 23) MTD-791-182775
...
16
PAD, REAR MOUNT PAD MTD-791-612134
...
17
TANK ASSEMBLY:BK CAP W/ (includes 18-20) MTD-753-04310
...
18
Fuel Tank Cap MTD-791-182612
...
19
Fuel Return Line MTD-791-181086
...
20
Fuel Line Assembly MTD-791-682039
...
21
PAD, FRONT MOUNTING MTD-791-145308
...
22
ASSEMBLY, SHROUD ASSEMB (includes 23) MTD-791-153520
...
23
SCREW, 1/4-20X.562 F MTD-791-181861
...
24
EXTENSION, SHROUD (includes 34) MTD-791-182401
...
25
Flywheel Assembly MTD-753-05240
...
26
Spacer MTD-791-181525
...
27
START PULLEY KIT MTD-753-04232
...
28
Recoil Spring MTD-791-613102
...
29
Rope Guide MTD-791-611061
...
30
ASSEMBLY, PULLEY RETAINER MTD-791-180930
...
31
Pull Handle MTD-631-04164B
...
32
Rope MTD-791-613103
...
33
SCREW:10-32X.5 MTD-1964
...
34
Cover Screw MTD-791-181345
...
35
ASSEMBLY, STARTER HOUSING (includes 27-34) MTD-791-181931
...
36
LEAD, WIRE 10.5" B MTD-791-182402
...
37
IGNITION MODULE ASSEMBLY MTD-753-04125
...
38
Spark Plug MTD-791-610311B
...
39
Muffler Gasket MTD-753-04619
...
40
MUFFLER ASM CAT NLAUD (includes 39 & 41) MTD-753-05169
...
41
ASSEMBLY, MUFFLER MOUNTING BOLTS MTD-791-147575
...
42
Cylinder Assembly (includes 51 & 52) (includes 44 & 45) MTD-753-04814
...
43
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
44
GASKET:CYL:HTSHLD:EP MTD-753-1197
...
45
Cylinder Bolt MTD-791-182723
...
46
NUT, DRIVE IMPELLE MTD-791-181524
...
xx
ENGINE GASKET KIT Not Shown MTD-753-04134
...
xx
O.E.M. Carburetor Repair Kit (Walbro) Not Shown MTD-791-180602
...
xx
SET, WALBRO LIMITE Not Shown MTD-791-181873
...
xx
Piston Ring Not Shown MTD-753-1209
...
xx
SHBLK ASSEMBLY:31CC:BLO (includes 10, 15, 23, 38, 42-45); Not Shown MTD-753-04156

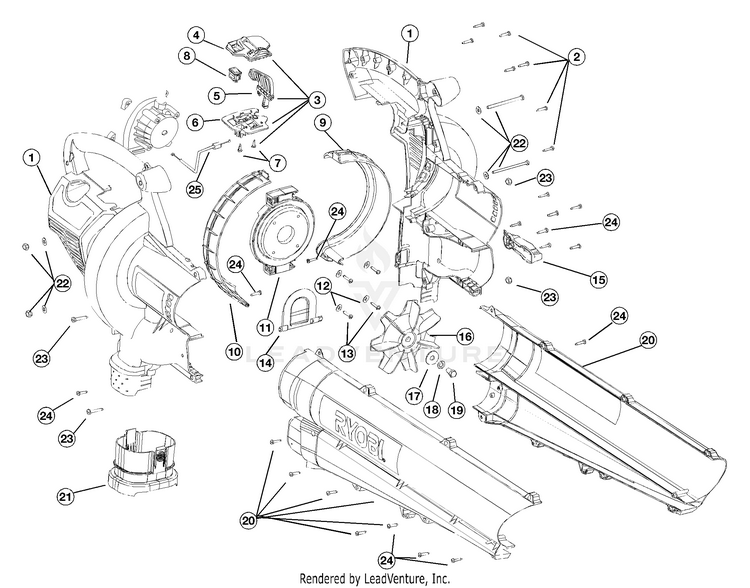

Housing Parts

...
...
1
ENG CVR ASSEMBLY GRAY (includes 2) MTD-753-04138
...
2
Screw MTD-791-181345
...
3
LEVER ASSEMBLY:THRO (includes 4-7, & 25) MTD-791-182419
...
4
LEVER ASSEMBLY:THRO MTD-791-182420
...
5
Throttle Control Lever MTD-791-00048
...
6
LEVER ASSEMBLY:THRO MTD-791-182422
...
7
SCREW, 6X.375X1/2 PL MTD-791-182423
...
8
Rocker Switch Assembly MTD-791-182405
...
9
ENG COVER LINER:(LH) MTD-753-04140
...
10
ENG CVR LINER:(RH) MTD-753-04139
...
11
ADAPTER-ENG MOU (includes 12 & 13) MTD-791-182408
...
12
Washer MTD-791-182409
...
13
SCREW, 10-9X1.00 PH MTD-791-181903
...
14
Mode Control Flapper MTD-791-182410
...
15
CONTROL LEVER (includes 24) MTD-791-182411
...
16
IMPELLER BLOWER-VAC MTD-791-147353
...
17
Fl-Wash. 3/8 I.D. x 1.25 O.D. x .090 MTD-736-0133
...
18
L-Wash. 3/8" I.D. MTD-736-0169
...
19
Bolt MTD-791-182414
...
20
Blower/ Vac Tube Assembly (Incl. Ref No. 3) (includes 24) MTD-791-00051
...
21
ADAPTER MTD-791-182417
...
22
MOUNTING PLATE HARDWARE MTD-791-182424
...
23
ASSEMBLY, TUBE MOUNTING MTD-791-182425
...
24
Screw MTD-791-181482
...
25
THROTTLE CABLE MTD-791-00049
...
xx
CLAMP, BAG NYLON Not Shown MTD-791-612930
...
xx
Vacuum Bag Assembly, Inlet Oval (includes 21, Vacuum Bag & Cable Tie); Not Shown MTD-753-04465
...
xx
ASSEMBLY, VAC B Not Shown MTD-791-181836
...
xx
Shoulder Harness Not Shown MTD-791-682075B
