Ryobi RGBV3100 41CSGBVG034 Gas Blower

Model: RGBV3100 41CSGBVG034 41CSGBVG034 RGBV3100


product name

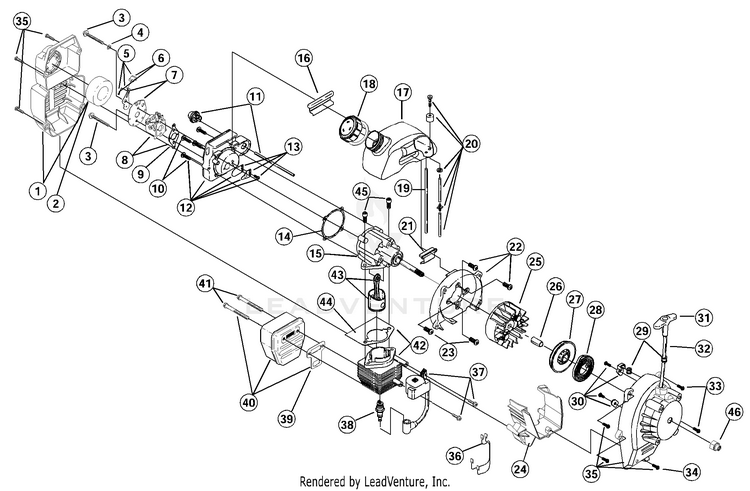

Engine Parts

...
...
1
Air Cleaner Cover Assembly (includes 2 & 38) (includes 2 & 34) MTD-753-04511

...
2
Air Cleaner Filter MTD-791-180350B

...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351

...
4
SPRING WASHER .317 X .625 X .020 MTD-936-0271

...
5
CHOKE LEVER ASSEMBLY:W/ (includes 6) MTD-753-04418

...
6
ASSEMBLY, CHOKE KNOB & MTD-791-182202

...
7
PLATE ASSEMBLY:CHOKE:WV (includes 5) MTD-753-04419

...
8
CARBURETOR ASSEMBLY (includes 9 & 20) MTD-753-04106

...
9
CARBURETOR GASKET MTD-791P610675

...
10
SCREW, 10-24X.75 T-2 MTD-791-181860

...
11
Primer and Hose Assembly MTD-791-683974B

...
12
CARBURETOR MOUNT ASSEMBLY (includes 10 & 14) MTD-753-1196

...
13
REED VALVE ASSEMBLY MTD-791-684451

...
14
Carburetor Mount Gasket MTD-753-1208

...
15
Crank Case Service Assembly (includes 10 & 23) MTD-753-04128

...
16
PAD, REAR MOUNT PAD MTD-791-612134

...
17
TANK ASSEMBLY:BK CAP W/ (includes 18-20) MTD-753-04310

...
18
Fuel Tank Cap MTD-791-182612

...
19
Fuel Return Line MTD-791-181086

...
20
Fuel Line Assembly MTD-791-682039

...
21
PAD, FRONT MOUNTING MTD-791-145308

...
22
ASSEMBLY, SHROUD ASSEMB MTD-791-153520

...
23
SCREW, 1/4-20X.562 F MTD-791-181861

...
24
EXTENSION, SHROUD (includes 34) MTD-791-182401

...
25
Flywheel Assembly MTD-753-05240

...
26

...
27
START PULLEY KIT MTD-753-04232

...
28
Recoil Spring MTD-791-613102

...
29
Rope Guide MTD-791-611061

...
30
ASSEMBLY, PULLEY RETAINER MTD-791-180930

...
31
Pull Handle MTD-631-04164B


...
33
SCREW:10-32X.5 MTD-1964

...
34
Cover Screw MTD-791-181345

...
35
ASSEMBLY, STARTER HOUSING (includes 28-34) MTD-791-181931

...
36
LEAD, WIRE 10.5" B MTD-791-182402

...
37
IGNITION MODULE ASSEMBLY MTD-753-04125

...
38
Spark Plug MTD-791-610311B

...
39
Muffler Gasket MTD-753-04619

...
40
MUFFLER ASM CAT NLAUD (includes 39 & 41) MTD-753-05169

...
41
ASSEMBLY, MUFFLER MOUNTING BOLTS MTD-791-147575

...
42
Cylinder Assembly (includes 51 & 52) (includes 44 & 45) MTD-753-04814

...
43
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367

...
44
GASKET:CYL:HTSHLD:EP MTD-753-1197

...
45
Cylinder Bolt MTD-791-182723

...
46
NUT, DRIVE IMPELLE MTD-791-181524

...
xx
ENGINE GASKET KIT Item not shown MTD-753-04134

...
xx
CARBURETOR ASSEMBLY Item not shown MTD-753-04106

...
xx
Gasket Diaphragm Repair Kit (Zama) Item not shown MTD-791-180091

...
xx
Piston Ring Item not shown MTD-753-1209

...
xx
SHBLK ASSEMBLY:31CC:BLO (includes 10, 15, 23, 38, 42 - 45); Item not shown MTD-753-04156

...
xx
SET, STARTER HOUSI Item not shown MTD-791-181501

...
xx
SEAL, SEAL Item not shown MTD-791-610309

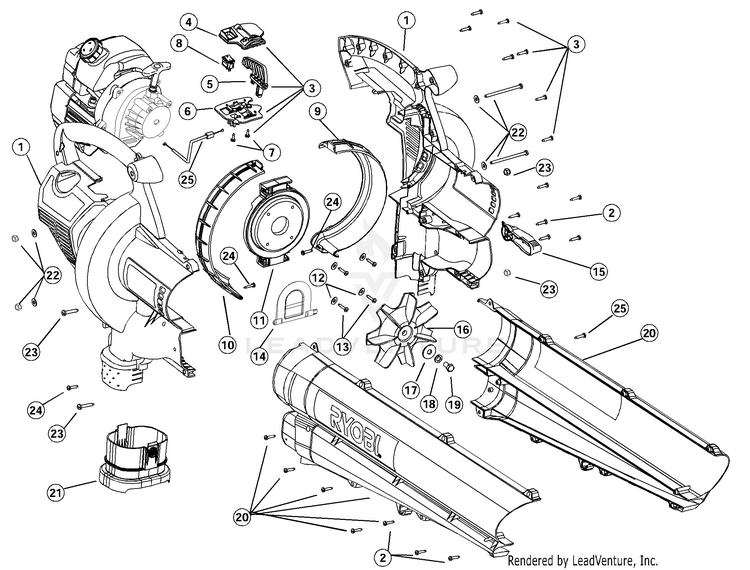

Housing Parts

...
...
1
ENG CVR ASSEMBLY GRAY (includes 24) MTD-753-04138

...
2
Cover Screw MTD-791-181482

...
3
LEVER ASSEMBLY:THRO (includes 4-7) MTD-791-182419

...
4
LEVER ASSEMBLY:THRO MTD-791-182420

...
5
Throttle Control Lever MTD-791-00048

...
6
LEVER ASSEMBLY:THRO MTD-791-182422

...
7
SCREW, 6X.375X1/2 PL MTD-791-182423

...
8
Rocker Switch Assembly MTD-791-182405

...
9
ENG COVER LINER:(LH) MTD-753-04140

...
10
ENG CVR LINER:(RH) MTD-753-04139

...
11
ADAPTER-ENG MOU (includes 12 & 13) MTD-791-182408

...
12

...
13
SCREW, 10-9X1.00 PH MTD-791-181903

...
14
Mode Control Flapper MTD-791-182410

...
15
CONTROL LEVER (includes 2) MTD-791-182411

...
16
IMPELLER BLOWER-VAC MTD-791-147353

...
17
Fl-Wash. 3/8 I.D. x 1.25 O.D. x .090 MTD-736-0133

...
18
L-Wash. 3/8" I.D. MTD-736-0169


...
20
Blower/ Vac Tube Assembly (Incl. Ref No. 3) (includes 2) MTD-791-00051

...
21

...
22
MOUNTING PLATE HARDWARE MTD-791-182424

...
23
ASSEMBLY, TUBE MOUNTING MTD-791-182425

...

...
25
THROTTLE CABLE MTD-791-00049

...
xx
CLAMP, BAG NYLON Item not shown MTD-791-612930

...
xx
Vacuum Bag Assembly (includes 21, Vacuum Bag & Cable Tie); Item not shown, Inlet oval MTD-753-04465

...
xx
ASSEMBLY, VAC B Inlet round, not shown MTD-791-181836

...
xx
Shoulder Harness Item not shown MTD-791-682075B

...
xx
2-CYCLE OIL Item not shown MTD-791-147543
