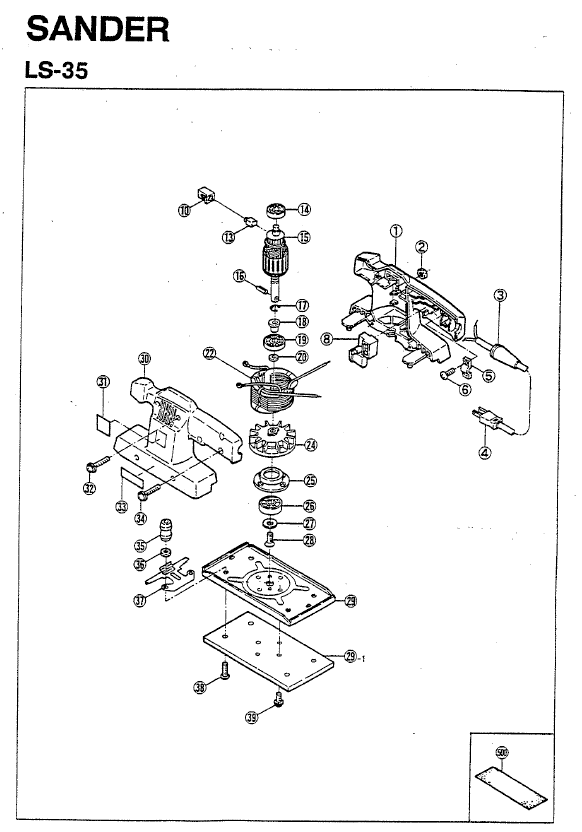

Ryobi LS-35 Sander

Model: LS-35

Save
 Part Not Listed?Part Not Listed?
product name

Ryobi LS-35

...
...
1
Housing (A) HM-6800645
...
2
Hex Nut M4 HM-9310400
...
3
Cord Holder HM-6560131
...
4
Cord Assembly Awg # 18X2X2 HM-6520331
...
5
Cord Clamp HM-6560067
...
6
Tapping Screw (B) M4X16 HM-9060416
...
8
Trigger Switch HM-6550249
...
10
Brush Holder HM-6570038
...
13
Carbon Brush Set HM-6540433
...
14
Ball Bearing #627Llb HM-9840627
...
15
Armature HM-6030820
...
16
Spring Pin HM-9402512
...
17
Retaining Ring E-6 HM-9500600
...
18
Collar HM-6900250
...
19
Ball Bearing #6200Llu HM-969235005
...
20
Fiber Washer HM-6900071
...
22
Field Coil HM-6500726
...
24
Impeller HM-6490145
...
25
Bearing Cover HM-6150704
...
26
Ball Bearing #6201Llu HM-9826201
...
27
Collar HM-6900248
...
28
Phillips Pan Screw M5X10 HM-9140510
...
29
Rubber Pad HM-6010098
...
29-1
Rubber Sheet HM-6370094
...
30
Housing (B) HM-6800653
...
31
Ryobi Mark HM-6920010
...
32
Phillips Pan Screw M4X30 HM-9020430
...
33
Name Plate HM-6913460
...
34
Phillips Pan Screw M4X20 HM-9020420
...
35
Foot HM-6370095
...
36
Hex Nut M6 HM-9320600
...
37
Clamper HM-6180105
...
38
Phillips Pan Screw M6X15 HM-9000615
...
39
Phillips Pan Screw M4X6 HM-9020406
...
...
...
