Ryobi 890r 41AD890A734 (2004) Gas String Trimmer

Model: 890r 41AD890A734 41AD890A734 890r (2004)

Back To Assemblies


product name

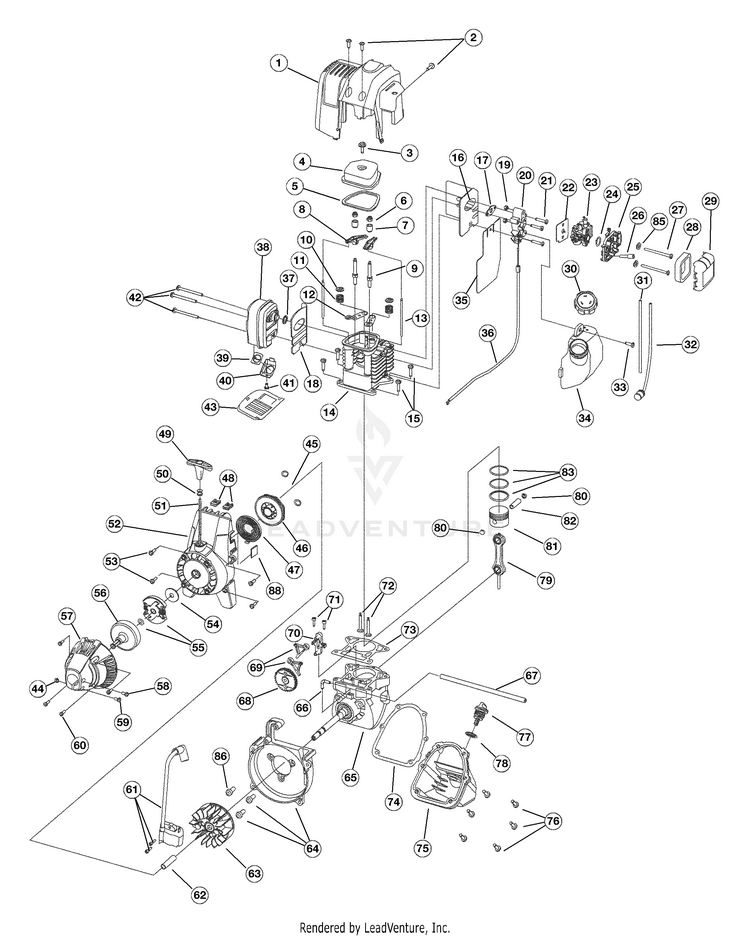

Engine Parts

...
...
1
COVER ASSEMBLY:ENG:MFLR MTD-753-1222

...
2
Engine Cover Screws MTD-753-04994

...
3
Valve Cover Screw MTD-791-181025

...
4
COVER, VALVE W/O BRE MTD-791-182098

...
5
Valve Cover Gasket MTD-791-182099

...
6
NUT, ROCKER ADJUST MTD-791-182340

...
7
PIVOT, ROCKER ARM MTD-791-182101

...
8
ARM, ROCKER MTD-791-182100

...
9
STUD, ROCKER ARM MTD-791-182341

...
10
RET, VALVE SPRING MTD-791-182103

...
11
SPRING, VALVE MTD-791-181038

...
12
GUIDE, PUSH ROD MTD-791-182102

...
13
ROD, PUSH MTD-791-181033

...
14
CYLINDER ASSEMB (includes 9, 12 & 72) MTD-791-182653

...
15
SCREW, M5 X18 MTD-9052-1

...
16
INTAKE BAFFLE MTD-753-1226

...
17
Carburetor Mount Gasket MTD-791-182749

...
18
BAFFLE:MFLR:EXHAUST MTD-753-1232

...
19
NUT-DEE HANDLE MTD-791-181034

...
20
Carburetor Mount (includes 19) MTD-791-182347

...
21
SCR, CARBU MTD-791-182348

...
22
CARBURETOR GASKET MTD-791-182732

...
23
Carburetor with Primer MTD-753-1225

...
24
O-Ring, Carburetor MTD-791-181751

...
25
Air Cleaner Assembly (includes 29 & 28) MTD-753-04223

...
26
Breather Tube MTD-791-182097

...
27
SCREW 5M X 0.8-7 NLAUD MTD-791-181750

...
28
Air Filter MTD-791-181757

...
29
Air Cleaner Assembly MTD-753-04223

...
30
FUEL CAP ASSEMBLY 43MM-6 W/O HOLE MTD-791-182271

...
31
Fuel Return Line MTD-791-182352

...
32
Fuel Pick-Up Line with Filter MTD-791-182353

...
33
SCREW M5-19 MTD-710-04185

...
34
FUEL TANK ASSEMBLY (includes 30-32) MTD-791-182355

...
35
BAFFLE, FU MTD-791-182356

...
36
Throttle Cable MTD-753-1231

...
37
MUFFLER GASKET MTD-9094-1

...
38
MUFFLER & GASKET (includes 37 & 39-41) MTD-791-182359

...
39
SCREEN, AC MUFFLER SPARK MTD-791-180890

...
40
COVER, SCREEN MTD-791-181045

...
41
SCREW, SCREEN COVER MTD-791-181046

...
42
SCREW, MUFFLER MTD-791-182361

...
43

...
44
NUT:#8-32: MTD-753-1241

...
45
Pulley Retainer MTD-753-04288

...
46
PULLEY:START MTD-753-1199

...
47
Recoil Spring MTD-753-04286

...
48

...
49
Pull Handle MTD-631-04164B

...
50
Rope Guide MTD-791-611061


...
52
Screw MTD-9054

...
53
START HSG ASSEMBLY (includes 45-51 & 53) MTD-753-04154

...
54

...
55
Clutch with Spacer MTD-753-1238

...
56
Clutch Drum MTD-791-153592

...
57
CLUTCH COVER MTD-753-1239

...
58
Anti-Rotation Screw MTD-791-145569

...
59
SCREW:8-32X1.00":MAC MTD-753-1240

...
60
Clutch Cover Screw MTD-791-181345

...
61
IGNITION MODULE WITH SCREWS MTD-791-182725

...
62

...
63
Flywheel Assembly MTD-753-05240

...
64
ASSEMBLY, SHROUD (AC-2. (includes 85) MTD-791-182743

...
65
ASSEMBLY, CRANKCASE & P (includes 66-67) MTD-791-182376

...
66
FITTING, BREATHER MTD-791-182375

...
67
Breather Hose MTD-791-182379

...
68

...
69
FOLLOWER, MTD-753-1242

...
70
BRACKET, CAM MTD-791-181013

...
71
SCR, CAM BRACKET MTD-791-181012

...

...
73
GASKET, CYLINDER B MTD-791-182374

...
74
GASKET, OIL PAN MTD-791-181018

...
75
PAN, OIL W/ GASKET (includes 74 & 76) MTD-791-182377

...
76
Screw MTD-9054

...
77
Dipstick Assembly (includes 78) MTD-791-182378

...
78

...
79
ROD, CONNECTING MTD-791-181009

...
80
BUTTON, WRIST PIN MTD-791-181008

...
81
PISTON ASSEMBLY:PSTN MTD-753-1243

...
82
PIN, WRIST MTD-791-181006

...
83
RING SET:PISTON MTD-753-04801

...
84

...
85
SCREW, 1/4-20X.562 F MTD-791-181861

...
86
GROMMET, WIRE (AC- MTD-791-182537

...
xx
Spark Plug Not shown MTD-794-00082

...
xx
SHORTBLOCK ASSEMBLY (includes 3-15, & 65-83); Not shown MTD-753-04087

...
xx
Flywheel Assembly Not shown MTD-753-05240

...
xx
Carburetor Repair Kit Not shown MTD-753-04014

The Ryobi 890r Gas String Trimmer combines efficiency and power for effective lawn care. With a robust engine, this trimmer tackles thick grass and stubborn weeds with ease. The lightweight design ensures easy handling, while the ergonomic grip provides comfort during prolonged use. Maintain your lawn effortlessly with the dependable Ryobi 890r.

Why Choose Us for Ryobi 890r 41AD890A734 2004 Gas String Trimmer Parts?

PartsWarehouse offers a wide selection of high-quality OEM parts for the Ryobi 890r Gas String Trimmer. Our components help keep your equipment running at its best.
