Ryobi 890r 41AD890A734 (2004) Gas String Trimmer

Model: 890r 41AD890A734 41AD890A734 890r (2004)

Back To Assemblies

Save Part Not Listed?

Popular Parts

Trigger: Throt: Bc: Mtd MTD-753-04119

Clamp Shoulder Str MTD-4301A

Nut - Blade Lock MTD-712-04105

Kit, Blade Retaini MTD-791-180014B

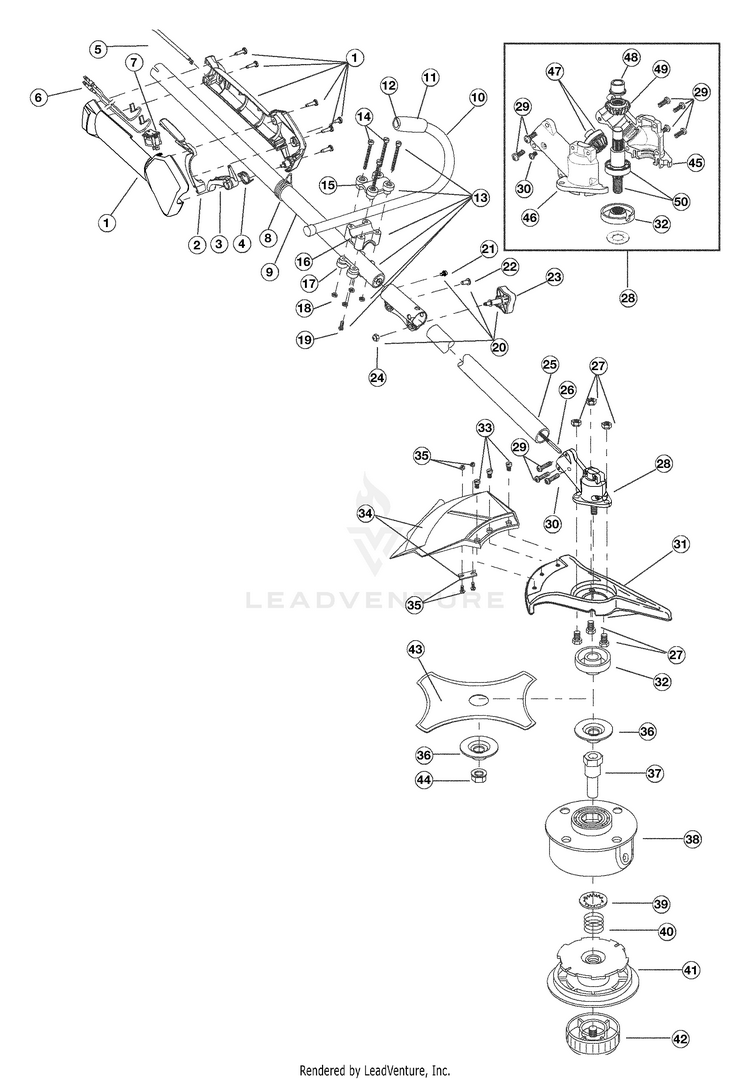

Boom And Trimmer Parts

THROTTLE HOUSING AS (includes 2-4) MTD-791-182801

THROTTLE LOCKOUT LEVEL MTD-791-182802

Throttle Trigger MTD-753-04119

Throttle Trigger Spring MTD-791-182690

Throttle Cable Assembly MTD-753-1231

ASSEMBLY, SWIT MTD-791-182804

ASSEMBLY, SWITCH WEAD (includes 6) MTD-791-182805

SHOULDER STRAP CLAMP MTD-4301A

Harness Clip MTD-791-610327

DRIVE SHAFT HOUSING ASSEMBLY UPPER MTD-753-04503

J-Handle Assembly (includes 11 & 12) MTD-791-181099

GRIP-HANDLE MTD-791-612831

Tube Closure MTD-791-612021

Handle Bracket Assembly (includes 14-19) MTD-791-683295

Screw MTD-791-181811

Upper Handle Clamp MTD-791-181812

Middle Handle Clamp MTD-791-181813

Lower Handle Clamp MTD-791-181814

Nut MTD-791-181815

Anti-Rotation Screw MTD-791-145569

Split Boom Coupler (Incl Ref No. 10-13) (includes 21-24) MTD-753-1190

Screw MTD-791-182057

Bolt MTD-791-181617

ADJUSTMENT KNO MTD-791-181618B

NUT, ELASTIC LOCK MTD-791-181886

Lower Drive Shaft Housing Assembly MTD-791-182541

Lower Flexible Drive Shaft MTD-791-613300

Shield Mount Screw Assembly MTD-791-182200

2 piece Gearbox Assembly (includes 27, 29 & 30) MTD-791-182193

SCREW #10-24X11/16 T-25 MTD-791-182195

Anti-Rotation Screw MTD-791-145569

Blade Shield/Shield Mount MTD-791-147492

Blade Driver MTD-791-182196

Shield Mounting Screw MTD-791-683304

GUARD AND BLADE ASSEMBLY (includes 35) MTD-791-683299

Blade Assembly MTD-791-682061

Retaining Washer MTD-791-147490

Spool Shaft MTD-791-612483

SPOOL ASM-OUTER 3000 NLAUD MTD-791-683301

RETAINER MTD-1772

Spring MTD-791-610636B

Inner Reel MTD-791-147495

KNOB ASSEMBLY-BUMP 3000 STRG TRM MTD-791-180814B

4-Tooth Blade MTD-791-145873B

Nut MTD-712-04105

Blade Retaining Kit (includes 36 & 45); Not shown MTD-791-180014B

Locking Rod Tool Not shown MTD-791-613226

Shoulder Strap Assembly Not shown MTD-791-682075B

LEFT HOUSING 2 Piece Gearbox Assembly Parts - Item 27 MTD-791-182191

RIGHT HOUSING 2 Piece Gearbox Assembly Parts - Item 27 MTD-791-182192

Pinion Gear Assembly 2 Piece Gearbox Assembly Parts - Item 27 MTD-791-182194

BUSHING-OUTPUT SHA 2 Piece Gearbox Assembly Parts - Item 27 MTD-791-182199

GEAR-OUTPUT SHAFT 2 Piece Gearbox Assembly Parts - Item 27 MTD-791-182198

SHAFT-ASSEMBLY-OUTPUT 2 Piece Gearbox Assembly Parts - Item 27; (includes 48 & 49) MTD-791-182197
