Ryobi 890r 41AD890A034 Gas String Trimmer

Model: 890r 41AD890A034 41AD890A034 890r

Save Part Not Listed?
product name

Boom And Trimmer Parts

...
...
1
THROTTLE HOUSING AS (includes 2-4) MTD-791-182801
...
2
THROTTLE LOCKOUT LEVEL MTD-791-182802
...
3
Throttle Trigger MTD-753-04119
...
4
Throttle Trigger Spring MTD-791-182690
...
5
Throttle Cable Assembly MTD-753-1231
...
6
ASSEMBLY, SWIT MTD-791-182804
...
7
ASSEMBLY, SWITCH WEAD (includes 6) MTD-791-182805
...
8
SHOULDER STRAP CLAMP MTD-4301A
...
8
Harness Clip MTD-791-610327
...
9
DRIVE SHAFT HOUSING ASSEMBLY UPPER MTD-753-04503
...
10
J-Handle Assembly (includes 11 & 12) MTD-791-181099
...
11
GRIP-HANDLE MTD-791-612831
...
12
Tube Closure MTD-791-612021
...
13
Handle Bracket Assembly (includes 14-19) MTD-791-683295
...
14
Screw MTD-791-181811
...
15
Upper Handle Clamp MTD-791-181812
...
16
Middle Handle Clamp MTD-791-181813
...
17
Lower Handle Clamp MTD-791-181814
...
18
Nut MTD-791-181815
...
19
Anti-Rotation Screw MTD-791-145569
...
20
Split Boom Coupler (Incl Ref No. 10-13) (includes 21-24) MTD-753-1190
...
21
Screw MTD-791-182057
...
22
Bolt MTD-791-181617
...
23
ADJUSTMENT KNO MTD-791-181618B
...
24
NUT, ELASTIC LOCK MTD-791-181886
...
25
Lower Drive Shaft Housing Assembly MTD-791-182541
...
26
Lower Flexible Drive Shaft MTD-791-613300
...
27
Shield Mount Screw Assembly MTD-791-182200
...
28
2 piece Gearbox Assembly (includes 29, 30, 32 & 36) MTD-791-182193
...
29
SCREW #10-24X11/16 T-25 MTD-791-182195
...
30
Anti-Rotation Screw MTD-791-145569
...
31
Blade Shield/Shield Mount MTD-791-147492
...
32
Blade Driver MTD-791-182196
...
33
Shield Mounting Screw MTD-791-683304
...
34
GUARD AND BLADE ASSEMBLY (includes 35) MTD-791-683299
...
35
Blade Assembly MTD-791-682061
...
36
Retaining Washer MTD-791-147490
...
37
Spool Shaft MTD-791-612483
...
38
SPOOL ASM-OUTER 3000 NLAUD MTD-791-683301
...
39
RETAINER MTD-1772
...
40
Spring MTD-791-610636B
...
41
Inner Reel MTD-791-147495
...
42
KNOB ASSEMBLY-BUMP 3000 STRG TRM MTD-791-180814B
...
43
4-Tooth Blade MTD-791-145873B
...
44
Nut MTD-712-04105
...
xx
Blade Retaining Kit (includes 36 & 45); not shown MTD-791-180014B
...
xx
Locking Rod Tool not shown MTD-791-613226
...
xx
Shoulder Strap Assembly not shown MTD-791-682075B
...
45
LEFT HOUSING 2 Piece Gearbox Assembly Parts - Item 27 MTD-791-182191
...
46
RIGHT HOUSING 2 Piece Gearbox Assembly Parts - Item 27 MTD-791-182192
...
47
Pinion Gear Assembly 2 Piece Gearbox Assembly Parts - Item 27 MTD-791-182194
...
48
BUSHING-OUTPUT SHA 2 Piece Gearbox Assembly Parts - Item 27 MTD-791-182199
...
49
GEAR-OUTPUT SHAFT 2 Piece Gearbox Assembly Parts - Item 27 MTD-791-182198
...
50
SHAFT-ASSEMBLY-OUTPUT (includes 48 & 49); 2 Piece Gearbox Assembly Parts - Item 27 MTD-791-182197

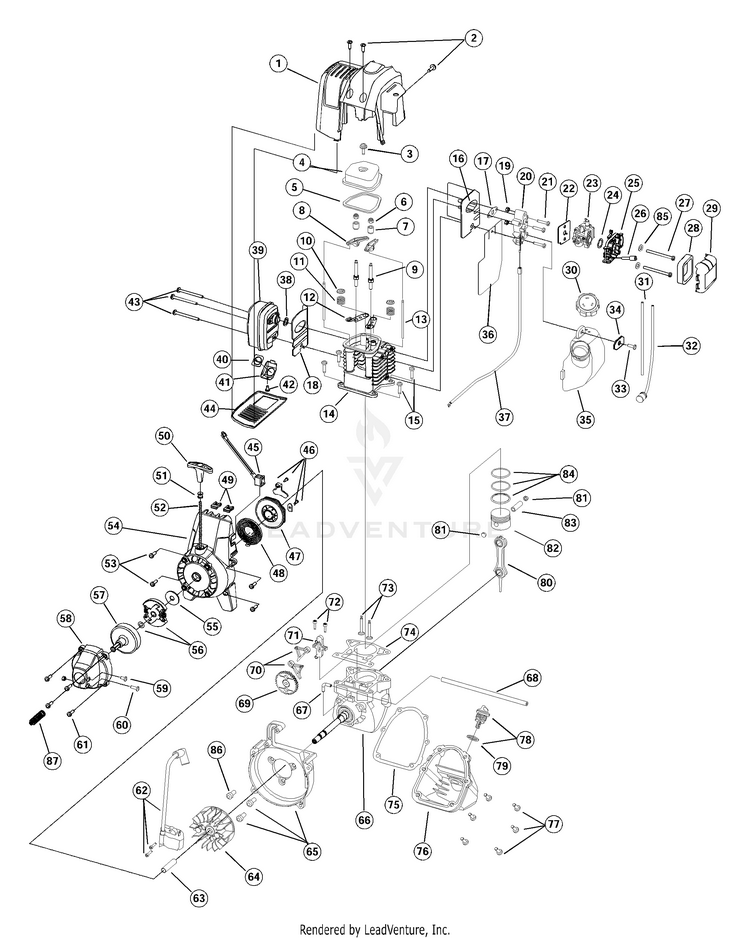

Engine Parts

...
...
1
CVR, ENGIN MTD-791-182338
...
2
Engine Cover Screws MTD-753-04994
...
3
Valve Cover Screw MTD-791-181025
...
4
COVER, VALVE W/O BRE MTD-791-182098
...
5
Valve Cover Gasket MTD-791-182099
...
6
NUT, ROCKER ADJUST MTD-791-182340
...
7
PIVOT, ROCKER ARM MTD-791-182101
...
8
ARM, ROCKER MTD-791-182100
...
9
STUD, ROCKER ARM MTD-791-182341
...
10
RET, VALVE SPRING MTD-791-182103
...
11
SPRING, VALVE MTD-791-181038
...
12
GUIDE, PUSH ROD MTD-791-182102
...
13
ROD, PUSH MTD-791-181033
...
14
CYLINDER ASSEMB MTD-791-182653
...
15
SCREW, M5 X18 MTD-9052-1
...
16
BAFFLE, INTAKE GAS MTD-791-182345
...
17
Carburetor Mount Gasket MTD-791-182749
...
18
BAFFLE, MUFFLER MTD-791-182358
...
19
NUT-DEE HANDLE MTD-791-181034
...
20
Carburetor Mount (includes 19) MTD-791-182347
...
21
SCR, CARBU MTD-791-182348
...
22
CARBURETOR GASKET MTD-791-182732
...
23
Carburetor with Primer MTD-753-1225
...
24
O-Ring, Carburetor MTD-791-181751
...
25
Air Cleaner Assembly (includes 28 & 29) MTD-753-04223
...
26
Breather Tube MTD-791-182097
...
27
SCREW 5M X 0.8-7 NLAUD MTD-791-181750
...
28
Air Filter MTD-791-181757
...
29
Air Cleaner Assembly MTD-753-04223
...
30
FUEL CAP ASSEMBLY 43MM-6 W/O HOLE MTD-791-182271
...
31
Fuel Return Line MTD-791-182352
...
32
Fuel Pick-Up Line with Filter MTD-791-182353
...
33
SCREW, FUEL TANK BRA MTD-791-181080
...
34
RET, LOWER STAMPIN MTD-791-182354
...
35
FUEL TANK ASSEMBLY (includes 30-32) MTD-791-182355
...
36
BAFFLE, FU MTD-791-182356
...
37
THROTTLE CABLE MTD-791-182357
...
38
MUFFLER GASKET MTD-9094-1
...
39
MUFFLER & GASKET (includes 38, 40, & 42-44) MTD-791-182359
...
40
SCREEN, AC MUFFLER SPARK MTD-791-180890
...
41
COVER, SCREEN MTD-791-181045
...
42
SCREW, SCREEN COVER MTD-791-181046
...
43
SCREW, MUFFLER MTD-791-182361
...
44
COVER, MUFFLER MTD-791-182362
...
45
NUT:#8-32: MTD-753-1241
...
46
ASSEMBLY, PULLEY RETAIN MTD-791-182363
...
47
PULLEY:START MTD-753-1199
...
48
Recoil Spring MTD-791-613102
...
49
Nut Clip MTD-791-182366
...
50
Pull Handle MTD-631-04164B
...
51
Rope Guide MTD-791-611061
...
52
Rope MTD-791-613103
...
53
Screw MTD-9054
...
54
STARTER FAN HOUSING (includes 46-53) MTD-791-182367
...
55
Washer MTD-9162-1
...
56
Clutch with Spacer MTD-753-1238
...
57
Clutch Drum MTD-791-153592
...
58
HOUSING, CLUTCH MTD-791-182364
...
59
Anti-Rotation Screw MTD-791-145569
...
60
SCREW:8-32X1.00":MAC MTD-753-1240
...
61
Clutch Cover Screw MTD-791-181345
...
62
IGNITION MODULE WITH SCREWS MTD-791-182725
...
63
SPACER MTD-791-181065
...
64
Flywheel Assembly MTD-753-05240
...
65
ASSEMBLY, SHROUD (AC-2. (includes 86) MTD-791-182743
...
66
ASSEMBLY, CRANKCASE & P (includes 67) MTD-791-182376
...
67
FITTING, BREATHER MTD-791-182375
...
68
Breather Hose MTD-791-182379
...
69
CAM GEAR MTD-791-181015
...
70
FOLLOWER, MTD-753-1242
...
71
BRACKET, CAM MTD-791-181013
...
72
SCR, CAM BRACKET MTD-791-181012
...
73
VALVE MTD-791-181040
...
74
GASKET, CYLINDER B MTD-791-182374
...
75
GASKET, OIL PAN MTD-791-181018
...
76
PAN, OIL W/ GASKET (includes 75 & 77) MTD-791-182377
...
77
Screw MTD-9054
...
78
Dipstick Assembly (includes 79) MTD-791-182378
...
79
O-Ring MTD-791-182290
...
80
ROD, CONNECTING MTD-791-181009
...
81
BUTTON, WRIST PIN MTD-791-181008
...
82
PISTON ASSEMBLY:PSTN MTD-753-1243
...
83
PIN, WRIST MTD-791-181006
...
84
RING SET:PISTON MTD-753-04801
...
85
Washer MTD-791-182409
...
86
SCREW, 1/4-20X.562 F MTD-791-181861
...
87
SPRING, COMPRESSION S MTD-791-612468
...
88
GROMMET, WIRE (AC- MTD-791-182537
...
xx
Spark Plug not shown MTD-794-00082
...
xx
SHORTBLOCK ASSEMBLY (includes 3-15, & 65-84); not shown MTD-753-04087
...
xx
Flywheel Assembly not shown MTD-753-05240
...
xx
CYLINDER ASSEMB (includes 9-12, 14, & 73); not shown MTD-791-182745

The Ryobi 890r Gas String Trimmer is engineered for powerful performance in lawn care. Featuring a robust engine, this trimmer easily handles thick grass and weeds. The lightweight design and ergonomic handle provide comfort during prolonged use, ensuring you can tackle any trimming task effortlessly.
