Ryobi 825r 41AD825A734 (2004) Gas String Trimmer

Model: 825r 41AD825A734 41AD825A734 825r (2004)

Back To Assemblies


product name

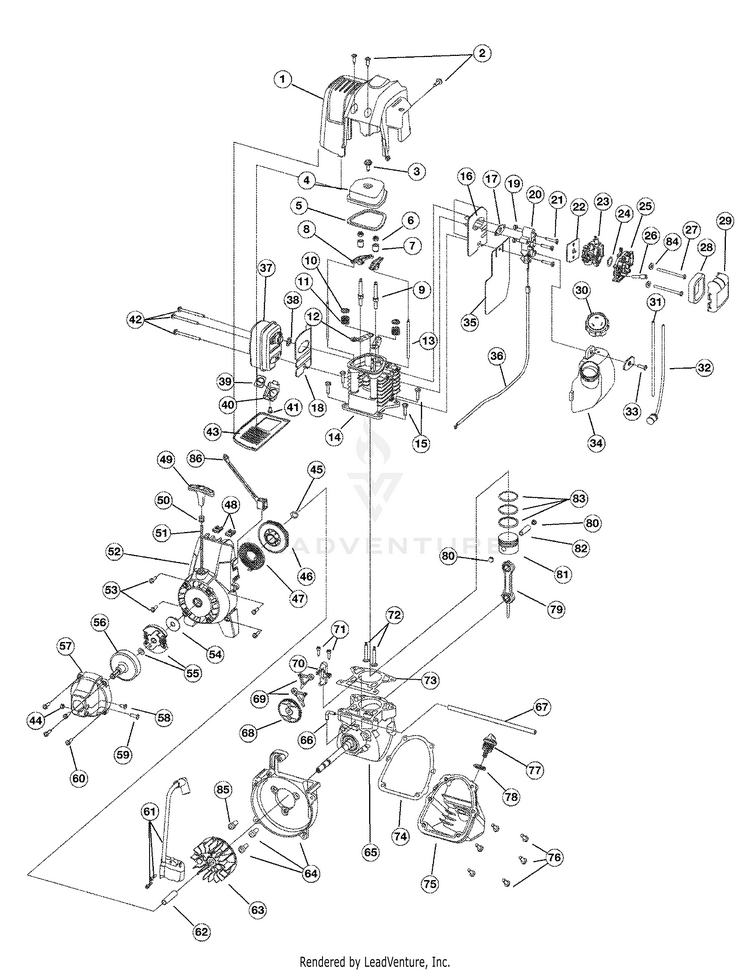

Engine Parts

...
...
1
COVER ASSEMBLY:ENG:MFLR MTD-753-1222

...
2
Engine Cover Screws MTD-753-04994

...
3
Valve Cover Screw MTD-791-181025

...
4
COVER, VALVE W/O BRE MTD-791-182098

...
5
Valve Cover Gasket MTD-791-182099

...
6
NUT, ROCKER ADJUST MTD-791-182340

...
7
PIVOT, ROCKER ARM MTD-791-182101

...
8
ARM, ROCKER MTD-791-182100

...
9
STUD, ROCKER ARM MTD-791-182341

...
10
RET, VALVE SPRING MTD-791-182103

...
11
SPRING, VALVE MTD-791-181038

...
12
GUIDE, PUSH ROD MTD-791-182102

...
13
ROD, PUSH MTD-791-181033

...
14
CYLINDER ASSEMBLY (includes 9-12 & 72) MTD-753-04816

...
15
SCREW, M5 X18 MTD-9052-1

...
16
INTAKE BAFFLE MTD-753-1226

...
17
Carburetor Mount Gasket MTD-791-182749

...
18
BAFFLE:MFLR:EXHAUST MTD-753-1232

...
19
NUT-HANDLE MTD-9072

...
20
Carburetor Mount (includes 19) MTD-791-182347

...
21
SCR, CARBU MTD-791-182348

...
22
CARBURETOR GASKET MTD-791-182732

...
23
Carburetor with Primer MTD-753-1225

...
24
O-Ring, Carburetor MTD-791-181751

...
25
Air Cleaner Assembly (includes 28 & 29) MTD-753-04223

...
26
Breather Tube MTD-791-182097

...
27
SCREW 5M X 0.8-7 NLAUD MTD-791-181750

...
28
Air Filter MTD-791-181757

...
29
Air Cleaner Assembly MTD-753-04223

...
30
FUEL CAP ASSEMBLY 43MM-6 W/O HOLE MTD-791-182271

...
31
Fuel Return Line MTD-791-182352

...
32
Fuel Pick-Up Line with Filter MTD-791-182353

...
33
SCREW M5-19 MTD-710-04185

...
34
FUEL TANK ASSEMBLY (includes 30-32) MTD-791-182355

...
35
BAFFLE, FU MTD-791-182356

...
36
Throttle Cable MTD-753-1231

...
37
MUFFLER & GASKET (includes 38-42) MTD-791-182359

...
38
MUFFLER GASKET MTD-9094-1

...
39
SCREEN, AC MUFFLER SPARK MTD-791-180890

...
40
COVER, SCREEN MTD-791-181045

...
41
SCREW, SCREEN COVER MTD-791-181046

...
42
SCREW, MUFFLER MTD-791-182361

...
43

...
44
NUT:#8-32: MTD-753-1241

...
45
Pal Nut Retaining Ring MTD-753-04288

...
46
PULLEY:START MTD-753-1199

...
47
Recoil Spring MTD-753-04286

...
48

...
49
Pull Handle MTD-631-04164B

...
50
Rope Guide MTD-791-611061


...
52
Screw (includes 45-51 & 53) MTD-9054

...
53
START HSG ASSEMBLY MTD-753-04154

...
54
Clutch Washer MTD-9162-1

...
55
Clutch with Spacer MTD-753-1238

...
56
Clutch Drum MTD-791-153592

...
57
CLUTCH COVER MTD-753-1239

...
58
Anti-Rotation Screw MTD-791-145569

...
59
SCREW:8-32X1.00":MAC MTD-753-1240

...
60
Clutch Cover Screw MTD-791-181345

...
61
IGNITION MODULE WITH SCREWS MTD-791-182725

...
62

...
63

...
64
ASSEMBLY, SHROUD (AC-2. (includes 85) MTD-791-182743

...
65
ASSEMBLY, CRANKCASE & P MTD-791-182376

...
66
FITTING, BREATHER MTD-791-182375

...
67
Breather Hose MTD-791-182379

...
68

...
69
FOLLOWER, MTD-791-182123

...
70
BRACKET, CAM MTD-791-181013

...
71
SCR, CAM BRACKET MTD-791-181012

...

...
73
GASKET, CYLINDER B MTD-791-182374

...
74
PAN, OIL W/ GASKET (includes 76 & 77) MTD-791-182377

...
75
GASKET, OIL PAN MTD-791-181018

...
76
Screw MTD-9054

...
77
Dipstick Assembly (includes 79) MTD-791-182378

...
78

...
79
ROD, CONNECTING MTD-791-181009

...
80
BUTTON, WRIST PIN MTD-791-181008

...
81
PISTON ASSEMBLY:PSTN&RING MTD-753-04878

...
82
PIN, WRIST MTD-791-181006

...
83
RING SET:PISTON MTD-753-04801

...
84

...
85
SCREW, 1/4-20X.562 F MTD-791-181861

...
86
ASSEMBLY, IGNITION SWIT MTD-791-182365

...
xx
Spark Plug Not shown MTD-794-00082

...
xx
SHORTBLOCK ASSEMBLY (includes 3-15, & 66-84); Not shown MTD-753-04087

...
xx
Starter Pawl Repair Kit Not shown MTD-753-05240

...
xx
Carburetor Repair Kit Not shown MTD-753-04014

The Ryobi 825r Gas String Trimmer is built for durability and performance in lawn care. With a powerful engine, this trimmer effectively manages thick grass and weeds. The lightweight design ensures easy handling, while the ergonomic grip provides comfort during use. Maintain your lawn effortlessly with the dependable Ryobi 825r.

Why Choose Us for Ryobi 825r 41AD825A734 2004 Gas String Trimmer Parts?

PartsWarehouse offers a wide selection of high-quality OEM parts for the Ryobi 825r Gas String Trimmer. Our commitment to quality helps keep your equipment effective and reliable.
