Ryobi 825r 41AD825A034 Gas String Trimmer

Model: 825r 41AD825A034 41AD825A034 825r

Save Part Not Listed?
product name

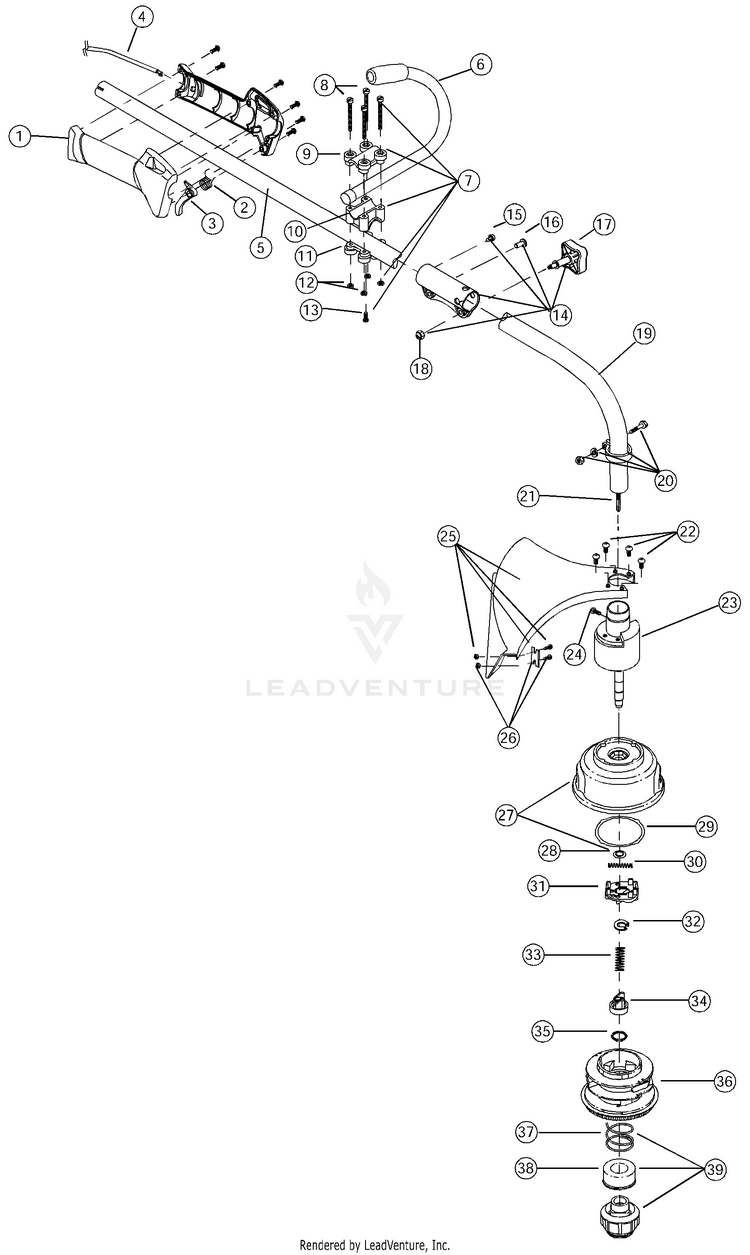

Boom And Trimmer Parts

...
...
1
GRIP (includes 2 & 3) MTD-791-182808
...
2
Throttle Trigger Spring MTD-791-610314
...
3
THROTTLE TRIGGERYDMN YE MTD-753-04295
...
4
THROTTLE CABLE MTD-791-182357
...
5
Upper Drive Shaft Housing Assembly MTD-753-04344
...
6
ASSEMBLY, J-HANDLE (BLACK) MTD-791-180687
...
7
Handle Bracket Assembly (includes 8-13) MTD-791-683295
...
8
Screw MTD-791-181811
...
9
Upper Handle Clamp MTD-791-181812
...
10
Middle Handle Clamp MTD-791-181813
...
11
Lower Handle Clamp MTD-791-181814
...
12
Nut MTD-791-181815
...
13
Anti-Rotation Screw MTD-791-145569
...
14
Click-Link Coupler (includes 15-18) MTD-791-181616
...
15
Screw MTD-791-182057
...
16
Bolt MTD-791-181617
...
17
ADJUSTMENT KNO MTD-791-181618
...
18
NUT, ELASTIC LOCK MTD-791-181886
...
19
Lower Drive Shaft Housing Assembly MTD-791-182387
...
20
CLAMP ASSEMBLY-LOWER MTD-791-153597
...
21
Lower Flexible Drive Shaft MTD-791-181852
...
22
SCREW, #10-24X.50 M MTD-791-181858
...
23
BUSHING HO MTD-791-181857
...
24
Anti-Rotation Screw MTD-791-145569
...
25
Shield & Blade Assembly (includes 26) MTD-791-683274
...
26
Blade Assembly MTD-791-682061
...
27
Outer Spool Assembly w/ Retainer MTD-791-181457
...
28
Retainer MTD-791-181458
...
29
Thrust Washer MTD-791-181561
...
30
SPRING, SPEED SPOOL S MTD-791-181459
...
31
Slider MTD-753-04257
...
32
E-Clip MTD-791-181532
...
33
SPRING, PLUNGER MTD-791-181531
...
34
PLUNGER, SPEED SPO MTD-791-181462
...
35
C-CLIP MTD-791-181463
...
36
Reel and Line Assembly MTD-791-181460B
...
37
Large Spring MTD-791-181465
...
38
SEAL, SPEED SPOOL MTD-791-181467
...
39
BUMP HEAD KNOB ASSEMBLY (includes 38 & 39) MTD-791-181468B
...
xx
Reel and Line Assembly (Eight - 10 ft lengths); Optional Accessory; Item not shown MTD-791-181460B
...
xx
Reel and Line Assembly Optional Accessory; Item not shown MTD-791-181460B
...
xx
Shoulder Strap Assembly Optional Accessory; Item not shown MTD-791-682075B

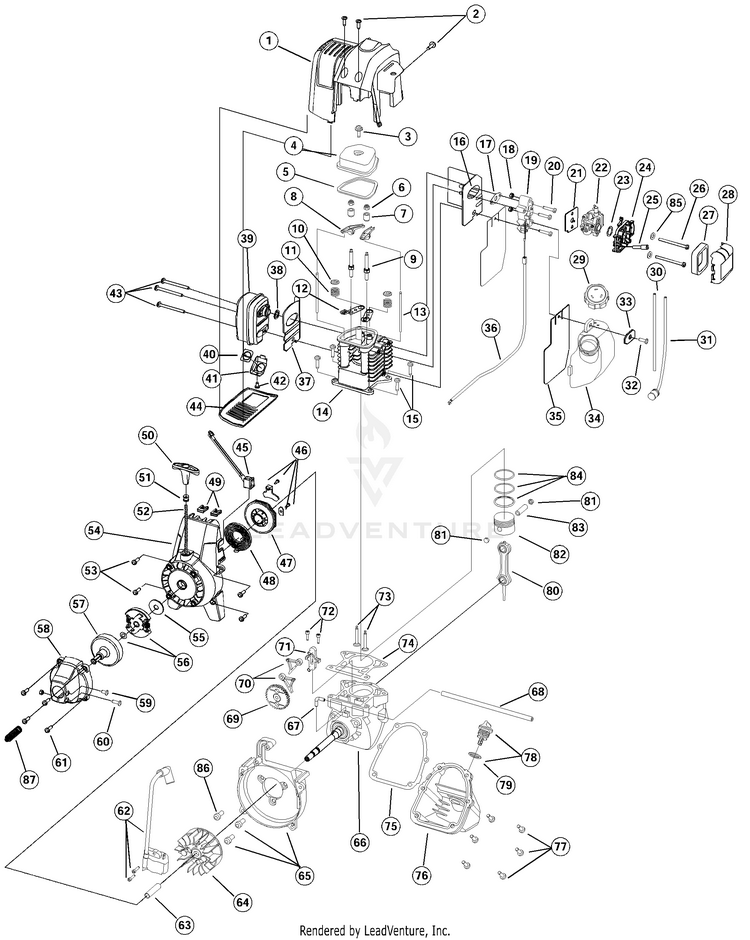

Engine Parts

...
...
1
CVR, ENGIN MTD-791-182338
...
2
Engine Cover Screws MTD-753-04994
...
3
Valve Cover Screw MTD-791-181025
...
4
COVER, VALVE W/O BRE MTD-791-182098
...
5
Valve Cover Gasket MTD-791-182099
...
6
NUT, ROCKER ADJUST MTD-791-182340
...
7
PIVOT, ROCKER ARM MTD-791-182101
...
8
ARM, ROCKER MTD-791-182100
...
9
STUD, ROCKER ARM MTD-791-182341
...
10
RET, VALVE SPRING MTD-791-182103
...
11
SPRING, VALVE MTD-791-181038
...
12
GUIDE, PUSH ROD MTD-791-182102
...
13
ROD, PUSH MTD-791-181033
...
14
CYLINDER ASSEMB MTD-791-182653
...
15
SCREW, M5 X18 MTD-9052-1
...
16
BAFFLE, INTAKE GAS MTD-791-182345
...
17
Carburetor Mount Gasket MTD-791-182749
...
18
NUT-DEE HANDLE MTD-791-181034
...
19
Carburetor Mount (includes 18) MTD-791-182347
...
20
SCR, CARBU MTD-791-182348
...
21
CARBURETOR GASKET MTD-791-182732
...
22
Carburetor with Primer MTD-791-182654
...
23
O-Ring, Carburetor MTD-791-181751
...
24
Air Cleaner Assembly (includes 27 & 28) MTD-753-04223
...
25
Breather Tube MTD-791-182097
...
26
SCREW 5M X 0.8-7 NLAUD MTD-791-181750
...
27
Air Filter MTD-791-181757
...
28
Air Cleaner Assembly MTD-753-04223
...
29
FUEL CAP ASSEMBLY 43MM-6 W/O HOLE MTD-791-182271
...
30
Fuel Return Line MTD-791-182352
...
31
Fuel Pick-Up Line with Filter MTD-791-182353
...
32
SCREW, FUEL TANK BRA MTD-791-181080
...
33
RET, LOWER STAMPIN MTD-791-182354
...
34
FUEL TANK ASSEMBLY (includes 29-31) MTD-791-182355
...
35
BAFFLE, FU MTD-791-182356
...
36
THROTTLE CABLE MTD-791-182357
...
37
BAFFLE, MUFFLER MTD-791-182358
...
38
MUFFLER & GASKET (includes 39-43) MTD-791-182359
...
39
MUFFLER GASKET MTD-9094-1
...
40
SCREEN, AC MUFFLER SPARK MTD-791-180890
...
41
COVER, SCREEN MTD-791-181045
...
42
SCREW, SCREEN COVER MTD-791-181046
...
43
SCREW, MUFFLER MTD-791-182361
...
44
COVER, MUFFLER MTD-791-182362
...
45
ASSEMBLY, IGNITION SWIT MTD-791-182365
...
46
ASSEMBLY, PULLEY RETAIN MTD-791-182363
...
47
PULLEY:START MTD-753-1199
...
48
Recoil Spring MTD-791-613102
...
49
Nut Clip MTD-791-182366
...
50
Pull Handle MTD-631-04164B
...
51
Rope Guide MTD-791-611061
...
52
Rope MTD-791-613103
...
53
Screw MTD-9054
...
54
STARTER FAN HOUSING (includes 46-53) MTD-791-182367
...
55
Washer MTD-9162-1
...
56
Clutch with Spacer MTD-753-1238
...
57
Clutch Drum MTD-791-153592
...
58
HOUSING, CLUTCH MTD-791-182364
...
59
Anti-Rotation Screw MTD-791-145569
...
60
SCREW:8-32X1.00":MAC MTD-753-1240
...
61
Clutch Cover Screw MTD-791-181345
...
62
IGNITION MODULE WITH SCREWS MTD-791-182725
...
63
SPACER MTD-791-181065
...
64
Flywheel Assembly MTD-753-05240
...
65
ASSEMBLY, SHROUD (AC-2. (includes 86) MTD-791-182743
...
66
ASSEMBLY, CRANKCASE & P (includes 67 & 68) MTD-791-182376
...
67
FITTING, BREATHER MTD-791-182375
...
68
Breather Hose MTD-791-182379
...
69
CAM GEAR MTD-791-181015
...
70
FOLLOWER, MTD-753-1242
...
71
BRACKET, CAM MTD-791-181013
...
72
SCR, CAM BRACKET MTD-791-181012
...
73
VALVE MTD-791-181040
...
74
GASKET, CYLINDER B MTD-791-182374
...
75
GASKET, OIL PAN MTD-791-181018
...
76
PAN, OIL W/ GASKET (includes 75 & 77) MTD-791-182377
...
77
Screw MTD-9054
...
78
Dipstick Assembly (includes 79) MTD-791-182378
...
79
O-Ring MTD-791-182290
...
80
ROD, CONNECTING MTD-791-181009
...
81
BUTTON, WRIST PIN MTD-791-181008
...
82
PISTON ASSEMBLY:PSTN MTD-753-1243
...
83
PIN, WRIST MTD-791-181006
...
84
RING SET:PISTON MTD-753-04801
...
85
Washer MTD-791-182409
...
86
SCREW, 1/4-20X.562 F MTD-791-181861
...
87
SPRING, COMPRESSION S MTD-791-612468
...
xx
Spark Plug Item not shown MTD-794-00082
...
xx
SHORTBLOCK ASSEMBLY (includes 3-15, 66-84); Item not shown MTD-753-04087
...
xx
CYLINDER ASSEMB (includes 9, 12, 14 & 74); Item not shown MTD-791-182745
...
xx
Flywheel Assembly Item not shown MTD-753-05240
...
xx
Carburetor Repair Kit Item not shown MTD-753-04014

The Ryobi 825r Gas String Trimmer is engineered for powerful performance in lawn maintenance. Its robust engine effectively tackles thick grass and stubborn weeds. The lightweight construction enhances maneuverability, making it a valuable tool for various trimming tasks. Trust the Ryobi 825r to keep your outdoor spaces well-maintained.

Why Choose Us for Ryobi 825r 41AD825A034 Gas String Trimmer Parts?

At PartsWarehouse, we specialize in providing genuine OEM parts for the Ryobi 825r Gas String Trimmer. Our reliable components help ensure your equipment operates smoothly and efficiently.
