Ryobi 790r 41FD790A034 (2004) Gas String Trimmer

Model: 790r 41FD790A034 41FD790A034 790r (2004)

Save Part Not Listed?
product name

Boom & Trimmer Parts

...
...
1
THROTTLE HOUSING AS (includes 2-4) MTD-791-182801
...
2
THROTTLE LOCKOUT LEVEL MTD-791-182802
...
3
Throttle Trigger MTD-753-04119
...
4
Throttle Trigger Spring MTD-791-182690
...
5
Switch Assembly MTD-791-182405
...
6
Throttle Cable Assembly MTD-753-04405
...
7
SHOULDER STRAP CLAMP MTD-4301A
...
7
Harness Clip MTD-791-610327
...
8
Upper Drive Shaft Housing Assembly MTD-753-04236
...
9
J-Handle Assembly MTD-791-181099
...
10
Handle Bracket Assembly (includes 11-16) MTD-791-683295
...
11
Screw MTD-791-181811
...
12
Upper Handle Clamp MTD-791-181812
...
13
Middle Handle Clamp MTD-791-181813
...
14
Lower Handle Clamp MTD-791-181814
...
15
Nut MTD-791-181815
...
16
Anti-Rotation Screw MTD-791-145569
...
17
Click-Link Coupler (includes 18-21) MTD-791-181616
...
18
Screw MTD-791-182057
...
19
Bolt MTD-791-181617
...
20
ADJUSTMENT KNO MTD-791-181618
...
21
NUT, ELASTIC LOCK MTD-791-181886
...
22
LOWER DRIVE SHAFT HOUSING ASSEMBLY MTD-791-180804
...
23
Lower Flexible Drive Shaft MTD-791-613300
...
24
Shield Mount Screw Assembly MTD-791-182200
...
25
2 piece Gearbox Assembly (includes 26-28 & 33) MTD-791-182193
...
26
SCREW #10-24X11/16 T-25 MTD-791-182195
...
27
Anti-Rotation Screws MTD-791-145569
...
28
Blade Driver MTD-791-182196
...
29
Blade Shield/Shield Mount MTD-791-147492
...
30
Shield Mounting Screw MTD-791-683304
...
31
GUARD AND BLADE ASSEMBLY (includes 34) MTD-791-683299
...
32
Blade Assembly MTD-791-682061
...
33
Retaining Washer MTD-791-147490
...
34
Spool Shaft MTD-791-612483
...
35
SPOOL ASM-OUTER 3000 NLAUD (includes 36) MTD-791-683301
...
36
RETAINER MTD-1772
...
37
Spring MTD-791-610636B
...
38
Inner Reel MTD-791-147495
...
39
KNOB ASSEMBLY-BUMP 3000 STRG TRM MTD-791-180814B
...
40
4-Tooth Blade MTD-791-145873B
...
41
Nut MTD-712-04105
...
xx
Blade Retaining Kit (includes 42 & 43); Not Shown MTD-791-180014
...
xx
Locking Rod Tool Not Shown MTD-791-613226
...
42
LEFT HOUSING 2 Piece Gearbox Assembly Part - Item 25 MTD-791-182191
...
43
RIGHT HOUSING 2 Piece Gearbox Assembly Part - Item 25 MTD-791-182192
...
44
Pinion Gear Assembly 2 Piece Gearbox Assembly Part - Item 25 MTD-791-182194
...
45
BUSHING-OUTPUT SHA 2 Piece Gearbox Assembly Part - Item 25 MTD-791-182199
...
46
GEAR-OUTPUT SHAFT 2 Piece Gearbox Assembly Part - Item 25 MTD-791-182198
...
47
SHAFT-ASSEMBLY-OUTPUT 2 Piece Gearbox Assembly Part - Item 25 (includes 46 & 47) MTD-791-182197
...
48
Palnut 2 Piece Gearbox Assembly Part - Item 25 MTD-753-04348
...
xx
Bump Head Assembly Optional Accessory; Not Shown MTD-791-147498
...
xx
Reel & Line Assembly Optional Accessory; Not Shown MTD-953-1156
...
xx
Reel and Line Assembly Optional Accessory; Not Shown MTD-791-147345
...
xx
Shoulder Strap Assembly Optional Accessory; Not Shown MTD-791-682075B

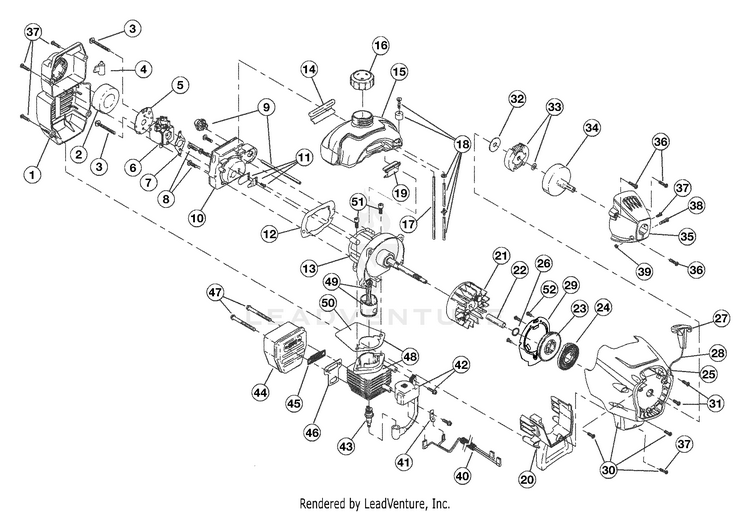

Engine Parts

...
...
1
AIR CLEANER/MUFFLER COVER ASSEMBLY (includes 2 & 36) MTD-753-1192
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
4
CHOKE LEVER MTD-753-04227
...
5
PLATE ASSEMBLY:CHOKE:WV MTD-753-04419
...
6
Carburetor Assembly (includes 7 & 18) MTD-753-04338
...
7
CARBURETOR GASKET MTD-791P610675
...
8
SCREW, 10-24X.75 T-2 MTD-791-181860
...
9
Primer and Hose Assembly MTD-791-683974B
...
10
CARBURETOR MOUNT ASSEMBLY MTD-753-1196
...
11
REED VALVE ASSEMBLY MTD-791-684451
...
12
Carburetor Mount Gasket MTD-753-1208
...
13
CRANKCASE ASSEMBLY-SERVICE MTD-753-04401
...
14
PAD, REAR MOUNT PAD MTD-791-612134
...
15
FUEL TANK ASSEMBLY WINES & CAP MTD-753-04606
...
16
Fuel Tank Cap MTD-791-182612
...
17
Fuel Return Line MTD-791-181086
...
18
FUEL LINE ASSEMBLY MTD-791-683398
...
19
PAD, FRONT MOUNTING MTD-791-145308
...
20
EXTN-SHROUD W/STAN MTD-753-04611
...
21
Flywheel Assembly MTD-753-05240
...
22
Spacer MTD-791-181525
...
23
START ASSEMBLY:S/A:PUL MTD-753-04823
...
24
Recoil Spring MTD-753-04286
...
25
GDE:ROPE:START MTD-753-1200
...
26
Pulley Retainer MTD-753-04288
...
27
Pull Handle MTD-631-04164B
...
28
Rope MTD-791-613103
...
29
PLATE:PRESSURE MTD-753-04417
...
30
STARTER HOUSING (includes 23-29, 31 & 52) MTD-753-04495
...
31
SCREW:10-32X.5 MTD-1964
...
32
Washer MTD-9162-1
...
33
Starter Clutch Assembly MTD-753-05860
...
34
Clutch Drum Assembly MTD-791-153592
...
35
HOUSING ASSEMBLY-CLUTCH MTD-753-04497
...
36
Cover Screw MTD-791-181345
...
37
Anti-Rotation Screw MTD-791-182519
...
38
SCREW MTD-9689A
...
39
HEX NUT MTD-712-0161
...
40
LEAD, WIRE AND SLE MTD-791-182798
...
41
TAB, GROUND MTD-791-611063
...
42
IGNITION MODULE ASSEMBLY MTD-753-04337
...
43
Spark Plug MTD-791-610311B
...
44
MUFFLER ASM CAT NLAUD MTD-753-05169
...
45
SCRN:SPK ARST:A-31 MTD-791-182747
...
46
Muffler Gasket MTD-753-04619
...
47
ASSEMBLY, MUFFLER MOUNTING BOLTS MTD-791-147575
...
48
Cylinder Assembly (includes 51 & 52) MTD-753-04814
...
49
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
50
GASKET:CYL:HTSHLD:EP MTD-753-1197
...
51
Cylinder Bolt MTD-791-182723
...
52
Screw, 10-9 x .50 MTD-1755
...
xx
O.E.M. Carburetor Repair Kit Not Shown MTD-791-180090
...
xx
Gasket Diaphragm Repair Kit Not Shown MTD-791-180091
...
xx
Piston Ring Set Not Shown MTD-753-1209
...
xx
SHORT BLOCK (includes 13, 43, 48 & 49); Not Shown MTD-753-04812
...
xx
Clutch Springs Not Shown MTD-791-181599

The Ryobi 790r Gas String Trimmer is designed for durability and performance in lawn maintenance. With a powerful engine, this trimmer effectively cuts through thick grass and stubborn weeds. The lightweight design enhances maneuverability, while the ergonomic handle ensures comfort during prolonged use. Trust the Ryobi 790r for all your trimming needs.

Why Choose Us for Ryobi 790r 41FD790A034 2004 Gas String Trimmer Parts?

At PartsWarehouse, we offer a wide range of genuine OEM parts for the Ryobi 790r Gas String Trimmer. Our commitment to quality helps keep your equipment running at its best.
