Ryobi 790r 41BD790A034 Gas String Trimmer

Model: 790r 41BD790A034 41BD790A034 790r

Save Part Not Listed?
product name

Boom And Trimmer Parts

...
...
1
THROTTLE HOUSING AS (includes 2-4) MTD-791-182801
...
2
THROTTLE LOCKOUT LEVEL MTD-791-182802
...
3
Throttle Trigger MTD-753-04119
...
4
Throttle Trigger Spring MTD-791-182690
...
5
ASSEMBLY, IGNIT (includes 6) MTD-791-182539
...
6
THROTTLE CABLE MTD-791-182357
...
7
SHOULDER STRAP CLAMP MTD-4301A
...
7
Harness Clip MTD-791-610327
...
8
Upper Drive Shaft Housing Assembly MTD-753-04344
...
9
J-Handle Assembly (includes 10 & 11) MTD-791-181099
...
10
GRIP-HANDLE MTD-791-612831
...
11
Tube Closure MTD-791-612021
...
12
Handle Bracket Assembly (includes 13-18) MTD-791-683295
...
13
Screw MTD-791-181811
...
14
Upper Handle Clamp MTD-791-181812
...
15
Middle Handle Clamp MTD-791-181813
...
16
Lower Handle Clamp MTD-791-181814
...
17
Nut MTD-791-181815
...
18
Anti-Rotation Screw MTD-791-145569
...
19
Click-Link Coupler (includes 20-23) MTD-791-181616
...
20
Screw MTD-791-182057
...
21
Bolt MTD-791-181617
...
22
ADJUSTMENT KNO MTD-791-181618
...
23
NUT, ELASTIC LOCK MTD-791-181886
...
24
LOWER DRIVE SHAFT HOUSING ASSEMBLY MTD-791-180804
...
25
Lower Flexible Drive Shaft MTD-791-613300
...
26
Shield Mount Screw Assembly MTD-791-182200
...
27
2 piece Gearbox Assembly (includes 28-30) MTD-791-182193
...
28
SCREW #10-24X11/16 T-25 MTD-791-182195
...
29
Anti-Rotation Screw MTD-791-145569
...
30
Blade Driver MTD-791-182196
...
31
Blade Shield/Shield Mount MTD-791-147492
...
32
Shield Mounting Screw MTD-791-683304
...
33
GUARD AND BLADE ASSEMBLY (includes 34) MTD-791-683299
...
34
Blade Assembly MTD-791-682061
...
35
Retaining Washer MTD-791-147490
...
36
Spool Shaft MTD-791-612483
...
37
SPOOL ASM-OUTER 3000 NLAUD MTD-791-683301
...
38
RETAINER MTD-1772
...
39
Spring MTD-791-610636B
...
40
Inner Reel MTD-791-147495
...
41
KNOB ASSEMBLY-BUMP 3000 STRG TRM MTD-791-180814B
...
42
4-Tooth Blade MTD-791-145873B
...
43
Nut MTD-712-04105
...
xx
Blade Retaining Kit (includes 35 & 43); Item not shown MTD-791-180014
...
xx
Locking Rod Tool Item not shown MTD-791-613226
...
xx
Shoulder Strap Assembly Item not shown MTD-791-682075B
...
44
LEFT HOUSING 2 Piece Gearbox Assembly Part - Item 27 MTD-791-182191
...
45
RIGHT HOUSING 2 Piece Gearbox Assembly Part - Item 27 MTD-791-182192
...
46
Pinion Gear Assembly 2 Piece Gearbox Assembly Part - Item 27 MTD-791-182194
...
47
BUSHING-OUTPUT SHA 2 Piece Gearbox Assembly Part - Item 27 MTD-791-182199
...
48
GEAR-OUTPUT SHAFT 2 Piece Gearbox Assembly Part - Item 27 MTD-791-182198
...
49
SHAFT-ASSEMBLY-OUTPUT (includes 46 & 47); 2 Piece Gearbox Assembly Part - Item 27 MTD-791-182197
...
xx
Reel & Line Assembly Optional Accessory; Item not shown MTD-953-1156
...
xx
Reel and Line Assembly Optional Accessory; Item not shown MTD-791-147345
...
xx
Bump Head Assembly (includes 36-41); Optional Accessory; Item not shown MTD-791-147498
...
xx
2-CYCLE OIL Optional Accessory; Item not shown MTD-791-147543

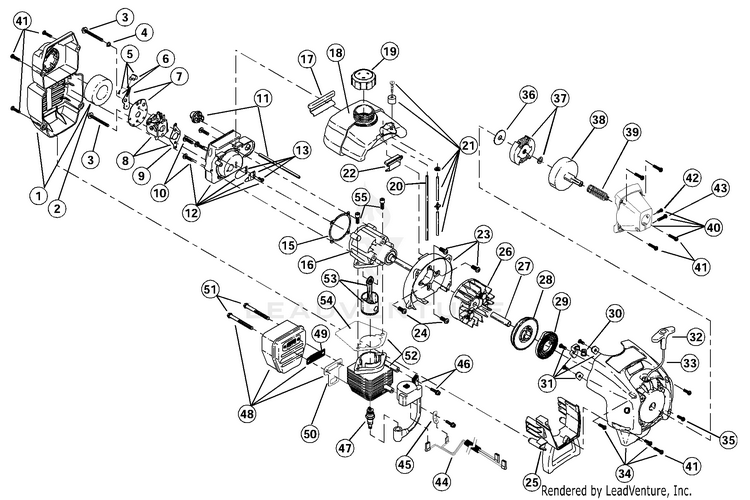

Engine Parts

...
...
1
Air Cleaner Cover Assembly (includes 2 & 38) MTD-753-04511
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
4
Wavey Washer MTD-791-180352
...
5
CHOKE LEVER ASSEMBLY:W/ MTD-753-04418
...
6
ASSEMBLY, CHOKE KNOB & MTD-791-182202
...
7
PLATE ASSEMBLY:CHOKE:WV MTD-753-04419
...
8
CARB ASSEMBLY A-SERIES MTD-791-182875
...
9
CARBURETOR GASKET MTD-791P610675
...
10
SCREW, 10-24X.75 T-2 MTD-791-181860
...
11
Primer and Hose Assembly MTD-791-683974B
...
12
CARBURETOR MOUNT ASSEMBLY MTD-753-1196
...
13
REED VALVE ASSEMBLY MTD-791-684451
...
15
Carburetor Mount Gasket MTD-753-1208
...
16
ASSEMBLY, CRANK MTD-791-182791
...
17
PAD, REAR MOUNT PAD MTD-791-612134
...
18
TANK ASSEMBLY:B MTD-791-181438
...
19
Fuel Tank Cap MTD-791-182612
...
20
Fuel Return Line MTD-791-181086
...
21
Fuel Line Assembly MTD-791-682039
...
22
PAD, FRONT MOUNTING MTD-791-145308
...
23
ASSEMBLY, SHROUD ASSEMB MTD-791-153520
...
24
SCREW, 1/4-20X.562 F MTD-791-181861
...
25
EXTN-SHROUD W/STAN MTD-753-04611
...
26
Flywheel Assembly MTD-753-05240
...
27
SPACER MTD-791-181065
...
28
START PULLEY KIT MTD-753-04232
...
29
Recoil Spring MTD-791-613102
...
30
Rope Guide MTD-791-611061
...
31
ASSEMBLY, PULLEY RETAIN MTD-791-181441
...
32
Pull Handle MTD-631-04164B
...
33
Rope MTD-791-613103
...
34
STARTER HOUSING ASSEMBLY MTD-791-181797
...
35
SCREW:10-32X.5 MTD-1964
...
36
Washer MTD-9162-1
...
37
Clutch Rotor Assembly MTD-791-181445
...
38
Clutch Drum Assembly MTD-791-153592
...
39
SPRING, COMPRESSION S MTD-791-612468
...
40
ASM-CLUTCH COVER NLAUD MTD-753-04889
...
41
Cover Screw MTD-791-181345
...
42
BAFFLE, INTAKE GAS MTD-791-182345
...
43
Clamping Screw MTD-791-182519
...
44
LEAD, WIRE AND SLE MTD-791-182798
...
45
TAB, GROUND MTD-791-182800
...
46
IGNITION MODULE ASSEMBLY MTD-753-04125
...
47
Spark Plug MTD-791-610311B
...
48
MUFFLER ASM CAT NLAUD MTD-753-05169
...
49
SCRN:SPK ARST:A-31 MTD-791-182747
...
50
Muffler Gasket MTD-753-04619
...
51
ASSEMBLY, MUFFLER MOUNTING BOLTS MTD-791-147575
...
52
Cylinder Assembly (includes 51 & 52) MTD-753-04814
...
53
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
54
Cylinder Gasket MTD-791-610674
...
55
SCREW, 1/4-20X.625 S MTD-791-181870
...
xx
KIT, ENGINE GASKET MTD-791-180011
...
xx
O.E.M. Carburetor Repair Kit (Walbro) Item not shown MTD-791-180602
...
xx
O.E.M. Carburetor Repair Kit (Zama) Item not shown MTD-791-180090
...
xx
ASSEMBLY, CHOKE MTD-791-682052
...
xx
Gasket Diaphragm Repair Kit (Zama) Item not shown MTD-791-180091
...
xx
RING:31CC:PSTN:BARREL FACED MTD-791-180530
...
xx
SHORT BLOCK ASSEMBLY MTD-791-182792
...
xx
SET, STARTER HOUSI MTD-791-181501
...
xx
SEAL, SEAL MTD-791-610309
...
xx
Clutch Springs (Qty. 2) Item not shown MTD-791-181599

The Ryobi 790r Gas String Trimmer combines durability and efficiency for effective lawn care. Its powerful engine delivers reliable cutting capabilities, easily handling thick grass and stubborn weeds. The lightweight design and ergonomic handle provide comfort during use, making it a valuable addition to your outdoor toolkit.

Why Choose Us for Ryobi 790r 41BD790A034 Gas String Trimmer Parts?

PartsWarehouse offers a wide selection of genuine OEM parts for the Ryobi 790r Gas String Trimmer. Our commitment to quality ensures your equipment remains effective and efficient.
