Ryobi 790r 41AD790A734 (2004) Gas String Trimmer

Model: 790r 41AD790A734 41AD790A734 790r (2004)


product name

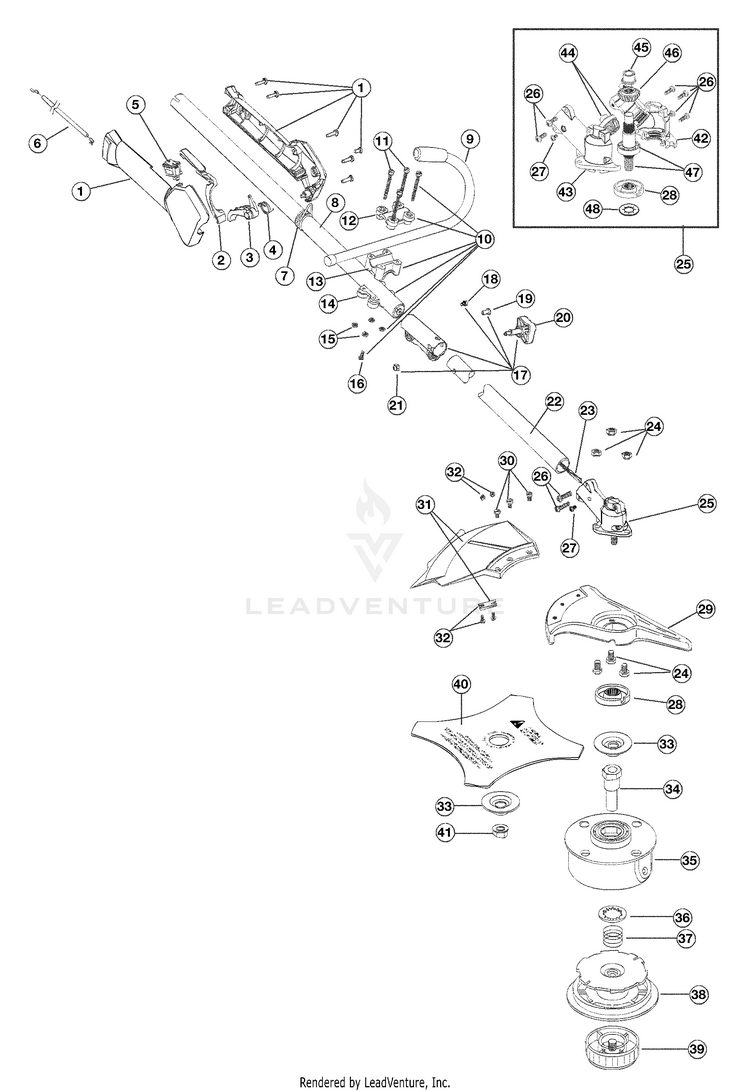

Boom & Trimmer Parts

...
...
1
THROTTLE HOUSING AS (includes 2-4) MTD-753-04339

...
2
LVR:THROT:LKOUT:YD MN YEL MTD-753-04340

...
3
THROTTLE TRIGGERBC:MTD MTD-753-06754

...
4
Throttle Trigger Spring MTD-791-182690

...
5
Switch Assembly MTD-791-182405

...
6
Throttle Cable Assembly MTD-753-04405

...
7
SHOULDER STRAP CLAMP MTD-4301A

...
7
Harness Clip MTD-791-610327

...
8
Upper Drive Shaft Housing Assembly MTD-753-04236

...
9
J-Handle Assembly MTD-791-181099

...
10
Handle Bracket Assembly (includes 11-16) MTD-791-683295

...

...
12
Upper Handle Clamp MTD-791-181812

...
13
Middle Handle Clamp MTD-791-181813

...
14
Lower Handle Clamp MTD-791-181814


...
16
Anti-Rotation Screw MTD-791-145569

...
17
Click-Link Coupler (includes 18-21) MTD-791-181616

...


...
20
ADJUSTMENT KNO MTD-791-181618

...
21
Adjustment Knob Nut MTD-712-04018A

...
22
LOWER DRIVE SHAFT HOUSING ASSEMBLY MTD-791-180804

...
23
Lower Flexible Drive Shaft MTD-791-613300

...
24
Shield Mount Screw Assembly MTD-791-182200

...
25
2 piece Gearbox Assembly (includes 26-28 & 33) MTD-791-182193

...
26
SCREW #10-24X11/16 T-25 MTD-791-182195

...
27
Anti-Rotation Screws MTD-791-145569

...
28
Blade Driver MTD-791-182196

...
29
Blade Shield/Shield Mount MTD-791-147492

...
30
Shield Mounting Screw MTD-791-683304

...
31
GUARD AND BLADE ASSEMBLY (includes 32) MTD-791-683299

...
32
Blade Assembly MTD-791-682061

...
33
Retaining Washer MTD-791-147490

...
34
Spool Shaft MTD-791-612483

...
35
SPOOL ASM-OUTER 3000 NLAUD (includes 36) MTD-791-683301

...
36
RETAINER MTD-1772

...

...
38
Inner Reel MTD-791-147495

...
39
KNOB ASSEMBLY-BUMP 3000 STRG TRM MTD-791-180814B

...
40
4-Tooth Blade MTD-791-145873B


...
xx
Blade Retaining Kit (includes 33 & 41) MTD-791-180014B

...
xx
Locking Rod Tool MTD-791-613226

...
42
LEFT HOUSING 2 Piece Gearbox Assembly Part - Item 25 MTD-791-182191

...
43
RIGHT HOUSING 2 Piece Gearbox Assembly Part - Item 25 MTD-791-182192

...
44
Pinion Gear Assembly 2 Piece Gearbox Assembly Part - Item 25 MTD-791-182194

...
45
BUSHING-OUTPUT SHA 2 Piece Gearbox Assembly Part - Item 25 MTD-791-182199

...
46
GEAR-OUTPUT SHAFT 2 Piece Gearbox Assembly Part - Item 25 MTD-791-182198

...
47
SHAFT-ASSEMBLY-OUTPUT (includes 45 & 46) 2 Piece Gearbox Assembly Part - Item 25 MTD-791-182197

...
48
Palnut 2 Piece Gearbox Assembly Part - Item 25 MTD-753-04348

...
xx
Bump Head Assembly Optional Accessory; Item Not Shown MTD-791-147498

...
xx
Reel & Line Assembly Optional Accessory; Item Not Shown MTD-953-1156

...
xx
CARTRIDGE, DUAL .095" LINE Optional Accessory; Item Not Shown MTD-791-147345B

...
xx
Shoulder Harness Optional Accessory; Item Not Shown MTD-791-682075B

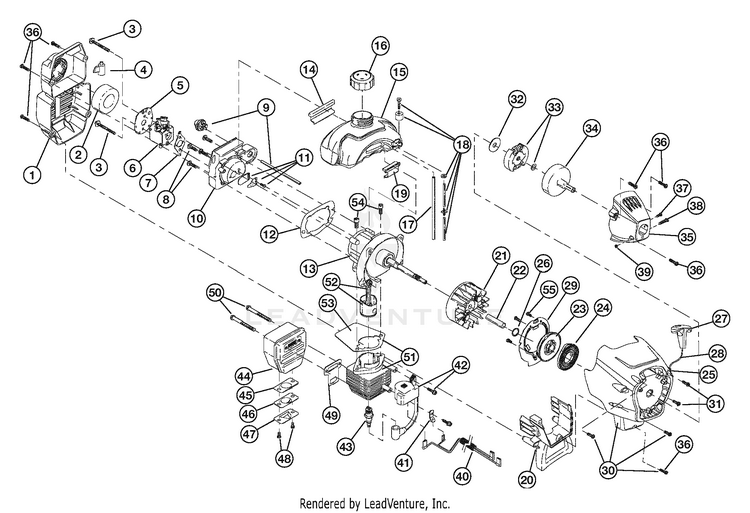

Engine Parts

...
...
1
COVER-AIRC (includes 2 & 36) MTD-753-04317

...
2
Air Cleaner Filter MTD-791-180350B

...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351

...
4
CHOKE LEVER MTD-753-04227

...
5
PLATE ASSEMBLY:CHOKE:WV MTD-753-04419

...
6
Carburetor Assembly (includes 7 & 18) MTD-753-04338

...
7
CARBURETOR GASKET MTD-791P610675

...
8
SCREW, 10-24X.75 T-2 MTD-791-181860

...
9
Primer and Hose Assembly MTD-791-683974B

...
10
CARBURETOR MOUNT ASSEMBLY (includes 8, 11 & 12) MTD-753-1196

...
11
REED VALVE ASSEMBLY MTD-791-684451

...
12
Carburetor Mount Gasket MTD-753-1208

...
13
Crank Case Service Assembly (includes 8) MTD-753-04846

...
14
PAD, REAR MOUNT PAD MTD-791-612134

...
15
FUEL TANK ASSEMBLY WINES & CAP (includes 16-18) MTD-753-04606

...
16
Fuel Tank Cap MTD-791-182612

...
17
Fuel Return Line MTD-791-181086

...
18
FUEL LINE ASSEMBLY MTD-791-683398

...
19
PAD, FRONT MOUNTING MTD-791-145308

...
20
EXT-SHROUD W/HOLE (includes 36) MTD-753-04702

...
21
Flywheel Assembly MTD-753-05240

...
22

...
23
START ASSEMBLY:S/A:PUL MTD-753-04823

...
24
Recoil Spring MTD-753-04286

...
25
GDE:ROPE:START MTD-753-1200

...
26
Pulley Retainer MTD-753-04288

...
27
Pull Handle MTD-631-04164B


...
29
PLATE:PRESSURE (includes 55) MTD-753-04417

...
30
STARTER HOUSING (includes 23-29, 31 & 55) MTD-753-04495

...
31
SCREW:10-32X.5 MTD-1964

...
32

...
33
Starter Clutch Assembly MTD-753-05860

...
34
Clutch Drum Assembly MTD-791-153592

...
35
HOUSING ASSEMBLY-CLUTCH (includes 36-39) MTD-753-04497

...
36
Cover Screw MTD-791-181345

...
37
Anti-Rotation Screw MTD-791-182519

...
38

...
39

...
40
LEAD, WIRE AND SLE MTD-791-182798

...
41
TAB, GROUND MTD-791-611063

...
42
MODULE ASSEMBLY PULSE CARBURETOR MTD-753-04109

...
43
Spark Plug MTD-791-610311B

...
44
MUFFLER ASSEMBLY WITH GASKET (includes 45-50) MTD-753-04110

...
45
SCREEN-SPARK AR MTD-753-04312

...
46
MUFFLER ASSEMBLY MTD-753-04313

...
47
MUFFLER ASSEMBLY MTD-753-04314

...
48
MUFFLER ASSEMBLY MTD-753-04315

...
49
Muffler Gasket MTD-753-04619

...
50
ASSEMBLY, MUFFLER MOUNTING BOLTS MTD-791-147575

...
51
Cylinder Assembly (includes 51 & 52) (includes 53 & 54) MTD-753-04814

...
52
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367

...
53
Cylinder Gasket MTD-753-04182

...
54
Cylinder Bolt MTD-791-182723

...
55
Screw, 10-9 x .50 MTD-1755

...
xx
Piston Ring Set Item Not Shown MTD-753-1209

...
xx
SHORT BLOCK (includes 13, 8, 43, & 51-54) Item Not Shown MTD-753-04847

...
xx
Clutch Springs Item Not Shown MTD-791-181599

The Ryobi 790r Gas String Trimmer is engineered for powerful performance in lawn maintenance. With a robust engine, this trimmer efficiently manages thick grass and weeds. The lightweight construction enhances maneuverability, while the ergonomic grip ensures comfort during prolonged use. Keep your yard looking pristine with the dependable Ryobi 790r.

Why Choose Us for Ryobi 790r 41AD790A734 2004 Gas String Trimmer Parts?

At PartsWarehouse, we specialize in supplying high-quality OEM parts for the Ryobi 790r Gas String Trimmer. Our components help maintain your equipment’s efficiency and effectiveness.
