Ryobi 775r 41ED775A034 Gas String Trimmer

Model: 775r 41ED775A034 41ED775A034 775r

Save Part Not Listed?
product name

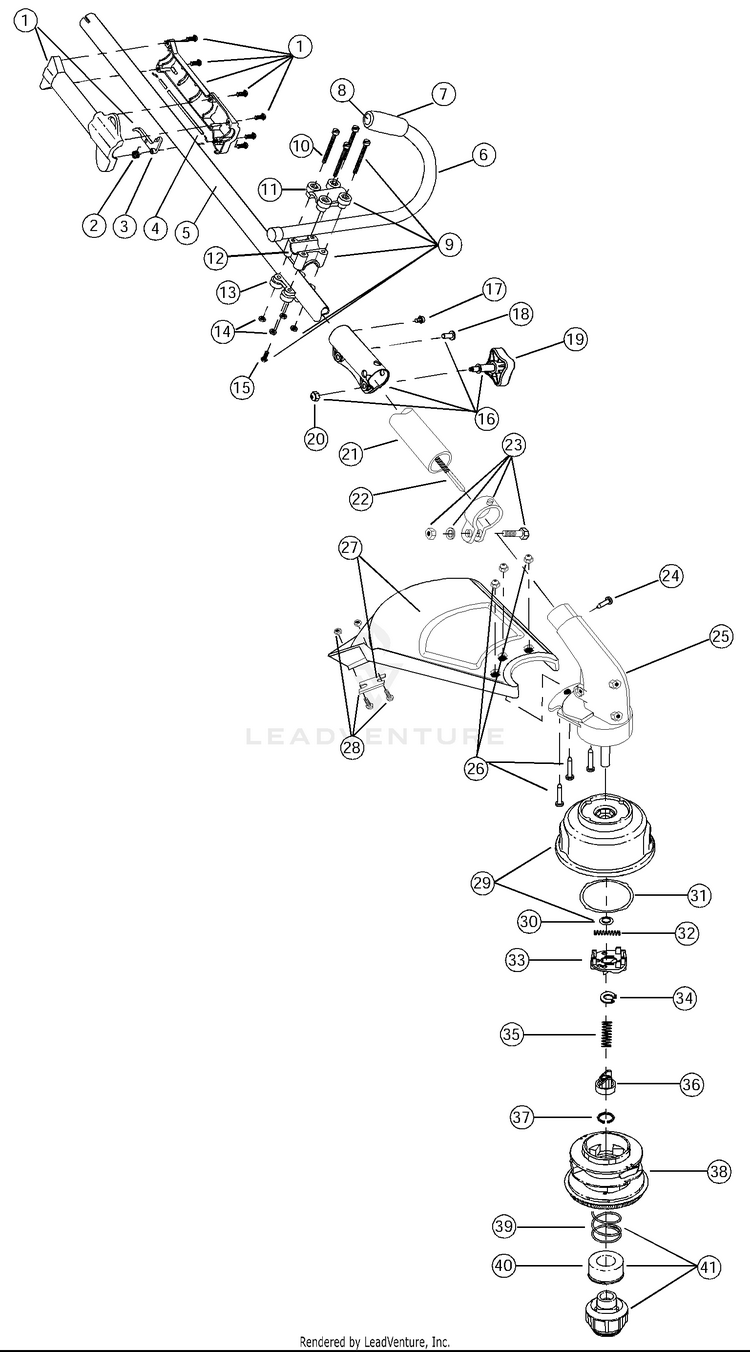

Boom And Trimmer Parts

...
...
1
GRIP (includes 2 & 3) MTD-791-182808
...
2
Throttle Trigger Spring MTD-791-610314
...
3
THROTTLE TRIGGERYDMN YE MTD-753-04295
...
4
ACL Throttle Cable MTD-746-04085A
...
5
Upper Drive Shaft Housing Assembly MTD-753-04344
...
6
ASSEMBLY, J-HANDLE (BLACK) (includes 7 & 8) MTD-791-180687
...
7
GRIP-HANDLE MTD-791-612831
...
8
Tube Closure MTD-791-612021
...
9
Handle Bracket Assembly (includes 10-15) MTD-791-683295
...
10
Screw MTD-791-181811
...
11
Upper Handle Clamp MTD-791-181812
...
12
Middle Handle Clamp MTD-791-181813
...
13
Lower Handle Clamp MTD-791-181814
...
14
Nut MTD-791-181815
...
15
Anti-Rotation Screw MTD-791-145569
...
16
Click-Link Coupler (includes 17-20) MTD-791-181616
...
17
Screw MTD-791-182057
...
18
Bolt MTD-791-181617
...
19
ADJUSTMENT KNO MTD-791-181618
...
20
NUT, ELASTIC LOCK MTD-791-181886
...
21
TRIMMER BOOM ASSEMBLY MTD-753-04089
...
22
Lower Flexible Drive Shaft MTD-791-181166
...
23
CLAMP ASSEMBLY-LOWER (includes 24) MTD-791-153597
...
24
Anti-Rotation Screw MTD-791-145569
...
25
SPEED SPOOL GEARBOX ASSEMBLY MTD-791-181566
...
26
ASSEMBLY, GUARD MOUNTING SCREWS MTD-791-180547
...
27
ASSEMBLY, GUARD AND BLADE (includes 28) MTD-791-180548
...
28
Blade Assembly MTD-791-180553
...
29
Outer Spool Assembly (includes 30) MTD-791-181457
...
30
Retainer MTD-791-181458
...
31
Thrust Washer MTD-791-181561
...
32
SPRING, SPEED SPOOL S MTD-791-181459
...
33
Slider MTD-753-04257
...
34
E-Clip MTD-791-181532
...
35
SPRING, PLUNGER MTD-791-181531
...
36
PLUNGER, SPEED SPO MTD-791-181462
...
37
C-CLIP MTD-791-181463
...
38
Reel and Line Assembly MTD-791-181460B
...
39
Large Spring MTD-791-181465
...
40
SEAL, SPEED SPOOL MTD-791-181467
...
41
BUMP HEAD KNOB ASSEMBLY (includes 39 & 40) MTD-791-181468B
...
xx
Reel and Line Assembly (Eight - 10 ft lengths); Optional Accessory; Item not shown MTD-791-181460B
...
xx
Reel and Line Assembly Optional Accessory; Item not shown MTD-791-181460B
...
xx
Shoulder Strap Assembly Optional Accessory; Item not shown MTD-791-682075B
...
xx
2-CYCLE OIL Optional Accessory; Item not shown MTD-791-147543

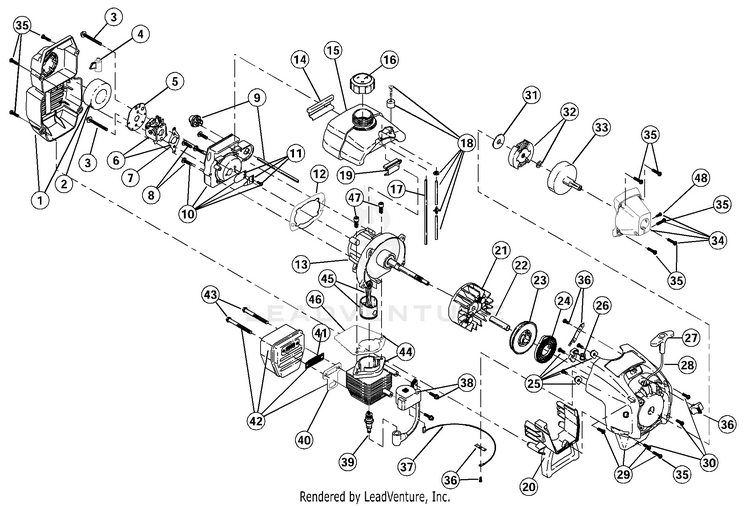

Engine Parts

...
...
1
AIR CLEANER/MUFFLER COVER ASSEMBLY MTD-753-1192
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
4
CHOKE LEVER MTD-753-04227
...
5
PLATE ASSEMBLY:CHOKE:WV MTD-753-04419
...
6
Carburetor Assembly MTD-753-04338
...
7
CARBURETOR GASKET MTD-791P610675
...
8
SCREW, 10-24X.75 T-2 MTD-791-181860
...
9
Primer and Hose Assembly MTD-791-683974B
...
10
CARBURETOR MOUNT ASSEMBLY MTD-753-1196
...
11
REED VALVE ASSEMBLY MTD-791-684451
...
12
Carburetor Mount Gasket MTD-753-1208
...
13
CRANKCASE SERV ASSEMBLY:-9 MTD-753-04332
...
14
PAD, REAR MOUNT PAD MTD-791-612134
...
15
TANK ASSEMBLY:B MTD-753-04311
...
16
Fuel Tank Cap MTD-791-182612
...
17
Fuel Return Line MTD-791-181086
...
18
Fuel Line Assembly MTD-791-682039
...
19
PAD, FRONT MOUNTING MTD-791-145308
...
20
EXTN-SHROUD W/STAN MTD-753-04611
...
21
Flywheel Assembly MTD-753-05240
...
22
SPACER MTD-791-181065
...
23
START PULLEY KIT MTD-753-04232
...
24
Recoil Spring MTD-791-613102
...
25
ASSEMBLY, PULLEY RETAIN MTD-791-181441
...
26
Rope Guide MTD-791-611061
...
27
Pull Handle MTD-631-04164B
...
28
Rope MTD-791-613103
...
29
STARTER HOUSING ASSEMBLY MTD-791-181443
...
30
SCREW:10-32X.5 MTD-1964
...
31
Washer MTD-9162-1
...
32
Clutch Rotor Assembly MTD-791-181445
...
33
Clutch Drum Assembly MTD-791-153592
...
34
ASM-CLUTCH COVER NLAUD MTD-753-04889
...
35
Screws MTD-791-181345
...
36
SWITCH ASSEMBLY MTD-791-181442
...
37
LEAD, WIRE IDC 500 MTD-791-180036
...
38
MODULE ASSEMBLY WITH HARDWARE MTD-753-04324
...
39
Spark Plug MTD-791-610311B
...
40
Muffler Gasket MTD-753-04619
...
41
SCRN:SPK ARST:A-31 MTD-791-182747
...
42
MUFFLER ASM CAT NLAUD MTD-753-05169
...
43
ASSEMBLY, MUFFLER MOUNTING BOLTS MTD-791-147575
...
44
Cylinder Assembly (includes 51 & 52) MTD-753-04814
...
45
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
46
GASKET:CYL:HTSHLD:EP MTD-753-1197
...
47
Cylinder Bolt MTD-791-182723
...
48
Anti-Rotation Screw MTD-791-182519
...
xx
ENGINE GASKET KIT Not Shown MTD-753-04134
...
xx
O.E.M. Carburetor Repair Kit Not Shown MTD-791-180091
...
xx
Gasket Diaphragm Repair Kit Not Shown MTD-791-180090
...
xx
Piston Ring Not Shown MTD-753-1209
...
xx
SHORTBLOCK:31CC:CLU:W/S Not Shown MTD-753-04334
...
xx
Clutch Springs (Qty. 2) Not Shown MTD-791-181599

The Ryobi 775r Gas String Trimmer combines power and efficiency for effective lawn care. Its robust engine provides reliable cutting capabilities, allowing you to handle thick grass and weeds with ease. The lightweight design and ergonomic handle ensure comfort during extended use, making it a great choice for any homeowner.

Why Choose Us for Ryobi 775r 41ED775A034 Gas String Trimmer Parts?

PartsWarehouse offers a comprehensive selection of genuine OEM parts for the Ryobi 775r Gas String Trimmer. Our commitment to quality helps maintain your equipment’s performance and longevity.
