Ryobi 775r 41DD775A034 Gas String Trimmer

Model: 775r 41DD775A034 41DD775A034 775r

Save Part Not Listed?
product name

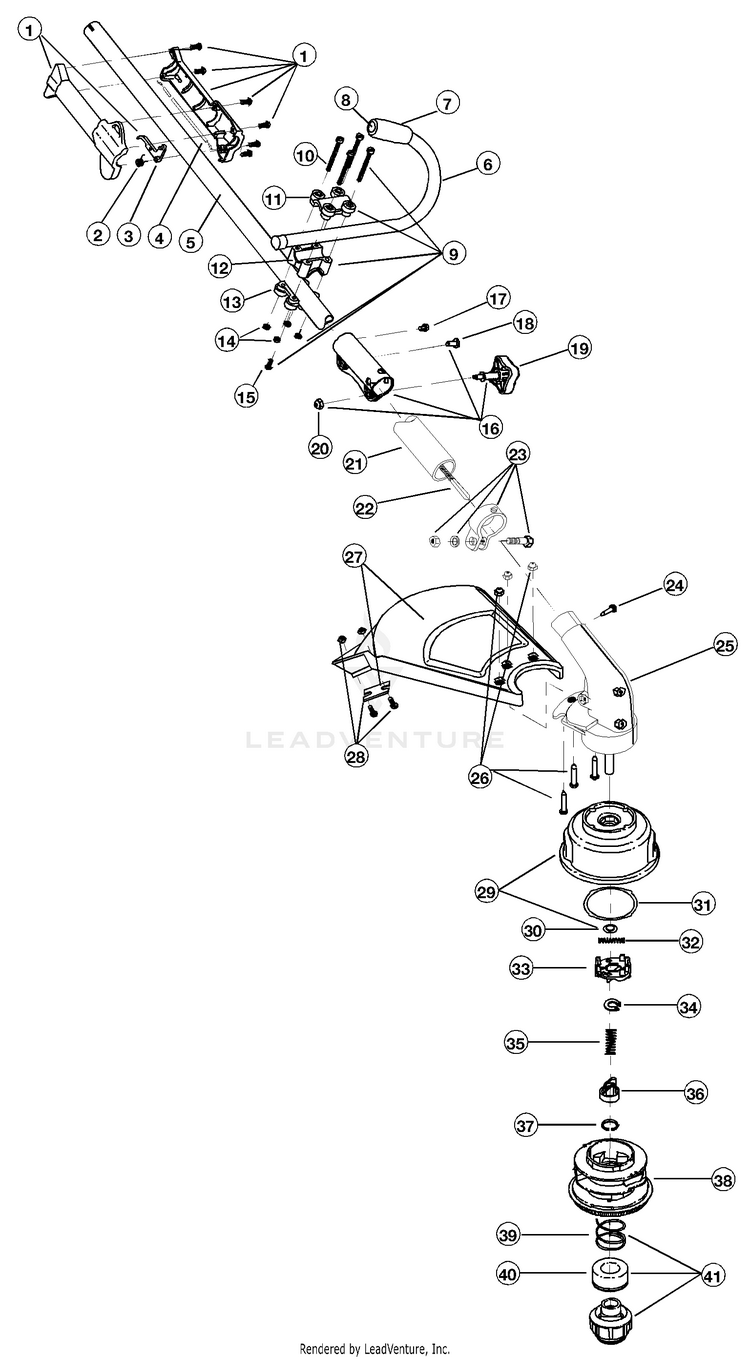

Boom And Trimmer Parts

...
...
1
GRIP (includes 2 & 3) MTD-791-182808
...
2
Throttle Trigger Spring MTD-791-610314
...
3
THROTTLE TRIGGERYDMN YE MTD-753-04295
...
4
Throttle Cable Assembly MTD-791-182068
...
5
Upper Drive Shaft Housing Assembly MTD-753-04344
...
6
ASSEMBLY, J-HANDLE (BLACK) (includes 7 & 8) MTD-791-180687
...
7
GRIP-HANDLE MTD-791-612831
...
8
Tube Closure MTD-791-612021
...
9
Handle Bracket Assembly (includes 10-15) MTD-791-683295B
...
10
Screw MTD-791-181811
...
11
Upper Handle Clamp MTD-791-181812
...
12
Middle Handle Clamp MTD-791-181813
...
13
Lower Handle Clamp MTD-791-181814
...
14
Nut MTD-791-181815
...
15
Anti-Rotation Screw MTD-791-145569
...
16
Split Boom Coupler (Incl Ref No. 10-13) (includes 17-20) MTD-753-1190
...
17
Screw MTD-791-182057
...
18
Bolt MTD-791-181617
...
19
ADJUSTMENT KNO MTD-791-181618B
...
20
NUT, ELASTIC LOCK MTD-791-181886
...
21
TRIMMER BOOM ASSEMBLY MTD-753-04089
...
22
Lower Flexible Drive Shaft MTD-791-181166
...
23
CLAMP ASSEMBLY-LOWER (includes 24) MTD-791-153597
...
24
Anti-Rotation Screw MTD-791-145569
...
25
GEAR BOX ASSEMBLY W/SPINDLE MTD-791-181470
...
26
ASSEMBLY, GUARD MOUNTING SCREWS MTD-791-180547
...
27
ASSEMBLY, GUARD AND BLADE (includes 28) MTD-791-180548
...
28
Blade Assembly MTD-791-180553
...
29
Outer Spool Assembly (includes 30) MTD-791-181457
...
30
Retainer MTD-791-181458
...
31
Thrust Washer MTD-791-181561
...
32
SPRING, SPEED SPOOL S MTD-791-181459
...
33
Slider MTD-753-04257
...
34
E-Clip MTD-791-181532
...
35
SPRING, PLUNGER MTD-791-181531
...
36
PLUNGER, SPEED SPO MTD-791-181462
...
37
C-CLIP MTD-791-181463
...
38
Reel and Line Assembly MTD-791-181460B
...
39
Large Spring MTD-791-181465B
...
40
SEAL, SPEED SPOOL MTD-791-181467
...
41
BUMP HEAD KNOB ASSEMBLY (includes 39 & 40) MTD-791-181468B
...
xx
Replacement Line, 0.80 Diameter (8 ft - 10 ft lengths); Optional Accessory; Item not shown MTD-791-181472B
...
xx
ASSEMBLY:REEL/.080" Optional Accessory; Item not shown MTD-753-04221
...
xx
Shoulder Strap Assembly Optional Accessory; Item not shown MTD-791-682075B

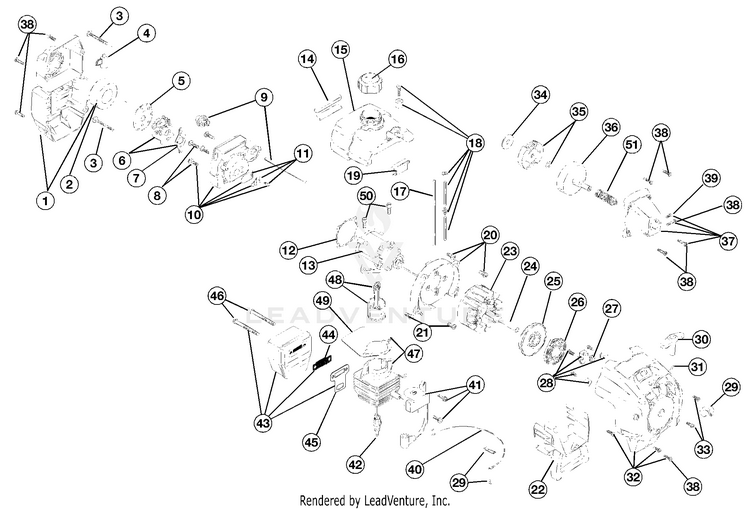

Engine Parts

...
...
1
AIR CLEANER/MUFFLER COVER ASSEMBLY (includes 2 & 38) MTD-753-1192
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
4
CHOKE LEVER MTD-753-04227
...
5
PLATE ASSEMBLY:CHOKE:WV MTD-753-04419
...
6
CARBURETOR ASSEMBLY (includes 7 & 18) MTD-753-1195
...
7
CARBURETOR GASKET MTD-791P610675
...
8
SCREW, 10-24X.75 T-2 MTD-791-181860
...
9
Primer and Hose Assembly MTD-791-683974B
...
10
CARBURETOR MOUNT ASSEMBLY (includes 8 & 11) MTD-753-1196
...
11
REED VALVE ASSEMBLY MTD-791-684451
...
12
Carburetor Mount Gasket MTD-753-1208
...
13
CRCASE/PSHF ASSEMBLY:EP (includes 8 & 21) MTD-753-04129
...
14
PAD, REAR MOUNT PAD MTD-791-612134
...
15
TANK ASSEMBLY:B (includes 16-18) MTD-753-04311
...
16
Fuel Tank Cap MTD-791-182612
...
17
Fuel Return Line MTD-791-181086
...
18
Fuel Line Assembly MTD-791-682039
...
19
PAD, FRONT MOUNTING MTD-791-145308
...
20
ASSEMBLY, SHROUD ASSEMB (includes 21) MTD-791-153520
...
21
SCREW, 1/4-20X.562 F MTD-791-181861
...
22
EXTN-SHROUD W/STAN (includes 38) MTD-753-04611
...
23
Flywheel Assembly MTD-753-05240
...
24
SPACER MTD-791-181065
...
25
START PULLEY KIT MTD-753-04232
...
26
Recoil Spring MTD-791-613102
...
27
Rope Guide MTD-791-611061
...
28
ASSEMBLY, PULLEY RETAIN MTD-791-181441
...
29
SWITCH ASSEMBLY MTD-791-181442
...
30
Pull Handle MTD-631-04164B
...
31
Rope MTD-791-613103
...
32
STARTER HOUSING ASSEMBLY (includes 27-33 & 38) MTD-791-181443
...
33
SCREW:10-32X.5 MTD-1964
...
34
Washer MTD-9162-1
...
35
Clutch Rotor Assembly MTD-791-181445
...
36
Clutch Drum Assembly (includes 38 & 39) MTD-791-153592
...
37
ASM-CLUTCH COVER NLAUD MTD-753-04889
...
38
Cover Screw MTD-791-181345
...
39
Anti-Rotation Screw MTD-791-182519
...
40
LEAD, WIRE IDC 500 MTD-791-180036
...
41
IGNITION MODULE ASSEMBLY MTD-753-04125
...
42
Spark Plug MTD-791-610311B
...
43
MUFFLER ASM CAT NLAUD (includes 44-46) MTD-753-05169
...
44
SCRN:SPK ARST:A-31 MTD-791-182747
...
45
Muffler Gasket MTD-753-04619
...
46
ASSEMBLY, MUFFLER MOUNTING BOLTS MTD-791-147575
...
47
Cylinder Assembly (includes 51 & 52) (includes 49 & 50) MTD-753-04814
...
48
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
49
GASKET:CYL:HTSHLD:EP MTD-753-1197
...
50
Cylinder Bolt MTD-791-182723
...
51
SPRING, COMPRESSION S MTD-791-612468
...
xx
ENGINE GASKET KIT Item not shown MTD-753-04134
...
xx
O.E.M. Carburetor Repair Kit Item not shown MTD-791-180090
...
xx
Gasket Diaphragm Repair Kit Item not shown MTD-791-180091
...
xx
Piston Ring Item not shown MTD-753-1209
...
xx
SHORT BLOCK ASSEMBLY (includes 8, 13, 21, 42, 47-50); Item not shown MTD-753-1210
...
xx
Clutch Springs (Qty. 2) Item not shown MTD-791-181599

The Ryobi 775r Gas String Trimmer is built for durability and performance in lawn maintenance. Featuring a strong engine, this trimmer easily tackles tough grass and weeds. The lightweight construction ensures easy maneuverability, while the ergonomic grip enhances comfort during use. Maintain your yard effortlessly with the reliable Ryobi 775r.
