Ryobi 775r 41BD775A034 Gas String Trimmer

Model: 775r 41BD775A034 41BD775A034 775r

Save Part Not Listed?
product name

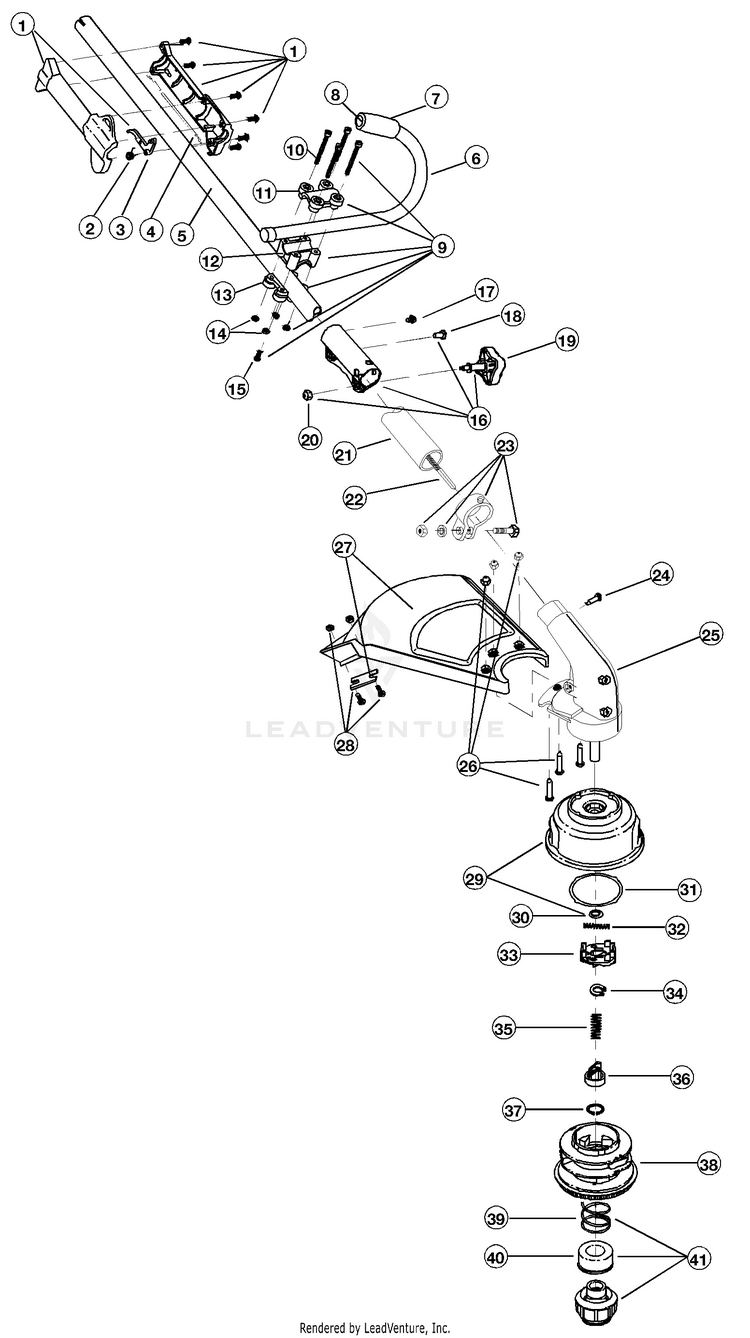

Boom And Trimmer Parts

...
...
1
THROTTLE GRIP ASSEMBLY WOOP (includes 2 & 3) MTD-753-04927
...
2
Throttle Trigger Spring MTD-791-610314
...
3
Throttle Trigger MTD-791-181807
...
4
Throttle Cable Assembly MTD-791-182068
...
5
Upper Drive Shaft Housing Assembly MTD-753-04344
...
6
ASSEMBLY, J-HANDLE (BLACK) (includes 7 & 8) MTD-791-180687
...
7
GRIP-HANDLE MTD-791-612831
...
8
Tube Closure MTD-791-612021
...
9
Handle Bracket Assembly (includes 10-15) MTD-791-683295
...
10
Screw MTD-791-181811
...
11
Upper Handle Clamp MTD-791-181812
...
12
Middle Handle Clamp MTD-791-181813
...
13
Lower Handle Clamp MTD-791-181814
...
14
Nut MTD-791-181815
...
15
Anti-Rotation Screw MTD-791-145569
...
16
Click-Link Coupler (includes 17-20) MTD-791-181616
...
17
Screw MTD-791-182057
...
18
Bolt MTD-791-181617
...
19
ADJUSTMENT KNO MTD-791-181618
...
20
NUT, ELASTIC LOCK MTD-791-181886
...
21
TRIMMER BOOM ASSEMBLY MTD-753-04089
...
22
Lower Flexible Drive Shaft MTD-791-181166
...
23
CLAMP ASSEMBLY-LOWER (includes 24) MTD-791-153597
...
24
Anti-Rotation Screw MTD-791-145569
...
25
GEAR BOX ASSEMBLY W/SPINDLE MTD-791-181470
...
26
ASSEMBLY, GUARD MOUNTING SCREWS MTD-791-180547
...
27
ASSEMBLY, GUARD AND BLADE (includes 28) MTD-791-180548
...
28
Blade Assembly MTD-791-180553
...
29
Outer Spool Assembly (includes 30) MTD-791-181457
...
30
Retainer MTD-791-181458
...
31
Thrust Washer MTD-791-181561
...
32
SPRING, SPEED SPOOL S MTD-791-181459
...
33
Slider MTD-753-04257
...
34
E-Clip MTD-791-181532
...
35
SPRING, PLUNGER MTD-791-181531
...
36
PLUNGER, SPEED SPO MTD-791-181462
...
37
C-CLIP MTD-791-181463
...
38
Reel and Line Assembly MTD-791-181460B
...
39
Large Spring MTD-791-181465
...
40
SEAL, SPEED SPOOL MTD-791-181467
...
41
BUMP HEAD KNOB ASSEMBLY (includes 39 & 40) MTD-791-181468B
...
xx
Reel and Line Assembly (8 ft - 10 ft lengths); Optional Accessory; Item not shown MTD-791-181460B
...
xx
Reel and Line Assembly Optional Accessory; Item not shown MTD-791-181460B
...
xx
Shoulder Strap Assembly Optional Accessory; Item not shown MTD-791-682075B

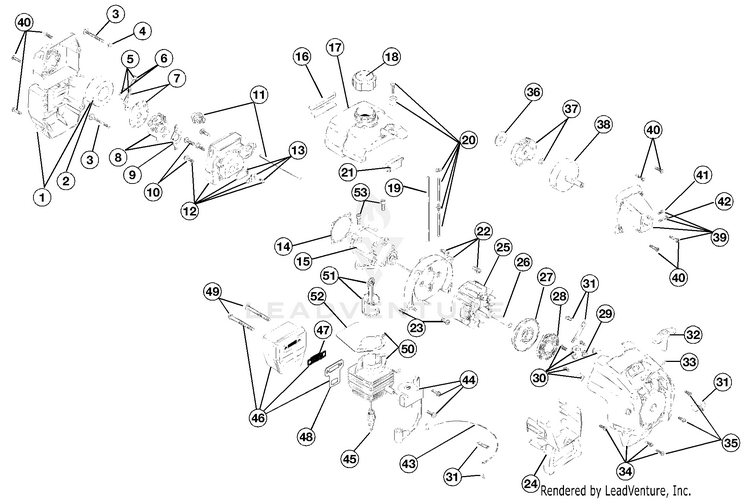

Engine Parts

...
...
1
Air Cleaner Cover Assembly (includes 2 & 38) (includes 2 & 40) MTD-753-04511
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
4
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
5
CHOKE LEVER ASSEMBLY:W/ (includes 6) MTD-753-04418
...
6
ASSEMBLY, CHOKE KNOB & MTD-791-182202
...
7
PLATE ASSEMBLY:CHOKE:WV (includes 5) MTD-753-04419
...
8
CARBURETOR ASSEMBLY (includes 9 & 20) MTD-753-04106
...
9
CARBURETOR GASKET MTD-791P610675
...
10
SCREW, 10-24X.75 T-2 MTD-791-181860
...
11
Primer and Hose Assembly MTD-791-683974B
...
12
CARBURETOR MOUNT ASSEMBLY (includes 10 & 13) MTD-753-1196
...
13
REED VALVE ASSEMBLY MTD-791-684451
...
14
Carburetor Mount Gasket MTD-753-1208
...
15
CRCASE/PSHF ASSEMBLY:EP (includes 23) MTD-753-04129
...
16
PAD, REAR MOUNT PAD MTD-791-612134
...
17
TANK ASSEMBLY:B (includes 18-20) MTD-753-04311
...
18
Fuel Tank Cap MTD-791-182612
...
19
Fuel Return Line MTD-791-181086
...
20
Fuel Line Assembly MTD-791-682039
...
21
PAD, FRONT MOUNTING MTD-791-145308
...
22
ASSEMBLY, SHROUD ASSEMB MTD-791-153520
...
23
SCREW, 1/4-20X.562 F MTD-791-181861
...
24
EXTN-SHROUD W/STAN MTD-753-04611
...
25
Flywheel Assembly MTD-753-05240
...
26
SPACER MTD-791-181065
...
27
START PULLEY KIT MTD-753-04232
...
28
Recoil Spring MTD-791-613102
...
29
Rope Guide MTD-791-611061
...
30
ASSEMBLY, PULLEY RETAIN MTD-791-181441
...
31
SWITCH ASSEMBLY MTD-791-181442
...
32
Pull Handle MTD-631-04164B
...
33
Rope MTD-791-613103
...
34
STARTER HOUSING ASSEMBLY (includes 27-33 & 35) MTD-791-181443
...
35
SCREW:10-32X.5 MTD-1964
...
36
Washer MTD-9162-1
...
37
Clutch Rotor Assembly (includes 36) MTD-791-181445
...
38
Clutch Drum Assembly MTD-791-153592
...
39
ASM-CLUTCH COVER NLAUD MTD-753-04889
...
40
Cover Screw MTD-791-181345
...
41
Anti-Rotation Screw MTD-791-182519
...
42
Clamping Screw MTD-791-181345
...
43
LEAD, WIRE IDC 500 MTD-791-180036
...
44
IGNITION MODULE ASSEMBLY MTD-753-04125
...
45
Spark Plug MTD-791-610311B
...
46
MUFFLER ASM CAT NLAUD (includes 47-49) MTD-753-05169
...
47
SCRN:SPK ARST:A-31 MTD-791-182747
...
48
Muffler Gasket MTD-753-04619
...
49
ASSEMBLY, MUFFLER MOUNTING BOLTS MTD-791-147575
...
50
Cylinder Assembly (includes 51 & 52) (includes 52) MTD-753-04814
...
51
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
52
GASKET:CYL:HTSHLD:EP MTD-753-1197
...
53
Cylinder Bolt MTD-791-182723
...
xx
ENGINE GASKET KIT Item not shown MTD-753-04134
...
xx
O.E.M. Carburetor Repair Kit Item not shown MTD-791-180090
...
xx
Gasket Diaphragm Repair Kit Item not shown MTD-791-180091
...
xx
Piston Ring Item not shown MTD-753-1209
...
xx
SHORT BLOCK ASSEMBLY (includes 10, 14, 16, 24, 45, 49-53); Item not shown MTD-753-1210
...
xx
Clutch Springs (Qty. 2) Item not shown MTD-791-181599

The Ryobi 775r Gas String Trimmer is engineered for performance and durability. Its robust engine ensures reliable cutting power and easily manages thick grass and stubborn weeds. The lightweight design enhances maneuverability, while the ergonomic handle provides added comfort. Keep your lawn looking pristine with the Ryobi 775r.

Why Choose Us for Ryobi 775r 41BD775A034 Gas String Trimmer Parts?

At PartsWarehouse, we specialize in supplying high-quality OEM parts for the Ryobi 775r Gas String Trimmer. Trust us for reliable components that keep your equipment running smoothly.
