Ryobi 775r 41AD775A734 Gas String Trimmer

Model: 775r 41AD775A734 41AD775A734 775r

Back To Assemblies


product name

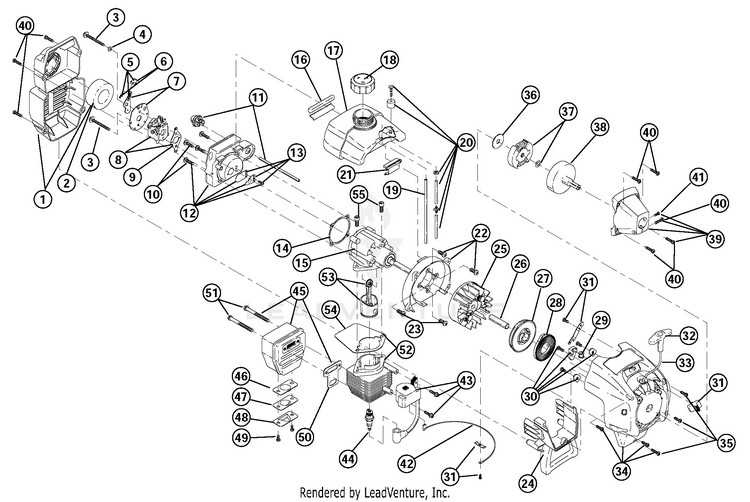

Engine Parts

...
...
1
COVER ASSEMBLY (includes 2 & 40) MTD-753-04105

...
2
Air Cleaner Filter MTD-791-180350B

...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351

...
4
SPRING WASHER .317 X .625 X .020 MTD-936-0271

...
5
CHOKE LEVER ASSEMBLY:W/ (includes 6) MTD-753-04418

...
6
ASSEMBLY, CHOKE KNOB & MTD-791-182202

...
7
PLATE ASSEMBLY:CHOKE:WV (includes 5) MTD-753-04419

...
8
CARBURETOR ASSEMBLY (includes 9 & 20) MTD-753-04106

...
9
CARBURETOR GASKET MTD-791P610675

...
10
SCREW, 10-24X.75 T-2 MTD-791-181860

...
11
Primer and Hose Assembly MTD-791-683974B

...
12
CARBURETOR MOUNT ASSEMBLY (includes 10, 13 & 14) MTD-753-1196

...
13
REED VALVE ASSEMBLY MTD-791-684451

...
14
Carburetor Mount Gasket MTD-753-1208

...
15
CRANKCASE SVC ASSEMBLY (includes 10 & 23) MTD-753-04108

...
16
PAD, REAR MOUNT PAD MTD-791-612134

...
17
TANK ASSEMBLY:B (includes 18-20) MTD-753-04311

...
18
Fuel Tank Cap MTD-791-182612

...
19
Fuel Return Line MTD-791-181086

...
20
Fuel Line Assembly MTD-791-682039

...
21
PAD, FRONT MOUNTING MTD-791-145308

...
22
ASSEMBLY, SHROUD ASSEMB MTD-791-153520

...
23
SCREW, 1/4-20X.562 F MTD-791-181861

...
24
EXTN-SHROUD W/STAN MTD-753-04611

...
25
Flywheel Assembly MTD-753-05240

...
26

...
27
START PULLEY KIT MTD-753-04232

...
28
Recoil Spring MTD-791-613102

...
29
Rope Guide MTD-791-611061

...
30
ASSEMBLY, PULLEY RETAIN MTD-791-181441

...
31
SWITCH ASSEMBLY MTD-791-181442

...
32
Pull Handle MTD-631-04164B


...
34
STARTER HOUSING ASSEMBLY (includes 27-33 & 35) MTD-791-181443

...
35
SCREW:10-32X.5 MTD-1964

...
36

...
37
Clutch Rotor Assembly MTD-791-181445

...
38
Clutch Drum Assembly MTD-791-153592

...
39
ASM-CLUTCH COVER NLAUD MTD-753-04889

...
40
Cover Screw MTD-791-181345

...
41
Anti-Rotation Screw MTD-791-182519

...
42
LEAD, WIRE IDC 500 MTD-791-180036

...
43
MODULE ASSEMBLY PULSE CARBURETOR MTD-753-04109

...
44
Spark Plug MTD-791-610311B

...
45
MUFFLER ASSEMBLY WITH GASKET (includes 46-51) MTD-753-04110

...
46
SCREEN-SPARK AR MTD-753-04312

...
47
MUFFLER ASSEMBLY MTD-753-04313

...
48
MUFFLER ASSEMBLY MTD-753-04314

...
49
MUFFLER ASSEMBLY MTD-753-04315

...
50
Muffler Gasket MTD-753-04619

...
51
ASSEMBLY, MUFFLER MOUNTING BOLTS MTD-791-147575

...
52
Cylinder Assembly (includes 51 & 52) (includes 54-55) MTD-753-04814

...
53
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367

...
54
Cylinder Gasket MTD-753-04182

...
55
Cylinder Bolt MTD-791-182723

...
xx
MUFFLER ASSEMBLY Item not shown MTD-753-04121

...
xx
O.E.M. Carburetor Repair Kit Item not shown MTD-791-180090

...
xx
Gasket Diaphragm Repair Kit Item not shown MTD-791-180091

...
xx
Piston Ring Item not shown MTD-753-1209

...
xx
SHORTBLOCK:31CC:CLU:CAR (includes 10, 15, 23, 44, 52-55); Item not shown MTD-753-04112

...
xx
Clutch Springs (Qty. 2) Item not shown MTD-791-181599

The Ryobi 775r Gas String Trimmer is built for durability and efficiency in lawn care. Its powerful engine provides reliable cutting capabilities, allowing you to tackle tough grass and weeds with ease. The lightweight design enhances maneuverability, while the ergonomic handle ensures comfort during prolonged use.

Why Choose Us for Ryobi 775r 41AD775A734 Gas String Trimmer Parts?

At PartsWarehouse, we specialize in supplying high-quality OEM parts for the Ryobi 775r Gas String Trimmer. Trust us to provide the parts you need to keep your equipment running smoothly.
