Ryobi 767r 41CD767G034 (2004) Gas String Trimmer

Model: 767r 41CD767G034 41CD767G034 767r (2004)

Save Part Not Listed?
product name

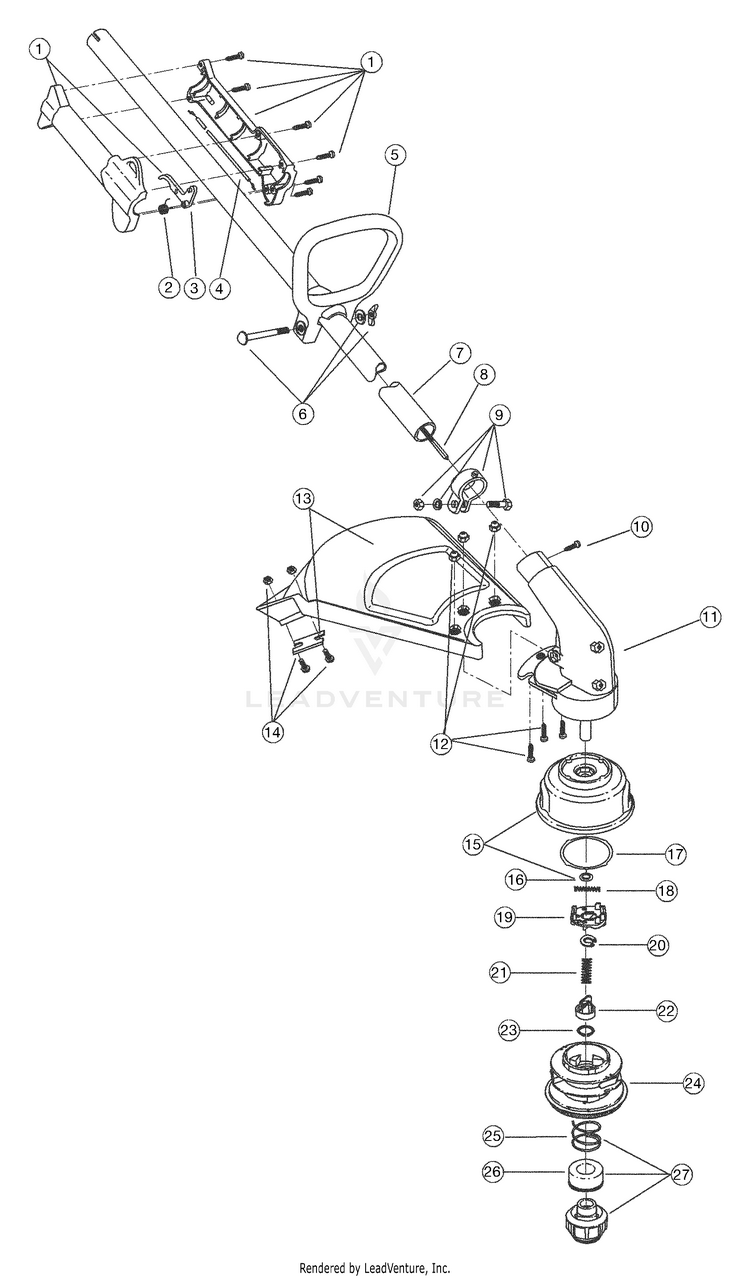

Boom And Trimmer Parts

...
...
1
THROT GRIP ASSEMBLY:WLOOP (Incl. Ref No. 2 & 3) MTD-753-04294
...
2
Throttle Trigger Spring MTD-791-610314
...
3
THROTTLE TRIGGERYDMN YE MTD-753-04295
...
4
Throttle Cable Assembly MTD-791-182068
...
5
D-HANDLE AND HARDWARE (Incl. Ref No. 6) MTD-791-153064
...
6
D-Handle Hardware MTD-791-181587
...
7
ASSEMBLY:DRSHF:HOUSING:STEERING MTD-791-181569
...
8
Flexible Drive Shaft MTD-753-04117
...
9
CLAMP ASSEMBLY-LOWER MTD-791-153597
...
10
Anti-Rotation Screw MTD-791-145569
...
11
SPEED SPOOL GEARBOX ASSEMBLY MTD-791-181566
...
12
ASSEMBLY, GUARD MOUNTING SCREWS MTD-791-180547
...
13
ASSEMBLY, GUARD AND BLADE (Incl. Ref No. 14) MTD-791-180548
...
14
Blade Assembly MTD-791-180553
...
15
Outer Spool and Eyelet Assembly (Incl. Ref No. 16) MTD-791-181457
...
16
Retainer MTD-791-181458
...
17
Thrust Washer MTD-791-181561
...
18
SPRING, SPEED SPOOL S MTD-791-181459
...
19
Slider MTD-753-04257
...
20
E-Clip MTD-791-181532
...
21
SPRING, PLUNGER MTD-791-181531
...
22
PLUNGER, SPEED SPO MTD-791-181462
...
23
C-CLIP MTD-791-181463
...
24
Reel and Line Assembly MTD-791-181460B
...
25
Large Spring MTD-791-181465B
...
26
SEAL, SPEED SPOOL MTD-791-181467
...
27
BUMP HEAD KNOB ASSEMBLY (Incl. Ref No. 25 & 26)) MTD-791-181468B
...
xx
Reel and Line Assembly Optional Accessory;Item Not Shown MTD-791-181460B
...
xx
Shoulder Strap Assembly Optional Accessory;Item Not Shown MTD-791-682075B
...
xx
OIL-2 CYCL Optional Accessory;Item Not Shown MTD-147543R
...
xx
Bump Head Assembly Optional Accessory;Item Not Shown MTD-791-180897B

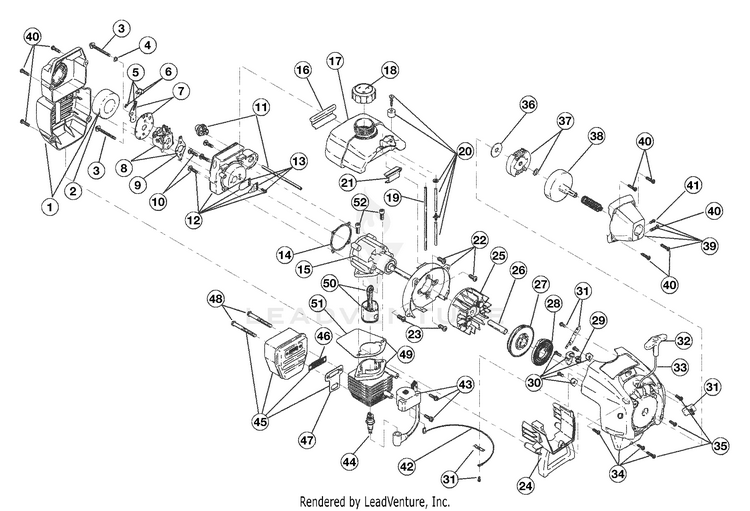

Engine Parts

...
...
1
Air Cleaner Cover Assembly (includes 2 & 38) (includes 2 & 40) MTD-753-04511
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
4
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
5
CHOKE LEVER ASSEMBLY:W/ (includes 6) MTD-753-04418
...
6
ASSEMBLY, CHOKE KNOB & MTD-791-182202
...
7
CHOKE LEVER ASSEMBLY:W/ (includes 5) MTD-753-04418
...
8
CARB ASSEMBLY A-SERIES (includes 9 & 20) MTD-791-182875
...
9
CARBURETOR GASKET MTD-791P610675
...
10
SCREW, 10-24X.75 T-2 MTD-791-181860
...
11
Primer and Hose Assembly MTD-791-683974B
...
12
CARBURETOR MOUNT ASSEMBLY (includes 10 & 13) MTD-753-1196
...
13
REED VALVE ASSEMBLY MTD-791-684451
...
14
Carburetor Mount Gasket MTD-753-1208
...
15
ASSEMBLY, CRANK (includes 10 & 23) MTD-791-182791
...
16
PAD, REAR MOUNT PAD MTD-791-612134
...
17
TANK ASSEMBLY:B (includes 18-20) MTD-753-04311
...
18
Fuel Tank Cap MTD-791-182612
...
19
Fuel Return Line MTD-791-181086
...
20
Fuel Line Assembly MTD-791-682039
...
21
PAD, FRONT MOUNTING MTD-791-145308
...
22
ASSEMBLY, SHROUD ASSEMB (includes 23) MTD-791-153520
...
23
SCREW, 1/4-20X.562 F MTD-791-181861
...
24
EXTN-SHROUD W/STAN (includes 40) MTD-753-04611
...
25
Flywheel Assembly MTD-753-05240
...
26
SPACER MTD-791-181065
...
27
START PULLEY KIT MTD-753-04232
...
28
Recoil Spring MTD-791-613102
...
29
Rope Guide MTD-791-611061
...
30
ASSEMBLY, PULLEY RETAIN MTD-791-181441
...
31
SWITCH ASSEMBLY MTD-791-181442
...
32
Pull Handle MTD-631-04164B
...
33
Rope MTD-791-613103
...
34
STARTER HOUSING ASSEMBLY (includes 27-33, 35 & 40) MTD-791-181443
...
35
SCREW:10-32X.5 MTD-1964
...
36
Washer MTD-9162-1
...
37
Clutch Rotor Assembly MTD-791-181445
...
38
Clutch Drum Assembly MTD-791-153592
...
39
ASM-CLUTCH COVER NLAUD (includes 40 & 41) MTD-753-04889
...
40
Screw MTD-791-181345
...
41
Anti-Rotation Screw MTD-791-182519
...
42
LEAD, WIRE IDC 500 MTD-791-180036
...
43
IGNITION MODULE ASSEMBLY MTD-753-04125
...
44
Spark Plug MTD-791-610311B
...
45
MUFFLER ASM CAT NLAUD (includes 46-48) MTD-753-05169
...
46
SCRN:SPK ARST:A-31 MTD-791-182747
...
47
Muffler Gasket MTD-753-04619
...
48
ASSEMBLY, MUFFLER MOUNTING BOLTS MTD-791-147575
...
49
Cylinder Assembly (includes 51 & 52) (includes 51 & 52) MTD-753-04814
...
50
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
51
GASKET:CYL:HTSHLD:EP MTD-753-1197
...
52
Cylinder Bolt MTD-791-182723
...
xx
ENGINE GASKET KIT Item Not Shown MTD-753-04134
...
xx
O.E.M. Carburetor Repair Kit Item Not Shown MTD-791-180090
...
xx
Gasket Diaphragm Repair Kit Item Not Shown MTD-791-180091
...
xx
Piston Ring Item Not Shown MTD-753-1209
...
xx
SHORT BLOCK ASSEMBLY (includes 10, 15, 23, 44, 49-52) Item Not Shown MTD-753-1210
...
xx
Clutch Springs Item Not Shown MTD-791-181599

The Ryobi 767r Gas String Trimmer is built for performance and durability. Featuring a powerful engine, this trimmer efficiently handles thick grass and weeds. The lightweight design ensures easy maneuverability, while the ergonomic handle enhances comfort for extended use. Keep your lawn in pristine condition with the Ryobi 767r.
